The AD7621 is a 16-bit, 3 MSPS, charge redistribution SAR, fully differential analog-to-digital converter that operates from a single 2.5 V power supply. The part contains a high-speed 16-bit sampling ADC, an internal conversion clock, an internal reference buffer, error correction circuits, and both serial and parallel system interface ports. It features a very high sampling rate mode (Wideband Warp) for undersampling applications and, for asynchronous conversion rate applications, a fast mode (Normal) and, for low power applications, a reduced power mode (Impulse) where the power is scaled with the throughput. Operation is specified from −40°C to +85°C.It is available in a 48-lead LQFP or a 48-lead LFCSP with operation specified from –40°C to +85°C.PRODUCT HIGHLIGHTSFast Throughput.The AD7621 is a 3 MSPS, charge redistribution, 16-bit SAR ADC.Superior Linearity.The AD7621 has no missing 16-bit code.Internal Reference.The AD7621 has a 2.048 V internal reference with a typical drift of ±7 ppm/°C.Single-Supply Operation.The AD7621 operates from a 2.5 V single supply and typically dissipates 65 mW. In impulse mode, its power dissipation decreases with the throughput.Serial or Parallel Interface.Versatile parallel (16- or 8-bit bus) or 2-wire serial interface arrangement compatible with 2.5 V, 3.3 V, or 5 V logic.APPLICATIONSMedical instrumentsHigh speed data acquisitionDigital signal processingCommunicationsInstrumentationSpectrum analysisATE

The AD7623 is a 16-bit, 1.33 MSPS, charge redistribution SAR, fully differential analog-to-digital converter (ADC) that operates from a single 2.5 V power supply. It contains a high speed 16-bit sampling ADC, an internal conversion clock, an internal reference (and buffer), error correction circuits, and both serial and parallel system interface ports. Power consumption is automatically scaled with throughput, making it ideal for battery-powered applications. It is available in 48-lead, low profile quad flat package (LQFP) and a lead frame chip-scale (LFCSP_VQ) package. Operation is specified from −40°C to +85°C.PRODUCT HIGHLIGHTSFast Throughput: The AD7623 is a 1.33 MSPS, charge redistribution, 16-bit SAR ADC.Superior Linearity: The AD7623 has no missing 16-bit code.Internal Reference: The AD7623 has a 2.048 V internal reference with a typical drift of ±7 ppm/°C.Single-Supply Operation: The AD7623 operates from a 2.5 V single supply and typically dissipates 45 mW. Its power dissipation decreases with the throughput.Serial or Parallel Interface: Versatile parallel (16- or 8-bit bus) or 2-wire serial interface arrangement compatible with 2.5 V, 3.3 V, or 5 V logic.APPLICATIONSMedical instrumentsHigh speed data acquisitionDigital signal processingCommunicationsInstrumentationSpectrum analysisATE

The AD7628 is a monolithic dual 8-bit digital/analog converter featuring excellent DAC-to-DAC matching. It is available in small 0.3" wide 20-pin DIPs and in 20-terminal surface mount packages.Separate on-chip latches are provided for each DAC to allow easy microprocessor interface.Data is transferred into either of the two DAC data latches via a common 8-bit TTL/CMOS compatible input port. Control input DAC A/DAC B determines which DAC is to be loaded. The AD7628's load cycle is similar to the write cycle of a random access memory, and the device is bus compatible with most 8-bit microprocessors, including 6502, 6809, 8085, Z80.The device operates from a +12 V to +15 V power supply and is TTL-compatible over this range. Power dissipation is a low 20 mW.Both DACs offer excellent four quadrant multiplication characteristics with a separate reference input and feedback resistor for each DAC.APPLICATIONSDisk DrivesProgrammable FiltersX-Y GraphicsGain/Attenuation

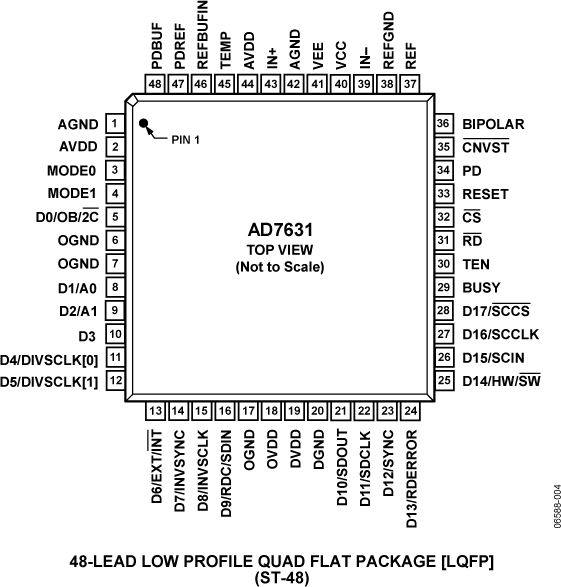

The AD7631 is an 18-bit, charge redistribution, successive approximation register (SAR), architecture analog-to-digital converter (ADC) fabricated on Analog Devices, Inc.’siCMOS high voltage process. The device is configured through hardware or via a dedicated write-only serial configuration port for input range and operating mode. The AD7631 contains a high speed 18-bit sampling ADC, an internal conversion clock, an internal reference (and buffer), error correction circuits, and both serial and parallel system interface ports. A falling edge onCNVSTsamples the fully differential analog inputs on IN+ and IN−. The AD7631 features four different analog input ranges. Power is scaled linearly with throughput. Operation is specified from −40°C to +85°C.APPLICATIONSProcess controlsHigh speed data acquisitionDigital signal processingSpectrum analysisATE

The AD7634 is an 18-bit charge redistribution successive approximation register (SAR), architecture analog-to-digital converter (ADC) fabricated on Analog Devices, Inc.’siCMOS high voltage process. The device is configured through hardware or via a dedicated write-only serial configuration port for input range and operating mode. The AD7634 contains a high speed 18-bit sampling ADC, an internal conversion clock, an internal reference (and buffer), error correction circuits, and both serial and parallel system interface ports. A falling edge onCNVSTsamples the fully differential analog inputs on IN+ and IN−. The AD7634 features four different analog input ranges and three different sampling modes. Operation is specified from −40°C to +85°C.APPLICATIONSCT scannersHigh dynamic data acquisitionΣ-Δ replacementSpectrum analysisMedical instrumentsInstrumentationProcess controls

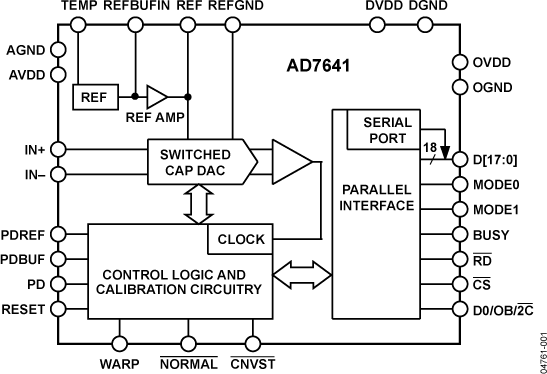

The AD7641 is a 18-bit, 2 MSPS, charge redistribution SAR, fully differential analog-to-digital converter that operates from a single 2.5 V power supply. The part contains a high-speed 18-bit sampling ADC, an internal conversion clock, an internal reference buffer, error correction circuits, and both serial and parallel system interface ports. It features a very high sampling rate mode (Warp) and a fast mode (Normal) for asynchronous conversion rate applications.The AD7641 is hardware factory calibrated and comprehensively tested to ensure ac parameters such as signal-to-noise ratio (SNR) and total harmonic distortion (THD) in addition to the more traditional dc parameters of gain, offset and linearity.Operation is specified from −40°C to +85°C.PRODUCT HIGHLIGHTSFast Throughput.The AD7641 is a 2 MSPS, charge redistribution, 18-bit SAR ADC.Superior Linearity.The AD7641 has no missing 18-bit code.Internal Reference.The AD7641 has a 2.048 V internal reference with a typical drift of ±10 ppm/°C and an on-chip TEMP sensor.Single-Supply Operation.The AD7641 operates from a 2.5 V single supply.Serial or Parallel Interface.Versatile parallel (16- or 8-bit bus) or 2-wire serial interface arrangement compatible with 2.5 V, 3.3 V, or 5 V logic.APPLICATIONSMedical instrumentsHigh dynamic data acquisitionInstrumentationSpectrum analysisATE
