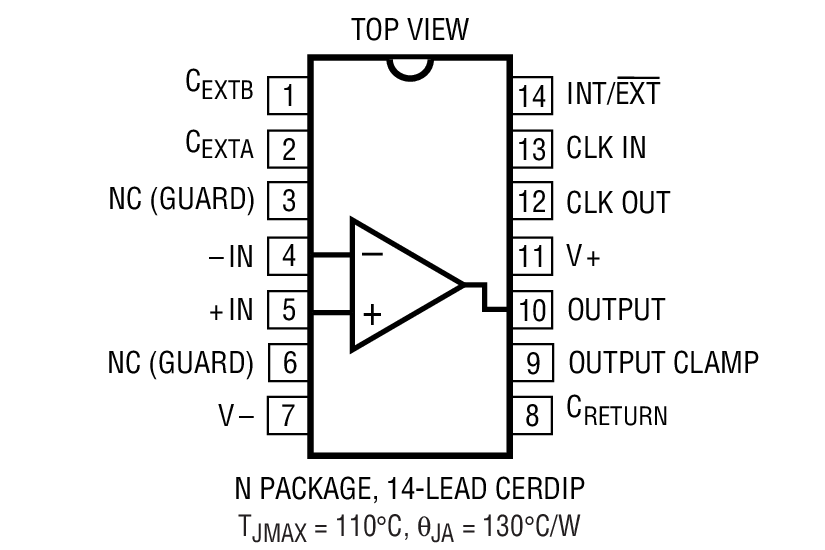

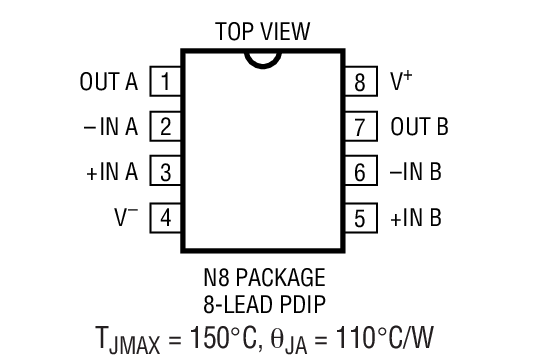

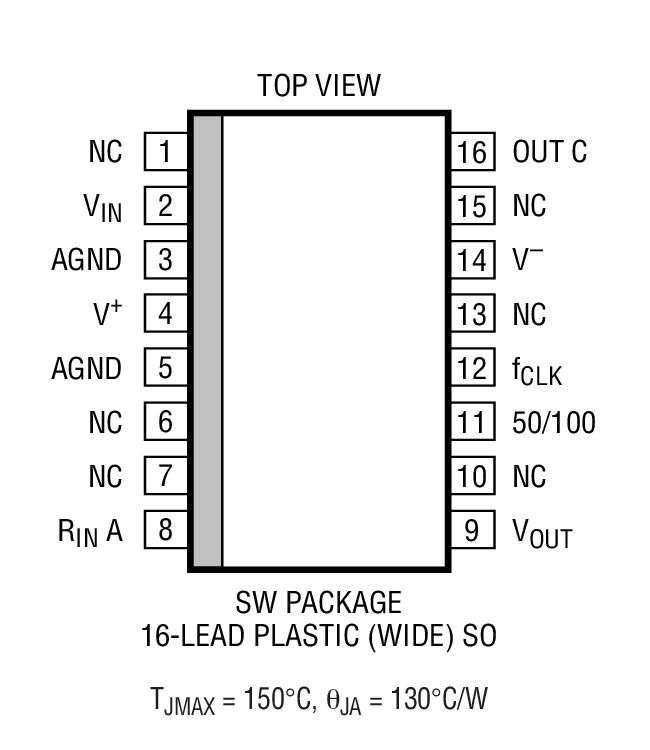

| Amplifiers | 4 | Active | |
| Amplifiers | 1 | Active | |
LTC1059High Performance Switched Capacitor Universal Filter | Filters - Active | 3 | Active | The LTC1059 consists of a general purpose, high performance, active filter building block and an uncommitted op amp. The filter building block together with an external clock and 2 to 5 resistors can produce various 2nd order functions which are available at its three output pins. Two out of three always provide lowpass and bandpass functions while the third output pin can produce notch or highpass or allpass. The center frequency of these functions can be tuned from 0.1Hz to 40kHz and is dependent on an external clock or an external clock and a resistor ratio. The filter can handle input frequencies up to 100kHz. The uncommitted op amp can be used to obtain additional allpass and notch functions, for gain adjustment or for cascading techniques.Higher than 2nd order filter functions can be obtained by cascading the LTC1059 with the LTC1060 dual universal filter or the LTC1061 triple universal filter. Any classical filter realization (such as Butterworth, Cauer, Bessel and Chebyshev) can be formed.The LTC1059 can be operated with single or dual supplies ranging from ±2.37V to ±8V (or 4.74V to 16V single supply).The LTC1059 is manufactured by using an enhanced LTCMOS™silicon gate process.ApplicationsSinewave OscillatorsSweepable Bandpass/Notch FiltersFull Audio Frequency FiltersTracking Filters |
LTC1060Universal Dual Filter Building Block | Filters - Active | 4 | Active | The LTC1060 consists of two high performance, switched capacitor filters. Each filter, together with 2 to 5 resistors, can produce various 2nd order filter functions such as lowpass, bandpass, highpass notch and allpass. The center frequency of these functions can be tuned by an external clock or by an external clock and resistor ratio. Up to 4th order full biquadratic functions can be achieved by cascading the two filter blocks. Any of the classical filter configurations (like Butterworth, Chebyshev, Bessel, Cauer) can be formed.The LTC1060 operates with either a single or dual supply from ±2.37V to ±8V. When used with low supply (i.e. single 5V supply), the filter typically consumes 12mW and can operate with center frequencies up to 10kHz. With ±5V supply, the frequency range extends to 30kHz and very high Q values can also be obtained.The LTC1060 is manufactured by using an enhanced LTCMOS™silicon gate process. Because of this, low offsets, high dynamic range, high center frequency Q product and excellent temperature stability are obtained.The LTC1060 is pinout compatible with MF10.ApplicationsSingle 5V Supply Medium Frequency FiltersVery High Q and High Dynamic Range Bandpass, Notch FiltersTracking FiltersTelecom Filters |
LTC1061High Performance Triple Universal Filter Building Block | Filters - Active | 4 | Active | The LTC1061 consists of three high performance, universal filter building blocks. Each filter building block together with an external clock and 2 to 5 resistors can produce various second order functions which are available at its three output pins. Two out of three always provide lowpass and bandpass functions while the third output pin can produce highpass or notch or allpass. The center frequency of these functions can be tuned from 0.1Hz to 35kHz and is dependent on an external clock or an external clock and a resistor ratio.The LTC1061 can be used with single or dual supplies ranging from ±2.37V to ±8V (or 4.74V to 16V). When the filter operates with supplies of ±5V and above, it can handle input frequencies up to 100kHz.The LTC1061 is compatible with the LTC1059 single universal filter and the LTC1060 dual. Higher than 6th order functions can be obtained by cascading the LTC1061 with the LTC1059 or LTC1060. Any classical filter realization can be obtained.ApplicationsHigh Order, Wide Frequency Range Bandpass, Lowpass, Notch FiltersLow Power Consumption, Single 5V Supply, Clock-Tunable FiltersTracking FiltersAntialiasing Filters |
| Filters - Active | 3 | Active | The LTC1062 is a 5th order all pole maximally flat lowpass filter with no DC error. Its unusual architecture puts the filter outside the DC path so DC offset and low frequency noise problems are eliminated. This makes the LTC1062 very useful for lowpass filters where DC accuracy is important.The filter input and output are simultaneously taken across an external resistor. The LTC1062 is coupled to the signal through an external capacitor. This RC reacts with the internal switched capacitor network to form a 5th order rolloff at the output.The filter cutoff frequency is set by an internal clock that can be externally driven. The clock-to-cutoff frequency ratio is typically 100:1, allowing the clock ripple to be easily removed.Two LTC1062s can be cascaded to form a 10th order quasi max flat lowpass filter. The device can be operated with single or dual supplies ranging from ±2.5V to ±9V.The LTC1062 is manufactured using an enhanced LTCMOS™silicon gate process.Applications60Hz Lowpass FiltersAnti-Aliasing FilterLow Level FilteringRolling Off AC Signals from High DC VoltagesDigital VoltmetersScalesStrain Gauges |
LTC1063DC Accurate, Clock-Tunable 5th Order Butterworth Lowpass Filter | Integrated Circuits (ICs) | 3 | Active | The LTC1063 is the first monolithic filter providing both clock-tunability, low DC output offset and over 12-bit DC accuracy. The frequency response of the LTC1063 closely approximates a 5th order Butterworth polynomial. With appropriate PCB layout techniques the output DC offset is typically 1mV and is constant over a wide range of clock frequencies. With ±5V supplies and ±4V input voltage range, the CMR of the device is 80dB.The filter cutoff frequency is controlled either by an internal or external clock. The clock-to-cut off frequency ratio is 100:1. The on-board clock is power supply independent, and it is programmed via an external RC. The 50µVRMSclock feed through is considerably reduced over existing monolithic filters.The LTC1063 wideband noise is 95µVRMS, and it can process large AC input signals with low distortion. With ±7.5V supplies, for instance, the filter handles up to 4VRMS(92dB S/N ratio) while the standard 1kHz THD is below 0.02%; 80dB dynamic ranges (S/N +THD) is ob-tained with input levels between 1VRMSand 2.3VRMS.The LTC1063 is available in 8-pin miniDIP and 16-pin SO wide packages. For a linear phase response, see LTC1065 data sheet.ApplicationsAudioStrain Gauge AmplifiersAnti-Aliasing FiltersLow Level FilteringDigital Voltmeters60Hz Lowpass FiltersSmoothing FiltersReconstruction Filters |
LTC1064Low Noise, High Frequency, 8th Order Linear Phase Lowpass Filter | Interface | 11 | Active | The LTC1064-4 is an 8th order, clock sweepable Cauer lowpass switched capacitor filter. An external TTL or CMOS clock programs the value of the filters cutoff frequency. With Pin 10 at V+, the fCLKto fCUTOFFratio is 50:1; the filter has a Cauer response and with compensation the passband ripple is ±0.1dB. The stopband attenuation is 80dB at 2 × fCUTOFF. Cutoff frequencies up to 100kHz can be achieved. With Pin 10 at V-, the fCLKto f-3dBratio is 100:1, the filter has a transitional Butterworth-Cauer response with lower noise and lower delay nonlinearity than the Cauer response. The stopband attenuation at 2.5 × f-3dBis 92dB. Cutoff frequencies up to 50kHz can be achieved.The LTC1064-4 features low noise and low harmonic distortion even when input voltages up to 3VRMSare applied. The LTC1064-4 overall performance competes with equivalent multiple op amp active realizations. The LTC1064-4 is pin compatible with the LTC1064-1, LTC1064-2 and LTC1064-3.The LTC1064-4 is manufactured using our enhanced LTCMOSTMsilicon gate process.ApplicationsAntialiasing FiltersTelecom FiltersSinewave Generators |

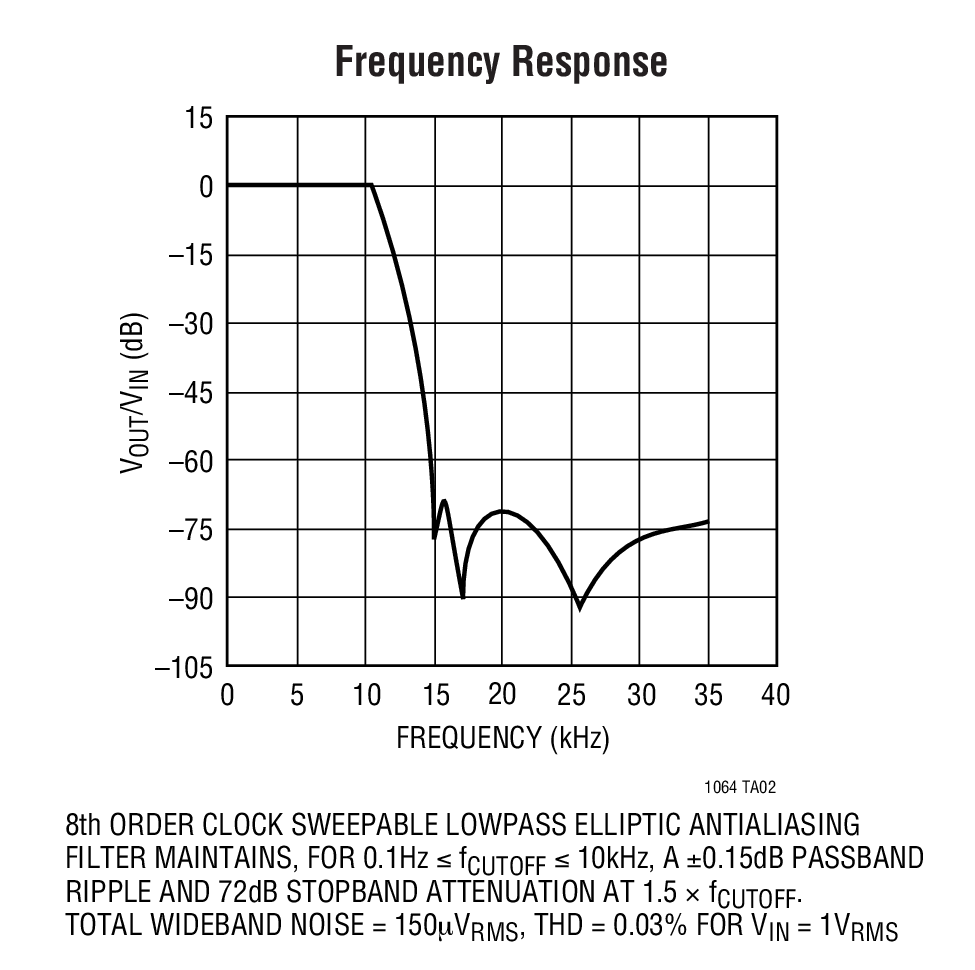

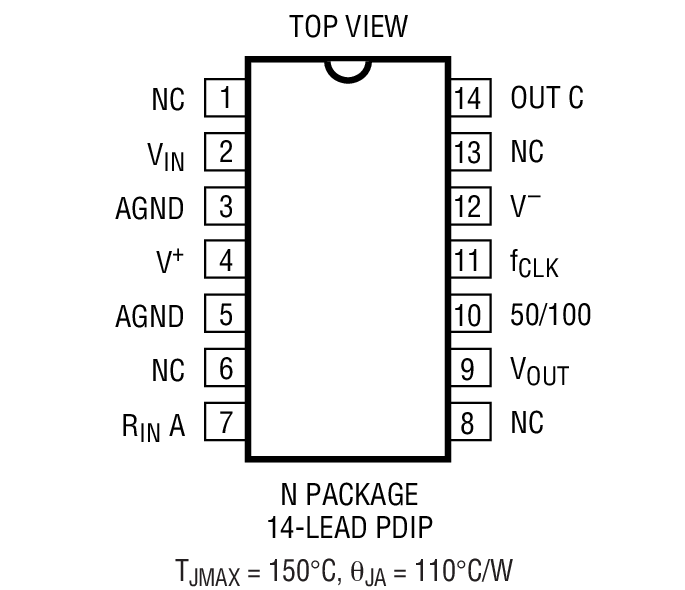

LTC1064-1Low Noise, 8th Order, Clock Sweepable Elliptic Lowpass Filter | Interface | 2 | Active | The LTC1064-1 is an 8th order, clock sweepable elliptic (Cauer) lowpass switched capacitor filter. The passband ripple is typically ±0.15dB, and the stopband attenuation at 1.5 times the cutoff frequency is 68dB or more.An external TTL or CMOS clock programs the value of the filter's cutoff frequency. The clock to cutoff frequency ratio is 100:1.No external components are needed for cutoff frequencies up to 20kHz. For cutoff frequencies over 20kHz two low value capacitors are required to maintain passband flatness. The LTC1064-1 features low wideband noise and low harmonic distortion even for input voltages up to 3VRMS. In fact the LTC1064-1 overall performance completes with equivalent multiple op amp RC active realizations.The LTC1064-1 is available in a 14-pin DIP or 16-pin surface mounted SW package.The LTC1064-1 is pin compatible with the LTC1064-2.ApplicationsAntialiasing FiltersTelecom PCM Filters |
| Integrated Circuits (ICs) | 3 | Active | |
