| Specialized ICs | 3 | Active | |

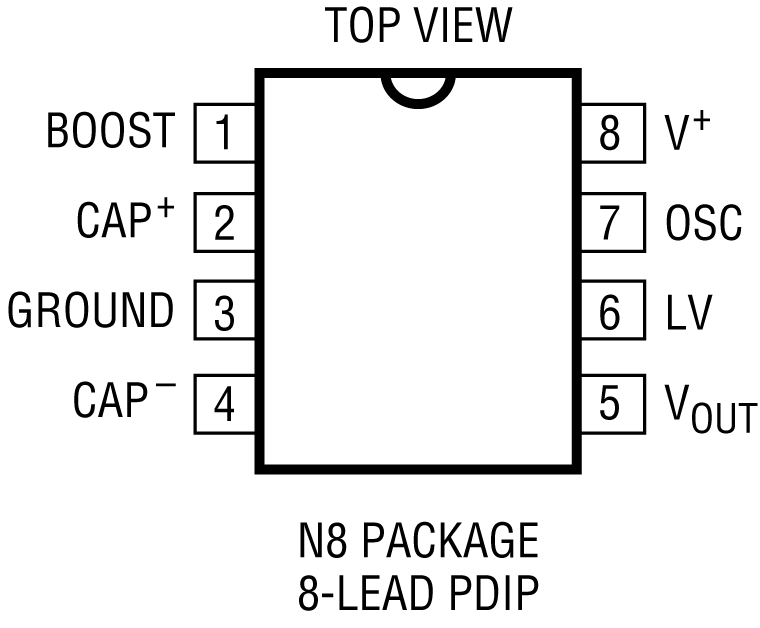

LTC1044Switched Capacitor Voltage Converter | Voltage Regulators - DC DC Switching Regulators | 2 | Active | The LTC1044 is a monolithic CMOS switched capacitor voltage converter which is manufactured using Analog Devices’ enhanced LTCMOS™silicon gate process. The LTC1044 provides several voltage conversion functions: the input voltage can be inverted (VOUT= –VIN), doubled (VOUT= 2VIN), divided (VOUT= VIN/2) or multiplied (VOUT= ± nVIN).Designed to be pin-for-pin and functionally compatible with the popular 7660, the LTC1044 provides significant features and improvements over earlier 7660 designs. These improvements include: full 1.5V to 9V supply operation over the entire operating temperature range, without the need for external protection diodes; two and one-half times lower quiescent current for greater power conversion efficiency; and a "boost" function which is available to raise the internal oscillator frequency to optimize performance in specific applications.Although the LTC1044 provides significant design and performance advantages over the earlier 7660 device, it still maintains its compatibility with existing 7660 designs.ApplicationsConversion of 5V to ±5V SuppliesPrecise Voltage Division, VOUT= VIN/2 ±20ppmVoltage Multiplication, VOUT= ±nVINSupply Splitter, VOUT= ±VS/2 |
| Power Management (PMIC) | 6 | Active | The LTC1044A is a monolithic CMOS switched-capacitor voltage converter. It plugs in for ICL7660/LTC1044 in applications where higher input voltage (up to 12V) is needed. The LTC1044A provides several conversion functions without using inductors. The input voltage can be inverted (VOUT= –VIN), doubled (VOUT= 2VIN), divided (VOUT= VIN/2) or multiplied (VOUT= ±nVIN).To optimize performance in specific applications, a boost function is available to raise the internal oscillator frequency by a factor of seven. Smaller external capacitors can be used in higher frequency operation to save board space. The internal oscillator can also be disabled to save power. The supply current drops to 1.5μA at 5V input when the OSC pin is tied to GND or V+.ApplicationsConversion of 10V to ±10V SuppliesConversion of 5V to ±5V SuppliesPrecise Voltage Division: VOUT= VIN/2 ±20ppmVoltage Multiplication: VOUT= ±nVINSupply Splitter: VOUT= ±VS/2Automotive ApplicationsBattery Systems with 9V Wall Adapters/Chargers |
LTC1044S8Switched Capacitor Voltage Converter | Integrated Circuits (ICs) | 2 | Active | The LTC1044 is a monolithic CMOS switched capacitor voltage converter which is manufactured using our enhanced LTCMOSTMsilicon gate process. The LTC1044 provides several voltage conversion functions: the input voltage can be inverted (VOUT=-VIN), doubled (VOUT=2 VIN), divided (VOUT=VIN/2) or multiplied (VOUT=±nVIN).Designed to be pin-for-pin and functionally compatible with the popular 7660, the LTC1044 provides significant features and improvements over earlier 7660 designs. These improvements include: full 1.5V to 9V supply operation over the entire operating temperature range, without the need for external protection diodes; 2½times lower quiescent current for greater power conversion efficiency; and a "boost" function which is available to raise the internal oscillator frequency to optimize performance in specific applications.Although the LTC1044 provides significant design and performance advantages over the earlier 7660 device, it still maintains its compatibility with existing 7660 designs.ApplicationsConversion of +5V to ±5V SuppliesPrecise Voltage Division, VOUT=VIN/2±20ppmVoltage Multiplication, VOUT=±nVINSupply Splitter, VOUT=±VS/2 |
| Logic | 4 | Active | |
| PMIC | 6 | Active | |

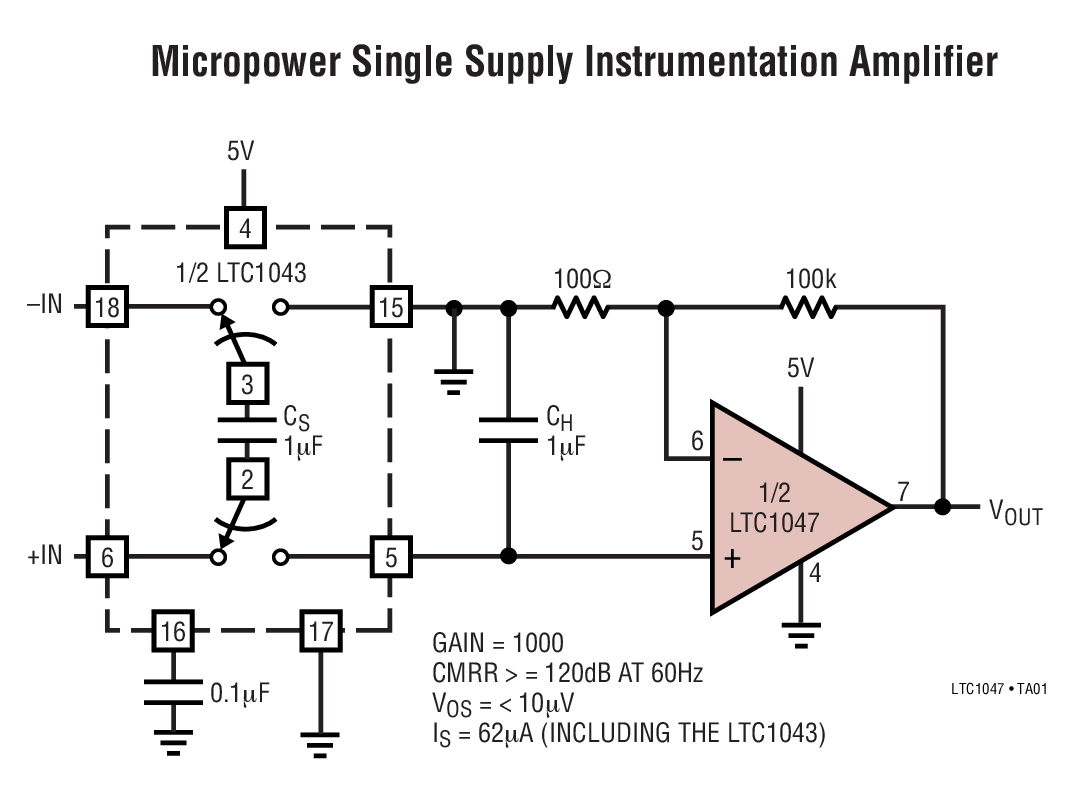

LTC1047Dual Micropower Zero-Drift Operational Amplifier with Internal Capacitors | Integrated Circuits (ICs) | 2 | Active | The LTC1047 is a micropower, high performance dual zero-drift operational amplifier. The sample-and-hold capacitors usually required by other chopper amplifiers are integrated on-chip, minimizing the need for external components.The LTC1047 has a typical offset voltage of 3µV, drift of 10nV/°C, input noise voltage typically 3.5µVP-P, and typical voltage gain of 150dB. The common mode rejection is 110dB minimum, with minimum power supply rejection of 105dB. The LTC1047 also offers a 0.2V/µs slew rate and a gain bandwidth product of 200kHz. Overload recovery time from saturation is 70ms, four times faster than chopper amplifiers with external capacitors.The LTC1047 is available in a standard plastic 8-pin PDIP as well as a 16-pin SW package. The LTC1047 is a plug-in replacement for most dual op amps with improved DC performance and substantial power savings.ApplicationsThermocouple AmplifiersElectronic ScalesBattery Powered InstrumentationStrain Gauge AmplifiersRemote Located Sensors |
LTC1049Low Power Zero-Drift Operational Amplifier with Internal Capacitors | Linear | 3 | Active | The LTC1049 is a high performance, low power zero-drift operational amplifier. The two sample-and-hold capacitors usually required externally by other chopper stabilized amplifiers are integrated on the chip. Further, the LTC1049 offers superior DC and AC performance with a nominal supply current of only 200µA.The LTC1049 has a typical offset voltage of 2µV, drift of 0.02µV/°C, 0.1Hz to 10Hz input noise voltage of 3µVP-Pand typical voltage gain of 160dB. The slew rate is 0.8V/µs with a gain bandwidth product of 0.8MHz.Overload recovery time from a saturation condition is 6ms, a significant improvement over chopper amplifiers using external capacitors.The LTC1049 is available in a standard 8-pin plastic dual in line, as well as an 8-pin SO package. The LTC1049 can be a plug-in replacement for most standard op amps with improved DC performance and substantial power savings.Applications4mA to 20mA Current LoopsThermocouple AmplifiersElectronic ScalesMedical InstrumentationStrain Gauge AmplifiersHigh Resolution Data Acquisition |
| Linear | 4 | Active | |
| Linear | 5 | Active | |
