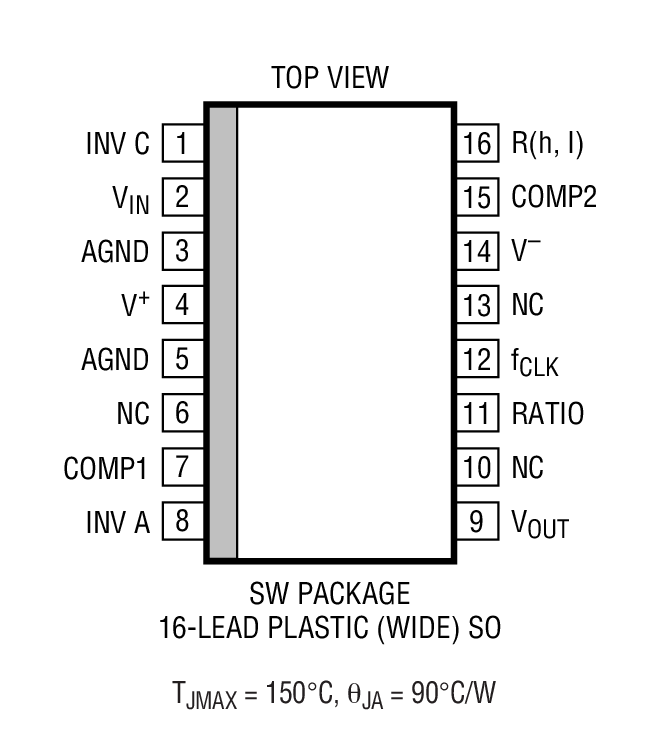

The LTC1064-4 is an 8th order, clock sweepable Cauer lowpass switched capacitor filter. An external TTL or CMOS clock programs the value of the filters cutoff frequency. With Pin 10 at V+, the fCLKto fCUTOFFratio is 50:1; the filter has a Cauer response and with compensation the passband ripple is ±0.1dB. The stopband attenuation is 80dB at 2 × fCUTOFF. Cutoff frequencies up to 100kHz can be achieved. With Pin 10 at V-, the fCLKto f-3dBratio is 100:1, the filter has a transitional Butterworth-Cauer response with lower noise and lower delay nonlinearity than the Cauer response. The stopband attenuation at 2.5 × f-3dBis 92dB. Cutoff frequencies up to 50kHz can be achieved.The LTC1064-4 features low noise and low harmonic distortion even when input voltages up to 3VRMSare applied. The LTC1064-4 overall performance competes with equivalent multiple op amp active realizations. The LTC1064-4 is pin compatible with the LTC1064-1, LTC1064-2 and LTC1064-3.The LTC1064-4 is manufactured using our enhanced LTCMOSTMsilicon gate process.ApplicationsAntialiasing FiltersTelecom FiltersSinewave Generators

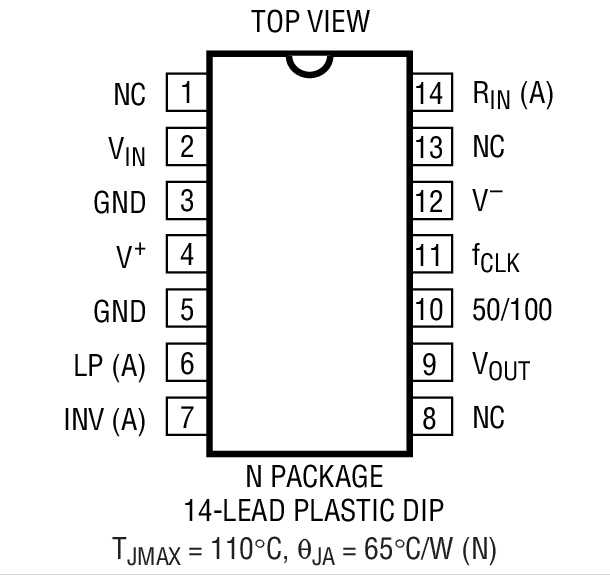

The LTC1064-7 is a clock-tunable monolithic 8th order lowpass filter with linear passband phase and flat group delay. The amplitude response approximates a maximally flat passband while it exhibits steeper roll-off than an equivalent 8th order Bessel filter. For instance, at twice the cutoff frequency the filter attains 34dB attenuation (vs 12dB for Bessel), while at three times the cutoff frequency, the filter attains 68dB attenuation (vs 30dB for Bessel). The cutoff frequency of the LTC1064-7 is tuned via an external TTL or CMOS clock.The LTC1064-7 features wide dynamic range. With single 5V supply, the S/N + THD is 76dB. Optimum 92dB S/N is obtained with ±7.5V supplies.The clock-to-cutoff frequency ratio of the LTC1064-7 can be set to 50:1 (pin 10 to V+) or 100:1 (pin 10 to V-).When the filter operates at clock-to-cutoff frequency ratio of 50:1, the input is double-sampled to lower the risk of aliasing.The LTC1064-7 is pin-compatible with the LTC1064-X series, LTC1164-7 and LTC1264-7.ApplicationsData Communication FiltersTime Delay NetworksPhase-Matched Filters

The LTC1067/LTC1067-50 consist of two identical rail-to-rail, high accuracy and very wide dynamic range 2nd order switched-capacitor building blocks. Each building block, together with three to five resistors, provides 2nd order filter functions such as bandpass, highpass, lowpass, notch and allpass. High precision 4th order filters are easily designed.The center frequency of each 2nd order section is tuned by the external clock frequency. The internal clock-to-center frequency ratio (100:1 for the LTC1067 and 50:1 for the LTC1067-50) can be modified by the external resistors. These devices have a double sampled architecture which places aliasing and imaging components at twice the clock frequency. The LTC1067-50 is a low power device consuming about one half the current of the LTC1067. The LTC1067-50’s typical supply current is about 1mA from a 3.3V supply.The LTC1067 and LTC1067-50 are available in 16-pin narrow SSOP and SO packages.Mask programmable versions of the LTC1067 and LTC1067-50, with thin film resistors on-chip and custom clock-to-cutoff frequency ratios, can be designed in an SO-8 package to realize application specific monolithic filters. Please contact LTC Marketing for more details.ApplicationsNotch FiltersNarrowband Bandpass FiltersTone DetectionNoise Reduction Systems

The LTC1069-7 is a monolithic, clock-tunable, linear phase, 8th order lowpass filter. The amplitude response of the filter approximates a raised cosine filter with an alpha of one. The gain at the cutoff frequency is –3dB and the attenuation at twice the cutoff frequency is 43dB. The cutoff frequency of the LTC1069-7 is set by an external clock and is equal to the clock frequency divided by 25. The ratio of the internal sampling frequency to the cutoff frequency is 50:1 that is, the input signal is sampled twice per clock cycle to lower the risk of aliasing. The LTC1069-7 can be operated from a single 5V supply up to dual ±5V supplies.The gain and phase response of the LTC1069-7 can be used in digital communication systems where pulse shaping and channel bandwidth limiting must be carried out. Any system that requires an analog filter with linear phase and sharper roll off than conventional Bessel filters can use the LTC1069-7.The LTC1069-7 has a wide dynamic range. With ±5V supplies and an input range of 0.1VRMSto 2VRMS, the signal-to-(noise + THD) ratio is ≥ 60dB. The wideband noise of the LTC1069-7 is 140μVRMS. Unlike other LTC1069-X filters,> the typical passband gain of the LTC1069-7 is equal to –1V/V.The LTC1069-7 is available in an SO-8 package.Other filter responses with lower power/speed specifications can be obtained. Please contact Analog Devices Marketing.ApplicationsDigital Communication FilterAntialiasing Filter with Linear PhaseSmoothing Filters

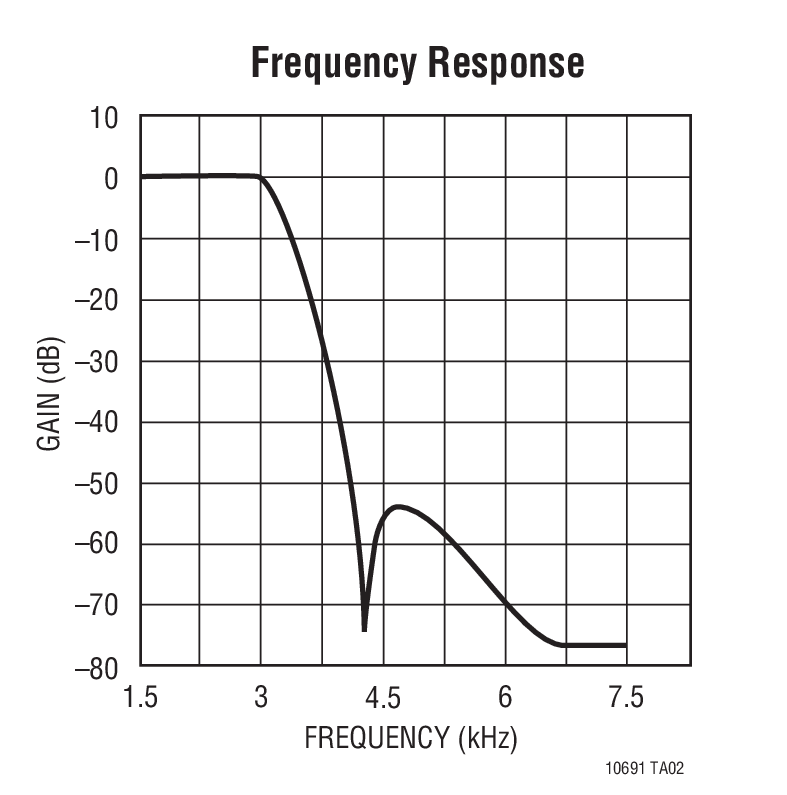

The LTC1069-1 is a monolithic 8th order lowpass filter featuring clock-tunable cutoff frequency and 2.5mA power supply current with a single 5V supply. An additional feature of the LTC1069-1 is operation with a single 3.3V supply.The cutoff frequency (fCUTOFF) of the LTC1069-1 is equal to the clock frequency divided by 100. The gain at fCUTOFFMis –0.7dB and the typical passband ripple is ±0.15dB up to 0.9fCUTOFF. The stopband attenuation of the LTC1069-1 features a progressive elliptic response reaching 20dB attenuation at 1.2fCUTOFF, 52dB attenuation at 1.4fCUTOFFand 70dB attenuation at 2fCUTOFF.With ±5V supplies, the LTC1069-1 cutoff frequency can be clock-tuned up to 12kHz; with a single 5V supply, the maximum cutoff frequency is 8kHz.The low power feature of the LTC1069-1 does not penalize the device’s dynamic range. With ±5V supplies and an input range of 0.3VRMSto 2.5VRMS, the signal-to-(noise + THD) ratio is ≥70dB. The wideband noise of the LTC1069-1 is 110μVRMS. Other filter responses with lower power or higher speed can be obtained. Please contact LTC marketing for details.The LTC1069-1 is available in 8-pin PDIP and 8-pin SO packages.ApplicationsTelecommunication FiltersAntialiasing Filters

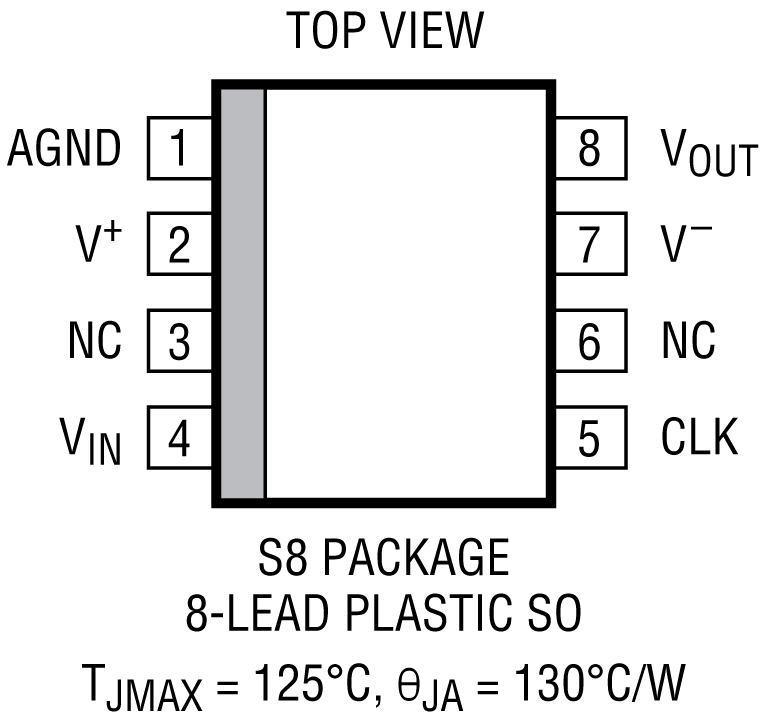

The LTC1069-6 is a monolithic low power, 8th order lowpass filter optimized for single 3V or single 5V supply operation. The LTC1069-6 typically consumes 1mA under single 3V supply operation and 1.2mA under 5V operation.The cutoff frequency of the LTC1069-6 is clock tunable and it is equal to the clock frequency divided by 50. The input signal is sampled twice per clock cycle to lower the risk of aliasing.The typical passband ripple is ± 0.1dB up to 0.9fCUTOFF. The gain at fCUTOFFis –0.7dB. The transition band of the LTC1069-6 features progressive attenuation reaching 42dB at 1.3fCUTOFFand 70dB at 2.1fCUTOFF. The maximum stopband attenuation is 72dB.The LTC1069-6 can be clock tuned for cutoff frequencies up to 20kHz (single 5V supply) and for cutoff frequencies up to 14kHz (single 3V supply).The low power feature of the LTC1069-6 does not penalize the device’s dynamic range. With single 5V supply and an input range of 0.4VRMSto 1.4VRMS, the Signal-to-(Noise + THD) ratio is ≥70dB. The wideband noise of the LTC1069-6 is 125μVRMS.Other filter responses with higher speed can be obtained. Please contact Analog Devices Marketing for details.The LTC1069-6 is available in an 8-pin SO package.APPLICATIONSHandheld InstrumentsTelecommunication FiltersAntialiasing FiltersSmoothing FiltersAudioMultimedia
