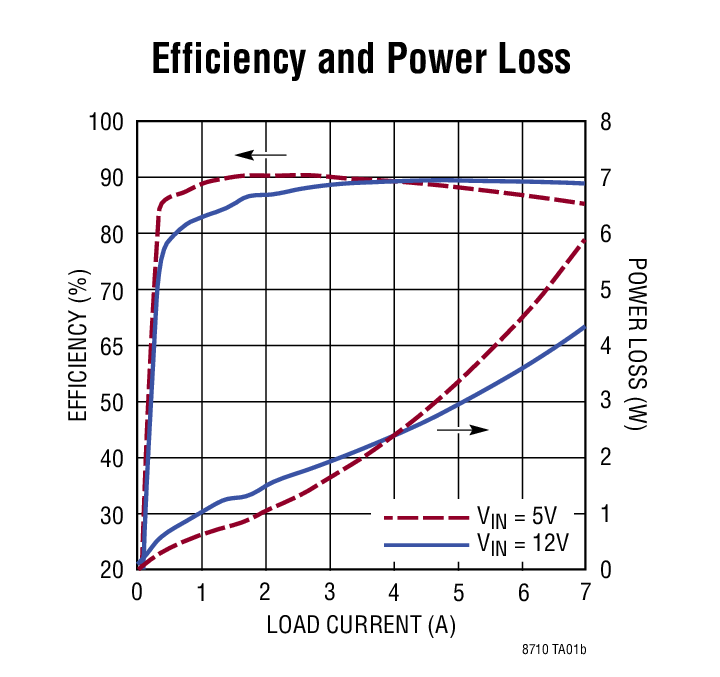

The LT8710 is a synchronous PWM DC/DC controller with a rail-to-rail output current monitor and control. The LT8710 is ideal for many types of power supply topologies and can be easily configured for boost, SEPIC, inverting, or flyback configurations.The LT8710’s rail-to-rail output current monitor and control allows the part to be configured in current limited applications such as battery charging. The FLAG pin can be used as a power good indication or C/10 indication allowing for accurate bulk and float battery voltages.The LT8710’s switching frequency range can be set between 100kHz and 750kHz using an external resistor or synchronized to an external clock.The LT8710 also features innovative EN/FBIN pin circuitry that allows for slowly varying input signals and an adjustable undervoltage lockout function. The pin is also used for input voltage regulation to avoid collapsing a high impedance input supply. Additional features such as frequency foldback and soft-start are integrated. The LT8710 is available in a 20-lead TSSOP package.ApplicationsHigh Power Local Power SupplyWide Input Voltage Range SEPIC/InvertingLead Acid Battery ChargerAutomotive Engine Control Unit (ECU) PowerSolar Panel Power Converter

The LT8722 is a high performance, high efficiency, monolithic full bridge DC/DC converter. One side of the full bridge is driven by a pulse width modulation (PWM) buck power stage, while the other side of the full bridge is driven by a linear power stage. The LT8722 can deliver up to ±54W1of power to its load while only requiring a single inductor. An integrated 25-bit digital-to-analog converter (DAC) is used to control the LT8722 output voltage. Two additional 9-bit DACs control the positive and negative output current limits. An analog output telemetry pin can be used to monitor SPI selectable parameters such as VIN, VOUT, IOUTor the LT8722 junction temperature. The serial peripheral interface (SPI) can be used to configure and control the LT8722 allowing for flexibility to set the desired output voltage, output current limits, voltage limits, switching frequency and control ON/OFF behavior. The SPI operates at up to 10MHz allowing for fast readback and control. The LT8722 operates from a single 3.1V to 15V supply. Silent Switcher techniques are used to minimize EMI/EMC emissions while delivering high efficiency at high switching frequencies. The LT8722 is available in a 3mm × 3mm LQFN package.1VTEC= ±13.5V/±4A with VIN= 15V, fSW= 1MHzAPPLICATIONSDriving a Thermo Electric Cooler (TEC) with Fine ControlTransmit Optical Sub-Assembly (TOSA) CoolingErbium Doped Fiber Amplifier (EDFA) Temperature RegulationPhotonic Integrated Circuit (PIC) CoolingLiDAR Mirror ControlMotor Control

The LT9890 is a high-precision current monitor with an internal current-sense element supporting up to 150 A of load current. Factory calibration of the current-sense element and a zero temperature coefficient architecture results in less than 1.3% total unadjusted error (TUE). A 26,600:1 input-to-output current ratio with a response bandwidth greater than 3 MHz provides a fast and accurate ground-referenced output signal while being insensitive to ground voltage variations. Minimal power loss is achieved through a low, 150 μΩ current-path resistance and an aspect ratio conducive to wide printed circuit board (PCB) traces. Input voltages from 2.7 V to 65 V are supported. The LT9890 is compatible with the Intel Psys (platform power) applications.ApplicationsComputers and network serversIntel central processing unit (CPU) motherboardsNetwork storageCommunication equipmentElectric vehiclesPhotovoltaics
