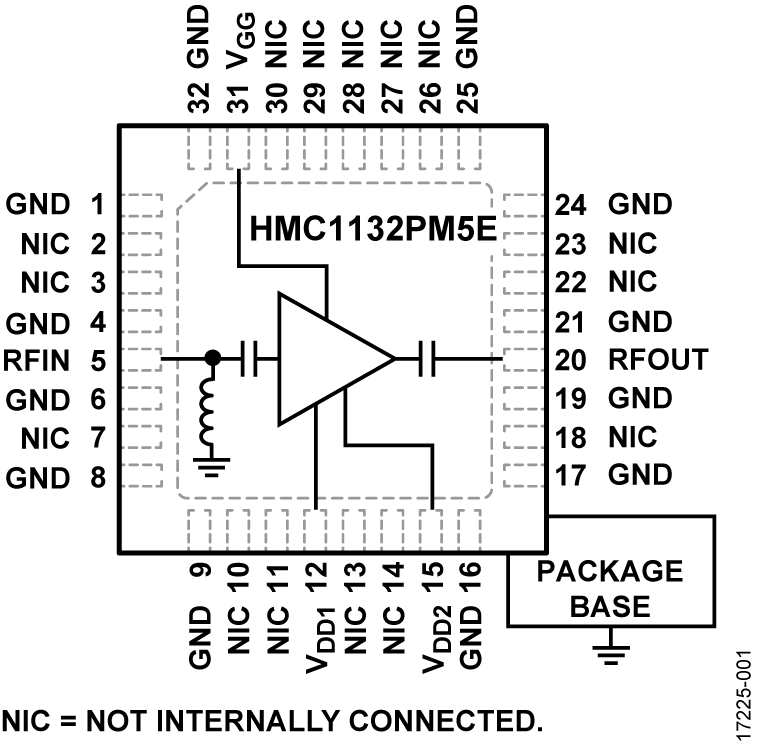

The HMC1132PM5E is a four-stage, gallium arsenide (GaAs) pseudomorphic high electron mobility transistor (pHEMT), monolithic microwave integrated circuit (MMIC) power amplifier. The device operates from 27 GHz to 32 GHz, providing 24 dB of gain and 29.5 dBm of saturated output power from a 5 V power supply.The HMC1132PM5E exhibits excellent linearity with high output third-order intercept (IP3) of 37 dBm, and it is optimized for high capacity, point to point and point to multipoint radio systems. The amplifier configuration and high gain make the HMC1132PM5E an ideal candidate for last stage signal amplification before the antenna.The HMC1132PM5E amplifier input/outputs (I/Os) are internally matched to 50 Ω. The device is housed in a RoHS compliant, premolded cavity, 5 mm × 5 mm LFCSP package, making the device compatible with high volume surface-mount technology (SMT) assembly equipment.APPLICATIONSPoint-to-point radiosPoint-to-multipoint radiosVery small aperture terminals (VSATs) and satellite communication (SATCOM)Military and space

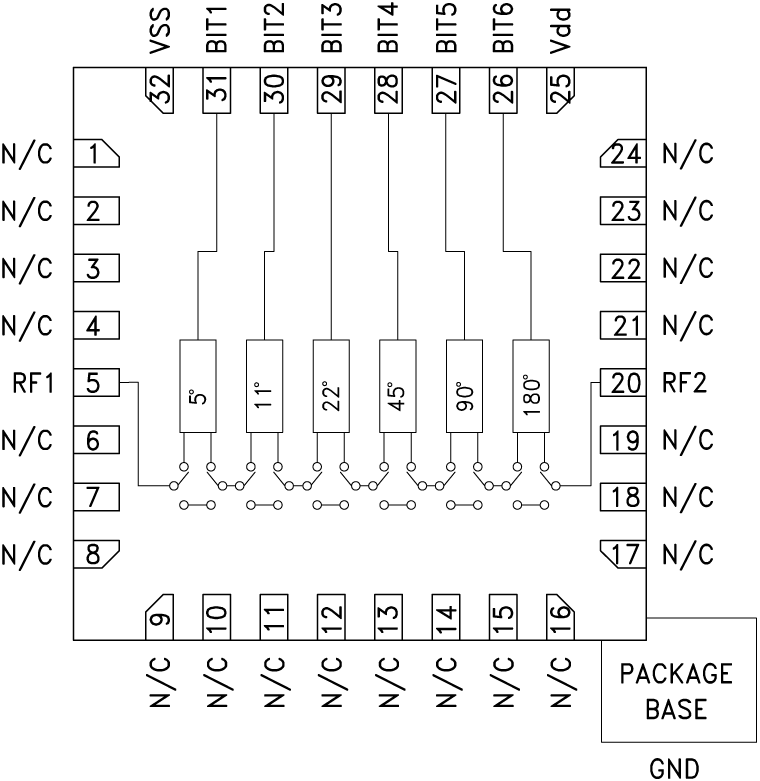

The HMC1133LP5E is a 6-bit digital phase shifter which is rated from 4.0 to 7 GHz, providing 360 degrees of phase coverage, with a LSB of 5.625 degrees. The HMC1133LP5E features very low RMS phase error of 2.8 degrees and extremely low insertion loss variation of ±0.4 dB across all phase states. This high accuracy phase shifter is controlled with positive control logic of 0/+5V The HMC1133LP5E is housed in a compact 5x5 mm plastic leadless SMT package and is internally matched to 50 Ohms with no external components.ApplicationsEW ReceiversWeather & Military RadarSatellite CommunicationsBeamforming ModulesPhase Cancellation

The HMC1160 is a MMIC voltage controlled oscillator that integrates a resonator, a negative resistance device, and a varactor diode, and features a half frequency output.Because of the monolithic construction of the oscillator, output power and phase noise performance are excellent over temperature.Power output is 12 dBm typical from a 5 V supply voltage. The voltage controlled oscillator is housed in a RoHS compliant SMT package and requires no external matching components.APPLICATIONSPoint to point and multipoint radioTest equipment and industrial controlsVSAT

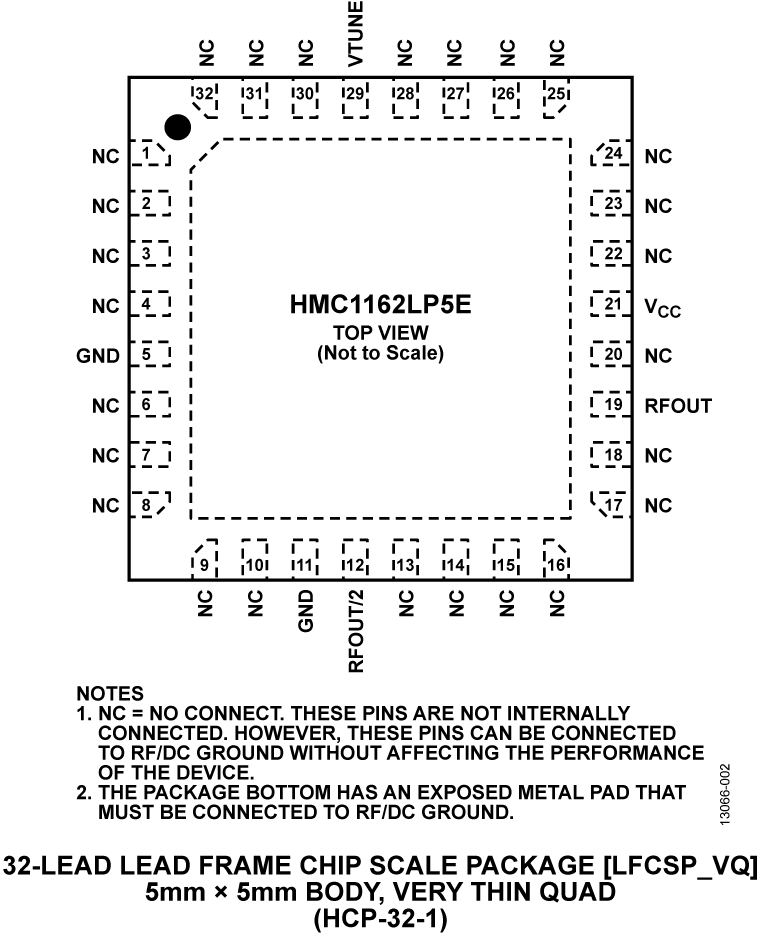

The HMC1162 is a monolithic microwave integrated circuit (MMIC), voltage controlled oscillator (VCO) that integrates the resonator, a negative resistance device, and varactor diodes, and features a half frequency output.Because of the monolithic construction of the oscillator, the output power and phase noise performance are excellent over temperature.The power output is 11 dBm typical from a 5 V supply voltage. The VCO is housed in a RoHS-compliant, 32-lead LFCSP and requires no external matching components.APPLICATIONSPoint to point and multipoint radiosTest equipment and industrial controlsVery small aperture terminals (VSATs)

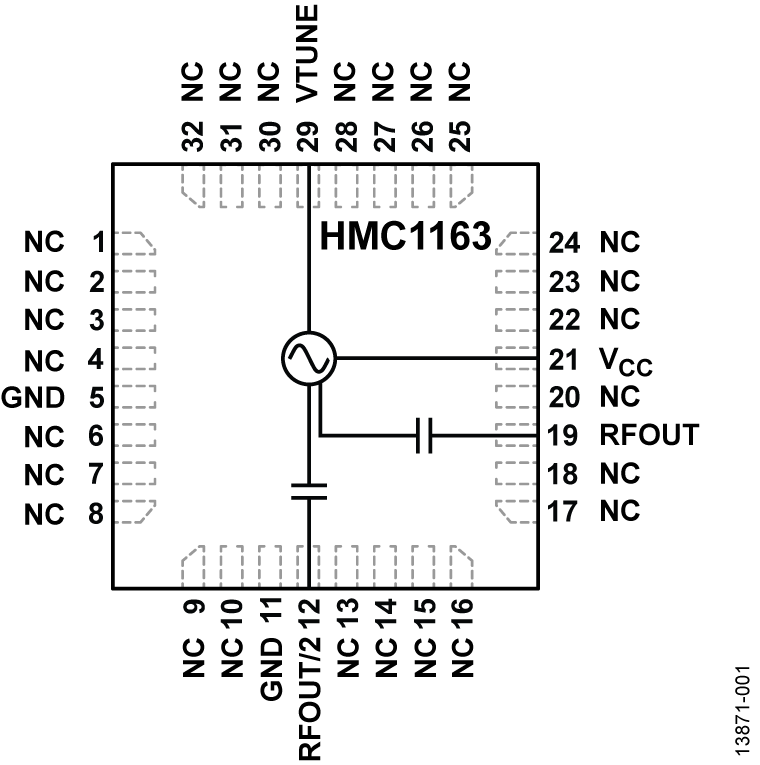

The HMC1163 is a monolithic microwave integrated circuit (MMIC), voltage controlled oscillator (VCO) that integrates a resonator, a negative resistance device, and a varactor diode, and features a half frequency output.Because of the monolithic construction of the oscillator, the output power and phase noise performance are excellent over temperature.The output power is 11 dBm typical from a 5 V supply voltage. The VCO is housed in a RoHS compliant LFCSP and requires no external matching components.ApplicationsPoint to point and multipoint radiosTest equipment and industrial controlsVery small aperture terminals (VSATs)

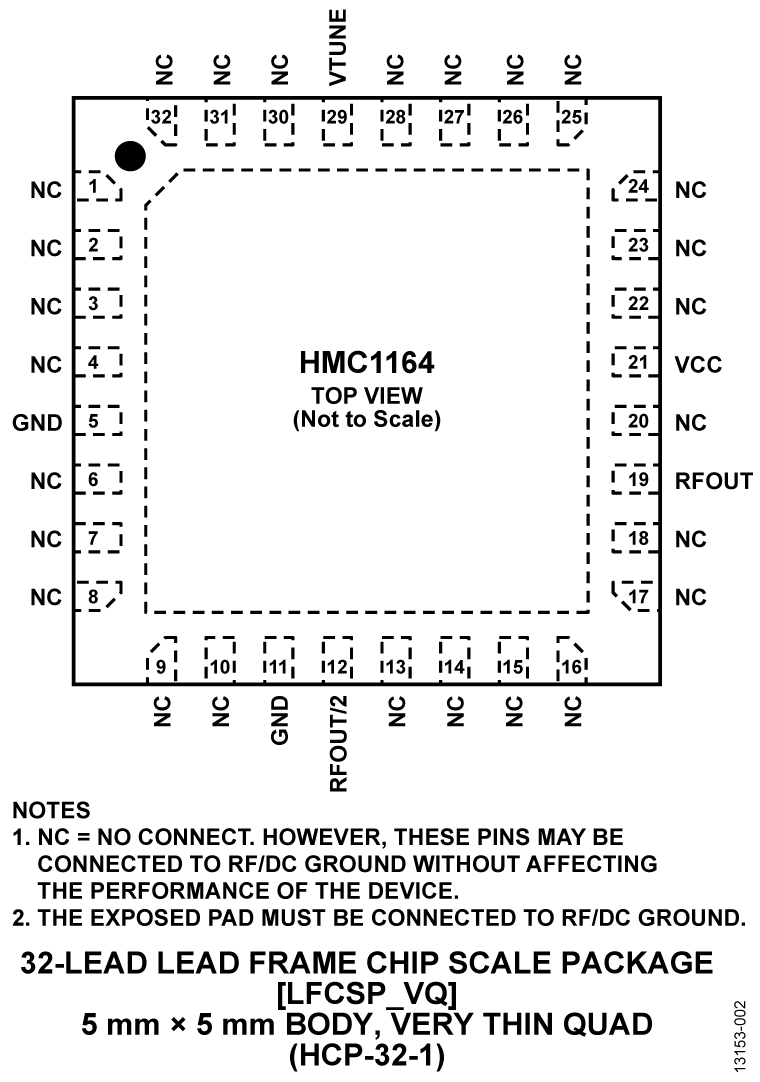

The HMC1164 is a monolithic microwave integrated circuit (MMIC), voltage controlled oscillator that integrates a resonator, a negative resistance device, and a varactor diode, and features a half frequency output.Because of the monolithic construction of the oscillator, the output power and phase noise performance are excellent over temperature.The power output is 8 dBm typical from a 5 V supply voltage. The voltage controlled oscillator is housed in a RoHS-compliant LFCSP package and requires no external matching components.APPLICATIONSPoint to point and multipoint radiosTest equipment and industrial controlsVery small aperture terminals (VSATs)

The HMC1165 is a monolithic microwave integrated circuit (MMIC), voltage controlled oscillator (VCO) that integrates a resonator, a negative resistance device, and a varactor diode, and features a half frequency output.Because of the monolithic construction of the oscillator, the output power and phase noise performance are excellent over temperature.The output power is 8 dBm typical from a 5 V supply voltage. The VCO is housed in a RoHS-compliant LFCSP and requires no external matching components.ApplicationsPoint to point and multipoint radiosTest equipment and industrial controlsVery small aperture terminals (VSATs)

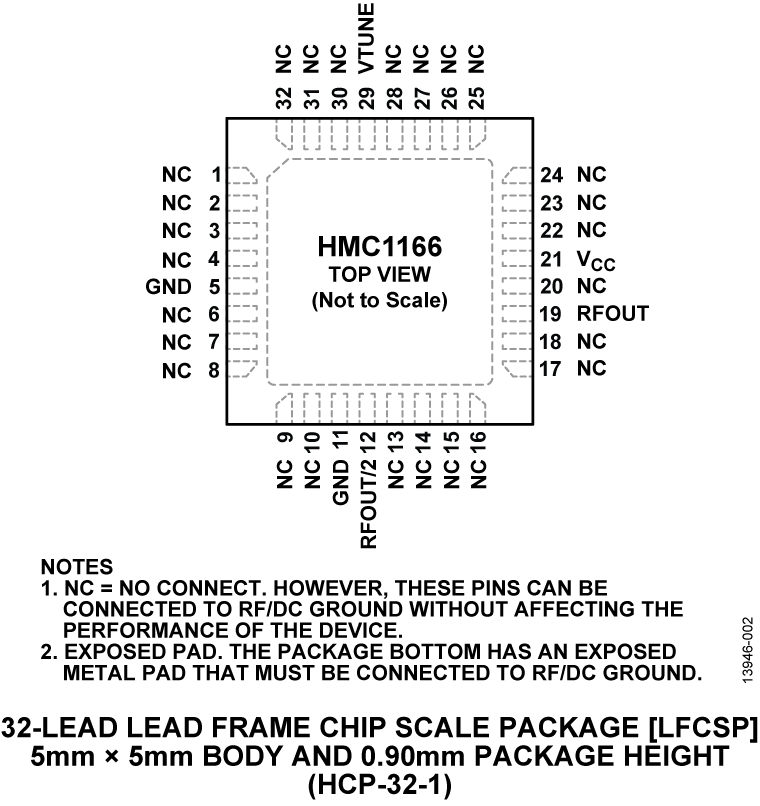

The HMC1166 is a monolithic microwave integrated circuit (MMIC), voltage controlled oscillator (VCO) that integrates a resonator, a negative resistance device, and a varactor diode, and features a half frequency output.Because of the monolithic construction of the oscillator, the output power and phase noise performance are excellent over temperature.The output power is 11 dBm typical from a 5 V supply voltage. The VCO is housed in a RoHS-compliant LFCSP and requires no external matching components.ApplicationsPoint to point and multipoint radiosTest equipment and industrial controlsVery small aperture terminals (VSATs)
