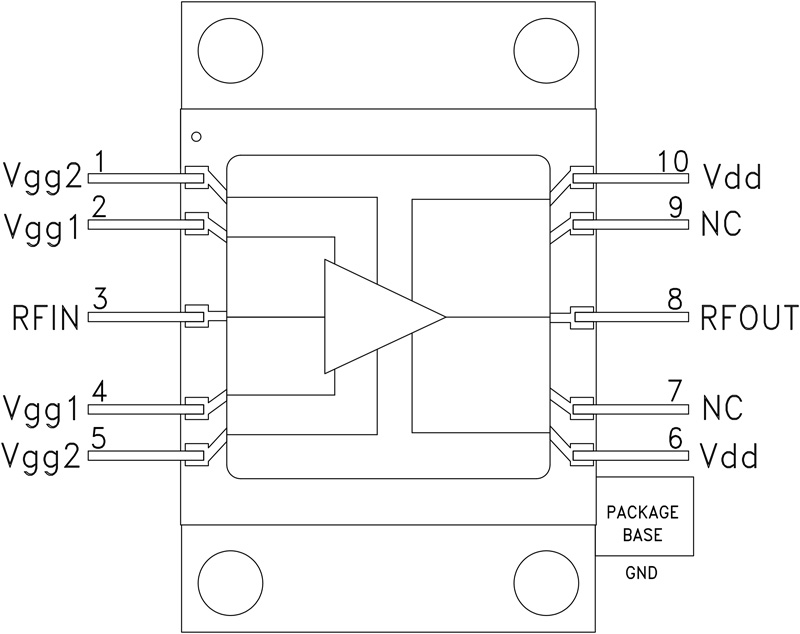

HMC1086F1025 Watt Flange Mount GaN MMIC Power Amplifier, 2 - 6 GHz | RF and Wireless | 1 | Active | The HMC1086F10 is a 25W Gallium Nitride (GaN) MMI C Power Amplifier which operates between 2 and 6 GHz, and is provided in a 10-lead flange mount package. The amplifier typically provides 23 dB of small signal gain, +44.5 dBm saturated output power, and delivers +46 dBm output IP 3 at +33 dBm output power per tone. The amplifier draws 1100 mA quiescent current from a +28V DC supply. The RF I/Os are DC blocked and matched to 50 Ohms for ease of use.ApplicationsTest InstrumentationGeneral CommunicationsRadarEW /ECM |
| RF Amplifiers | 2 | Active | The HMC1087 is an 8W Gallium Nitride (GaN) MMIC Power Amplifier which operates between 2 and 20 GHz. The amplifier typically provides 11dB of small signal gain, +39 dBm of saturated output power, and +45 dBm output IP3 at +29 dBm output power per tone. The HMC1087 draws 850 mA quiescent current from a +28V DC supply. The RF I/Os are matched to 50 Ohms for ease of integration into Multi-Chip-Modules (MCMs). All electrical performance data was aquired with the die eutectically attached to 1.02 mm (40 mil) thick CuMo carrier with multiple 1.0 mil diameter ball bonds connecting the die to 50 Ohm transmission lines on alumina.ApplicationsTest InstrumentationGeneral CommunicationsRadar |
HMC1087F108 Watt GaN Flange Mount MMIC Power Amplifier, 2 - 20 GHz | RF and Wireless | 1 | Active | The HMC1087F10 is an 8W Gallium Nitride (GaN) MMI C Power Amplifier which operates between 2 and 20 GHz, and is provided in a 10-lead flange mount package. The amplifier typically provides 11 dB of small signal gain, +39 dBm of saturated output power, and +43 dBm output IP 3 at +28 dBm output power per tone. The amplifier draws 850 mA quiescent current from a +28V DC supply. The RF I/Os are matched to 50 Ohms for ease of use.ApplicationsTest InstrumentationGeneral CommunicationsRadarEW/ECM |

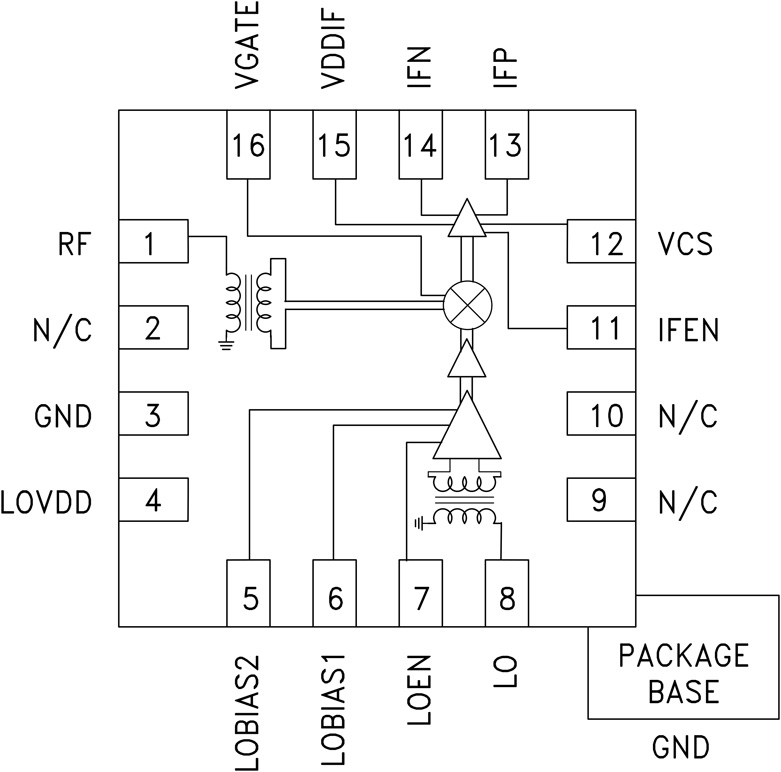

HMC1090Broadband High IP3 Downconverter, 0.7 - 3.5 GHz | RF Demodulators | 1 | Obsolete | The HMC1090LP3E is a high linearity, single channel downconverting mixer optimized for multi-standard diversity receiver applications that require low power consumption and small size. The HMC1090LP3E features new wideband limiting LO amplifiers to achieve an unprecedented RF bandwidth of 700 MHz to 3500 MHz. Unlike conventional narrow-band downconverter RFICs, the HMC1090LP3E supports both high-side and low-side LO injection over the entire RF frequency band. The RF and LO input ports are internally matched to 50Ω.The HMC1090LP3E integrates LO and IF amplifiers with enable functions, LO and RF baluns and high linearity passive mixer cores with bias control interface. The balanced passive mixer combined with the high-linearity IF amplifier architecture provides excellent LO-to-RF, LO-to-IF and RF-to-IF isolations. The HMC1090LP3E provides a very low noise figure of 10 dB, and high IIP3 of +25 dBm allowing the device to be used in demanding wideband applications. The HMC1090LP3E's input IP3 can be further improved by external matching in narrow-band applications. The HMC1090LP3E exhibits less than 1.5W power consumption which can be optimized through external bias control pins. The HMC1090LP3E also features a very fast enable control interface for reduced power consumption in Time Division Duplex (TDD) applications. The HMC1090LP3E is housed in a RoHS compliant 3x3 mm leadless QFN package.ApplicationsMultiband/Multi-standard CellularBTS Diversity ReceiversGSM & 3G & LTE/WiMAX/4GMIMO Infrastructure ReceiversWideband Radio ReceiversMultiband Basestations & Repeaters |
HMC1093GaAs MMIC Sub Harmonic Mixer, 37 - 46.5 GHz | RF Mixers | 2 | Active | The HMC1093 chip is a sub-harmonically pumped (x4) MMIC mixer with an integrated LO amplifier. The HMC1093 chip is ideal for use as a downconverter with 37 to 46.5 GHz at the RF port and DC to 7.5 GHz at the IF port. The HMC1093 utilizes a GaAs PHEMT technology and delivers excellent 4LO to RF isolation of 20 dB, which eliminates the need for additional filtering. The LO amplifier is a single bias (+3V) two stage design requiring only -1 dBm of LO power. The RF and LO ports are DC blocked and matched to 50 Ohms for ease of use. All data shown herein is measured with the chip in a 50 Ohm test fixture connected via 0.025mm (1 mil) wire bonds of minimal length <0.31 mm (<12 mils).APPLICATIONS38 GHz Microwave Radio42 GHz Microwave RadioMilitary End-Use |

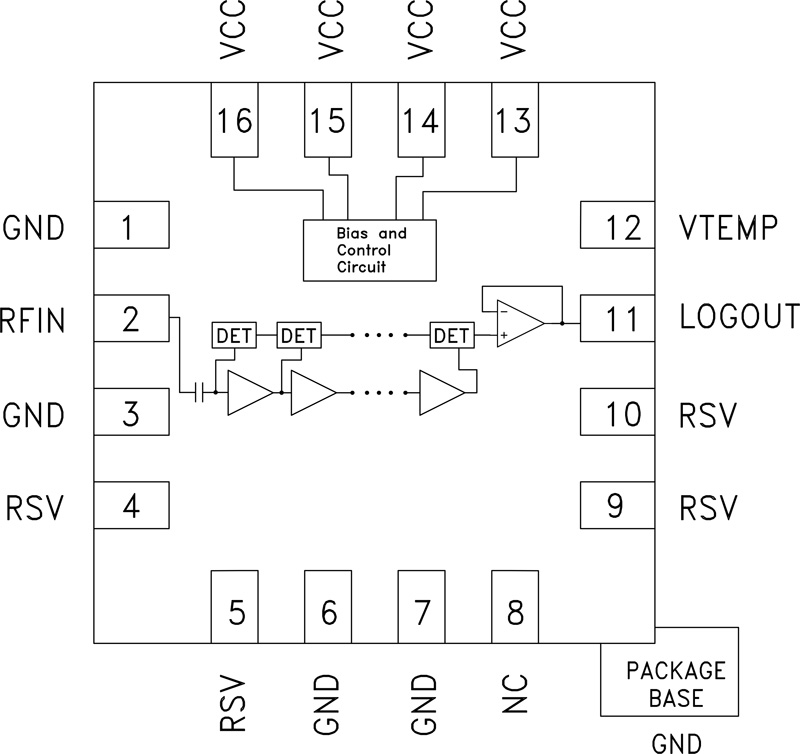

HMC109450 dB, Logarithmic Detector, 1 - 23 GHz | Unclassified | 1 | Unknown | The HMC1094LP3E Logarithmic Detector converts RF signals at its input, to a proportional DC voltage at its output. The HMC1094LP3E employs successive compression topology which delivers high dynamic range over a wide input frequency range. As the input power is increased, successive amplifiers move into saturation one by one creating an approximation of the logarithm function. The output of a series of detectors is summed, converted into the voltage domain and buffered to drive the LOGOUT output. The HMC1094LP3E provides a nominal logarithmic slope of +18 mV/dB and an intercept of -113 dBm at 23 GHz. Ideal as a log detector for high volume microwave radio and VSAT applications, the HMC1094LP3E is housed in a compact 3x3 mm RoHS compliant SMT plastic package.ApplicationsPoint-to-Point Microwave RadioVSATWideband Power MonitoringReceiver Signal StrengthIndication (RSSI)Test & Measurement |
| RF and Wireless | 2 | Active | |
HMC1096GaAs pHEMT MMIC x2 Active Frequency Multiplier, 3.8-5.6 GHz Output | RF and Wireless | 2 | Active | The HMC1096LP3E is a x2 active broadband frequency multiplier utilizing GaAs pHEMT technology in a leadless RoHS compliant Low Stress Injection Molded Plastic SMT package. When driven by a 0 dBm signal, the multiplier provides +12 dBm typical output power from 3.8 to 5.6 GHz. The Fo and 3 Fo isolations are +22 dBc with respect to the output signal level. This frequency multiplier features DC blocked I/Os, and is ideal for use in LO multiplier chains for Point-to-Point & VSAT radios yielding reduced parts count vs. traditional approaches. The HMC1096LP3E is compatible with surface mount manufacturing techniques.ApplicationsPoint-to-Point & VSAT RadiosTest InstrumentationMilitary & Space |

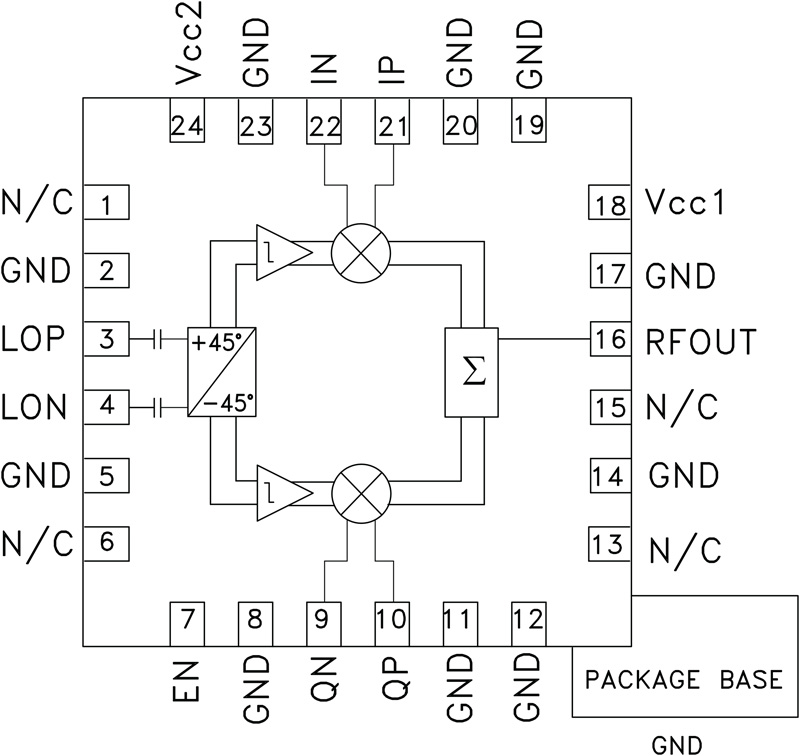

HMC1097Wideband Direct Quadrature Modulator, 100 - 6000 MHz | Development Boards, Kits, Programmers | 3 | Obsolete | The HMC1097LP4E is a low noise, high linearity Direct Quadrature Modulator RFIC which is ideal for digital modulation applications from 0.1 to 6.0 GHz including; Cellular/3G, WiMAX/4G, Broadband Wireless Access & ISM circuits. Housed in a compact 4x4 mm (LP4) SMT QFN package, the RFIC requires minimal external components & provides a low cost alternative to more complicated double upconversion architectures. The RF output port is single-ended and matched to 50 Ohms with no external components. The LO requires -6 to +6 dBm and can be driven in either differential or single-ended mode. This device is optimized for a +5V supply, and offers improved carrier feedthrough and sideband suppression characteristics.APPLICATIONSUMTS, GSM or CDMA BasestationsFixed Wireless or WLLISM Transceivers, 900 & 2400 MHzGMSK, QPSK, QAM, SSB ModulatorsCellular/3G and WiMAX/4G |
| Development Boards, Kits, Programmers | 1 | Obsolete | |
