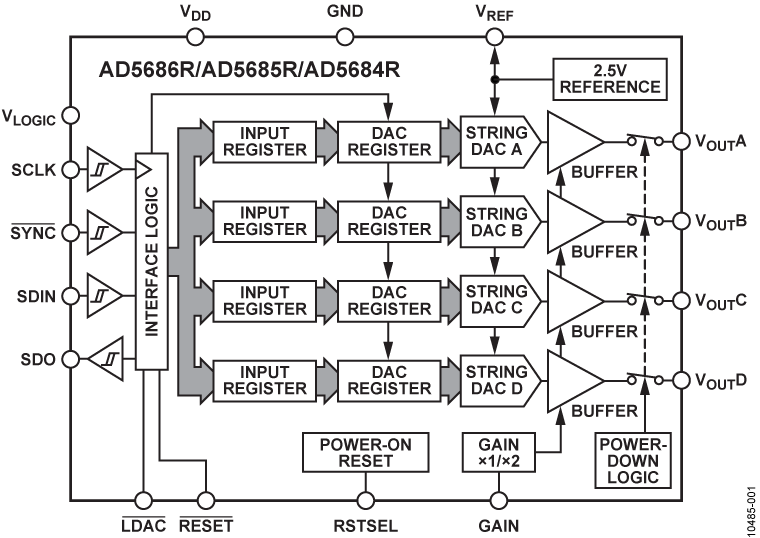

AD5686RQuad, 16-BitnanoDAC+™ with 2 ppm/°C On-Chip Reference and SPI Interface | Integrated Circuits (ICs) | 2 | Active | The AD5686RnanoDAC+™is a quad, 16-bit, rail-to-rail, voltage output DAC. The device includes a 2.5V, 2ppm/˚C internal reference (enabled by default) and a gain select pin giving a full-scale output of 2.5V (gain=1) or 5V (gain=2).The device operates from a single 2.7 V to 5.5 V supply, is guaranteed monotonic by design and exhibits less than 0.1% FSR gain error and 1.5mV offset error performance. The device is available in a 3mm × 3mm LFCSP and a TSSOP package.The AD5686R also incorporates a power-on-reset circuit and a RSTSEL pin that ensures the DAC outputs power up to zero-scale or midscale, and remain there until a valid write takes place. Each device contains a per-channel power-down feature that reduces the current consumption of the device to 4 uA at 3 V while in power-down mode.The AD5686R employs a versatile SPI interface that operates at clock rates up to 50 MHz and includes a VLOGICpin intended for 1.8V/3V/5V logic.PRODUCT HIGHLIGHTSHigh Relative Accuracy: AD5686R (16-bit): ±2LSB INL maxLow drift on-chip reference: 2.5 V, 2 ppm/°C temperature drift.Two package options: 3mm × 3mm 16 lead LFCSP or 16 lead TSSOPAPPLICATIONSOptical transceiversBase-station power amplifiersProcess control (PLC I/O cards)Industrial automationData acquisition systems |

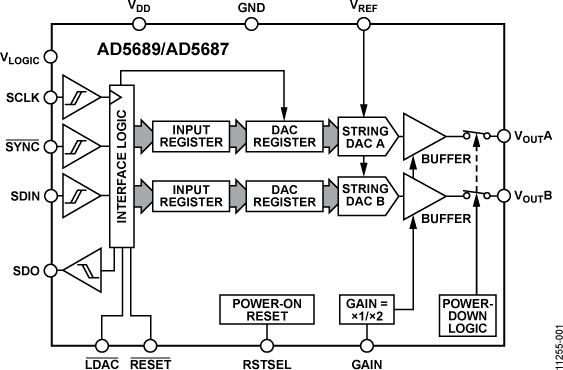

AD5687Dual, 12-BitnanoDAC+™ with SPI Interface | Integrated Circuits (ICs) | 6 | Active | TheAD5689/AD5687 members of thenanoDAC+™ family are low power, dual, 16-/12-bit, buffered voltage output digital-to-analog converters (DACs). The devices include a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The AD5689/AD5687 operate from a single 2.7 V to 5.5 V supply, are guaranteed monotonic by design, and exhibit less than 0.1% FSR gain error and 1.5 mV offset error performance. Both devices are available in a 3 mm × 3 mm LFCSP and a TSSOP package.The AD5689/AD5687 also incorporate a power-on reset circuit and a RSTSEL pin that ensure that the DAC outputs power up to zero scale or midscale and remain there until a valid write takes place. Each part contains a per channel power-down feature that reduces the current consumption of the device to 4 µA at 3 V while in power-down mode.The AD5689/AD5687 uses a versatile serial peripheral interface that operates at clock rates up to 50 MHz. Both devices contain a VLOGICpin that is intended for 1.8 V/3 V/5 V logic.Product HighlightsHigh Relative Accuracy (INL).AD5687 (12-bit): ±1 LSB maximumExcellent DC Performance.Total unadjusted error: ±0.1% of FSR maximumOffset error: ±1.5 mV maximumGain error: ±0.1% of FSR maximumTwo Package Options.3 mm × 3 mm, 16-lead LFCSP or 16-lead TSSOPApplicationsOptical transceiversBase station power amplifiersProcess control (PLC I/O cards)Industrial automationData acquisition systems |
AD5687RDual, 12-BitnanoDAC+ with 2 ppm/°C Reference, SPI Interface | Integrated Circuits (ICs) | 1 | Active | TheAD5689R/AD5687R members of thenanoDAC+™ family are low power, dual, 16-/12-bit buffered voltage output digital-to-analog converters (DACs). The devices include a 2.5 V, 2 ppm/°C internal reference (enabled by default) and a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The devices operate from a single 2.7 V to 5.5 V supply, are guaranteed monotonic by design, and exhibit less than 0.1% FSR gain error and 1.5 mV offset error performance. Both devices are available in a 3 mm × 3 mm LFCSP and a TSSOP package.The AD5689R/AD5687R also incorporate a power-on reset circuit and a RSTSEL pin that ensure that the DAC outputs power up to zero scale or midscale and remain there until a valid write takes place. Each part contains a per channel power-down feature that reduces the current consumption of the device to 4 μA at 3 V while in power-down mode.The AD5689R/AD5687R use a versatile serial peripheral interface (SPI) that operates at clock rates up to 50 MHz. Both devices contain a VLOGICpin that is intended for 1.8 V/3 V/5 V logic.Product HighlightsHigh Relative Accuracy (INL).AD5689R (16-bit): ±2 LSB maximumAD5687R (12-bit): ±1 LSB maximumLow Drift 2.5 V On-Chip Reference.2 ppm/°C typical temperature coefficient5 ppm/°C maximum temperature coefficientTwo Package Options.3 mm × 3 mm, 16-lead LFCSP16-lead TSSOPApplicationsOptical transceiversBase station power amplifiersProcess control (PLC I/O cards)Industrial automationData acquisition systems |

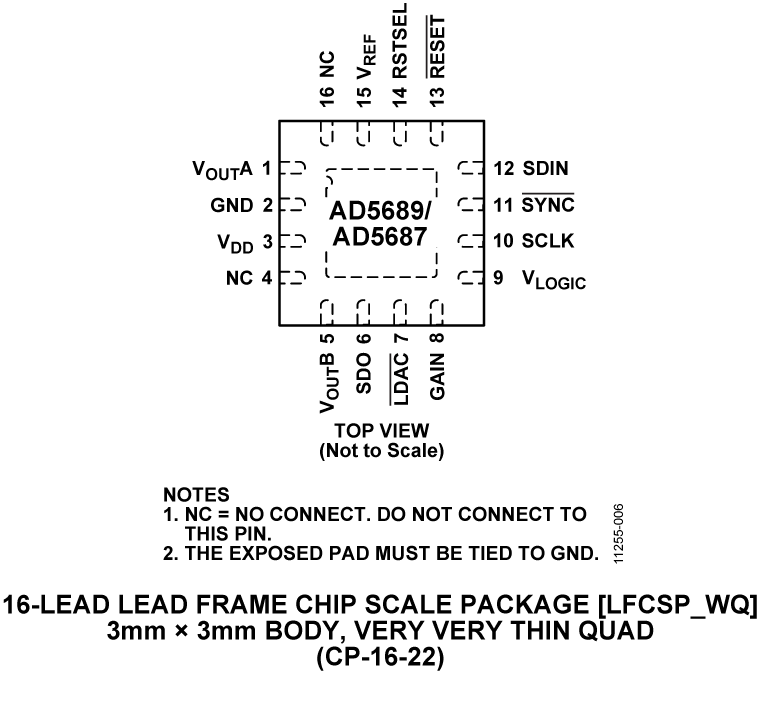

AD5689Dual, 16-BitnanoDAC+ with 2 ppm/°C Reference, SPI Interface | Evaluation Boards | 11 | Active | The AD5689R/AD5687Rmembers of thenanoDAC+™ family are low power, dual, 16-/12-bit buffered voltage output digital-to-analog converters (DACs). The devices include a 2.5 V, 2 ppm/°C internal reference (enabled by default) and a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The devices operate from a single 2.7 V to 5.5 V supply, are guaranteed monotonic by design, and exhibit less than 0.1% FSR gain error and 1.5 mV offset error performance. Both devices are available in a 3 mm × 3 mm LFCSP and a TSSOP package.The AD5689R/AD5687R also incorporate a power-on reset circuit and a RSTSEL pin that ensure that the DAC outputs power up to zero scale or midscale and remain there until a valid write takes place. Each part contains a per channel power-down feature that reduces the current consumption of the device to 4 μA at 3 V while in power-down mode.The AD5689R/AD5687R use a versatile serial peripheral interface (SPI) that operates at clock rates up to 50 MHz. Both devices contain a VLOGICpin that is intended for 1.8 V/3 V/5 V logic.Product HighlightsHigh Relative Accuracy (INL).AD5689R (16-bit): ±2 LSB maximumAD5687R (12-bit): ±1 LSB maximumLow Drift 2.5 V On-Chip Reference.2 ppm/°C typical temperature coefficient5 ppm/°C maximum temperature coefficientTwo Package Options.3 mm × 3 mm, 16-lead LFCSP16-lead TSSOPApplicationsOptical transceiversBase station power amplifiersProcess control (PLC I/O cards)Industrial automationData acquisition systems |

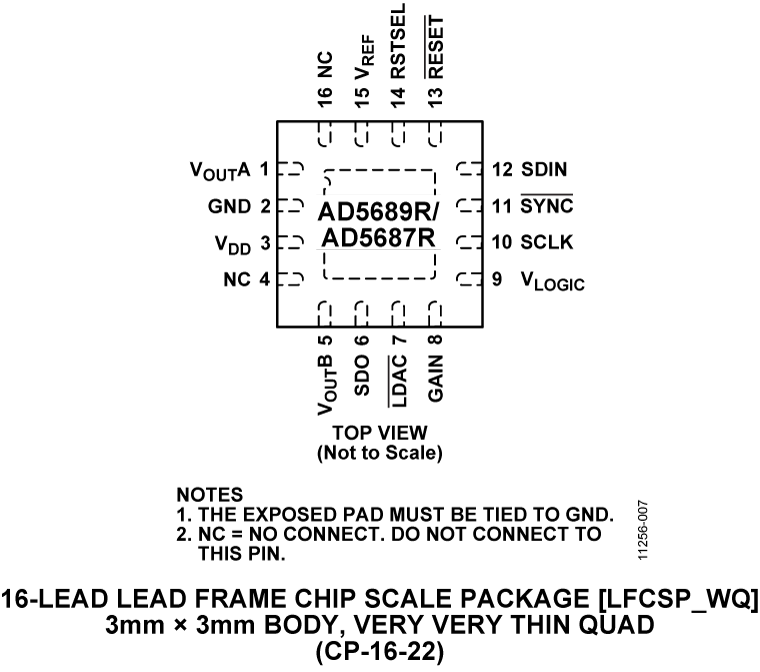

AD5689RDual, 16-BitnanoDAC+ with 2 ppm/°C Reference, SPI Interface | Data Acquisition | 1 | Active | The AD5689R/AD5687Rmembers of thenanoDAC+™ family are low power, dual, 16-/12-bit buffered voltage output digital-to-analog converters (DACs). The devices include a 2.5 V, 2 ppm/°C internal reference (enabled by default) and a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The devices operate from a single 2.7 V to 5.5 V supply, are guaranteed monotonic by design, and exhibit less than 0.1% FSR gain error and 1.5 mV offset error performance. Both devices are available in a 3 mm × 3 mm LFCSP and a TSSOP package.The AD5689R/AD5687R also incorporate a power-on reset circuit and a RSTSEL pin that ensure that the DAC outputs power up to zero scale or midscale and remain there until a valid write takes place. Each part contains a per channel power-down feature that reduces the current consumption of the device to 4 μA at 3 V while in power-down mode.The AD5689R/AD5687R use a versatile serial peripheral interface (SPI) that operates at clock rates up to 50 MHz. Both devices contain a VLOGICpin that is intended for 1.8 V/3 V/5 V logic.Product HighlightsHigh Relative Accuracy (INL).AD5689R (16-bit): ±2 LSB maximumAD5687R (12-bit): ±1 LSB maximumLow Drift 2.5 V On-Chip Reference.2 ppm/°C typical temperature coefficient5 ppm/°C maximum temperature coefficientTwo Package Options.3 mm × 3 mm, 16-lead LFCSP16-lead TSSOPApplicationsOptical transceiversBase station power amplifiersProcess control (PLC I/O cards)Industrial automationData acquisition systems |
| Digital to Analog Converters (DAC) | 13 | Active | |
AD5691RTiny 12-Bit I2CnanoDAC+, with ±1 LSB INL and 2ppm/°C Reference | Integrated Circuits (ICs) | 4 | Active | TheAD5693R/AD5692R/ AD5691R /AD5693, members of thenanoDAC+®family, are low power, single-channel, 16-/14-/12-bit buffered voltage output DACs. The devices, except the AD5693, include an enabled by default internal 2.5 V reference, offering 2 ppm/°C drift. The output span can be programmed to be 0 V to VREFor 0 V to 2 × VREF. All devices operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design. The devices are available in a 2.00 mm × 2.00 mm, 8-lead LFCSP or a 10-lead MSOP.The internal power-on reset circuit ensures that the DAC register is written to zero scale at power-up while the internal output buffer is configured in normal mode. The AD5693R / AD5692R / AD5691R / AD5693 contain a power-down mode that reduces the current consumption of the device to 2 μA (maximum) at 5 V and provides software selectable output loads.The AD5693R / AD5692R / AD5691R / AD5693 use an I2C interface. Some device options also include an asynchronousRESETpin and a VLOGICpin, allowing 1.8 V compatibility.Product HighlightsHigh relative accuracy (INL): ±2 LSB maximum (AD5693R/AD5693, 16-bit).Low drift, 2.5 V on-chip reference: 2 ppm/°C typical and 5 ppm/°C maximum temperature coefficient.2 mm × 2 mm, 8-lead LFCSP and 10-lead MSOP.ApplicationsProcess controlsData acquisition systemsDigital gain and offset adjustmentProgrammable voltage sourcesOptical modules |
AD5692Tiny 14-Bit I2CnanoDAC+, with ±4 LSB INL and 5ppm/°C Reference | Integrated Circuits (ICs) | 1 | Active | TheAD5693R/ AD5692R /AD5691R/AD5693, members of thenanoDAC+®family, are low power, single-channel, 16-/14-/12-bit buffered voltage output DACs. The devices, except the AD5693, include an enabled by default internal 2.5 V reference, offering 2 ppm/°C drift. The output span can be programmed to be 0 V to VREFor 0 V to 2 × VREF. All devices operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design. The devices are available in a 2.00 mm × 2.00 mm, 8-lead LFCSP or a 10-lead MSOP.The internal power-on reset circuit ensures that the DAC register is written to zero scale at power-up while the internal output buffer is configured in normal mode. The AD5693R / AD5692R / AD5691R / AD5693 contain a power-down mode that reduces the current consumption of the device to 2 μA (maximum) at 5 V and provides software selectable output loads.The AD5693R / AD5692R / AD5691R / AD5693 use an I2C interface. Some device options also include an asynchronousRESETpin and a VLOGICpin, allowing 1.8 V compatibility.Product HighlightsHigh relative accuracy (INL): ±2 LSB maximum (AD5693R/AD5693, 16-bit).Low drift, 2.5 V on-chip reference: 2 ppm/°C typical and 5 ppm/°C maximum temperature coefficient.2 mm × 2 mm, 8-lead LFCSP and 10-lead MSOP.ApplicationsProcess controlsData acquisition systemsDigital gain and offset adjustmentProgrammable voltage sourcesOptical modules |
| Expansion Boards, Daughter Cards | 3 | Active | |
| Data Acquisition | 7 | Active | |
