AD5674R16-Channel, 12-BitnanoDAC+ with 2 ppm/°C Voltage Reference Temperature Coefficient, SPI Interface | Integrated Circuits (ICs) | 4 | Active | TheAD5674/AD5674R/AD5679/AD5679Rare low power, 16-channel, 12-/16-bit, buffered voltage output, digital-to-analog converters (DACs) that include a 2.5 V, 2 ppm/°C internal reference (enabled by default), and a gain select pin, resulting in a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The devices operate from a single, 2.7 V to 5.5 V supply range and are guaranteed monotonic by design. The AD5674/AD5674R/AD5679/AD5679R are available in a 28-lead lead frame chip scale package (LFCSP) and incorporate a power-on reset (POR) circuit that ensures that the DAC outputs power up to and remains at zero-scale or midscale until a valid write. The AD5674/AD5674R/AD5679/AD5679R contain a power-down mode that reduces the current consumption to 2 μA typical.Product HighlightsHigh channel density: 16 channels in 4 mm × 4 mm LFCSP.High relative accuracy (integral nonlinearity (INL)) ±4 LSB maximum.Low drift, 2.5 V, on-chip reference.ApplicationsOptical transceiversBase station power amplifiersProcess control (programmable logic controller (PLC) input/output cards)Industrial automationData acquisition systems |
AD5675Octal, 16-BitnanoDAC+ with 2 ppm/°C Reference, I2C Interface | Development Boards, Kits, Programmers | 15 | Active | The AD5671R/AD5675R are low power, octal, 12-/16-bit buffered voltage output digital-to-analog converters (DACs). They include a 2.5 V, 2 ppm/°C internal reference (enabled by default) and a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The devices operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design. The AD5671R/AD5675R are available in a 20-lead TSSOP and in a 20-lead LFCSP and incorporate a power-on reset circuit and a RSTSEL pin that ensures the DAC outputs power up to zero scale or midscale and remain there until a valid write. The AD5671R/AD5675R contain a power-down mode, reducing the current consumption to 1 μA typical while in power-down mode.Product HighlightsHigh Relative Accuracy (INL).AD5671R (12-bit): ±1 LSB maximumAD5675R (16-bit): ±3 LSB maximumLow Drift 2.5 V On-Chip ReferenceApplicationsOptical transceiversBase-station power amplifiersProcess control (PLC input/output cards)Industrial automationData acquisition systems |
AD5675ROctal, 16-BitnanoDAC+ with 2 ppm/°C Reference, I2C Interface | Data Acquisition | 3 | Active | The AD5671R/AD5675R are low power, octal, 12-/16-bit buffered voltage output digital-to-analog converters (DACs). They include a 2.5 V, 2 ppm/°C internal reference (enabled by default) and a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The devices operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design. The AD5671R/AD5675R are available in a 20-lead TSSOP and in a 20-lead LFCSP and incorporate a power-on reset circuit and a RSTSEL pin that ensures the DAC outputs power up to zero scale or midscale and remain there until a valid write. The AD5671R/AD5675R contain a power-down mode, reducing the current consumption to 1 μA typical while in power-down mode.Product HighlightsHigh Relative Accuracy (INL).AD5671R (12-bit): ±1 LSB maximumAD5675R (16-bit): ±3 LSB maximumLow Drift 2.5 V On-Chip ReferenceApplicationsOptical transceiversBase-station power amplifiersProcess control (PLC input/output cards)Industrial automationData acquisition systems |

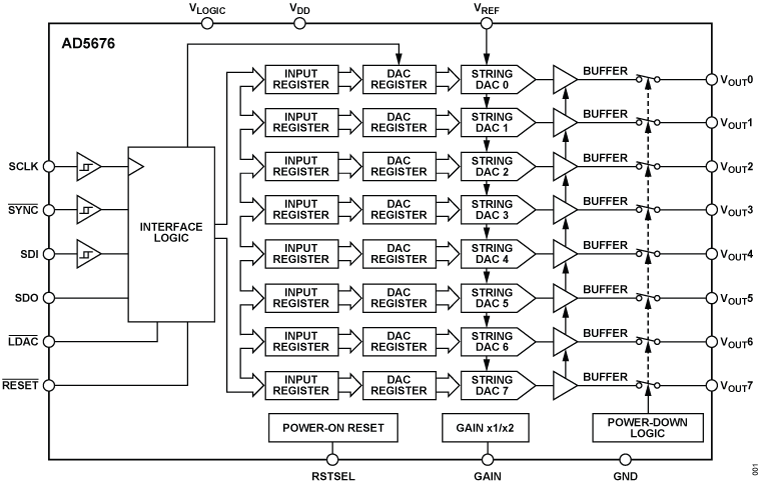

AD5676Octal, 16-BitnanoDAC+ with SPI Interface | Digital to Analog Converters (DACs) | 17 | Active | The AD5676 is a low power, octal, 16-bit buffered voltage output digital-to-analog converter (DAC). The device includes a gain select pin, giving a full-scale output of VREF(gain = 1) or 2 × VREF(gain = 2). The AD5676 DAC operates from a single 2.7 V to 5.5 V supply and is guaranteed monotonic by design. The AD5676 is available in 20-lead TSSOP and LFCSP packages.The internal power-on reset circuit and the RSTSEL pin of the AD5676 ensure that the output DACs power up to zero scale or midscale and then remain there until a valid write takes place. The AD5676 contains a per channel power-down mode that typically reduces the current consumption of the device to 1 µA.The AD5676 employs a versatile serial peripheral interface (SPI) that operates at clock rates up to 50 MHz, and contains a VLOGICpin intended for 1.62 V to 5.5 V logic.Product HighlightsHigh Relative Accuracy (INL) 16-bit: ±3 LSB maximum−40°C to +125°C temperature range20-lead, TSSOP and LFCSP RoHS-compliant packagesApplicationsOptical transceiversBase-station power amplifiersProcess control (PLC input/output cards)Industrial automationData acquisition systems |
AD5676ROctal, 16-BitnanoDAC+ with 2 ppm/°C Reference, SPI Interface | Data Acquisition | 2 | Active | TheAD5672R/AD5676R are low power, octal, 12-/16-bit buffered voltage output digital-to-analog converters (DACs). They include a 2.5 V, 2 ppm/°C internal reference (enabled by default) and a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The devices operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design. The AD5672R/AD5676R are available in a 20-lead TSSOP and in a 20-lead LFCSP and incorporate a power-on reset circuit and a RSTSEL pin that ensures that the DAC outputs power up to zero scale or midscale and remains there until a valid write. The AD5672R/AD5676R contain a power-down mode, reducing the current consumption to 1 µA typical while in power-down mode. The AD5676R is also available in a 16-ball WLCSP.PRODUCT HIGHLIGHTSHigh Relative Accuracy (INL).AD5672R (12-bit): ±1 LSB maximumAD5676R (16-bit): ±3 LSB maximumLow Drift 2.5 V On-Chip Reference.High Channel Density.Eight channels in 2.5 mm × 2.4 mm WLCSP (AD5676R).APPLICATIONSOptical transceiversBase-station power amplifiersProcess control (PLC input/output cards)Industrial automationData acquisition systems |
| Digital to Analog Converters (DACs) Evaluation Boards | 1 | Active | |
AD5677R16-Channel, 12-/16-BitnanoDAC+ with 2 ppm/°C Voltage Reference TC, I2C Interface | Digital to Analog Converters (DAC) | 4 | Active | The AD5673R/AD5677R are low power, 16-channel, 12-/16-bit, buffered voltage output, digital-to-analog converters (DACs) that include a 2.5 V, 2 ppm/°C internal reference (enabled by default), and a gain select pin, resulting in a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The devices operate from a single, 2.7 V to 5.5 V supply range and are guaranteed monotonic by design. The AD5673R/AD5677R are available in a 28-lead lead frame chip scale package (LFCSP) and incorporate a power-on reset (POR) circuit that ensures that the DAC outputs power up to and remain at zero scale or midscale until a valid write. The AD5673R/AD5677R contain a power-down mode that reduces the current consumption to 2 µA typical.ApplicationsOptical transceiversBase station power amplifiersProcess control (programmable logic controller (PLC) input/output cards)Industrial automationData acquisition systemsProduct HighlightsHigh channel density: 16 channels in 4 mm × 4 mm LFCSP.High relative accuracy (INL).AD5673R (12-bit): ±1 LSB maximum.AD5677R (16-bit): ±4 LSB maximum.Low drift, 2.5 V, on-chip reference. |

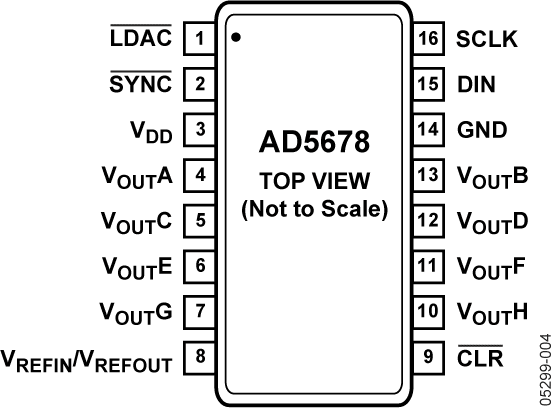

AD56784 x 12-Bit and 4 × 16-Bit Octal D/A Converter with On-Chip Reference in 14-Lead TSSOP | Data Acquisition | 4 | Active | The AD5678 is a low power, octal, buffered voltage-output DAC with four 12-bit DACs and four 16-bit DACs in a single package. All devices operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design.The AD5678 has an on-chip reference with an internal gain of 2. The AD5678-1 has a 1.25 V 5 ppm/°C reference, giving a full-scale output of 2.5 V; the AD5678-2 has a 2.5 V 5 ppm/°C reference, giving a full-scale output of 5 V. The on-board reference is off at power-up, allowing the use of an external reference. The internal reference is enabled via a software write.The part incorporates a power-on reset circuit that ensures that the DAC output powers up to 0 V and remains powered up at this level until a valid write takes place. The part contains a power-down feature that reduces the current consumption of the device to 400 nA at 5 V and provides software-selectable output loads while in power-down mode for any or all DAC channels.The outputs of all DACs can be updated simultaneously using theLDACfunction, with the added functionality of user-selectable DAC channels to simultaneously update. There is also an asynchronousCLRthat clears all DACs to a software-selectable code—0 V, midscale, or full scale.The AD5678 utilizes a versatile 3-wire serial interface that operates at clock rates of up to 50 MHz and is compatible with standard SPI®, QSPI™, MICROWIRE™, and DSP interface standards. The on-chip precision output amplifier enables rail-to-rail output swing.PRODUCT HIGHLIGHTSOctal DAC (four 12-bit DACs and four 16-bit DACs).On-chip 1.25 V/2.5 V, 5 ppm/°C reference.Available in 14-lead/16-lead TSSOP.Power-on reset to 0 V.Power-down capability. When powered down, the DAC typically consumes 200 nA at 3 V and 400 nA at 5 VAPPLICATIONSProcess controlData acquisition systemsPortable battery-powered instrumentsDigital gain and offset adjustmentProgrammable voltage current sourcesProgrammable attenuators |
| Integrated Circuits (ICs) | 3 | Active | |
| Digital to Analog Converters (DAC) | 4 | Active | |
