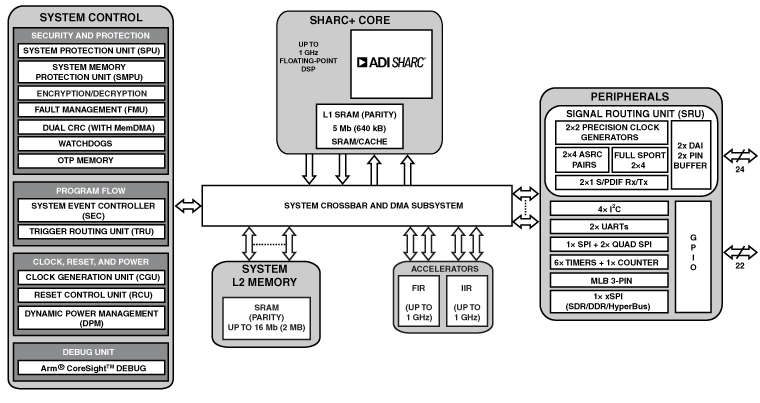

ADSP-21564Up to 933 MHz SHARC+ DSP with 2048KB Shared L2 SRAM | DSP (Digital Signal Processors) | 2 | Active | Reaching speeds of up to 933 MHz, theADSP-21560/ADSP-21561/ADSP-21564 processors are members of the SHARC®family of products. These processors offer a cost-reduced pin- and code-compatible option to theADSP-21562/ADSP-21563/ADSP-21565processors, while offering increased L2 memory (up to 2MB).The processors are members of the SIMD SHARC family of digital signal processors (DSPs) that feature Analog Devices, Inc., Super Harvard Architecture. These 32-bit/40-bit/64-bit floating-point processors are optimized for high performance audio/floating-point applications with large on-chip static random-access memory (SRAM), multiple internal buses that eliminate input/output (I/O) bottlenecks, and innovative digital audio interfaces (DAI). Additions to the SHARC+ core include cache enhancements and branch prediction, while maintaining instruction set compatibility to previous SHARC products.By integrating a rich set of industry-leading system peripherals and memory, the SHARC+ processor is the platform of choice for applications that require programmability similar to reduced instruction set computing (RISC), multimedia support, and leading edge signal processing in one integrated package. These applications span a wide array of markets, including automotive, professional audio, and industrial-based applications that require high floating-point performance.APPLICATIONSAutomotive:audio amplifier, head unit, ANC/RNC, rear seat entertainment, digital cockpit, ADASConsumer & Professional Audio:speakers, sound bars, AVRs, conferencing systems, mixing consoles, microphone arrays, headphones |
ADSP-21565Up to 1GHz SHARC+ DSP with 640KB L1, 1024KB Shared L2 SRAM, 120-lead LQFP_EP | Embedded | 4 | Active | Reaching speeds of up to 1 GHz, the ADSP-2156x processors are members of the SHARC®family of products. The ADSP-2156x processor is based on the SHARC+®single core. The ADSP-2156x SHARC processors are members of the SIMD SHARC family of digital signal processors (DSPs) that feature Analog Devices, Inc., Super Harvard Architecture. These 32-bit/40-bit/64-bit floating-point processors are optimized for high performance audio/floating-point applications with large on-chip static random-access memory (SRAM), multiple internal buses that eliminate input/output (I/O) bottlenecks, and innovative digital audio interfaces (DAI). New additions to the SHARC+ core include cache enhancements and branch prediction, while maintaining instruction set compatibility to previous SHARC products.By integrating a rich set of industry-leading system peripherals and memory (see Table 1 in the data sheet), the SHARC+ processor is the platform of choice for applications that require programmability similar to reduced instruction set computing (RISC), multimedia support, and leading edge signal processing in one integrated package. These applications span a wide array of markets, including automotive, professional audio, and industrial-based applications that require high floating-point performance.APPLICATIONSAutomotive:audio amplifier, head unit, ANC/RNC, rear seat entertainment, digital cockpit, ADASConsumer & Professional Audio:speakers, sound bars, AVRs, conferencing systems, mixing consoles, microphone arrays, headphones |
ADSP-21566400MHz SHARC+ DSP with 640KB L1, 256KB Shared L2 SRAM, 400-Ball CSP_BGA | Embedded | 2 | Active | Reaching speeds of up to 1 GHz, the ADSP-2156x processors are members of the SHARC®family of products. The ADSP-2156x processor is based on the SHARC+®single core. The ADSP-2156x SHARC processors are members of the SIMD SHARC family of digital signal processors (DSPs) that feature Analog Devices, Inc., Super Harvard Architecture. These 32-bit/40-bit/64-bit floating-point processors are optimized for high performance audio/floating-point applications with large on-chip static random-access memory (SRAM), multiple internal buses that eliminate input/output (I/O) bottlenecks, and innovative digital audio interfaces (DAI). New additions to the SHARC+ core include cache enhancements and branch prediction, while maintaining instruction set compatibility to previous SHARC products.By integrating a rich set of industry-leading system peripherals and memory (see Table 1 in the data sheet), the SHARC+ processor is the platform of choice for applications that require programmability similar to reduced instruction set computing (RISC), multimedia support, and leading edge signal processing in one integrated package. These applications span a wide array of markets, including automotive, professional audio, and industrial-based applications that require high floating-point performance.APPLICATIONSAutomotive:audio amplifier, head unit, ANC/RNC, rear seat entertainment, digital cockpit, ADASConsumer & Professional Audio:speakers, sound bars, AVRs, conferencing systems, mixing consoles, microphone arrays, headphones |
ADSP-21567Up to 800MHz SHARC+ DSP with 640KB L1, 512KB Shared L2 SRAM, 400-Ball CSP_BGA | Integrated Circuits (ICs) | 4 | Active | Reaching speeds of up to 1 GHz, the ADSP-2156x processors are members of the SHARC®family of products. The ADSP-2156x processor is based on the SHARC+®single core. The ADSP-2156x SHARC processors are members of the SIMD SHARC family of digital signal processors (DSPs) that feature Analog Devices, Inc., Super Harvard Architecture. These 32-bit/40-bit/64-bit floating-point processors are optimized for high performance audio/floating-point applications with large on-chip static random-access memory (SRAM), multiple internal buses that eliminate input/output (I/O) bottlenecks, and innovative digital audio interfaces (DAI). New additions to the SHARC+ core include cache enhancements and branch prediction, while maintaining instruction set compatibility to previous SHARC products.By integrating a rich set of industry-leading system peripherals and memory (see Table 1 in the data sheet), the SHARC+ processor is the platform of choice for applications that require programmability similar to reduced instruction set computing (RISC), multimedia support, and leading edge signal processing in one integrated package. These applications span a wide array of markets, including automotive, professional audio, and industrial-based applications that require high floating-point performance.APPLICATIONSAutomotive:audio amplifier, head unit, ANC/RNC, rear seat entertainment, digital cockpit, ADASConsumer & Professional Audio:speakers, sound bars, AVRs, conferencing systems, mixing consoles, microphone arrays, headphones |
ADSP-21568933 MHz SHARC+ DSP with 2048KB Shared L2 SRAM | Embedded | 1 | Active | Reaching speeds of up to 933 MHz, the ADSP-21568 processors are members of the SHARC® family of products. These processors offer a cost-reduced pin- and code-compatible option to the ADSP-21566/ADSP-21567/ADSP-21569 processors, while offering double the L2 memory (2MB) and supporting the peripheral functions of the ADSP-21562/ADSP-21563/ADSP-21565 LQFP package products.The processors are members of the SIMD SHARC family of digital signal processors (DSPs) that feature Analog Devices, Inc., Super Harvard Architecture. These 32-bit/40-bit/64-bit floating-point processors are optimized for high performance audio/floating-point applications with large on-chip static random-access memory (SRAM), multiple internal buses that eliminate input/output (I/O) bottlenecks, and innovative digital audio interfaces (DAI). Additions to the SHARC+ core include cache enhancements and branch prediction, while maintaining instruction set compatibility to previous SHARC products.By integrating a rich set of industry-leading system peripherals and memory, the SHARC+ processor is the platform of choice for applications that require programmability similar to reduced instruction set computing (RISC), multimedia support, and leading edge signal processing in one integrated package. These applications span a wide array of markets, including automotive, professional audio, and industrial-based applications that require high floating-point performance.APPLICATIONSAutomotive:audio amplifier, head unit, ANC/RNC, rear seat entertainment, digital cockpit, ADASConsumer & Professional Audio:speakers, sound bars, AVRs, conferencing systems, mixing consoles, microphone arrays, headphones |
ADSP-21569Up to 1GHz SHARC+ DSP with 640KB L1, 1024KB Shared L2 SRAM, 400-Ball CSP_BGA | Development Boards, Kits, Programmers | 5 | Active | Reaching speeds of up to 1 GHz, the ADSP-2156x processors are members of the SHARC®family of products. The ADSP-2156x processor is based on the SHARC+®single core. The ADSP-2156x SHARC processors are members of the SIMD SHARC family of digital signal processors (DSPs) that feature Analog Devices, Inc., Super Harvard Architecture. These 32-bit/40-bit/64-bit floating-point processors are optimized for high performance audio/floating-point applications with large on-chip static random-access memory (SRAM), multiple internal buses that eliminate input/output (I/O) bottlenecks, and innovative digital audio interfaces (DAI). New additions to the SHARC+ core include cache enhancements and branch prediction, while maintaining instruction set compatibility to previous SHARC products.By integrating a rich set of industry-leading system peripherals and memory (see Table 1 in the data sheet), the SHARC+ processor is the platform of choice for applications that require programmability similar to reduced instruction set computing (RISC), multimedia support, and leading edge signal processing in one integrated package. These applications span a wide array of markets, including automotive, professional audio, and industrial-based applications that require high floating-point performance.APPLICATIONSAutomotive:audio amplifier, head unit, ANC/RNC, rear seat entertainment, digital cockpit, ADASConsumer & Professional Audio:speakers, sound bars, AVRs, conferencing systems, mixing consoles, microphone arrays, headphones |
| DSP (Digital Signal Processors) | 6 | Active | |
| Embedded | 6 | Active | |
| DSP (Digital Signal Processors) | 3 | Active | The ADSP-21583 processor is part of the new, high-performance, power-efficient, real-time series that delivers greater than 24 giga-floating-point operations per second using two enhanced SHARC+®cores and advanced DSP accelerators (FFT, FIR, IIR). The ADSP-SC58x and ADSP-2158x series consume less than 2 watts, making the new processor line-up more than 5x more power efficient than previous SHARC products. This advantage provides industry leading digital signal processing performance for applications where thermal management sets the limit for power consumption, or where the higher costs and lower reliability of fans cannot be tolerated. Applications include automotive, consumer and professional audio, multi-axis motor control, and energy distribution systems.The ADSP-2158x family is designed for applications where a DSP co-processor is exclusively needed and includes two SHARC+ cores and a peripheral set matched to a DSP core.The new, code-compatible, enhanced SHARC+ core features clock-rate and power-efficiency improvements and adds instruction/data cache options, native double-precision floating-point support, and a number of other new instructions. Designed for low-power and using a low-leakage CMOS process, the ADSP-SC58x/2158x families deliver 450 MHz with 105°C environments in mind and provide a roadmap to future implementations at higher performance. More than 1.5 Mbytes of fast on-chip SRAM and a DDR3/2/LP interface aid efficient real-time performance while the memory subsystem includes major enhancements with advanced DMA engines for simultaneous data transfer.With software IP protection a growing industry security concern, ARM®TrustZone®security and an onboard crypto hardware accelerators are included. For applications where reliability is a critical requirement, memory parity and error-correction hardware provide higher data integrity. The overall integration and low-power features offered by the new ADSP-SC58x and ADSP-2158x series deliver significant BOM and board area savings and provide lower design complexity and reduced time to market for today’s complex applications.The ADSP-SC58x/2158x is supported by ADI’s award winning Crosscore®Embedded Studio development tool suite, providing design engineers with interactive, real-time development tools that help optimize their design and speed time to market.Additionally, ADI and Micrium have collaborated to offer µC/OS-II®& µC/OS-III®real-time kernels on SHARC+.The compatibleADSP-SC584EZ-KIT-Lite development board and ICE-1000/2000 emulators facilitate the creation, test, and debug of advanced applications. Working in tandem with CrossCore Embedded Studio, the emulators provide state-of-the-art support for all JTAG-compliant Analog Devices processors now utilizing CoreSight™from ARM. |
| DSP (Digital Signal Processors) | 6 | Active | The ADSP-21584 processor is part of the new, high-performance, power-efficient, real-time series that delivers greater than 24 giga-floating-point operations per second using two enhanced SHARC+®cores and advanced DSP accelerators (FFT, FIR, IIR). The ADSP-SC58x and ADSP-2158x series consume less than 2 watts, making the new processor line-up more than 5x more power efficient than previous SHARC products. This advantage provides industry leading digital signal processing performance for applications where thermal management sets the limit for power consumption, or where the higher costs and lower reliability of fans cannot be tolerated. Applications include automotive, consumer and professional audio, multi-axis motor control, and energy distribution systems.The ADSP-2158x family is designed for applications where a DSP co-processor is exclusively needed and includes two SHARC+ cores and a peripheral set matched to a DSP core.The new, code-compatible, enhanced SHARC+ core features clock-rate and power-efficiency improvements and adds instruction/data cache options, native double-precision floating-point support, and a number of other new instructions. Designed for low-power and using a low-leakage CMOS process, the ADSP-SC58x/2158x families deliver 500 MHz with 105°C environments in mind and provide a roadmap to future implementations at higher performance. More than 1.5 Mbytes of fast on-chip SRAM and a DDR3/2/LP interface aid efficient real-time performance while the memory subsystem includes major enhancements with advanced DMA engines for simultaneous data transfer.With software IP protection a growing industry security concern, ARM®TrustZone®security and an onboard crypto hardware accelerators are included. For applications where reliability is a critical requirement, memory parity and error-correction hardware provide higher data integrity. The overall integration and low-power features offered by the new ADSP-SC58x and ADSP-2158x series deliver significant BOM and board area savings and provide lower design complexity and reduced time to market for today’s complex applications.The ADSP-SC58x/2158x is supported by ADI’s award winning Crosscore®Embedded Studio development tool suite, providing design engineers with interactive, real-time development tools that help optimize their design and speed time to market.Additionally, ADI and Micrium have collaborated to offer µC/OS-II®& µC/OS-III®real-time kernels on SHARC+.The compatible ADSP-SC584 EZ-KIT-Lite development board and ICE-1000/2000 emulators facilitate the creation, test, and debug of advanced applications. Working in tandem with CrossCore Embedded Studio, the emulators provide state-of-the-art support for all JTAG-compliant Analog Devices processors now utilizing CoreSight™from ARM. |
