ADSP-2185M16-bit, 75 MIPS, 2.5v, 2 serial ports, host port, 80 KB RAM | Embedded | 3 | Active | The ADSP-2185M is a single-chip microcomputer optimized for digital signal processing (DSP) and other high speed numeric processing applications.The ADSP-2185M combines the ADSP-2100 family base architecture (three computational units, data address generators and a program sequencer) with two serial ports, a 16-bit internal DMA port, a byte DMA port, a programmable timer, Flag I/O, extensive interrupt capabilities, and on-chip program and data memory.The ADSP-2185M integrates 80K bytes of on-chip memory configured as 16K words (24-bit) of program RAM, and 16K words (16-bit) of data RAM. Power down circuitry is also provided to meet the low power needs of battery operated portable equipment. The ADSP-2185M is available in 100- pin LQFP package. |
ADSP-2185N16-Bit, 80MIPS, 1.8V, 2 Serial Ports, Host Port, 80KB RAM | Embedded | 2 | Active | The ADSP-218xN series consists of six single chip microcomputers optimized for digital signal processing applications. All series members are pin-compatible and are differentiated solely by the amount of on-chip SRAM. This feature combined with ADSP-21xx code compatibility provide a great deal of flexibility in the design decision. Specifically, the series members are -ADSP-2184N(4K PM/4K DM)ADSP-2186N(8K PM/8K DM)ADSP-2185N (16K PM/16K DM)ADSP-2187N(32K PM/32K DM)ADSP-2189N(32K PM/48K DM)ADSP-2188N(48K PM/56K DM)The ADSP-218xN series offers the highest performance (80Mhz/MIPS) and lowest power consumption (0.55mW/MIP @ 1.8V) within the ADSP-218x portfolio. All series members are offered in a 100-lead LQFP and 144-Ball MBGA packages. |

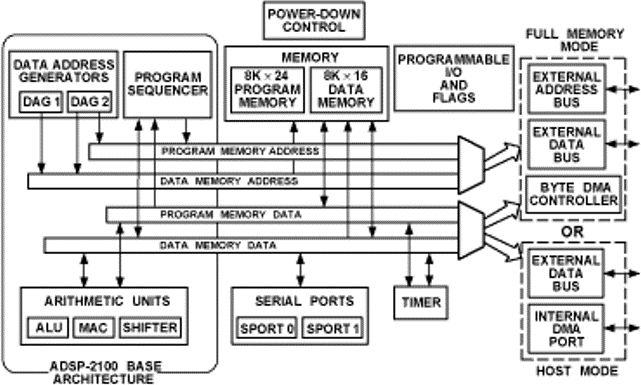

ADSP-218616-bit, 40 MIPS, 5v, 2 serial ports, host port, 40 KB RAM | DSP (Digital Signal Processors) | 1 | Active | The ADSP-2186 is a single-chip microcomputer optimized for digital signal processing (DSP) and other high speed numeric processing applications.The ADSP-2186 combines the ADSP-2100 family base architecture (three computational units, data address generators and a program sequencer) with two serial ports, a 16-bit internal DMA port, a byte DMA port, a programmable timer, Flag I/O, extensive interrupt capabilities and on-chip program and data memory.The ADSP-2186 integrates 40K bytes of on-chip memory configured as 8K words (24-bit) of program RAM and 8K words (16-bit) of data RAM. Power-down circuitry is also provided to meet the low power needs of battery operated portable equipment. The ADSP-2186 is available in 100-pin LQFP package. |
| Embedded | 5 | Active | |
| DSP (Digital Signal Processors) | 2 | Active | |
| Embedded | 2 | Active | |
| DSP (Digital Signal Processors) | 3 | Active | |
| Integrated Circuits (ICs) | 2 | Active | |
| Embedded | 5 | Active | |
ADSP-2189M16-bit, 75 MIPS, 2.5v, 2 serial ports, host port, 192 KB RAM | Embedded | 1 | Active | The ADSP-2189M is notable for its very large on-chip memory (1.5 MBits) and low power features (2.5v).The ADSP-2189M combines the ADSP-2100 family base architecture (three computational units, data address generators and a program sequencer) with two serial ports, a 16-bit internal DMA port, a byte DMA port, a programmable timer, Flag I/O, and extensive interrupt capabilities.BenefitsAlgebraic assembly language supports C language-style constructs for easy programming100-lead LQFP package provides for space and power savings (16mm x 16mm)On-chip RAM and 4 DMA ports make reprogramming easy16-bit DMA port makes bus interfacing easier5 sleep and powerdown modes maximize battery life. |
