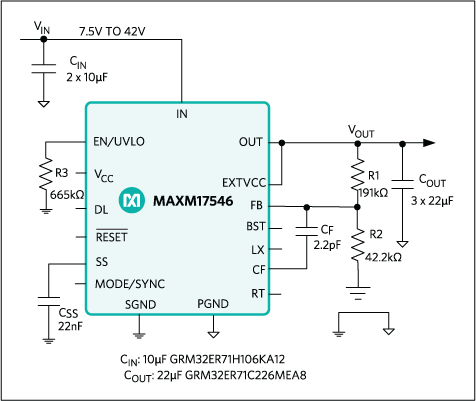

The Himalaya series of voltage regulator ICs and power modules enable cooler, smaller and simpler power supply solutions. The MAXM17546 is an easy-to-use, step-down power module that combines a switching power supply controller, dual n-channel MOSFET power switches, fully shielded inductor, and the compensation components in a low-profile, thermally-efficient system-in-package (SiP).The device operates over a wide input voltage range of 4.5V to 42V and delivers up to 5A continuous output current with excellent line and load regulation over an output-voltage range of 0.9V to 12V. The high level of integration significantly reduces design complexity, manufacturing risks, and offers a true plug-and-play power supply solution, reducing time-to-market.The device can be operated in the pulse-width modulation (PWM), pulse-frequency modulation (PFM), or discontinuous conduction mode (DCM) control schemes.The MAXM17546 is available in a low-profile, highly thermal-emissive, compact, 29-pin, 9mm x 15mm x 4.32mm SiP package that reduces power dissipation in the package and enhances efficiency. The package is easily soldered onto a printed circuit board and suitable for automated circuit board assembly.ApplicationsBase-Station Point-of-Load RegulatorDistributed Supply RegulationFPGA and DSP Point-of-Load RegulatorHVAC and Building ControlTest and Measurement Equipment

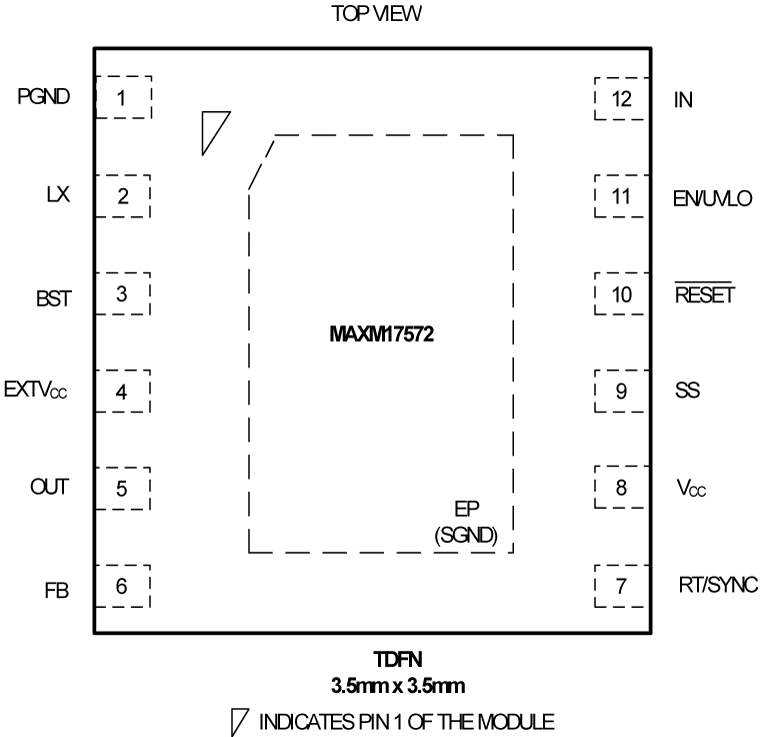

The Himalaya series of voltage regulator ICs, power modules, and chargers enable cooler, smaller, and simpler power-supply solutions. The MAXM17572 is a high-efficiency, synchronous, Himalaya step-down DC-DC power module with integrated controller, MOSFETs, compensation components, and inductor that operates over a wide input-voltage range. The module operates from 4.5V to 60V input and delivers up to 1A output current over a programmable output voltage range of 0.9V to 12V. The module significantly reduces design complexity and manufacturing risks, and offers a true "plug-and-play" power supply solution, reducing the time-to-market. The MAXM17572 employs peak-current-mode control architecture.The MAXM17572 offers programmable switching frequency,RESEToutput voltage monitoring, adjustable input undervoltage lockout, and programmable soft-start. The module also features hiccup-mode overload protection and a thermal shutdown function.The MAXM17572 is available in a low-profile, compact, 12-pin 3.5mm x 3.5mm x 2.3mm uSLIC package. Simulation models are available.APPLICATIONSIndustrial Power SuppliesDistributed Supply RegulationFPGA and DSP Point-of-Load RegulatorBase Station Point-of-Load RegulatorHVAC and Building Control

The Himalaya series of voltage regulator ICs and power modules enable cooler, smaller, and simpler power-supply solutions. MAXM17623 and MAXM17624 are high-frequency synchronous step down DC-DC converter modules, with integrated MOSFETs, compensation components, and inductors, that operate over 2.9V to 5.5V input voltage range. MAXM17623 and MAXM17624 support up to 1A load current and allow use of small, low-cost input and output capacitors. The output voltage can be adjusted from 0.8V to 3.3V. The modules significantly reduce design complexity, manufacturing risks, and offer a true plug-and-play power supply solution, reducing time-to-market.The MAXM17623 and MAXM17624 modules employ peak-current-mode control architecture under steady-state operation. To reduce input inrush current, the devices offer a fixed 1ms soft-start time. Both modules feature selectable PWM or PFM mode of operation at light loads. When PWM mode is selected, MAXM17623 operates at a fixed 2MHz switching frequency and MAXM17624 operates at a fixed 4MHz switching frequency. MAXM17623 offers output voltages from 0.8V to 1.5V and MAXM17624 offers output voltages from 1.5V to 3.3V.The MAXM17623 and MAXM17624 modules are available in a low profile, compact 10-pin, 2.6mm x 2.1mm x 1.3mm, uSLIC™package.ApplicationsBattery Powered ApplicationsDistributed Power SystemsIndustrial Sensors and Process ControlPoint of Load Power SupplyStandard 5V Rail Supplies

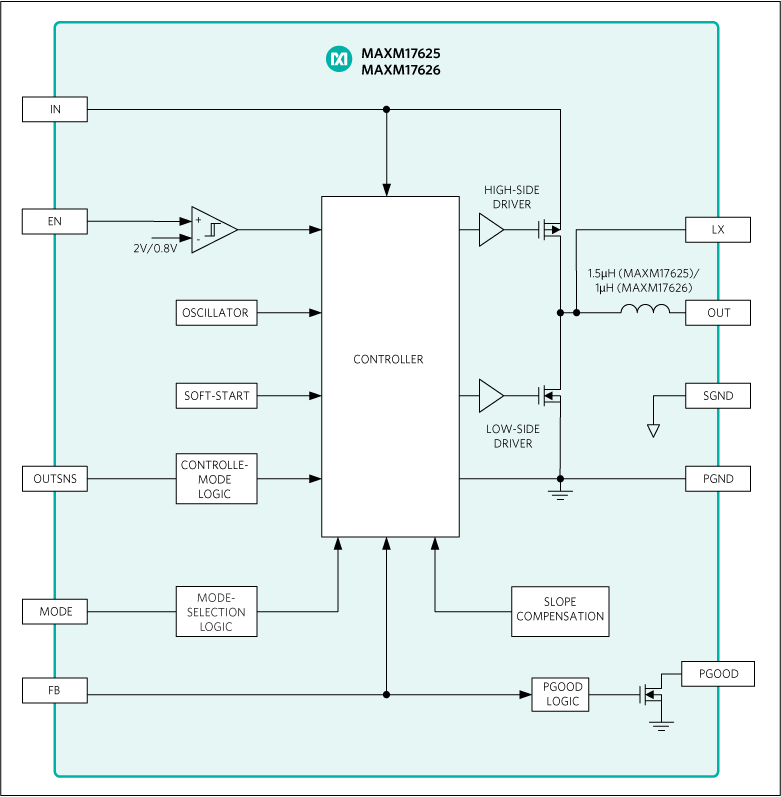

The Himalaya series of voltage regulator ICs, power modules, and chargers enable cooler, smaller, and simpler power supply solutions. MAXM17625 and MAXM17626 are high-frequency Himalaya synchronous step-down DC-DC uSLICTMmodules with integrated MOSFETs, compensation components, and inductors, that operate over a wide 2.7V to 5.5V input voltage range. MAXM17625 and MAXM17626 support up to 600mA load current and allow use of small, low-cost input and output capacitors. The output voltage can be adjusted from 0.8V to 3.3V. The modules significantly reduce design complexity, manufacturing risks, and offer a true plug-and-play power supply solution, reducing time-to-market.The MAXM17625 and MAXM17626 modules employ peak-current-mode control architecture under steady-state operation. To reduce input inrush current, the devices offer a fixed 1ms soft-start time. Both modules feature selectable PWM or PFM mode of operation at light loads. When PWM mode is selected, MAXM17625 operates at a fixed 2MHz switching frequency and MAXM17626 operates at a fixed 4MHz switching frequency. MAXM17625 offers output voltages from 0.8V to 1.5V and MAXM17626 offers output voltages from 1.5V to 3.3V.The MAXM17625 and MAXM17626 modules are available in a low profile, compact 10-pin, 2.6mm x 2.1mm x 1.3mm, uSLIC package.ApplicationsBattery Powered ApplicationsDistributed Power SystemsIndustrial Sensors and Process ControlPoint-of-Load Power SupplyStandard 5V Rail Supplies
