MAXM17552 Series

Catalog

EVAL BOARD FOR MAXM17552

Part	Board Type	Supplied Contents	Outputs and Type	Outputs and Type	Regulator Topology	Current - Output	Main Purpose	Utilized IC / Part	Voltage - Output	Frequency - Switching	Contents	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Supplier Device Package	Type	Features	Mounting Type	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]

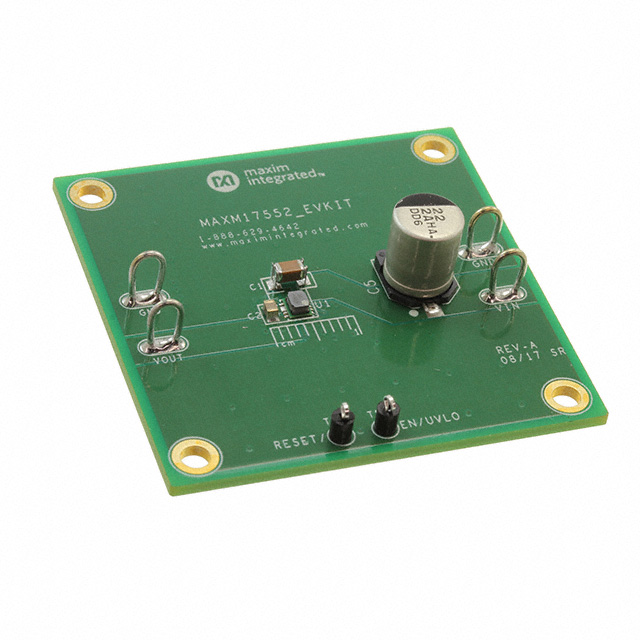

Analog Devices Inc./Maxim Integrated MAXM17552EVKIT#	Fully Populated	Board(s)	1	1 Non-Isolated Output Non-Isolated	Buck	100 mA	DC/DC Step Down	MAXM17552	5 V	450 kHz	Board(s)	60 V	14 V
Analog Devices Inc./Maxim Integrated MAXM17552ALI+
Analog Devices Inc./Maxim Integrated MAXM17552AMB+														10-SMD Module	100 mA	60 V	10-eMGA (3x2.6)	Non-Isolated PoL Module	OCP OTP SCP UVLO	Surface Mount	ITE (Commercial)	0.12 inches	2.6 mm	0.06 "	0.1 in	1.5 mm	3 mm	125 °C	-40 C	1	4 V	0.9 V	5.5 V
Analog Devices Inc./Maxim Integrated MAXM17552AMB+T														10-SMD Module	100 mA	60 V	10-eMGA (3x2.6)	Non-Isolated PoL Module	OCP OTP SCP UVLO	Surface Mount	ITE (Commercial)	0.12 inches	2.6 mm	0.06 "	0.1 in	1.5 mm	3 mm	125 °C	-40 C	1	4 V	0.9 V	5.5 V
