MAXM17575 Series

Catalog

4.5V TO 60V, 1.5A HIGH-EFFICIENCY, DC-DC STEP-DOWN POWER MODULE WITH INTEGRATED INDUCTOR

Part	Type	Voltage - Input (Min) [Min]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Features	Package / Case	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Outputs	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Supplied Contents	Board Type	Outputs and Type	Outputs and Type	Frequency - Switching	Current - Output	Main Purpose	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Regulator Topology	Contents	Voltage - Output
Analog Devices Inc./Maxim Integrated MAXM17575ALI#T	Non-Isolated PoL Module	4.5 V	12 V	0.9 V	OTP OVP UVLO	28-PowerBLGA Module	ITE (Commercial)	125 °C	-40 C	Surface Mount	1	2.9 mm	0.11 "	0.39 "	0.26 in	6.5 mm	10 mm	28-LGA (6.5x10)	1.5 A	60 V

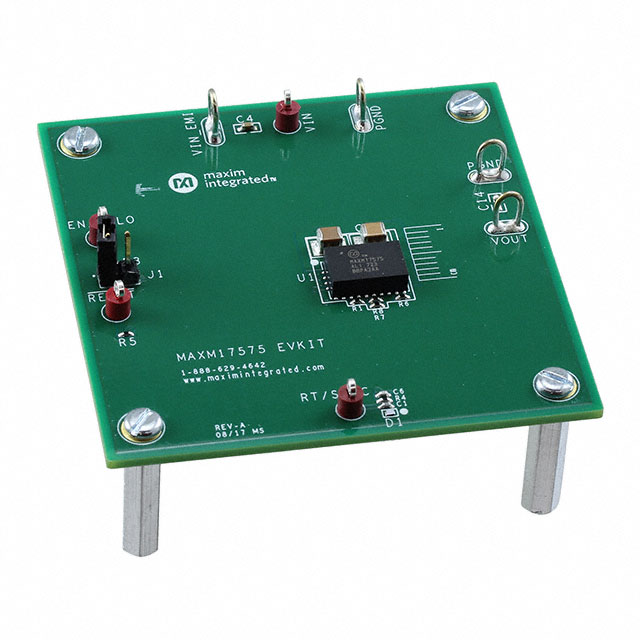

Analog Devices Inc./Maxim Integrated MAXM17575EVKIT#																					Board(s)	Fully Populated	1	1 Non-Isolated Output Non-Isolated	900 kHz	1.5 A	DC/DC Step Down	MAXM17575	60 V	7.5 V	Buck	Board(s)	5 V
Analog Devices Inc./Maxim Integrated MAXM17575ALI#	Non-Isolated PoL Module	4.5 V	12 V	0.9 V	OTP OVP UVLO	28-PowerBLGA Module	ITE (Commercial)	125 °C	-40 C	Surface Mount	1	2.9 mm	0.11 "	0.39 "	0.26 in	6.5 mm	10 mm	28-LGA (6.5x10)	1.5 A	60 V
