MAXM17574 Series

Catalog

EVALUATION BOARD, MAXM17574 DC/DC CONVERTER, STEP DOWN CONVERTER, 10V -60V IN, 5V OUT

Part	Board Type	Supplied Contents	Outputs and Type	Outputs and Type	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Contents	Main Purpose	Current - Output	Utilized IC / Part	Frequency - Switching	Mounting Type	Voltage - Input (Max) [Max]	Package / Case	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Supplier Device Package	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Features	Number of Outputs	Applications	Voltage - Input (Min) [Min]	Type

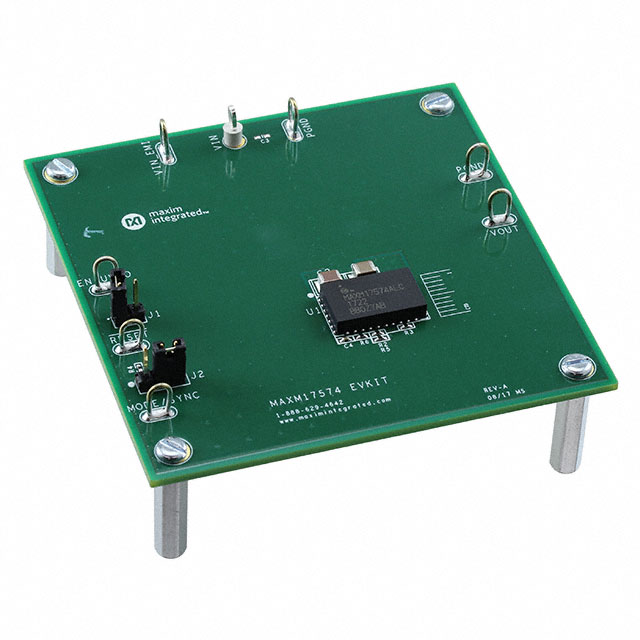

Analog Devices Inc./Maxim Integrated MAXM17574EVKIT#	Fully Populated	Board(s)	1	1 Non-Isolated Output Non-Isolated	5 V	60 V	10 V	Board(s)	DC/DC Step Down	3 A	MAXM17574	650 kHz

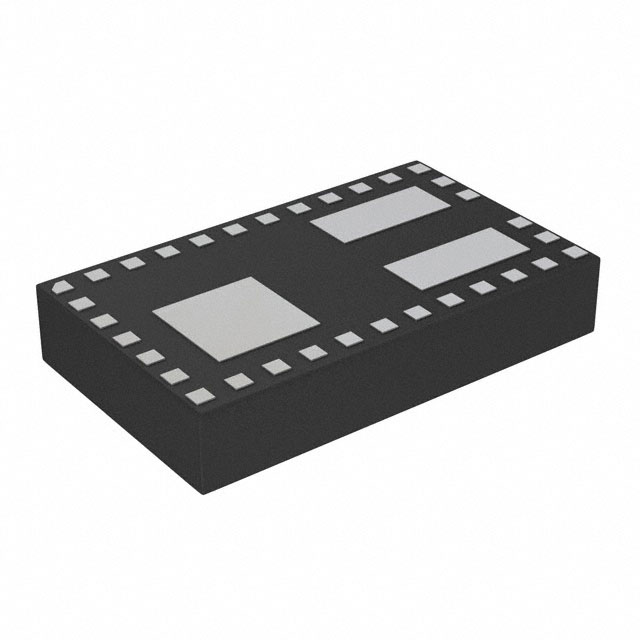

Analog Devices Inc./Maxim Integrated MAXM17574ALC#													Surface Mount	60 V	33-PowerBLGA Module	3 A	125 °C	-40 C	0.9 V	15 V	33-LGA (15x9)	15 mm	2.8 mm	0.35 in	9 mm	0.11 "	0.59 in	OCP OTP UVLO	1	ITE (Commercial)	4.5 V	Non-Isolated PoL Module
Analog Devices Inc./Maxim Integrated MAXM17574ALC#T													Surface Mount	60 V	33-PowerBLGA Module	3 A	125 °C	-40 C	0.9 V	15 V	33-LGA (15x9)	15 mm	2.8 mm	0.35 in	9 mm	0.11 "	0.59 in	OCP OTP UVLO	1	ITE (Commercial)	4.5 V	Non-Isolated PoL Module
