Analog Devices Inc./Maxim Integrated

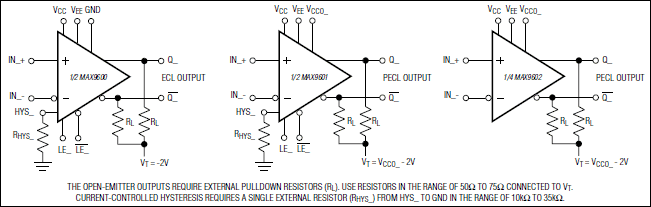

The MAX9600/MAX9601/MAX9602 ultra-high-speed comparators feature extremely low propagation delay (500ps). These dual and quad comparators minimize propagation delay skew (10ps) and are designed for low propagation delay dispersion (30ps). These features make them ideal for applications where high-fidelity tracking of narrow pulses and low timing dispersion is critical.The differential input stage accepts a wide range of signals in the common-mode range from (VEE+ 3V) to (VCC- 2V). The outputs are complementary digital signals, compatible with ECL and PECL systems, and provide sufficient current to directly drive transmission lines terminated in 50Ω.The MAX9600/MAX9601 dual-channel ECL and dual-channel PECL output comparators incorporate latch enable (LE_, active-low LE_), and hysteresis (HYS_). The complementary latch-enable control permits tracking, track-hold or sample-hold mode of operations. The latch-enables can be driven with standard ECL logic for MAX9600 and PECL logic for MAX9601. The MAX9602 quad-channel PECL output comparator is ideal for high-density packaging in limited board space.The MAX9600/MAX9601 are available in 20-pin TSSOP packages, and the MAX9602 is offered in a 24-pin TSSOP package. The MAX9600/MAX9601/MAX9602 are specified for operation from -40°C to +85°C.ApplicationsHigh-Speed InstrumentationHigh-Speed TriggeringLine Receiving/Signal RestorationScope/Logic Analyzer Front EndsThreshold and Peak DetectionVLSI and High-Speed Memory ATE

The MAX961–MAX964/MAX997/MAX999 are low-power, ultra-high-speed comparators with internal hysteresis. These devices are optimized for single +3V or +5V operation. The input common-mode range extends 100mV Beyond-the-Rails™, and the outputs can sink or source 4mA to within 0.52V of GND and VCC. Propagation delay is 4.5ns (5mV overdrive), while supply current is 5mA per comparator.The MAX961/MAX963/MAX964 and MAX997 have a shutdown mode in which they consume only 270µA supply current per comparator. The MAX961/MAX963 provide complementary outputs and a latch-enable feature. Latch enable allows the user to hold a valid comparator output. The MAX999 is available in a tiny SOT23-5 package. The single MAX961/MAX997 and dual MAX962 are available in space-saving 8-pin µMAX® packages.ApplicationsGPS ReceiversHigh-Speed Sampling CircuitsLine ReceiversPortable Battery-Powered SystemsSingle 3V/5V SystemsThreshold Detectors/DiscriminatorsZero-Crossing Detectors
