MAX9611 Series

Catalog

MODULE PERIPHERAL FOR MAX9611

Part	Amplifier Type	Output Type	-3db Bandwidth	Board Type	Current - Supply (Main IC)	Supplied Contents	Channels per IC	Current - Output / Channel	Utilized IC / Part	Type	Contents	Platform	Function	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply	Mounting Type	Current - Input Bias	Voltage - Supply Span (Max) [Max]	Voltage - Supply Span (Min) [Min]	Gain Bandwidth Product	Supplier Device Package	Package / Case	Voltage - Input Offset

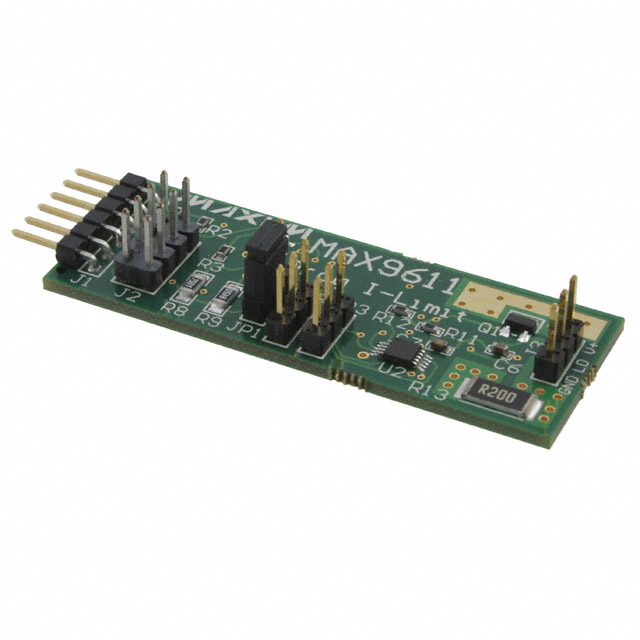

Analog Devices Inc./Maxim Integrated MAX9611PMB1#	Current Sense	Single-Ended	4 MHz	Fully Populated	1.6 mA	Board(s)	1	15 mA	MAX9611	Amplifier	Board(s)	Pmod™	Current Sense

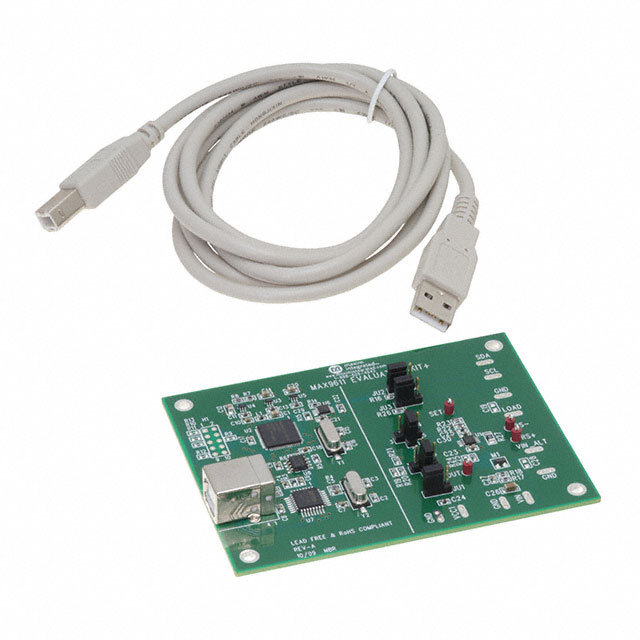

Analog Devices Inc./Maxim Integrated MAX9611EVKIT+	Current Sense	Single-Ended	4 MHz	Fully Populated	1.6 mA	Board(s) Cable(s)	1	15 mA	MAX9611		Board Cable			5.5 V	2.7 V
Analog Devices Inc./Maxim Integrated MAX9611AUB+T	Current Sense		4 MHz					15 mA								1	125 °C	-40 C	1.6 mA	Surface Mount	1 µA	5.5 V	2.7 V	2.5 MHz	10-uMAX/uSOP	10-TFSOP 10-MSOP (0.118" 3.00mm Width)	100 çV
Analog Devices Inc./Maxim Integrated MAX9611AUB+	Current Sense		4 MHz					15 mA								1	125 °C	-40 C	1.6 mA	Surface Mount	1 µA	5.5 V	2.7 V	2.5 MHz	10-uMAX/uSOP	10-TFSOP 10-MSOP (0.118" 3.00mm Width)	100 çV
