MAX9601 Series

Catalog

DUAL ECL AND DUAL/QUAD PECL, 500PS, ULTRA-HIGH-SPEED COMPARATORS

Part	Voltage - Input Offset (Max) [Max]	Current - Quiescent (Max) [Max] [x]	CMRR, PSRR (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Typ)	Supplier Device Package	Current - Input Bias (Max)	Package / Case	Package / Case [y]	Package / Case [x]	Mounting Type	Number of Elements	Propagation Delay (Max) [Max]	Type	Hysteresis	Output Type	Supplied Contents	Contents	Function	Utilized IC / Part
Analog Devices Inc./Maxim Integrated MAX9601EUP+T	5 mV	27 mA	65 dB 70 dB	85 °C	-40 C	50 mA	20-TSSOP	6 µA	20-TSSOP	4.4 mm	0.173 "	Surface Mount	2	0.5 ns	with Latch	30 mV	Complementary Differential PECL
Analog Devices Inc./Maxim Integrated MAX9601EUP+	5 mV	27 mA	65 dB 70 dB	85 °C	-40 C	50 mA	20-TSSOP	6 µA	20-TSSOP	4.4 mm	0.173 "	Surface Mount	2	0.5 ns	with Latch	30 mV	Complementary Differential PECL

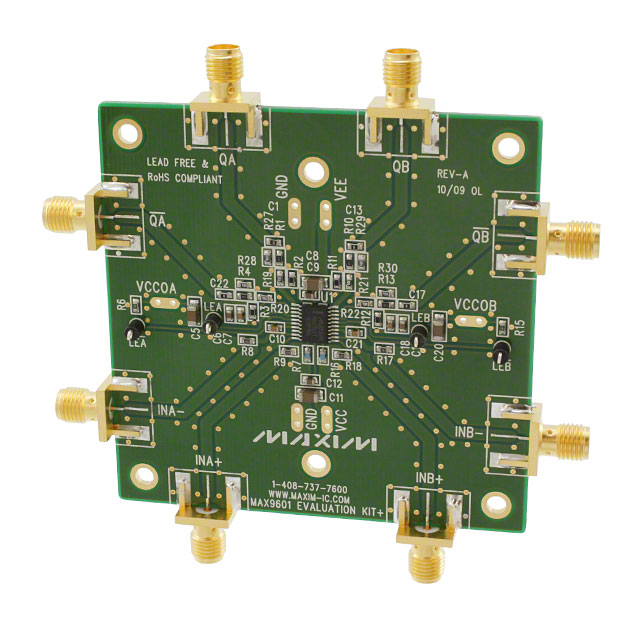

Analog Devices Inc./Maxim Integrated MAX9601EVKIT+															Linear			Board(s)	Board(s)	Comparator Dual	MAX9601
Analog Devices Inc./Maxim Integrated MAX9601EUP	5 mV	27 mA	65 dB 70 dB	85 °C	-40 C	50 mA	20-TSSOP	6 µA	20-TSSOP	4.4 mm	0.173 "	Surface Mount	2	0.5 ns	with Latch	30 mV	Complementary Differential ECL
Analog Devices Inc./Maxim Integrated MAX9601EUP-T	5 mV	27 mA	65 dB 70 dB	85 °C	-40 C	50 mA	20-TSSOP	6 µA	20-TSSOP	4.4 mm	0.173 "	Surface Mount	2	0.5 ns	with Latch	30 mV	Complementary Differential ECL
