The MAX77976 remains in production, however, for new projects, we recommend MAX77986. The migration guide to move from MAX77976 to MAX77986 is provided under the Documentation & Resources section below.The MAX77975/MAX77976 is a high-performance high-input 3.5/5.5A fast charger with Smart Power SelectorTM. The IC can operate as a reverse boost without an additional inductor, allowing the battery to share its power through the charging port and is voltage programmable from 5V to 12V. The device features fully integrated low-loss power switches to provide small solution size and high-efficiency, even at high input voltage and high charging current. Its high switching frequency allows the use of a smaller sized inductor. The IC features true load disconnection in reverse boost mode and has an adjustable output current protection limit. The device is highly flexible and programmable through I2C configuration.The battery charger includes a Smart Power Selector to accommodate a wide range of battery sizes and system loads. The Smart Power Selector allows the system to start-up gracefully as soon as an input source is available, even when the battery is deeply discharged (dead battery) or missing. It can be configured so that when power is applied to the charger input, the battery charging can automatically start.ApplicationsGaming DevicesVR ApplicationsmPOSTablet PCs

The MAX77985/MAX77986is a high-performance high input range 3.5/5.5A fast charger with Smart Power SelectorTM. The IC can operate as a reverse boost without an additional inductor, allowing the battery to share its power through the charging port with voltage programmable from 5V to 12V. The device features fully integrated low-loss power switches to provide a small solution size and high efficiency, even at high input voltage and high charging current. Its high switching frequency allows the use of a smaller sized inductor. Li-ion, Li-polymer, and LiFePO4 battery chemistries are supported. The IC is compatible with USB Power Delivery sources with input current capability up to 5A. It can also provide fast unplug detection of 5V, 9V, and 15V sources for dynamic management of system load. The IC also helps mitigate EMI with the spread spectrum feature. The IC features true load disconnection in reverse boost mode and has an adjustable output current protection limit. The device is highly flexible and programmable through I2C configuration.The battery charger includes a Smart Power Selector to accommodate a wide range of battery sizes and system loads. The Smart Power Selector allows the system to start up gracefully as soon as an input source is available, even when the battery is deeply discharged (dead battery) or missing. It can be configured so that when power is applied to the charger input, the battery charging can automatically start.Note:For parts with chip revision 0b001 (PASS1), contact Analog Devices for Rev 0 of the data sheet. This information can be read from the CHIP_REVISION (0x01) register.APPLICATIONSGaming DevicesVR ApplicationsmPOSTablet PCs

TheMAX77985/MAX77986 is a high-performance high input range 3.5/5.5A fast charger with Smart Power SelectorTM. The IC can operate as a reverse boost without an additional inductor, allowing the battery to share its power through the charging port with voltage programmable from 5V to 12V. The device features fully integrated low-loss power switches to provide a small solution size and high efficiency, even at high input voltage and high charging current. Its high switching frequency allows the use of a smaller sized inductor. Li-ion, Li-polymer, and LiFePO4 battery chemistries are supported. The IC is compatible with USB Power Delivery sources with input current capability up to 5A. It can also provide fast unplug detection of 5V, 9V, and 15V sources for dynamic management of system load. The IC also helps mitigate EMI with the spread spectrum feature. The IC features true load disconnection in reverse boost mode and has an adjustable output current protection limit. The device is highly flexible and programmable through I2C configuration.The battery charger includes a Smart Power Selector to accommodate a wide range of battery sizes and system loads. The Smart Power Selector allows the system to start up gracefully as soon as an input source is available, even when the battery is deeply discharged (dead battery) or missing. It can be configured so that when power is applied to the charger input, the battery charging can automatically start.Note:For parts with chip revision 0b001 (PASS1), contact Analog Devices for Rev 0 of the data sheet. This information can be read from the CHIP_REVISION (0x01) register.APPLICATIONSGaming DevicesVR ApplicationsmPOSTablet PCs

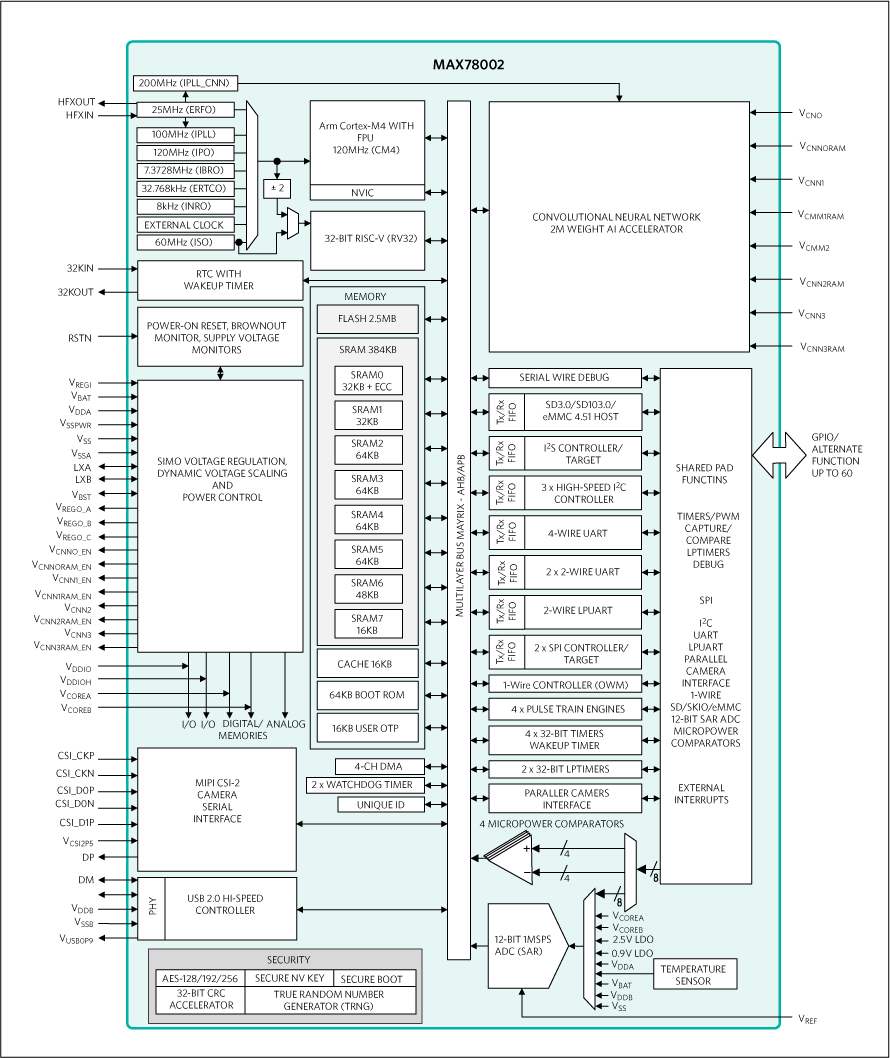

Artificial intelligence (AI) requires extreme computational horsepower, but Maxim is cutting the power cord from AI insights. The MAX78002 is a new breed of AI microcontroller built to enable neural networks to execute at ultra-low power and live at the edge of the IoT. This product combines the most energy-efficient AI processing with Maxim's proven ultra-low power microcontrollers. Our hardware-based convolutional neural network (CNN) accelerator enables battery-powered applications to execute AI inferences while spending only millijoules of energy.The MAX78002 is an advanced system-on-chip featuring an Arm®Cortex®-M4 with FPU CPU for efficient system control with an ultra-low-power deep neural network accelerator. The CNN engine has a weight storage memory of 2MB, and can support 1-, 2-, 4-, and 8-bit weights (supporting networks of up to 16 million 1-bit weights). The CNN weight memory is SRAM-based, so AI network updates can be made on the fly. The CNN engine also has 1.3MB of data memory. The CNN architecture is highly flexible, allowing networks to be trained in conventional toolsets like PyTorch®and TensorFlow®, then converted for execution on the MAX78002 using tools provided by Analog Devices.In addition to the memory in the CNN engine, the MAX78002 has large on-chip system memory for the microcontroller core, with 2.5MB flash and up to 384KB SRAM. Multiple high-speed and low-power communications interfaces are supported, including I2S, MIPI CSI-2®, parallel camera interface (PCIF) and SD3.0/SDIO3.0/eMMC4.51 secure digital..The device is available in a 144-pin CSBGA (12mm x 12mm, 0.8mm pitch) package.ApplicationsFactory Robot and Drone NavigationIndustrial Sensors and Process ControlIn-line Quality Assurance SystemsSmart Security CamerasPortable Medical Diagnostics Equipment
