| Power Management (PMIC) | 4 | Obsolete | |
| Voltage Regulators - DC DC Switching Regulators | 2 | Obsolete | |
| DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards | 3 | Active | |
| Power Management (PMIC) | 2 | Active | |
| Development Boards, Kits, Programmers | 3 | Active | |
MAX77643Ultra Configurable PMIC Featuring 93% Peak Efficiency Single-Inductor, 3-Output Buck-Boost, 1-LDO for Long Battery Life | Evaluation Boards | 10 | Active | The MAX77642/MAX77643 provide power supply solutions for low-power applications where size and efficiency are critical. The IC features a SIMO buck-boost regulator that provides three independently programmable power rails from a single inductor to minimize total solution size. A 150mA LDO provides ripple rejection for audio and other noise-sensitive applications. The LDO can also be configured as load switches to manage power consumption by disconnecting external blocks when not required.The MAX77642's SIMO and LDO output voltages are individually programmable through resistors. A peak current limit input is used to set both the inductor's peak current limits of the device with a single resistor. Individual enable pins combined with the flexible resistor programmability allows the device to be tailored for many applications.This MAX77643's SIMO and LDO output voltages are individually programmable through I2C and in addition, includes two GPIOs with alternate modes for scalability. A bidirectional I2C serial interface allows for configuring and checking the status of the devices. An internal on/off controller provides a controlled startup sequence for the regulators and provides supervisory functionality while they are on. Numerous factory programmable options allow the device to be tailored for many applications, enabling faster time to market.ApplicationsNext Generation HearablesFitness, Health, and Activity MonitorsSafety and Security MonitorsPortable Consumer Devices |
MAX77646Ultra-Configurable SIMO PMIC Featuring 3-Output Buck-Boost, 1-LDO for Long Battery Life Primary Cell Applications | Evaluation Boards | 2 | Active | The MAX77646/MAX77647 provides power supply solutions for low-power applications where size and efficiency are critical. The IC features a Single Inductor Multiple Output (SIMO) buck-boost regulator that provides three independently programmable power rails from a single inductor to minimize total solution size. A 150mA LDO provides ripple rejection for audio and other noise-sensitive applications. The LDO can also be configured as a load switch to manage power consumption by disconnecting external blocks when not required.The MAX77646/MAX77647 operates with battery voltages from 1.8V with coin-cell, dual silver oxide, dual alkaline, and LiSOCL2primary batteries.The MAX77646 (RSELvariant) SIMO and LDO output voltages are individually programmable through resistors. A peak current limit input is used to set both the inductor's peak current limits of the device with a single resistor. Individual enable pins combined with the flexible resistor programmability allows the device to be tailored for many applications.The MAX77647 (I2C variant) SIMO and LDO output voltages are individually programmable through I2C and in addition, includes two GPIOs with alternate modes for scalability. A bidirectional I2C serial interface allows for configuring and checking the status of the devices. An internal on/off controller provides a controlled startup sequence for the regulators and provides supervisory functionality while they are on. Numerous factory programmable options allow the device to be tailored for many applications, enabling faster time to market.APPLICATIONSGNSS ModuleIoT Enabled Wireless Sensor NodesHome Safety and Security MonitorsFactory Safety and Security MonitorsFitness, Health, and Activity Trackers |
MAX77647Ultra-Configurable SIMO PMIC Featuring 3-Output Buck-Boost, 1-LDO for Long Battery Life Primary Cell Applications | Evaluation Boards | 1 | Active | TheMAX77646/MAX77647 provides power supply solutions for low-power applications where size and efficiency are critical. The IC features a Single Inductor Multiple Output (SIMO) buck-boost regulator that provides three independently programmable power rails from a single inductor to minimize total solution size. A 150mA LDO provides ripple rejection for audio and other noise-sensitive applications. The LDO can also be configured as a load switch to manage power consumption by disconnecting external blocks when not required.The MAX77646/MAX77647 operates with battery voltages from 1.8V with coin-cell, dual silver oxide, dual alkaline, and LiSOCL2primary batteries.The MAX77646 (RSELvariant) SIMO and LDO output voltages are individually programmable through resistors. A peak current limit input is used to set both the inductor's peak current limits of the device with a single resistor. Individual enable pins combined with the flexible resistor programmability allows the device to be tailored for many applications.The MAX77647 (I2C variant) SIMO and LDO output voltages are individually programmable through I2C and in addition, includes two GPIOs with alternate modes for scalability. A bidirectional I2C serial interface allows for configuring and checking the status of the devices. An internal on/off controller provides a controlled startup sequence for the regulators and provides supervisory functionality while they are on. Numerous factory programmable options allow the device to be tailored for many applications, enabling faster time to market.APPLICATIONSGNSS ModuleIoT Enabled Wireless Sensor NodesHome Safety and Security MonitorsFactory Safety and Security MonitorsFitness, Health, and Activity Trackers |

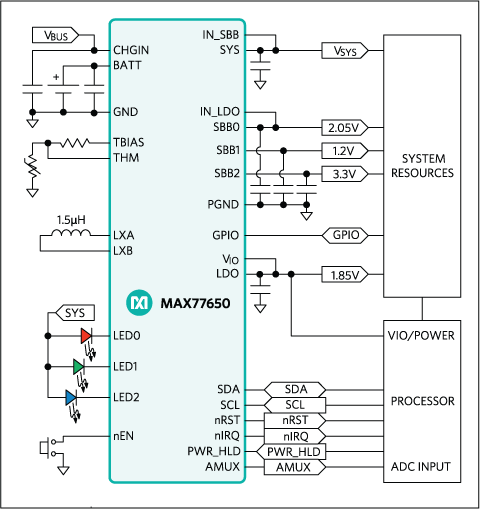

MAX77650Ultra-Low Power PMIC with 3-Output SIMO and Power Path Charger for Small Li+ | Development Boards, Kits, Programmers | 7 | Active | The MAX77650/MAX77651 provide highly-integrated battery charging and power supply solutions for low-power wearable applications where size and efficiency are critical. Both devices feature a SIMO buck-boost regulator that provides three independently programmable power rails from a single inductor to minimize total solution size. A 150mA LDO provides ripple rejection for audio and other noise-sensitive applications. A highly configurable linear charger supports a wide range of Li+ battery capacities and includes battery temperature monitoring for additional safety (JEITA).The devices include other features such as current sinks for driving LED indicators and an analog multiplexer that switches several internal voltage and current signals to an external node for monitoring with an external ADC. A bidirectional I2C interface allows for configuring and checking the status of the devices. An internal on/off controller provides a controlled startup sequence for the regulators and provides supervisory functionality when the devices are on. Numerous factory programmable options allow the device to be tailored for many applications, enabling faster time to market.ApplicationsBluetooth Headphones/HearablesFitness, Health, and Activity MonitorsInternet of Things (IoT)Portable Devices |
| Development Boards, Kits, Programmers | 4 | Active | |
