| Power Management (PMIC) | 40 | Active | |
| Voltage Regulators - DC DC Switching Regulators | 11 | Active | |
| PMIC | 16 | Active | |

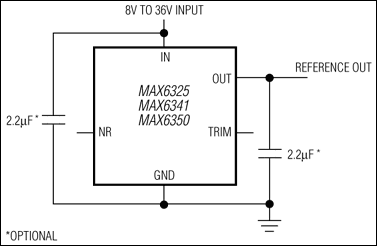

MAX63411ppm/°C, Low-Noise, +2.5V/+4.096V/+5V Voltage References | Power Management (PMIC) | 10 | Active | The MAX6325/MAX6341/MAX6350 are low-noise, precision voltage references with extremely low, 0.5ppm/°C typical temperature coefficients and excellent, ±0.02% initial accuracy. These devices feature buried-zener technology for lowest noise performance. Load-regulation specifications are guaranteed for source and sink currents up to 15mA. Excellent line and load regulation and low output impedance at high frequencies make them ideal for high-resolution data-conversion systems up to 16 bits.The MAX6325 is set for a 2.500V output, the MAX6341 is set for a 4.096V output, and the MAX6350 is set for a 5.000V output. All three provide for the option of external trimming and noise reduction.ApplicationsAutomated Test Equipment (ATE)Digital VoltmetersHigh-Accuracy Industrial and Process ControlHigh-Accuracy Reference StandardHigh-Resolution A/D and D/A ConvertersPrecision Current Sources |

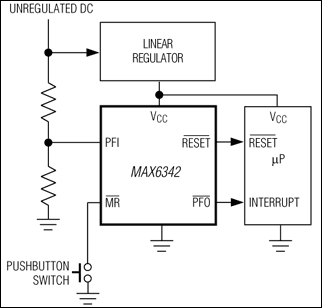

MAX63426-Pin µP Reset Circuit with Power-Fail Comparator | Voltage Reference | 10 | Active | The MAX6342-MAX6345 family of microprocessor (µP) supervisory circuits monitors power supplies in digital systems. These devices significantly improve system reliability and accuracy compared to separate ICs or discrete components.The MAX6342-MAX6345 provide factory-trimmed VCCreset threshold voltages from 2.33V to 4.63V and operate with supply voltages between +1V and +5.5V. A +1.25V threshold detector allows for a power-fail warning, for low-battery detection, or for monitoring another power supply. The MAX6342 contains an active-low MR input and an active-low push-pull reset. The MAX6343 and MAX6344 are identical to the MAX6342 except they provide an active-low, open-drain reset and an active-high, push-pull reset, respectively. The MAX6345 provides a second reset output in place of the active-low MR input to give it an active-high push-pull reset and an active-low push-pull reset.All of the devices are packaged in a miniature 6-pin SOT23.ApplicationsEmbedded Control SystemsMultivoltage SystemsNetwork EquipmentPortable Battery-Powered EquipmentPortable ComputingTelecom Equipment |
MAX63436-Pin µP Reset Circuit with Power-Fail Comparator | Power Management (PMIC) | 9 | Active | The MAX6342-MAX6345 family of microprocessor (µP) supervisory circuits monitors power supplies in digital systems. These devices significantly improve system reliability and accuracy compared to separate ICs or discrete components.The MAX6342-MAX6345 provide factory-trimmed VCCreset threshold voltages from 2.33V to 4.63V and operate with supply voltages between +1V and +5.5V. A +1.25V threshold detector allows for a power-fail warning, for low-battery detection, or for monitoring another power supply. The MAX6342 contains an active-low MR input and an active-low push-pull reset. The MAX6343 and MAX6344 are identical to the MAX6342 except they provide an active-low, open-drain reset and an active-high, push-pull reset, respectively. The MAX6345 provides a second reset output in place of the active-low MR input to give it an active-high push-pull reset and an active-low push-pull reset.All of the devices are packaged in a miniature 6-pin SOT23.ApplicationsEmbedded Control SystemsMultivoltage SystemsNetwork EquipmentPortable Battery-Powered EquipmentPortable ComputingTelecom Equipment |
MAX63446-Pin µP Reset Circuit with Power-Fail Comparator | PMIC | 10 | Active | The MAX6342-MAX6345 family of microprocessor (µP) supervisory circuits monitors power supplies in digital systems. These devices significantly improve system reliability and accuracy compared to separate ICs or discrete components.The MAX6342-MAX6345 provide factory-trimmed VCCreset threshold voltages from 2.33V to 4.63V and operate with supply voltages between +1V and +5.5V. A +1.25V threshold detector allows for a power-fail warning, for low-battery detection, or for monitoring another power supply. The MAX6342 contains an active-low MR input and an active-low push-pull reset. The MAX6343 and MAX6344 are identical to the MAX6342 except they provide an active-low, open-drain reset and an active-high, push-pull reset, respectively. The MAX6345 provides a second reset output in place of the active-low MR input to give it an active-high push-pull reset and an active-low push-pull reset.All of the devices are packaged in a miniature 6-pin SOT23.ApplicationsEmbedded Control SystemsMultivoltage SystemsNetwork EquipmentPortable Battery-Powered EquipmentPortable ComputingTelecom Equipment |
| Power Management (PMIC) | 12 | Active | |
MAX63463-Pin, Ultra-Low-Power SC70/SOT µP Reset Circuits | Supervisors | 30 | Active | The MAX6326/MAX6327/MAX6328/MAX6346/MAX6347/MAX6348 microprocessor (µP) supervisory circuits monitor the power supplies in µP and digital systems. These devices provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with 2.5V, 3V, 3.3V, and 5V powered circuits.These circuits perform a single function: they assert a reset signal whenever the VCCsupply voltage declines below a preset threshold, keeping it asserted for at least 100ms after VCChas risen above the reset threshold. The only difference between the devices is their output. The MAX6326/MAX6346 (push-pull) and MAX6328/MAX6348 (open-drain) have an active-low reset output. The MAX6327/MAX6347 have an active-high push-pull reset output. All of these parts are guaranteed to be in the correct state for VCCdown to 1V. The reset comparator is designed to ignore fast transients on VCC. Reset thresholds are factory-trimmable between 2.2V and 4.63V, in approximately 100mV increments. Twenty-one standard versions are available. Contact the factory for availability of nonstandard versions.Ultra-low supply currents (1µA max for the MAX6326/MAX6327/MAX6328) make these parts ideal for use in portable equipment. All six devices are available in space-saving SOT23 and SC70 packages.ApplicationsComputers: Desktop, Workstation, ServerControllersCritical µP and µC Power MonitoringIntelligent InstrumentsPortable Battery-Powered Equipment |
MAX63473-Pin, Ultra-Low-Power SC70/SOT µP Reset Circuits | Supervisors | 21 | Active | The MAX6326/MAX6327/MAX6328/MAX6346/MAX6347/MAX6348 microprocessor (µP) supervisory circuits monitor the power supplies in µP and digital systems. These devices provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with 2.5V, 3V, 3.3V, and 5V powered circuits.These circuits perform a single function: they assert a reset signal whenever the VCCsupply voltage declines below a preset threshold, keeping it asserted for at least 100ms after VCChas risen above the reset threshold. The only difference between the devices is their output. The MAX6326/MAX6346 (push-pull) and MAX6328/MAX6348 (open-drain) have an active-low reset output. The MAX6327/MAX6347 have an active-high push-pull reset output. All of these parts are guaranteed to be in the correct state for VCCdown to 1V. The reset comparator is designed to ignore fast transients on VCC. Reset thresholds are factory-trimmable between 2.2V and 4.63V, in approximately 100mV increments. Twenty-one standard versions are available. Contact the factory for availability of nonstandard versions.Ultra-low supply currents (1µA max for the MAX6326/MAX6327/MAX6328) make these parts ideal for use in portable equipment. All six devices are available in space-saving SOT23 and SC70 packages.ApplicationsComputers: Desktop, Workstation, ServerControllersCritical µP and µC Power MonitoringIntelligent InstrumentsPortable Battery-Powered Equipment |
