| PMIC | 8 | Active | |

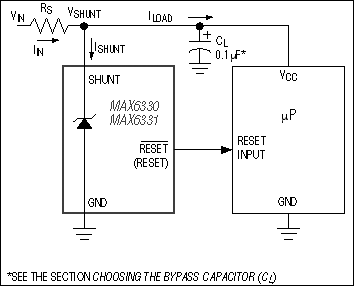

MAX6330Precision Shunt Regulators with Reset in SOT23-3 | PMIC | 9 | Active | The MAX6330/MAX6331 combine a precision shunt regulator with a power-on reset function in a single SOT23-3 package. They offer a low-cost method of operating small microprocessor (µP)-based systems from high-voltage sources, while simultaneously protecting µPs from power-up, power-down, and brownout conditions.Both active-low (MAX6330) and active-high (MAX6331) push/pull output versions are available. The output voltage has ±1.5% tolerance. The MAX6330/MAX6331 operate over a wide shunt current range from 100µA to 50mA, and offer very good transient immunity.A 3-pin SOT23 package allows for a significant reduction in board space and improves reliability compared to multiple-IC/discrete solutions. These devices have a minimum order increment of 2,500 pieces.ApplicationsControllersCritical µP and µC Power MonitoringHousehold AppliancesIntelligent InstrumentsPortable/Size-Sensitive Equipment |
| Voltage Reference | 8 | Obsolete | |
| Supervisors | 14 | Active | |
| PMIC | 27 | Active | |
MAX63343-Pin, Ultra-Low-Voltage, Low-Power µP Reset Circuits | PMIC | 17 | Active | The MAX6332/MAX6333/MAX6334 microprocessor (µP) supervisory circuits monitor the power supplies in 1.8V to 3.3V µP and digital systems. They increase circuit reliability and reduce cost by eliminating external components and adjustments.These devices perform a single function: they assert a reset signal whenever the VCCsupply voltage declines below a preset threshold, keeping it asserted for a preset timeout period after VCChas risen above the reset threshold. The only difference among the three devices is their output. The MAX6333 (push/pull) and MAX6334 (open-drain) have an active-low RESET output, while the MAX6332 (push/pull) has an active-high RESET output. The MAX6332/MAX6333 are guaranteed to be in the correct state for VCCdown to 0.7V. The MAX6334 is guaranteed to be in the correct state for VCCdown to 1.0V.The reset comparator in these ICs is designed to ignore fast transients on VCC. Reset thresholds are factory-trimmable between 1.6V and 2.5V, in approximately 100mV increments. There are 15 standard versions available (2,500 piece minimum-order quantity); contact the factory for availability of nonstandard versions (10,000 piece minimum-order quantity). For space-critical applications, the MAX6332/MAX6333/MAX6334 come packaged in a 3-pin SOT23.ApplicationsComputersControllersCritical μP/μC Power MonitoringIntelligent InstrumentsPentium® II ComputersPortable/Battery-Powered Equipment |
| PMIC | 15 | Active | |

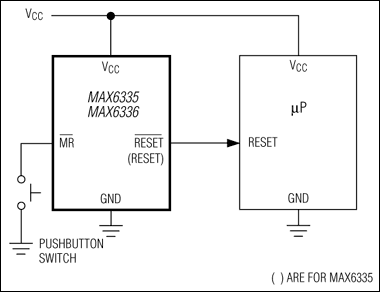

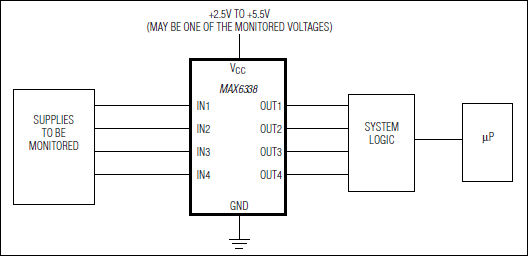

MAX63364-Pin, Ultra Low-Voltage, Low-Power µP Reset Circuits with Manual Reset | PMIC | 21 | Active | TheMAX6335/MAX6336/MAX6337microprocessor (μP) supervisory circuits monitor the power supplies in 1.8V to 3.3V μP and digital systems. They increase circuit reliability and reduce cost by eliminating external components and adjustments. They also feature a debounced manual-reset input.These devices perform a single function: they assert a reset signal whenever the VCCsupply voltage declines below a preset threshold or whenever manual reset is asserted. Reset remains asserted for a preset timeout period after VCChas risen above the reset threshold or after manual reset is deasserted. The only difference among the three devices is their output. The MAX6336 (push/pull) and MAX6337 (open-drain) have an active-lowRESEToutput, while the MAX6335 (push/pull) has an active-high RESET output. The MAX6335/MAX6336 are guaranteed to be in the correct state for VCCdown to 0.7V. The MAX6337 is guaranteed to be in the correct state for VCCdown to 1.0V.The reset comparator in these ICs is designed to ignore fast transients on VCC. Reset thresholds are factory-trimmable between 1.6V and 2.5V, in approximately 100mV increments. There are 15 standard versions available (2500 piece minimum-order quantity); contact the factory for availability of nonstandard versions (10,000 piece minimum-order quantity). For space-critical applications, the MAX6335/MAX6336/MAX6337 come packaged in a 4-pin SOT143.ApplicationsPentium II™ComputersComputersControllersIntelligent InstrumentsCritical µP and µC Power MonitoringPortable/Battery-Powered EquipmentAutomotive |
| PMIC | 21 | Active | |
| PMIC | 42 | Active | |
