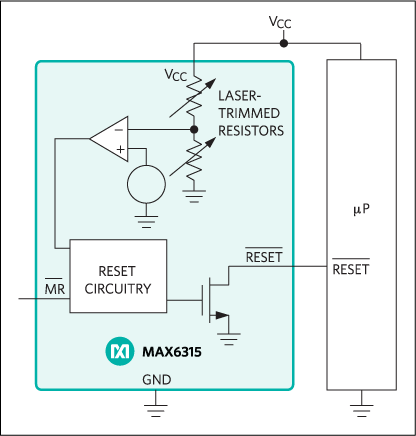

The MAX6315 low-power CMOS microprocessor (µP) supervisory circuit is designed to monitor power supplies in µP and digital systems. It provides excellent circuit reliability and low cost by eliminating external components and adjustments. The MAX6315 also provides a debounced manual reset input.This device performs a single function: it asserts a reset signal whenever the VCCsupply voltage falls below a preset threshold or whenever manual reset is asserted. Reset remains asserted for an internally programmed interval (reset timeout period) after VCChas risen above the reset threshold or manual reset is deasserted. The MAX6315's open-drain active-low RESET output can be pulled up to a voltage higher than VCC.The MAX6315 comes with factory-trimmed reset threshold voltages in 100mV increments from 2.5V to 5V. Preset timeout periods of 1ms, 20ms, 140ms, and 1120ms (minimum) are also available. The device comes in a SOT143 package.For microcontrollers (µCs) and µPs with bidirectional reset pins, see the MAX6314 data sheet.ApplicationsComputers: Desktop, Workstation, ServerControllersCritical µP and µC Power MonitoringIntelligent InstrumentsPortable Battery-Powered Equipment

The MAX6316–MAX6322 family of microprocessor (µP) supervisory circuits monitors power supplies and microprocessor activity in digital systems. It offers several combinations of push/pull, open-drain, and bidirectional (such as Motorola 68HC11) reset outputs, along with watchdog and manual reset features. TheSelector Guidebelow lists the specific functions available from each device.These devices are available in 26 factory-trimmed reset threshold voltages (from 2.5V to 5V, in 100mV increments), featuring four minimum power-on reset timeout periods (from 1ms to 1.12s), and four watchdog timeout periods (from 6.3ms to 25.6s). Thirteen standard versions are available with an order increment requirement of 2500 pieces (seeStandard Versionstable in the full data sheet); contact the factory for availability of other versions, which have an order increment requirement of 10,000 pieces.The MAX6316–MAX6322 are offered in a miniature 5-pin SOT23 package.ApplicationsComputersControllersEmbedded Control SystemsIntelligent InstrumentsPortable Battery-Powered EquipmentPortable Computers
