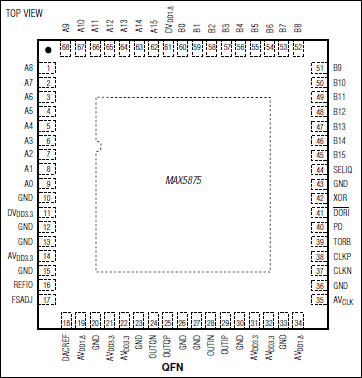

MAX587516-Bit, 200Msps, High-Dynamic-Performance, Dual DAC with CMOS Inputs | Development Boards, Kits, Programmers | 4 | Active | The MAX5875 is an advanced 16-bit, 200Msps, dual digital-to-analog converter (DAC). This DAC meets the demanding performance requirements of signal synthesis applications found in wireless base stations and other communications applications. Operating from 3.3V and 1.8V supplies, this dual DAC offers exceptional dynamic performance such as 78dBc spurious-free dynamic range (SFDR) at fOUT= 16MHz and supports update rates of 200Msps, with a power dissipation of only 260mW.The MAX5875 utilizes a current-steering architecture that supports a 2mA to 20mA full-scale output current range, and allows a 0.1VP-Pto 1VP-Pdifferential output voltage swing. The device features an integrated 1.2V bandgap reference and control amplifier to ensure high-accuracy and low-noise performance. A separate reference input (REFIO) allows for the use of an external reference source for optimum flexibility and improved gain accuracy.The digital and clock inputs of the MAX5875 accept 3.3V CMOS voltage levels. The device features a flexible input data bus that allows for dual-port input or a single-interleaved data port. The MAX5875 is available in a 68-pin QFN package with an exposed paddle (EP) and is specified for the extended temperature range (-40°C to +85°C).Refer to theMAX5873andMAX5874data sheets for pin-compatible 12-bit and 14-bit versions of the MAX5875, respectively. Refer to theMAX5878data sheet for an LVDS-compatible version of the MAX5875.See a parametric table of the complete family of pin-compatible 12-/14-/16-bit high-speed DACs.ApplicationsAutomated Test Equipment (ATE)Base Stations: Single-/Multicarrier UMTS, CDMA, GSMCable Modem Termination Systems (CMTS)Communications: Fixed Broadband Wireless Access, Point-to-Point MicrowaveDirect Digital Synthesis (DDS)Instrumentation |
| Data Acquisition | 2 | Obsolete | |

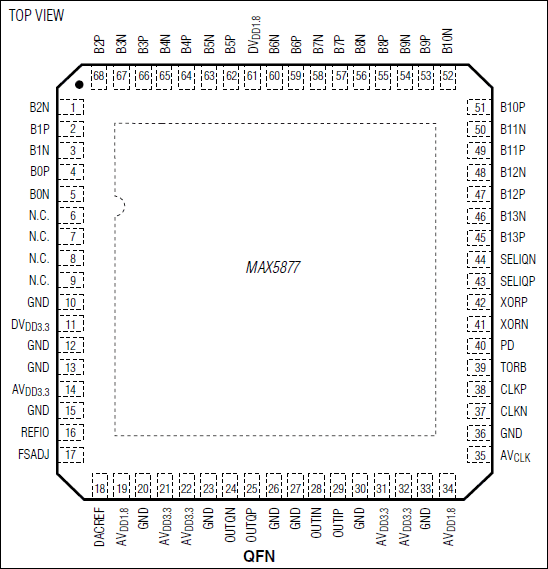

MAX587714-Bit, 250Msps, High-Dynamic-Performance, Dual DAC with LVDS Inputs | Data Acquisition | 2 | Active | The MAX5877 is an advanced 14-bit, 250Msps, dual digital-to-analog converter (DAC). This DAC meets the demanding performance requirements of signal synthesis applications found in wireless base stations and other communications applications. Operating from +3.3V and +1.8V supplies, this dual DAC offers exceptional dynamic performance such as 75dBc spurious-free dynamic range (SFDR) at fOUT= 16MHz and supports update rates of 250Msps, with a power dissipation of only 287mW.The MAX5877 utilizes a current-steering architecture that supports a 2mA to 20mA full-scale output current range, and allows a 0.1VP-Pto 1VP-Pdifferential output voltage swing. The device features an integrated +1.2V bandgap reference and control amplifier to ensure high-accuracy and low-noise performance. A separate reference input (REFIO) allows for the use of an external reference source for optimum flexibility and improved gain accuracy.The clock inputs of the MAX5877 accept both LVDS and LVPECL-compatible voltage levels. The device features an interleaved data input that allows a single LVDS bus to support both DACs. The MAX5877 is available in a 68-pin QFN package with an exposed pad (EP) and is specified for the extended temperature range (-40°C to +85°C).Refer to theMAX5876andMAX5878data sheets for pin-compatible 12-bit and 16-bit versions of the MAX5877, respectively. Refer to theMAX5874data sheet for a CMOS-compatible version of the MAX5877.See a parametric table of the complete family of pin-compatible 12-/14-/16-bit high-speed DACs.ApplicationsAutomated Test Equipment (ATE)Base Stations: Single-/Multicarrier UMTS, CDMA, GSMCable Modem Termination Systems (CMTS)Communications: Fixed Broadband Wireless Access, Point-to-Point MicrowaveDirect Digital Synthesis (DDS)Instrumentation |
MAX587816-Bit, 250Msps, High-Dynamic-Performance, Dual DAC with LVDS Inputs | Digital to Analog Converters (DAC) | 2 | Active | The MAX5878 is an advanced 16-bit, 250Msps, dual digital-to-analog converter (DAC). This DAC meets the demanding performance requirements of signal synthesis applications found in wireless base stations and other communications applications. Operating from +3.3V and +1.8V supplies, this dual DAC offers exceptional dynamic performance such as 76dBc spurious-free dynamic range (SFDR) at fOUT= 16MHz and supports update rates of 250Msps, with a power dissipation of only 296mW.The MAX5878 utilizes a current-steering architecture that supports a 2mA to 20mA full-scale output current range, and allows a 0.1VP-Pto 1VP-Pdifferential output voltage swing. The device features an integrated +1.2V bandgap reference and control amplifier to ensure high-accuracy and low-noise performance. A separate reference input (REFIO) allows for the use of an external reference source for optimum flexibility and improved gain accuracy.The clock inputs of the MAX5878 accept both LVDS and LVPECL-compatible voltage levels. The device features an interleaved data input that allows a single LVDS bus to support both DACs. The MAX5878 is available in a 68-pin QFN package with an exposed paddle (EP) and is specified for the extended temperature range (-40°C to +85°C).Refer to theMAX5876andMAX5877data sheets for pin-compatible 12-bit and 14-bit versions of the MAX5878, respectively. Refer to theMAX5875datasheet for a CMOS-compatible version of the MAX5878.See a parametric table of the complete family of pin-compatible 12-/14-/16-bit high-speed DACs.ApplicationsAutomated Test Equipment (ATE)Base Stations: Single-/Multicarrier UMTS, CDMA, GSMCable Modem Termination Systems (CMTS)Communications: Fixed Broadband Wireless Access, Point-to-Point MicrowaveDirect Digital Synthesis (DDS)Instrumentation |
MAX587914-Bit, 2.3Gsps Direct RF Synthesis DAC with Selectable Frequency Response | RF and Wireless | 2 | Active | The MAX5879 is a high-performance, 14-bit, 2.3Gsps digital-to-analog converter (DAC) capable of synthesizing high-frequency and wideband signals in baseband and higher-order Nyquist zones. The 2.3Gsps update rate, combined with the selectable frequency-response modes (NRZ, RZ, RF, and RFZ), allows digital generation of signals to more than 2GHz output frequency. The unique RFZ mode allows generation up to the 6th Nyquist zone, with update rates to 1150Msps. The device features excellent spurious, noise, and intermodulation distortion performance, and can directly synthesize signal bandwidths to more than 1GHz.The device has four 14-bit, multiplexed, low-voltage differential signaling (LVDS) input ports that each operates up to 1150Mwps. The DAC operates with a clock rate (fCLK) up to 2.3GHz. The device has a selectable 2:1 or 4:1 input multiplexer that allows the user to select two data ports up to 1150Mwps each, or four data ports up to 575Mwps each. In turn, the input data rate is 1/2 or 1/4 the DAC update rate at each port. The device features a delay-locked loop (DLL) to ease data synchronization with FPGAs or ASICs. The parity input and parity error flag output can be used to detect bit errors between the data source and the DAC. The device also features a data clock reset circuit for aligning the data-capture clocks of multiple DACs.The device has four selectable frequency-response output modes:Nonreturn-to-zero (NRZ) mode provides the highest dynamic range/output power in the 1st Nyquist zone.Return-to-zero (RZ) mode trades off SNR for improved gain flatness in the 1st, 2nd, and 3rd Nyquist zones.Radio-frequency (RF) mode provides higher SNR and excellent dynamic performance in the 2nd and 3rd Nyquist zones.Radio-frequency-return-to-zero (RFZ) mode provides high dynamic range and improved gain flatness in the 3rd through 6th Nyquist zones at a maximum update rate of fCLK/2.The device is a current-steering DAC with an integrated 50Ω differential output termination to ensure optimum dynamic performance. Operating from 3.3V and 1.8V power supplies, the device dissipates 1.8W at 40mA full-scale current and 2.3W at 80mA full-scale current. The device is specified over the -40°C to +85°C extended temperature range and is offered in a 256-ball (17mm x 17mm) CSBGA package.ApplicationsArbitrary Waveform GeneratorsBroadband CommunicationsDigital Video BroadcastDirect Digital SynthesisEdge QAM and CMTSRadar and AvionicsSoftware-Defined RadioWireless Infrastructure |
| Integrated Circuits (ICs) | 2 | Obsolete | |
| RF and Wireless | 2 | Obsolete | |
MAX588214-Bit, 4.6Gsps Cable Downstream Direct RF Synthesis DAC | RF Misc ICs and Modules | 2 | Obsolete | The MAX5882 14-bit, 4.6Gsps digital-to-analog converter (DAC) is designed for direct RF synthesis of multicarrier quadrature amplitude modulation (QAM) signals in cable modem termination systems (CMTS) and edge QAM (EQAM) devices. The DAC features excellent spurious, noise, and adjacent-channel power (ACP) performance, and directly synthesizes multiple carriers in the 47MHz to 1003MHz cable downstream band, as defined by the Data-Over-Cable Service Interface Specification (DOCSIS®). The 4.6Gsps update rate allows digital generation of signals with more than 2GHz bandwidth.The device has four 14-bit, multiplexed, low-voltage differential signaling (LVDS) input ports that each operate at up to 1150Mwps in double data rate (DDR) or single data rate (SDR) mode. The inputs also accept differential high-speed transceiver logic (DHSTL) input levels. The device accepts a clock at 1/2 the DAC update rate, as conversion is triggered on both rising and falling clock edges. The input data rate on each port is 1/4 the DAC update rate or 1/2 of the clock rate. The device contains a delay-locked loop (DLL) that simplifies the interface to FPGA or ASIC devices. Using the DLL, the phase of the output clock (DATACLK) is adjusted to ensure that the input LVDS data bus has the proper timing relationship to the on-chip clock used to latch the data.The device is a current-steering DAC with an integrated 50Ω differential output termination to ensure optimum dynamic performance. Operating from 3.3V and 1.8V power supplies, the device consumes 2.3W at 4.6Gsps. The device is specified over the upper commercial temperature range (0°C to +85°C) and is offered in a 256 CSBGA lead(Pb)-free/RoHS-compliant package.ApplicationsBroadcast Video ModulatorsCable Modem Termination Systems (CMTS)DOCSIS-Compliant Edge QAM DevicesVideo-on-Demand (VOD) |
| Digital to Analog Converters (DAC) | 2 | Active | |
| Integrated Circuits (ICs) | 1 | Active | |
