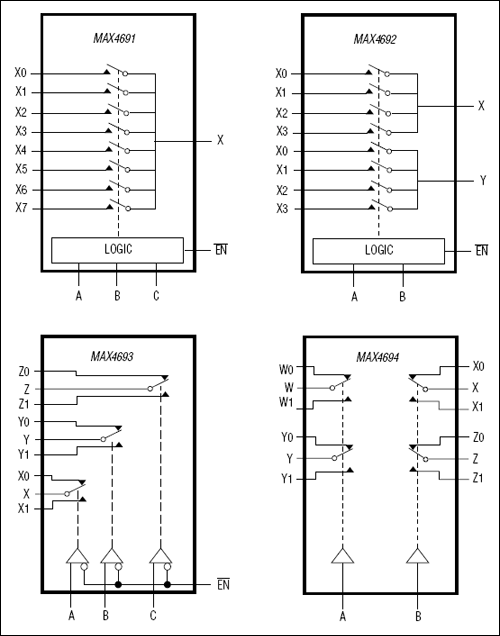

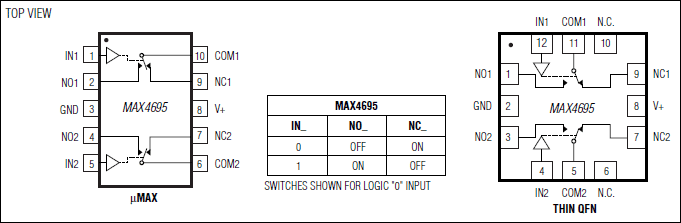

MAX4692Low-Voltage 8:1 Mux/Dual 4:1 Mux/Triple SPDT/Quad SPDT in UCSP Package | Interface | 6 | Active | The MAX4691–MAX4694 are low-voltage CMOS analog ICs configured as an 8-channel multiplexer (MAX4691), two 4-channel multiplexers (MAX4692), three single-pole/double-throw (SPDT) switches (MAX4693), and four SPDT switches (MAX4694).The MAX4691/MAX4692/MAX4693 operate from either a single +2V to +11V power supply or dual ±2V to ±5.5V power supplies. When operating from ±5V supplies they offer 25Ω on-resistance (RON), 3.5Ω (max) RONflatness, and 3Ω (max) matching between channels. The MAX4694 operates from a single +2V to +11V supply. Each switch has rail-to-rail signal handling and a low 1nA leakage current.All digital inputs are 1.8V logic-compatible when operating from a +3V supply and TTL compatible when operating from a +5V supply.The MAX4691–MAX4694 are available in 16-pin, 4mm x 4mm QFN and TQFN and 16-bump UCSP packages. The chip-scale package (UCSP™) occupies a 2mm x 2mm area, significantly reducing the required PC board area.ApplicationsAudio/Video Signal RoutingBattery-Operated EquipmentCell PhonesCommunications CircuitsModems |
| Analog Switches, Multiplexers, Demultiplexers | 5 | Active | |
| Analog Switches, Multiplexers, Demultiplexers | 5 | Active | |
| Integrated Circuits (ICs) | 7 | Active | |
| Interface | 2 | Active | |
| Rocker Switches | 2 | Active | |
| Interface | 2 | Obsolete | |
| Interface | 11 | Active | |

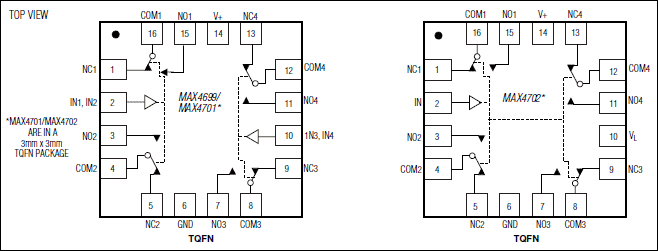

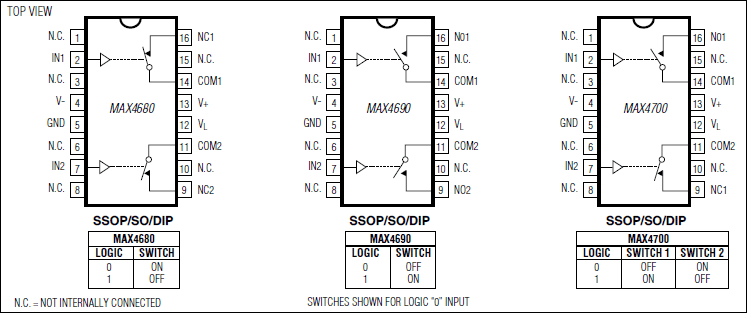

MAX4701Low-Voltage, Dual DPDT/Quad SPDT Analog Switches in QFN | Integrated Circuits (ICs) | 6 | Active | The MAX4699/MAX4701/MAX4702 are low-voltage, single-supply CMOS analog switches. The MAX4699/MAX4701 are dual double-pole/double-throw (DPDT) switches with two control inputs that control two single-pole/double-throw (SPDT) switches each. The MAX4702 is a quad SPDT switch with one control input and one low-voltage digital logic power supply.These devices operate from a single +1.8V to +5.5V power supply. When powered from a +2.7V supply the MAX4699/MAX4701/MAX4702 offer a 75Ω on-resistance (RON), with 12Ω max RONflatness and 4Ω max matching between channels. Each switch has rail-to-rail signal handling, fast switching speeds of tON= 35ns, tOFF= 20ns, and a maximum 1nA of leakage current.The MAX4699/MAX4701 digital inputs are 1.8V-logic compatible when operated from a +3V supply. The MAX4702's digital inputs feature a 1.0V threshold when powered with a 1.5V logic supply.The MAX4699 is available in a space-saving 16-lead 4mm x 4mm TQFN package. The MAX4701/MAX4702 are available in space-saving 16-lead 3mm x 3mm TQFN 16-pin TSSOP packages.ApplicationsAudio/Video Signal RoutingBattery-Operated EquipmentCell PhonesCommunications CircuitsModems |
MAX4702Low-Voltage, Dual DPDT/Quad SPDT Analog Switches in QFN | Analog Switches, Multiplexers, Demultiplexers | 5 | Active | The MAX4699/MAX4701/MAX4702 are low-voltage, single-supply CMOS analog switches. The MAX4699/MAX4701 are dual double-pole/double-throw (DPDT) switches with two control inputs that control two single-pole/double-throw (SPDT) switches each. The MAX4702 is a quad SPDT switch with one control input and one low-voltage digital logic power supply.These devices operate from a single +1.8V to +5.5V power supply. When powered from a +2.7V supply the MAX4699/MAX4701/MAX4702 offer a 75Ω on-resistance (RON), with 12Ω max RONflatness and 4Ω max matching between channels. Each switch has rail-to-rail signal handling, fast switching speeds of tON= 35ns, tOFF= 20ns, and a maximum 1nA of leakage current.The MAX4699/MAX4701 digital inputs are 1.8V-logic compatible when operated from a +3V supply. The MAX4702's digital inputs feature a 1.0V threshold when powered with a 1.5V logic supply.The MAX4699 is available in a space-saving 16-lead 4mm x 4mm TQFN package. The MAX4701/MAX4702 are available in space-saving 16-lead 3mm x 3mm TQFN 16-pin TSSOP packages.ApplicationsAudio/Video Signal RoutingBattery-Operated EquipmentCell PhonesCommunications CircuitsModems |
