MAX47150.4Ω, Low-Voltage, Single-Supply SPST Analog Switches in SC70 | Analog Switches, Multiplexers, Demultiplexers | 2 | Active | The MAX4715/MAX4716 are low on-resistance, low-voltage, single-pole/single-throw (SPST) analog switches that operate from a +1.6V to +3.6V single supply. The MAX4715 is normally open (NO), and the MAX4716 is normally closed (NC). These devices also have fast switching speeds (tON= 18ns max, tOFF= 12ns max).When powered from a +3V supply, the MAX4715/MAX4716 offer 0.4Ω max on-resistance (RON) with 0.1Ω max RONflatness. Their digital logic inputs are +1.8V CMOS compatible when using a single +3V supply.The MAX4715 is pin compatible with the MAX4594, and the MAX4716 is pin compatible with the MAX4595. The MAX4715/MAX4716 are available in SC70-5 packages.ApplicationsAudio/Video Signal RoutingBattery-Powered ApplicationsCell PhonesCommunication SystemsHard DrivesLow-Voltage Data AcquisitionModemsPCMCIA CardsPower Routing |
MAX47160.4Ω, Low-Voltage, Single-Supply SPST Analog Switches in SC70 | Interface | 2 | Active | The MAX4715/MAX4716 are low on-resistance, low-voltage, single-pole/single-throw (SPST) analog switches that operate from a +1.6V to +3.6V single supply. The MAX4715 is normally open (NO), and the MAX4716 is normally closed (NC). These devices also have fast switching speeds (tON= 18ns max, tOFF= 12ns max).When powered from a +3V supply, the MAX4715/MAX4716 offer 0.4Ω max on-resistance (RON) with 0.1Ω max RONflatness. Their digital logic inputs are +1.8V CMOS compatible when using a single +3V supply.The MAX4715 is pin compatible with the MAX4594, and the MAX4716 is pin compatible with the MAX4595. The MAX4715/MAX4716 are available in SC70-5 packages.ApplicationsAudio/Video Signal RoutingBattery-Powered ApplicationsCell PhonesCommunication SystemsHard DrivesLow-Voltage Data AcquisitionModemsPCMCIA CardsPower Routing |
| Analog Switches, Multiplexers, Demultiplexers | 4 | Active | |

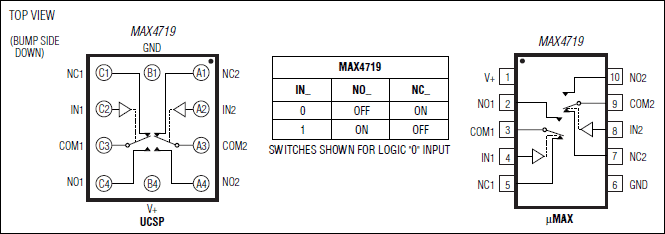

MAX471920Ω, 300MHz Bandwidth, Dual SPDT Analog Switch in UCSP | Logic | 4 | Active | The MAX4719 low-voltage, low on-resistance (RON), dual single-pole/double throw (SPDT) analog switch operates from a single +1.8V to +5.5V supply. The MAX4719 features 20Ω RON(max) with 1.2Ω flatness and 0.4Ω matching between channels. The switch offers break-before-make switching (1ns) with tON< 80ns and tOFF< 40ns at +2.7V. The digital logic inputs are +1.8V logic compatible with a +2.7V to +3.6V supply.The switch is packaged in a chip-scale package (UCSP™), significantly reducing the required PC board area. The chip occupies only a 2.0mm x 1.50mm area and has a 4 x 3 bump array with a bump pitch of 0.5mm. The MAX4719 is also available in a 10-pin µMAX® package.ApplicationsAudio/Video Signal RoutingBattery-Operated EquipmentCell PhonesLow-Voltage Data-Acquisition SystemsPDAsSample-and-Hold Circuits |
| Evaluation Boards | 10 | Obsolete | |
| Interface | 2 | Active | |
MAX47214.5Ω Dual SPST Analog Switches in UCSP | Analog Switches, Multiplexers, Demultiplexers | 3 | Active | The MAX4721/MAX4722/MAX4723 low-voltage, low on-resistance (RON), dual single-pole/single throw (SPST) analog switches operate from a single +1.8V to +5.5V supply. These devices are designed for USB 1.1 and audio switching applications.The MAX4721/MAX4722/MAX4723 feature 4.5Ω RON(max) with 1.2Ω flatness and 0.3Ω matching between channels. These new switches feature guaranteed operation from +1.8V to +5.5V and are fully specified at 3V and 5V. These switches offer break-before-make switching (1ns) with tON<80ns and tOFF<40ns at +2.7V. The digital logic inputs are +1.8V logic compatible with a +2.7V to +3.6V supply.These switches are packaged in a chip-scale package (UCSP™), significantly reducing the required PC board area. The chip occupies only a 1.52mm x 1.52mm area and has a 3 x 3 bump array with a bump pitch of 0.5mm. These switches are also available in an 8-pin µMAX® package.ApplicationsAudio/Video Signal RoutingBattery-Operated EquipmentCommunications CircuitsLow-Voltage Data-Acquisition SystemsSample-and-Hold Circuits |
| Analog Switches, Multiplexers, Demultiplexers | 4 | Active | |
| Interface | 4 | Active | |

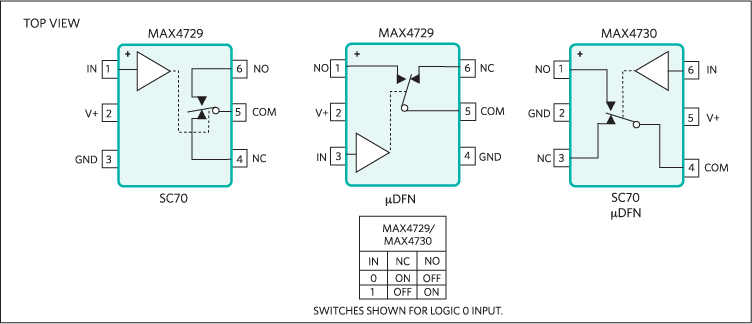

MAX4729Low-Voltage 3.5Ω, SPDT, CMOS Analog Switches | Interface | 3 | Active | The MAX4729/MAX4730 single-pole/double-throw (SPDT) switches operate from a single supply ranging from +1.8V to +5.5V. These switches provide low 3.5Ω on-resistance (RON), as well as 0.45Ω RONflatness with a +2.7V supply. These devices typically consume only 1nA of supply current, making them ideal for use in lowpower, portable applications. The MAX4729/MAX4730 feature low-leakage currents over the extended temperature range, TTL/CMOS-compatible digital logic, and excellent AC characteristics.The MAX4729/MAX4730 are available in small 6-pin SC70 and 6-pin µDFN packages. The MAX4729/MAX4730 are offered in three pinout configurations to ease design. The MAX4729/MAX4730 are specified over the extended -40°C to +85°C temperature range.ApplicationsAudio/Video Signal RoutingBattery-Operated EquipmentCommunications CircuitsLow-Voltage Data-Acquisition SystemsRelay ReplacementSample-and-Hold Circuits |
