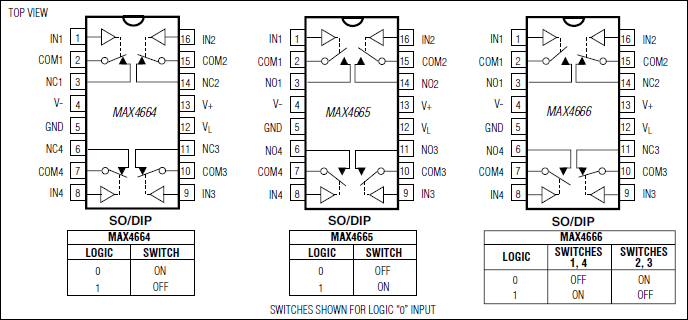

MAX46665 Ohm, Quad, SPST, CMOS Analog Switches | Interface | 9 | Active | The MAX4664/MAX4665/MAX4666 quad analog switches feature 5Ω max on-resistance. On-resistance is matched between switches to 0.5Ω max and is flat (0.5Ω max) over the specified signal range. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 5nA max at +85°C. These analog switches are ideal in low-distortion applications and are the preferred solution over mechanical relays in automatic test equipment or in applications where current switching is required. They have low power requirements, require less board space, and are more reliable than mechanical relays.The MAX4664 has four normally closed (NC) switches, the MAX4665 has four normally open (NO) switches, and the MAX4666 has two NC and two NO switches that guarantee break-before-make switching times.These switches operate from a single +4.5V to +36V supply or from dual ±4.5V to ±20V supplies. All digital inputs have +0.8V and +2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using ±15V supplies or a single +12V supply.ApplicationsAudio-Signal RoutingAvionicsCommunication SystemsPBX/PABX SystemsReed Relay ReplacementTest Equipment |
| Integrated Circuits (ICs) | 4 | Active | |
MAX46682.5Ω, Dual, SPST, CMOS Analog Switches | Interface | 7 | Active | The MAX4667/MAX4668/MAX4669 dual analog switches feature low on-resistance of 2.5Ω max. On-resistance is matched between switches to 0.5Ω max and is flat (0.5Ω max) over the specified signal range. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 5nA max at +85°C. These analog switches are ideal in low-distortion applications and are the preferred solution over mechanical relays in automatic test equipment or applications where current switching is required. They have low power requirements, use less board space, and are more reliable than mechanical relays.The MAX4667 has two normally closed (NC) switches, the MAX4668 has two normally open (NO) switches, and the MAX4669 has one NC and one NO switch that guarantee break-before-make operation.These switches operate from a +4.5V to +36V single supply or from ±4.5V to ±20V dual supplies. All digital inputs have +0.8V and +2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using ±15V supplies or a single +12V supply.ApplicationsAudio-Signal RoutingAvionicsCommunication SystemsPBX/PABX SystemsReed Relay ReplacementTest Equipment |
MAX46692.5Ω, Dual, SPST, CMOS Analog Switches | Analog Switches, Multiplexers, Demultiplexers | 7 | Active | The MAX4667/MAX4668/MAX4669 dual analog switches feature low on-resistance of 2.5Ω max. On-resistance is matched between switches to 0.5Ω max and is flat (0.5Ω max) over the specified signal range. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 5nA max at +85°C. These analog switches are ideal in low-distortion applications and are the preferred solution over mechanical relays in automatic test equipment or applications where current switching is required. They have low power requirements, use less board space, and are more reliable than mechanical relays.The MAX4667 has two normally closed (NC) switches, the MAX4668 has two normally open (NO) switches, and the MAX4669 has one NC and one NO switch that guarantee break-before-make operation.These switches operate from a +4.5V to +36V single supply or from ±4.5V to ±20V dual supplies. All digital inputs have +0.8V and +2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using ±15V supplies or a single +12V supply.ApplicationsAudio-Signal RoutingAvionicsCommunication SystemsPBX/PABX SystemsReed Relay ReplacementTest Equipment |
| Analog Switches, Multiplexers, Demultiplexers | 3 | Obsolete | |
| Specialized ICs | 3 | Obsolete | |
| Interface | 10 | Active | |

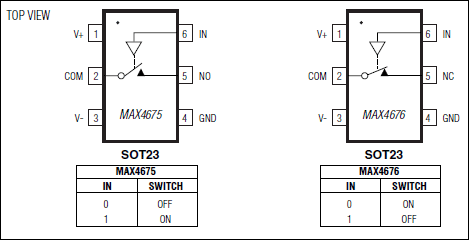

MAX46753Ω Single SPST Analog Switches | Integrated Circuits (ICs) | 2 | Active | The MAX4675/MAX4676 single analog switches feature 3Ω (max) on-resistance (RON) and 0.7Ω flatness when operating from dual ±5V supplies. These switches can handle Rail-to-Rail analog signals. Off-leakage current is 0.1nA at TA= +25°C. The MAX4675/MAX4676 are ideal in low-distortion applications and are the preferred solution over mechanical relays in automated test equipment or applications where current switching is required. They are more reliable than mechanical relays, have low power requirements (<1µA), and are available in a space-saving 6-pin SOT23 package.The MAX4675 has a single normally open (NO) switch, and the MAX4676 has a single normally closed (NC) switch.The MAX4675/MAX4676 operate from either a single +2.7V to +5.5V or dual ±2.7V to ±5.5V supplies, making them ideal for use in digital card applications and single-ended 75Ω systems.ApplicationsAutomated Test Equipment (ATE)Building Security/Remote CamerasConsumer AudioModemsNetwork Hubs, Switches, RoutersRemote CamerasTelecom Switches |
| Integrated Circuits (ICs) | 2 | Active | |
MAX46772Ω, Quad, SPST, CMOS Analog Switches | Interface | 3 | Active | The MAX4677/MAX4678/MAX4679 quad analog switches feature 1.6Ω max on-resistance (RON) when operating from a dual ±5V supply. RONis matched between channels to 0.3Ω max and is flat (0.4Ω max) over the specified signal range. Each switch can handle Rail-to-Rail analog signals. Off-leakage current is 0.1nA at +25°C. These switches are ideal in low-distortion applications and are the preferred solution over mechanical relays in automated test equipment. They have low power requirements, require less board space, and are more reliable than mechanical relays.The MAX4677 has four normally closed (NC) switches, and the MAX4678 has four normally open (NO) switches. The MAX4679 has two NC and two NO switches and features guaranteed break-before-make switching.The MAX4677/MAX4678/MAX4679 operate from either a single +2.7V to +11V or dual ±2.7V to ±5.5V supplies, making them ideal for use in digital card applications and single-ended 75Ω systems.These devices feature a separate logic supply input that operates from +2.7V to V+, allowing independent logic and analog supplies.ApplicationsADC SystemsAudio-Signal RoutingAvionicsCommunication SystemsData AcquisitionPBX/PABX SystemsReed Relay ReplacementTest Equipment |
