Analog Devices Inc./Maxim Integrated

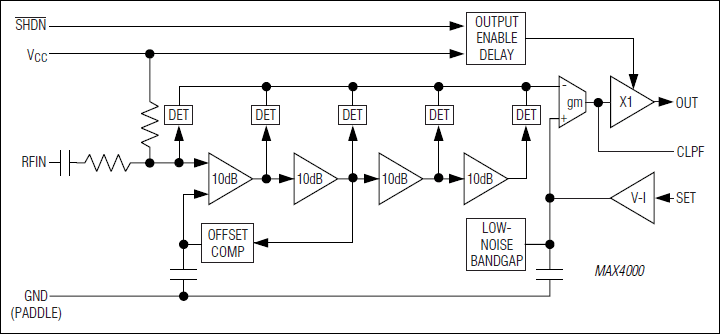

The MAX4000/MAX4001/MAX4002 low-cost, low-power logarithmic amplifiers are designed to control RF power amplifiers (PA) operating in the 0.1GHz to 2.5GHz frequency range. A typical dynamic range of 45dB makes this family of log amps useful in a variety of wireless applications including cellular handset PA control, transmitter power measurement, and RSSI for terminal devices. Logarithmic amplifiers provide much wider measurement range and superior accuracy to controllers based on diode detectors. Excellent temperature stability is achieved over the full operating range of -40°C to +85°C.The choice of three different input voltage ranges eliminates the need for external attenuators, thus simplifying PA control-loop design. The logarithmic amplifier is a voltage-measuring device with a typical signal range of -58dBV to -13dBV for the MAX4000, -48dBV to -3dBV for the MAX4001, and -43dBV to +2dBV for the MAX4002.The input signal for the MAX4000 is internally AC-coupled using an on-chip 5pF capacitor in series with a 2kΩ input resistance. This highpass coupling, with a corner at 16MHz, sets the lowest operating frequency and allows the input signal source to be DC grounded. The MAX4001/MAX4002 require an external coupling capacitor in series with the RF input port. These PA controllers feature a power-on delay when coming out of shutdown, holding OUT low for approximately 5µs to ensure glitch-free controller output.The MAX4000/MAX4001/MAX4002 family is available in an 8-pin µMAX® package and an 8-bump chip-scale package (UCSP™). The device consumes 5.9mA with a 5.5V supply, and when powered down the typical shutdown current is 13µA.ApplicationsCellular Handsets (TDMA, CDMA, GPRS, GSM)RSSI for Fiber ModulesTransmitter Power Measurement and ControlTSSI for Wireless Terminal Devices

The MAX40010 single-channel high-side precision current- sense amplifier with an input common-mode voltage range from 2.7V to 76V, making it ideal for communications, automotive, data centers and other systems where high-voltage current monitoring is critical. The MAX40010 offer accuracy specifications of less than 12µV (max) Input Offset voltage and less than 0.1% (max) gain error. By offering precision offset and gain error specifications, the MAX40010 makes it possible to sense very small sense/shunt resistors, further improving system efficiencies and power dissipation through the sense element.The MAX40010 features 80kHz of small signal bandwidth and four unique gain options (12.5V/V, 20V/V, 50V/V, and 100V/V). The device’s current sense inputs have EMIR filters to reject RF found in communications equipment.The MAX40010 operates over the -40°C to + 125°C temperature range and is offered in a 6-bump, 1mm x 1.5mm wafer-lever package (WLP) with 0.5mm pitch and a SOT23 U6SN+1 package.ApplicationsAutomotive SensingBase-Stations and Communication EquipmentEnergy ManagementServer Backplanes/Data CentersSolar Panel Monitoring

TheMAX40002–MAX40005 and MAX40012–MAX40015 tiny, single comparators are ideal for a wide variety of portable electronics applications such as cell phones, media players, and notebooks that have extremely tight board space and power constraints. These comparators are offered in both, a miniature 4-bump wafer-level package (WLP) with a 0.73mm x 0.73mm footprint (as small as two 0402 resistors) and a 5-pin SOT23 package.This device family operates with a supply voltage range from 1.7V to 5.5V (either VCCor external VREF), and consumes only 500nA of supply current. These devices have a wide input-voltage range of 0.1V to 5.5V, independent of the supply voltage, and maintain high impedance at the inputs even when powered down (VCCor external VREF= 0V). They also feature internal filtering to provide high RF immunity.The MAX40002–MAX40003 and MAX40012–MAX40013 have open-drain outputs, while the MAX40004–MAX40005 and MAX40014–MAX40015 feature push-pull outputs. The MAX40002/MAX40004 and MAX40012–MAX40014 have noninverting inputs, while the MAX40003/MAX40005 and MAX40013–MAX40015 have inverting inputs (see theSelector Guidefor more information).These devices also come with an internal reference. The reference voltage is preset at the factory and parts are offered with the following voltage options: 0.2V, 0.5V, 0.9V or 1.222V (seeOrdering Informationtable).These devices are fully specified over -40°C to +125°C automotive temperature range.ApplicationsElectronic ToysMobile DevicesNotebook ComputersPortable InstrumentationPortable Medical Devices

TheMAX40002–MAX40005 and MAX40012–MAX40015 tiny, single comparators are ideal for a wide variety of portable electronics applications such as cell phones, media players, and notebooks that have extremely tight board space and power constraints. These comparators are offered in both, a miniature 4-bump wafer-level package (WLP) with a 0.73mm x 0.73mm footprint (as small as two 0402 resistors) and a 5-pin SOT23 package.This device family operates with a supply voltage range from 1.7V to 5.5V (either VCCor external VREF), and consumes only 500nA of supply current. These devices have a wide input-voltage range of 0.1V to 5.5V, independent of the supply voltage, and maintain high impedance at the inputs even when powered down (VCCor external VREF= 0V). They also feature internal filtering to provide high RF immunity.The MAX40002–MAX40003 and MAX40012–MAX40013 have open-drain outputs, while the MAX40004–MAX40005 and MAX40014–MAX40015 feature push-pull outputs. The MAX40002/MAX40004 and MAX40012–MAX40014 have noninverting inputs, while the MAX40003/MAX40005 and MAX40013–MAX40015 have inverting inputs (see theSelector Guidefor more information).These devices also come with an internal reference. The reference voltage is preset at the factory and parts are offered with the following voltage options: 0.2V, 0.5V, 0.9V or 1.222V (seeOrdering Informationtable).These devices are fully specified over -40°C to +125°C automotive temperature range.ApplicationsElectronic ToysMobile DevicesNotebook ComputersPortable InstrumentationPortable Medical Devices

The MAX40018 is a dual operational amplifier that consumes only 400nA supply current (per channel). At such low power consumption, the device is ideal for battery-powered applications such as portable medical equipment, portable instruments and wireless handsets.The MAX40018 operates from a single 1.7V to 5.5V supply, allowing the device to be powered by the same 1.8V, 2.5V, or 3.3V nominal supply that powers the microcontroller. The MAX40018 features rail-to-rail outputs and is unity-gain stable with a 9kHz gain bandwidth product (GBP).The ultra-low supply current, ultra-low input bias current, low operating voltage, and rail-to-rail output capabilities make this dual operational amplifier ideal for use with single lithium-ion (Li+), or two-cell NiCd or alkaline batteries.The MAX40018 is available in a tiny, 8-bump, 1.63mm x 0.91mm wafer-level package (WLP), with a bump pitch of 0.4mm, as well as in an 8-pin 3mm x 3mm TDFN package. The device is specified over the -40°C to +125°C, automotive temperature range.ApplicationsHandheld DevicesNotebook and Tablet ComputersPortable InstrumentationPortable Medical DevicesWearable Devices

The MAX4000/MAX4001/MAX4002 low-cost, low-power logarithmic amplifiers are designed to control RF power amplifiers (PA) operating in the 0.1GHz to 2.5GHz frequency range. A typical dynamic range of 45dB makes this family of log amps useful in a variety of wireless applications including cellular handset PA control, transmitter power measurement, and RSSI for terminal devices. Logarithmic amplifiers provide much wider measurement range and superior accuracy to controllers based on diode detectors. Excellent temperature stability is achieved over the full operating range of -40°C to +85°C.The choice of three different input voltage ranges eliminates the need for external attenuators, thus simplifying PA control-loop design. The logarithmic amplifier is a voltage-measuring device with a typical signal range of -58dBV to -13dBV for the MAX4000, -48dBV to -3dBV for the MAX4001, and -43dBV to +2dBV for the MAX4002.The input signal for the MAX4000 is internally AC-coupled using an on-chip 5pF capacitor in series with a 2kΩ input resistance. This highpass coupling, with a corner at 16MHz, sets the lowest operating frequency and allows the input signal source to be DC grounded. The MAX4001/MAX4002 require an external coupling capacitor in series with the RF input port. These PA controllers feature a power-on delay when coming out of shutdown, holding OUT low for approximately 5µs to ensure glitch-free controller output.The MAX4000/MAX4001/MAX4002 family is available in an 8-pin µMAX® package and an 8-bump chip-scale package (UCSP™). The device consumes 5.9mA with a 5.5V supply, and when powered down the typical shutdown current is 13µA.ApplicationsCellular Handsets (TDMA, CDMA, GPRS, GSM)RSSI for Fiber ModulesTransmitter Power Measurement and ControlTSSI for Wireless Terminal Devices

The MAX40023/MAX40024 are single and dual amplifiers optimized for power-sensitive applications that require low noise and very low-leakage input current (bias current).The MAX40023/MAX40024 amplifiers consume less than 17µA (typ) of supply current per channel, but also feature incredibly low noise as low as 32nV/√Hz. The input bias current is <1pA at room temperature.These amplifiers are available in a space-saving, 6-bump wafer-level package (WLP) with a 0.4mm bump pitch (single), 9-bump WLP (dual), 6-pin SOT23 (single), and 10-pin TDFN (dual). They are designed for use as a sensor interface in wearable medical and industrial sensor applications.The MAX40023/MAX40024 amplifiers operate from a 1.6V to 3.6V power supply voltage and arespecified over the -40°C to +125°C operating temperature range.ApplicationsBattery-Powered DevicesIndustrial SensorsWearable Medical

The MAX40023/MAX40024 are single and dual amplifiers optimized for power-sensitive applications that require low noise and very low-leakage input current (bias current).The MAX40023/MAX40024 amplifiers consume less than 17µA (typ) of supply current per channel, but also feature incredibly low noise as low as 32nV/√Hz. The input bias current is <1pA at room temperature.These amplifiers are available in a space-saving, 6-bump wafer-level package (WLP) with a 0.4mm bump pitch (single), 9-bump WLP (dual), 6-pin SOT23 (single), and 10-pin TDFN (dual). They are designed for use as a sensor interface in wearable medical and industrial sensor applications.The MAX40023/MAX40024 amplifiers operate from a 1.6V to 3.6V power supply voltage and arespecified over the -40°C to +125°C operating temperature range.ApplicationsBattery-Powered DevicesIndustrial SensorsWearable Medical

The MAX40025 and MAX40026 are single-supply, high-speed comparators with a typical propagation delay of 280ps. The overdrive dispersion is extremely low (typical 25ps), making these comparators ideal for time-of-flight distance measurement applications.The input common mode range of 1.5V to VDD+ 0.1V is compatible with the output swings of several widely used high-speed trans-impedance amplifiers, such as the MAX40658.The output stage is LVDS (Low-Voltage Differential Signaling), which helps to minimize power dissipation and interfaces directly with many FPGAs and CPUs. Complementary outputs help in suppression of common-mode noise on each output line.The MAX40025 is offered in a space-saving, tiny, 1.218mm x 0.818mm, 6-bump wafer-level package (WLP), while the MAX40026 is available in a 2mm x 2mm 8-pin TDFN package and meets AEC-Q100 automotive qualification requirements. The MAX40025/MAX40026 operate over -40°C to +125°C temperature range and run from a single supply voltage of 2.7V to 3.6V.ApplicationsAutomotive ApplicationsCommunicationsDistance Sensing in LIDAR, RADAR, and SONARHigh-Speed Differential Line ReceiversHigh-Speed Level-ShiftingHigh-Speed Triggering in OscilloscopesOscillatorsTest and MeasurementThreshold DetectorsTime-of-Flight Sensors
