MAX40025 Series

Catalog

EVAL MAX40025 COMPARATOR

Part	Utilized IC / Part	Type	Supplied Contents	Contents	Function	Voltage - Input Offset (Max) [Max]	CMRR, PSRR (Typ)	CMRR, PSRR (Typ)	Output Type	Current - Quiescent (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Propagation Delay (Max) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Package / Case	Number of Elements	Hysteresis	Current - Input Bias (Max)

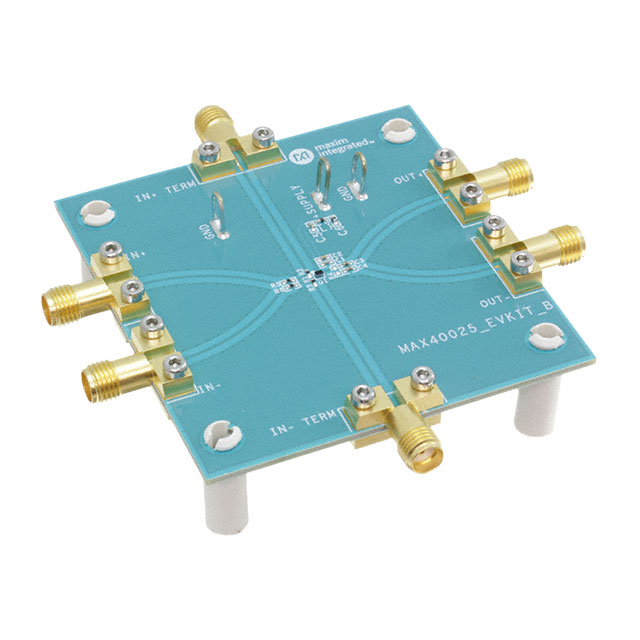

Analog Devices Inc./Maxim Integrated MAX40025EVKIT#	MAX40025	Linear	Board(s)	Board(s)	Comparator Single

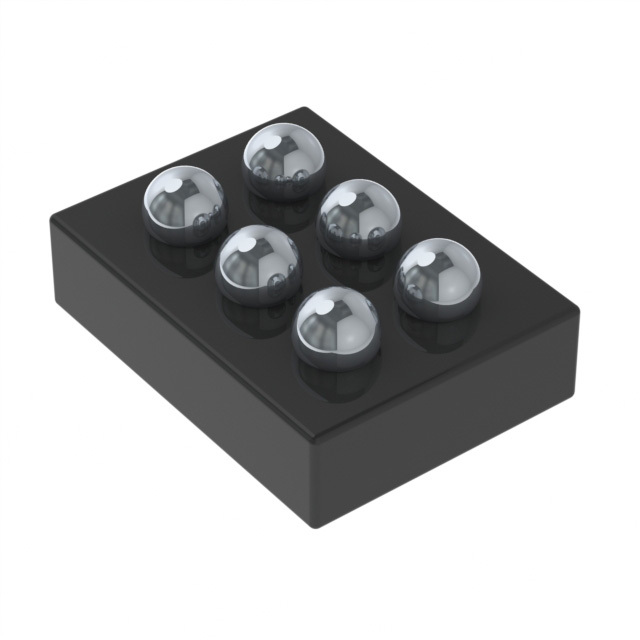

Analog Devices Inc./Maxim Integrated MAX40025CAWT+		General Purpose				5 mV	80 dB	80 dB	Differential LVDS	23 mA	Surface Mount	125 °C	-40 °C	0.28 ns	2.7 V	3.6 V	0.82	6-WLP	1.22	6-WFBGA WLBGA	1
Analog Devices Inc./Maxim Integrated MAX40025CAWT+T		General Purpose				5 mV	80 dB	80 dB	Differential LVDS	23 mA	Surface Mount	125 °C	-40 °C	0.28 ns	2.7 V	3.6 V	0.82	6-WLP	1.22	6-WFBGA WLBGA	1	2.5 mV	1.3 µA
Analog Devices Inc./Maxim Integrated MAX40025AAWT+		General Purpose				5 mV	80 dB	80 dB	Differential LVDS	23 mA	Surface Mount	125 °C	-40 °C	0.28 ns	2.7 V	3.6 V	0.82	6-WLP	1.22	6-WFBGA WLBGA	1	5 mV	10 µA
Analog Devices Inc./Maxim Integrated MAX40025AAWT+T		General Purpose				5 mV	80 dB	80 dB	Differential LVDS	23 mA	Surface Mount	125 °C	-40 °C	0.28 ns	2.7 V	3.6 V	0.82	6-WLP	1.22	6-WFBGA WLBGA	1	5 mV	10 µA
