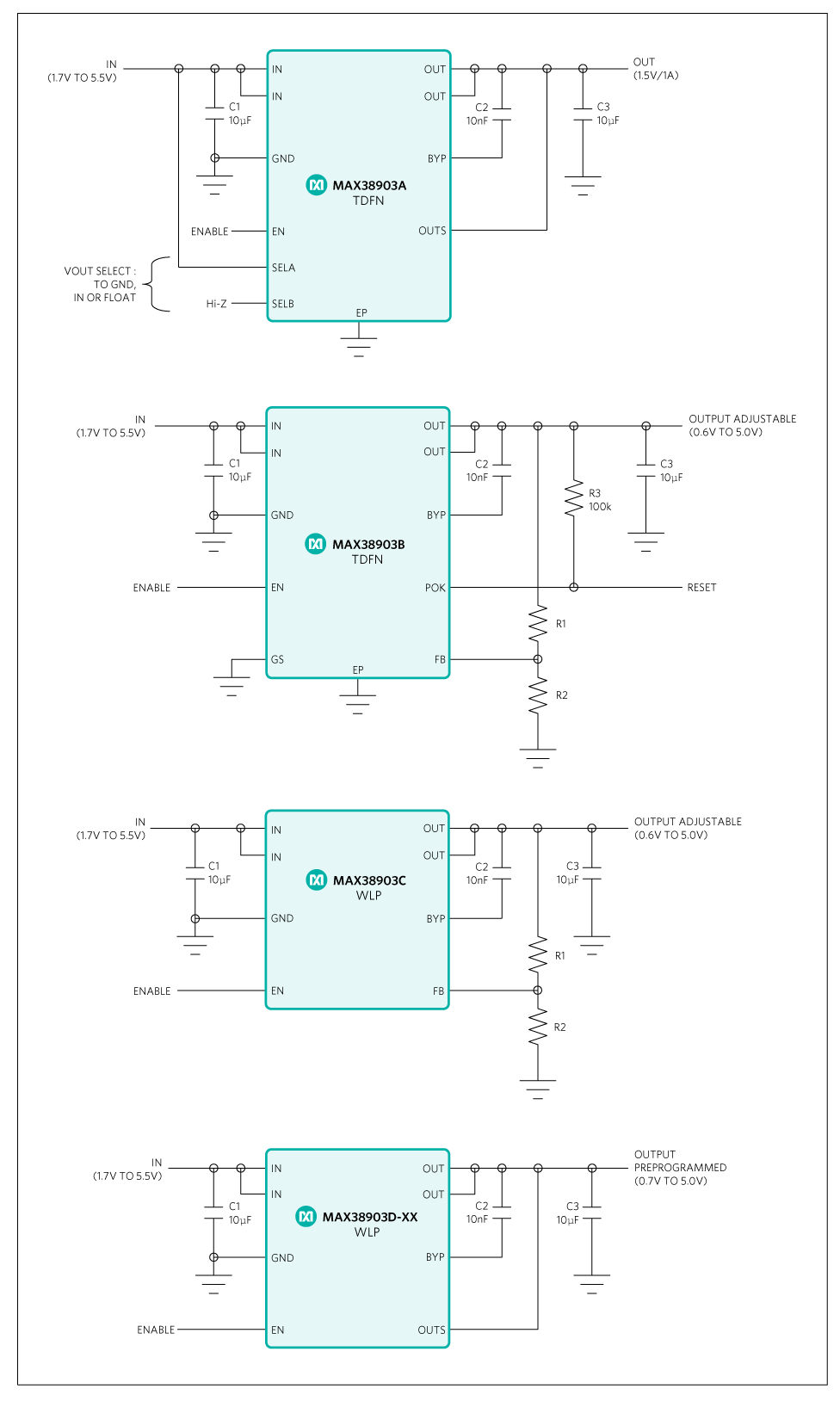

MAX389031.7V–5.5VIN, 1A Low Noise LDO Linear Regulators in TDFN and WLP | Power Management (PMIC) | 9 | Active | The MAX38903A/B/C/D are a family of low-noise linear regulators that deliver up to 1A of output current with only 7µVRMSof output noise from 10Hz to 100kHz.These regulators maintain ±1% output accuracy over a wide input voltage range, requiring only 100mV of input-to-output headroom at full load. The 1200µA no-load supply current is independent of dropout voltage. The MAX38903A/B/C/D has an 800Ω active discharge feature to quickly discharge output capacitors.The MAX38903A has nine pin-selectable output voltages 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.1V, 3.3V, 4.0V, and 5V. The MAX38903B/C output voltage can be adjusted to a value in the range of 0.6V to 5.0V using two external resistors.The MAX38903B also includes an active-high POK signal for trouble-free load startup.The MAX38903D has factory-preset output voltages over the range of 0.7V to 5V in 50mV steps. All versions include a programmable output soft-start rate, output over-current and thermal overload protection.The MAX38903A/B are offered in a 10-pin, 3mm x 3mm TDFN package, while the MAX38903C/D are offered in a 9-bump, 0.4mm pitch, 1.4mm x 1.4mm wafer-level package (WLP).ApplicationsCommunication Systems, Test Equipment, Medical EquipmentHigh-End Audio SystemsHigh-Resolution Data Acquisition Systems |
MAX38903B1.7V–5.5VIN, 1A Low Noise LDO Linear Regulators in TDFN and WLP | Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | 1 | Active | The MAX38903A/B/C/D are a family of low-noise linear regulators that deliver up to 1A of output current with only 7µVRMSof output noise from 10Hz to 100kHz.These regulators maintain ±1% output accuracy over a wide input voltage range, requiring only 100mV of input-to-output headroom at full load. The 1200µA no-load supply current is independent of dropout voltage. The MAX38903A/B/C/D has an 800Ω active discharge feature to quickly discharge output capacitors.The MAX38903A has nine pin-selectable output voltages 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.1V, 3.3V, 4.0V, and 5V. The MAX38903B/C output voltage can be adjusted to a value in the range of 0.6V to 5.0V using two external resistors.The MAX38903B also includes an active-high POK signal for trouble-free load startup.The MAX38903D has factory-preset output voltages over the range of 0.7V to 5V in 50mV steps. All versions include a programmable output soft-start rate, output over-current and thermal overload protection.The MAX38903A/B are offered in a 10-pin, 3mm x 3mm TDFN package, while the MAX38903C/D are offered in a 9-bump, 0.4mm pitch, 1.4mm x 1.4mm wafer-level package (WLP).ApplicationsCommunication Systems, Test Equipment, Medical EquipmentHigh-End Audio SystemsHigh-Resolution Data Acquisition Systems |
MAX38903D1.7V–5.5VIN, 1A Low Noise LDO Linear Regulators in TDFN and WLP | Integrated Circuits (ICs) | 1 | Unknown | The MAX38903A/B/C/D are a family of low-noise linear regulators that deliver up to 1A of output current with only 7µVRMSof output noise from 10Hz to 100kHz.These regulators maintain ±1% output accuracy over a wide input voltage range, requiring only 100mV of input-to-output headroom at full load. The 1200µA no-load supply current is independent of dropout voltage. The MAX38903A/B/C/D has an 800Ω active discharge feature to quickly discharge output capacitors.The MAX38903A has nine pin-selectable output voltages 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.1V, 3.3V, 4.0V, and 5V. The MAX38903B/C output voltage can be adjusted to a value in the range of 0.6V to 5.0V using two external resistors.The MAX38903B also includes an active-high POK signal for trouble-free load startup.The MAX38903D has factory-preset output voltages over the range of 0.7V to 5V in 50mV steps. All versions include a programmable output soft-start rate, output over-current and thermal overload protection.The MAX38903A/B are offered in a 10-pin, 3mm x 3mm TDFN package, while the MAX38903C/D are offered in a 9-bump, 0.4mm pitch, 1.4mm x 1.4mm wafer-level package (WLP).ApplicationsCommunication Systems, Test Equipment, Medical EquipmentHigh-End Audio SystemsHigh-Resolution Data Acquisition Systems |
MAX389041.7V to 5.5VIN, 2A Low-Noise LDO Linear Regulators in TDFN and WLP | Power Management (PMIC) | 8 | Active | The MAX38904 is a 1.7V–5.5V VIN, low-noise linear regulator that delivers up to 2A of output current with only 5.1µVRMSof output noise from 10Hz to 100kHz. The regulator maintains ±1% output accuracy over a wide input voltage range, requiring only 100mV of input-to-output headroom at full load. The 1.3mA no-load supply current is independent of dropout voltage. The MAX38904A/B/C/D have a 70Ω active discharge feature to quickly discharge output capacitors.The output voltage on MAX38904B can be adjusted to a value in the range of 0.6V to 5.0V by using two external resistors. The MAX38904B also includes an active-high POK signal for trouble-free load startup.The MAX38904A has nine pin-selectable output voltages 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.1V, 3.3V, 4.0V, and 5V.The wafer-level package (WLP) versions of the MAX38904 are available as C and D variants. The MAX38904C uses external feedback resistors for adjusting the output voltage, while the MAX38904D has factory preset output voltages over the range of 0.7V to 5.0V in 50mV steps.All versions include a programmable output soft-start rate, output overcurrent, and thermal overload protection.The MAX38904A/B are offered in a 3mm x 3mm, 14-pin TDFN package, while the MAX38904C/D are available in 5 x 3 bump, 2.2mm x 1.37mm WLP, 0.4mm pitch.ApplicationsCommunication Systems, Test Equipment, Medical EquipmentHigh-End Audio SystemsHigh-Resolution Data Acquisition Systems |
MAX38904A1.7V to 5.5VIN, 2A Low-Noise LDO Linear Regulators in TDFN and WLP | Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | 1 | Active | The MAX38904 is a 1.7V–5.5V VIN, low-noise linear regulator that delivers up to 2A of output current with only 5.1µVRMSof output noise from 10Hz to 100kHz. The regulator maintains ±1% output accuracy over a wide input voltage range, requiring only 100mV of input-to-output headroom at full load. The 1.3mA no-load supply current is independent of dropout voltage. The MAX38904A/B/C/D have a 70Ω active discharge feature to quickly discharge output capacitors.The output voltage on MAX38904B can be adjusted to a value in the range of 0.6V to 5.0V by using two external resistors. The MAX38904B also includes an active-high POK signal for trouble-free load startup.The MAX38904A has nine pin-selectable output voltages 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.1V, 3.3V, 4.0V, and 5V.The wafer-level package (WLP) versions of the MAX38904 are available as C and D variants. The MAX38904C uses external feedback resistors for adjusting the output voltage, while the MAX38904D has factory preset output voltages over the range of 0.7V to 5.0V in 50mV steps.All versions include a programmable output soft-start rate, output overcurrent, and thermal overload protection.The MAX38904A/B are offered in a 3mm x 3mm, 14-pin TDFN package, while the MAX38904C/D are available in 5 x 3 bump, 2.2mm x 1.37mm WLP, 0.4mm pitch.ApplicationsCommunication Systems, Test Equipment, Medical EquipmentHigh-End Audio SystemsHigh-Resolution Data Acquisition Systems |
MAX38904C1.7V to 5.5VIN, 2A Low-Noise LDO Linear Regulators in TDFN and WLP | Power Management (PMIC) | 1 | Active | The MAX38904 is a 1.7V–5.5V VIN, low-noise linear regulator that delivers up to 2A of output current with only 5.1µVRMSof output noise from 10Hz to 100kHz. The regulator maintains ±1% output accuracy over a wide input voltage range, requiring only 100mV of input-to-output headroom at full load. The 1.3mA no-load supply current is independent of dropout voltage. The MAX38904A/B/C/D have a 70Ω active discharge feature to quickly discharge output capacitors.The output voltage on MAX38904B can be adjusted to a value in the range of 0.6V to 5.0V by using two external resistors. The MAX38904B also includes an active-high POK signal for trouble-free load startup.The MAX38904A has nine pin-selectable output voltages 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.1V, 3.3V, 4.0V, and 5V.The wafer-level package (WLP) versions of the MAX38904 are available as C and D variants. The MAX38904C uses external feedback resistors for adjusting the output voltage, while the MAX38904D has factory preset output voltages over the range of 0.7V to 5.0V in 50mV steps.All versions include a programmable output soft-start rate, output overcurrent, and thermal overload protection.The MAX38904A/B are offered in a 3mm x 3mm, 14-pin TDFN package, while the MAX38904C/D are available in 5 x 3 bump, 2.2mm x 1.37mm WLP, 0.4mm pitch.ApplicationsCommunication Systems, Test Equipment, Medical EquipmentHigh-End Audio SystemsHigh-Resolution Data Acquisition Systems |
MAX38904D1.7V to 5.5VIN, 2A Low-Noise LDO Linear Regulators in TDFN and WLP | Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | 3 | Active | The MAX38904 is a 1.7V–5.5V VIN, low-noise linear regulator that delivers up to 2A of output current with only 5.1µVRMSof output noise from 10Hz to 100kHz. The regulator maintains ±1% output accuracy over a wide input voltage range, requiring only 100mV of input-to-output headroom at full load. The 1.3mA no-load supply current is independent of dropout voltage. The MAX38904A/B/C/D have a 70Ω active discharge feature to quickly discharge output capacitors.The output voltage on MAX38904B can be adjusted to a value in the range of 0.6V to 5.0V by using two external resistors. The MAX38904B also includes an active-high POK signal for trouble-free load startup.The MAX38904A has nine pin-selectable output voltages 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.1V, 3.3V, 4.0V, and 5V.The wafer-level package (WLP) versions of the MAX38904 are available as C and D variants. The MAX38904C uses external feedback resistors for adjusting the output voltage, while the MAX38904D has factory preset output voltages over the range of 0.7V to 5.0V in 50mV steps.All versions include a programmable output soft-start rate, output overcurrent, and thermal overload protection.The MAX38904A/B are offered in a 3mm x 3mm, 14-pin TDFN package, while the MAX38904C/D are available in 5 x 3 bump, 2.2mm x 1.37mm WLP, 0.4mm pitch.ApplicationsCommunication Systems, Test Equipment, Medical EquipmentHigh-End Audio SystemsHigh-Resolution Data Acquisition Systems |

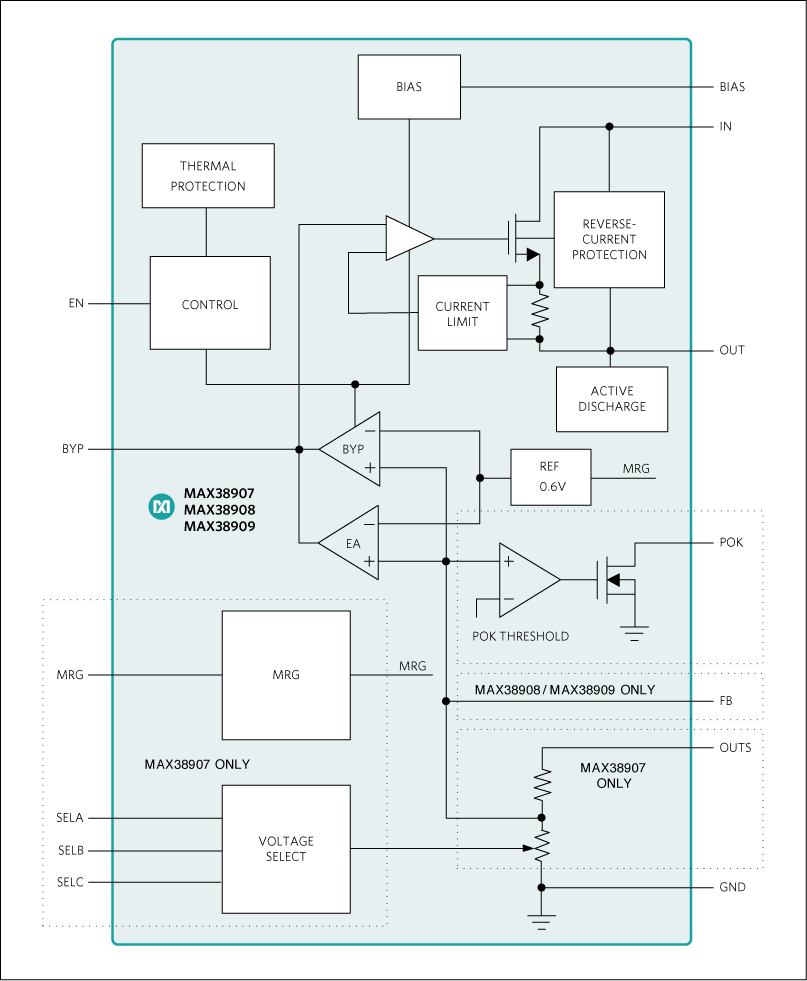

MAX389074A High-Performance LDO Linear Regulators | Evaluation Boards | 3 | Active | The MAX38907/MAX38908 are fast transient response, high-PSRR nMOS linear regulators that deliver up to 4A load current.These regulators support a wide input supply range from 0.9V up to 5.5V, and BIAS voltage range from 2.7V to 20V to provide wider supply options in a variety of applications. Output accuracy of ±1% is maintained over line, load, and temperature variations, requiring only 300mV of input-to-output headroom at full load for a good PSRR. The output voltage can be adjusted to a value in the range of 0.6V to 5.0V to accommodate customers that desire to specify a single LDO in the BOM for multiple voltage rails.The MAX38907 is configurable to one of 27 output voltages using three digital configuration pins. Additionally, each output voltage selection can be adjusted ±5% for margining. The output voltage on the MAX38908 can be adjusted to a value in the range of 0.6V to 5.0V by using two external feedback resistors. These LDOs are fully protected from damage by internal circuitry that provides programmable inrush current limiting, output overcurrent limiting, reverse-current limiting, and thermal overload protection.The MAX38907 is offered in a 20-pin, 5mm x 5mm TQFN package, while the MAX38908 is offered in 5 x 3 bump, 0.4mm pitch WLP and 14-pin, 3mm x 3mm TDFN packages.ApplicationsBase StationsFPGAs and DSPsMedical, Audio, and InstrumentationPLCsPortable CamerasServer μPs |
MAX389084A High-Performance LDO Linear Regulators | Power Management (PMIC) | 5 | Active | The MAX38907/MAX38908 are fast transient response, high-PSRR nMOS linear regulators that deliver up to 4A load current.These regulators support a wide input supply range from 0.9V up to 5.5V, and BIAS voltage range from 2.7V to 20V to provide wider supply options in a variety of applications. Output accuracy of ±1% is maintained over line, load, and temperature variations, requiring only 300mV of input-to-output headroom at full load for a good PSRR. The output voltage can be adjusted to a value in the range of 0.6V to 5.0V to accommodate customers that desire to specify a single LDO in the BOM for multiple voltage rails.The MAX38907 is configurable to one of 27 output voltages using three digital configuration pins. Additionally, each output voltage selection can be adjusted ±5% for margining. The output voltage on the MAX38908 can be adjusted to a value in the range of 0.6V to 5.0V by using two external feedback resistors. These LDOs are fully protected from damage by internal circuitry that provides programmable inrush current limiting, output overcurrent limiting, reverse-current limiting, and thermal overload protection.The MAX38907 is offered in a 20-pin, 5mm x 5mm TQFN package, while the MAX38908 is offered in 5 x 3 bump, 0.4mm pitch WLP and 14-pin, 3mm x 3mm TDFN packages.ApplicationsBase StationsFPGAs and DSPsMedical, Audio, and InstrumentationPLCsPortable CamerasServer μPs |
| Development Boards, Kits, Programmers | 5 | Active | |
