MAX38904 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

EVAL MAX38904C

Part	Voltage - Output	Regulator Type	Voltage - Input [Max]	Voltage - Input [Min]	Channels per IC	Board Type	Utilized IC / Part	Supplied Contents	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]	Control Features	Output Configuration	Mounting Type	Protection Features	Voltage - Output (Max)	Voltage - Input (Max) [Max]	Output Type	Voltage - Output (Min/Fixed)	Current - Quiescent (Iq)	PSRR [Max]	PSRR [Min]	Package / Case	Number of Regulators	Voltage Dropout (Max) [Max]	Supplier Device Package	Contents

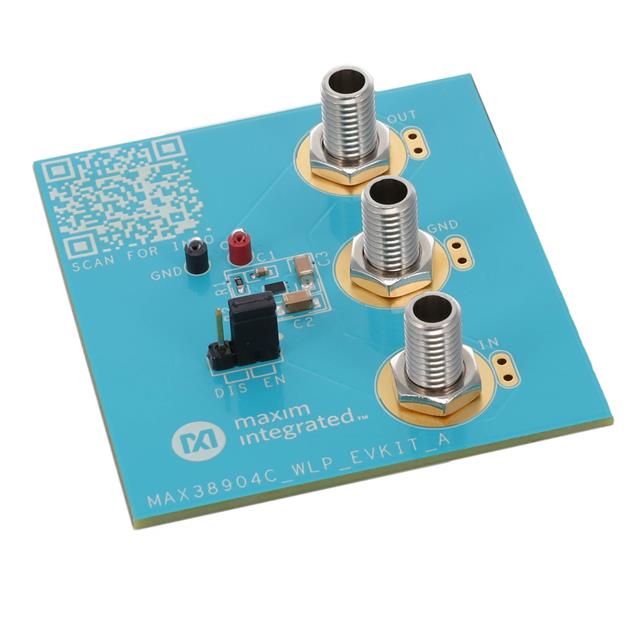

Analog Devices Inc./Maxim Integrated MAX38904CEVK#WLP	3.3 V	Positive Adjustable	5.5 V	1.7 V	1 - Single	Fully Populated	MAX38904C	Board(s)	2 A

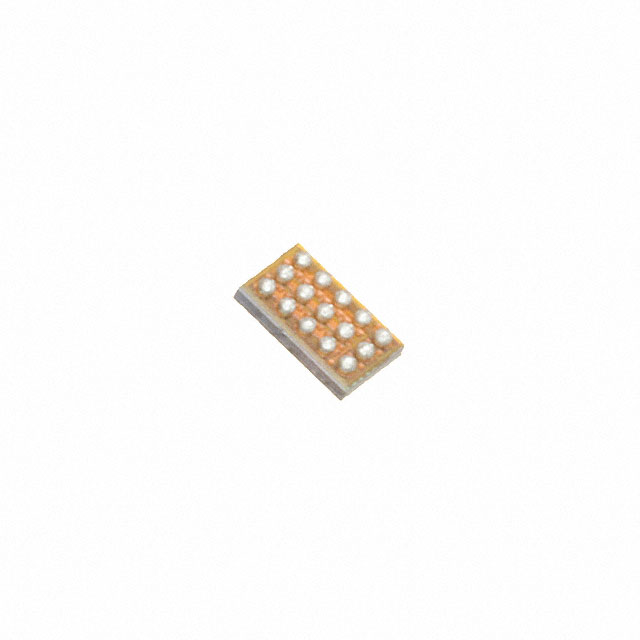

Analog Devices Inc./Maxim Integrated MAX38904CANL+									2 A	-40 °C	125 ¯C	Enable	Positive	Surface Mount	Over Current Over Temperature Reverse Current Soft Start	5 V	5.5 V	Adjustable	0.6 V	1.3 mA	70 db	40 dB	15-XFBGA WLBGA	1	0.3 V
Analog Devices Inc./Maxim Integrated MAX38904BATD+T									2 A	-40 °C	125 ¯C	Enable	Positive	Surface Mount	Over Current Over Temperature Reverse Current Soft Start	5 V	5.5 V	Adjustable	0.6 V	1.3 mA	70 db	40 dB	14-WFDFN Exposed Pad	1	0.3 V	14-TDFN (3x3)

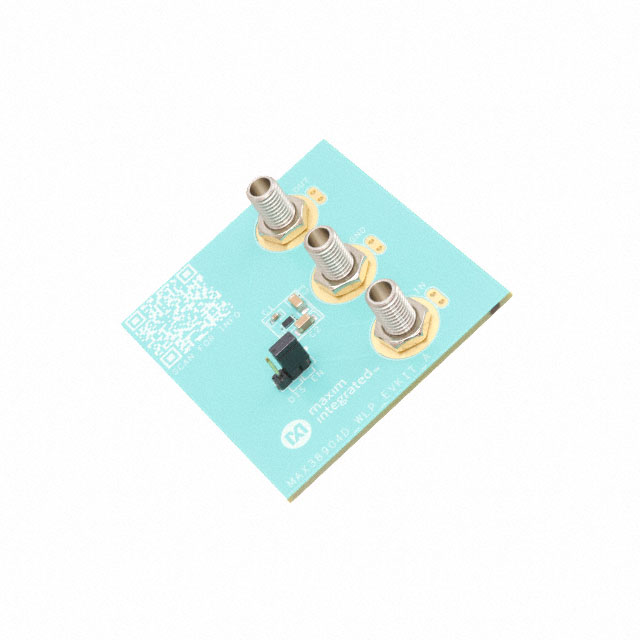

Analog Devices Inc./Maxim Integrated MAX38904DEVK#WLP	1.5 V	Positive Adjustable	5.5 V	1.7 V	1 - Single	Fully Populated	MAX38904D	Board(s)	2 A
Analog Devices Inc./Maxim Integrated MAX38904AATD+									2 A	-40 °C	125 ¯C	Enable	Positive	Surface Mount	Over Current Over Temperature Reverse Current Soft Start	5 V	5.5 V	Adjustable	1.2 V	1.3 mA	70 db	40 dB	14-WFDFN Exposed Pad	1	0.3 V	14-TDFN (3x3)
Analog Devices Inc./Maxim Integrated MAX38904DANL15+T									2 A	-40 °C	125 ¯C	Enable	Positive	Surface Mount	Over Current Over Temperature Reverse Current Soft Start	5 V	5.5 V	Adjustable	0.7 V	1.3 mA	70 db	40 dB	15-XFBGA WLBGA	1	0.3 V
Analog Devices Inc./Maxim Integrated MAX38904BATD+									2 A	-40 °C	125 ¯C	Enable	Positive	Surface Mount	Over Current Over Temperature Reverse Current Soft Start	5 V	5.5 V	Adjustable	0.6 V	1.3 mA	70 db	40 dB	14-WFDFN Exposed Pad	1	0.3 V	14-TDFN (3x3)

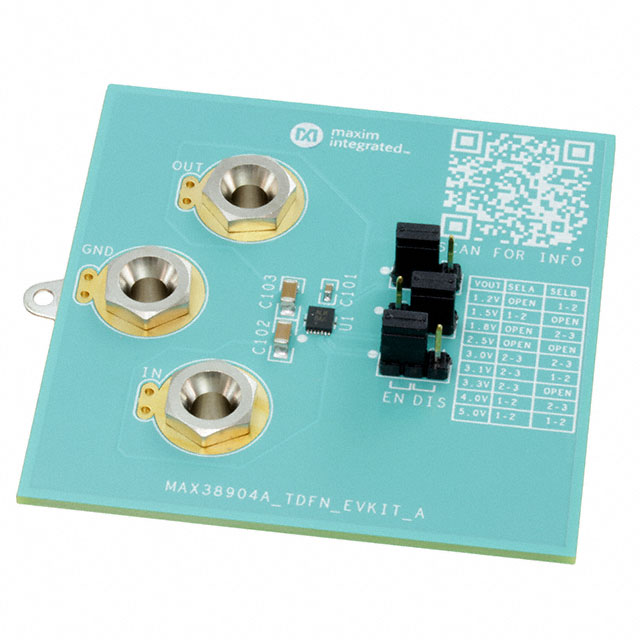

Analog Devices Inc./Maxim Integrated MAX38904AEVK#TDFN	3.3 V	Positive Adjustable	5.5 V	1.7 V	1 - Single		MAX38904A		2 A																		Board(s)
