MAX38909 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

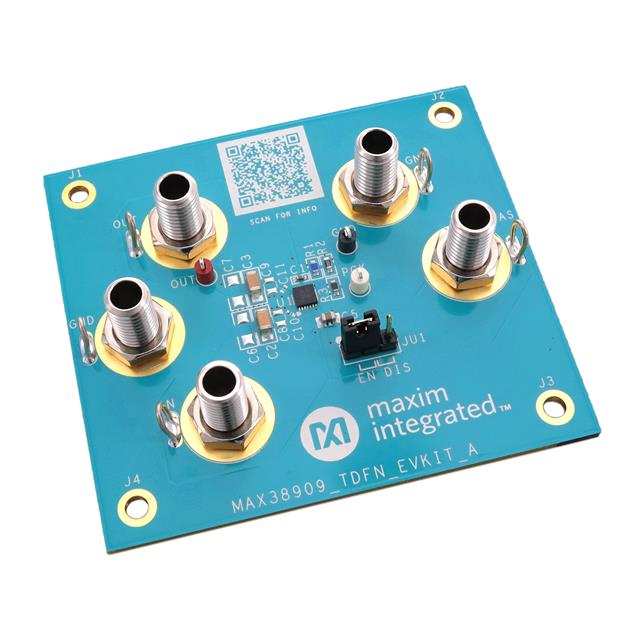

EVAL BOARD FOR MAX38909
| Part | Regulator Type | Channels per IC | Utilized IC / Part | Board Type | Voltage - Output | Current - Output | Supplied Contents | Voltage - Input [Max] | Voltage - Input [Min] | Protection Features | Package / Case | Current - Quiescent (Iq) | Voltage - Input (Max) [Max] | Voltage Dropout (Max) [Max] | Number of Regulators | Output Type | Voltage - Output (Min/Fixed) | PSRR [Max] | PSRR [Min] | Voltage - Output (Max) | Supplier Device Package | Control Features | Operating Temperature [Min] | Operating Temperature [Max] | Output Configuration | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | Positive Adjustable | 1 - Single | MAX38909 | Fully Populated | 1 V | 2 A | Board(s) | 5.5 V | 0.9 V | |||||||||||||||||
 Analog Devices Inc./Maxim Integrated | 4 A | Over Current Over Temperature Reverse Current Under Voltage Lockout (UVLO) | 14-WFDFN Exposed Pad | 150 çA | 5.5 V | 0.036 V | 1 | Programmable | 0.6 V | 60 dB | 42 dB | 5 V | 14-TDFN (3x3) | Enable Power on Reset | -40 °C | 125 ¯C | Positive | Surface Mount | ||||||||
Analog Devices Inc./Maxim Integrated | Positive Adjustable | 1 - Single | MAX38909 | Fully Populated | 1 V | 2 A | Board(s) | 5.5 V | 0.9 V |
