MAX38903 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

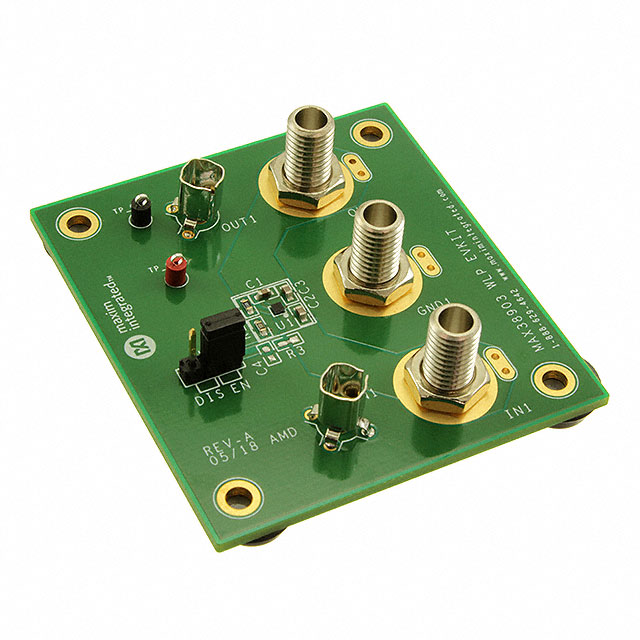

EVAL MAX38903 LDO
| Part | Channels per IC | Voltage - Input [Max] | Voltage - Input [Min] | Supplied Contents | Utilized IC / Part | Board Type | Current - Output | Regulator Type | PSRR [Max] | PSRR [Min] | Voltage Dropout (Max) [Max] | Supplier Device Package | Control Features | Mounting Type | Package / Case | Voltage - Input (Max) [Max] | Current - Quiescent (Iq) | Output Type | Output Configuration | Operating Temperature [Min] | Operating Temperature [Max] | Protection Features | Voltage - Output (Min/Fixed) | Number of Regulators | Output Type | Voltage - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 1 - Single | 5.5 V | 1.7 V | Board(s) | MAX38903 | Fully Populated | 1 A | Positive Adjustable | ||||||||||||||||||
Analog Devices Inc./Maxim Integrated | 1 A | 70 db | 40 dB | 0.3 V | 9-WLP (1.37x1.34) | Enable | Surface Mount | 9-XFBGA WLBGA | 5.5 V | 2 mA | 1.81 mOhm | Positive | -40 °C | 125 ¯C | Over Current Over Temperature Reverse Polarity | 1.8 V | 1 | |||||||||
Analog Devices Inc./Maxim Integrated | 1 A | 70 db | 40 dB | 0.3 V | 9-WLP (1.37x1.34) | Enable | Surface Mount | 9-XFBGA WLBGA | 5.5 V | 2 mA | 1.81 mOhm | Positive | -40 °C | 125 ¯C | Over Current Over Temperature Reverse Polarity | 2.7 V | 1 | |||||||||
Analog Devices Inc./Maxim Integrated | 1 A | 70 db | 40 dB | 0.3 V | 9-WLP (1.37x1.34) | Enable | Surface Mount | 9-XFBGA WLBGA | 5.5 V | 2 mA | Positive | -40 °C | 125 ¯C | Over Current Over Temperature Reverse Polarity | 0.6 V | 1 | Programmable | 5 V | ||||||||
 Analog Devices Inc./Maxim Integrated | 1 A | 70 db | 40 dB | 0.3 V | 9-WLP (1.37x1.34) | Enable | Surface Mount | 9-XFBGA WLBGA | 5.5 V | 2 mA | Positive | -40 °C | 125 ¯C | Over Current Over Temperature Reverse Polarity | 0.6 V | 1 | Programmable | 5 V | ||||||||
Analog Devices Inc./Maxim Integrated | 1 A | 70 db | 40 dB | 0.3 V | 9-WLP (1.37x1.34) | Enable | Surface Mount | 9-XFBGA WLBGA | 5.5 V | 2 mA | 1.81 mOhm | Positive | -40 °C | 125 ¯C | Over Current Over Temperature Reverse Polarity | 4.6 V | 1 | |||||||||
 Analog Devices Inc./Maxim Integrated | 1 A | 70 db | 40 dB | 0.3 V | 10-TDFN (3x3) | Enable | Surface Mount | 10-WFDFN Exposed Pad | 5.5 V | 2 mA | Positive | -40 °C | 125 ¯C | Over Current Over Temperature Reverse Polarity | 0.6 V | 1 | Programmable | 5 V | ||||||||
Analog Devices Inc./Maxim Integrated | 1 A | 70 db | 40 dB | 0.3 V | 10-TDFN (3x3) | Enable | Surface Mount | 10-WFDFN Exposed Pad | 5.5 V | 2 mA | Positive | -40 °C | 125 ¯C | Over Current Over Temperature Reverse Polarity | 0.6 V | 1 | Programmable | 5 V |
