MAX3420EUSB Peripheral Controller with SPI Interface | Controllers | 6 | Active | The MAX3420E contains the digital logic and analog circuitry necessary to implement a full-speed USB peripheral compliant to USB specification rev 2.0. A built-in full-speed transceiver features ±15kV ESD protection and programmable USB connect and disconnect. An internal serial-interface engine (SIE) handles low-level USB protocol details such as error checking and bus retries. The MAX3420E operates using a register set accessed by an SPI™ interface that operates up to 26MHz. Any SPI master (microprocessor, ASIC, DSP, etc.) can add USB functionality using the simple 3- or 4-wire SPI interface.Internal level translators allow the SPI interface to run at a system voltage between 1.71V and 3.6V. USB timed operations are done inside the MAX3420E with interrupts provided at completion so an SPI master does not need timers to meet USB timing requirements. The MAX3420E includes four general-purpose inputs and outputs so any microprocessor that uses I/O pins to implement the SPI interface can reclaim the I/O pins and gain additional ones.The MAX3420E operates over the extended -40°C to +85°C temperature range and is available in a 32-pin LQFP package (7mm x 7mm) and a space-saving 24-pin TQFN package (4mm x 4mm).FAQs: MAX3420EApplicationsCamerasCell PhonesCustom USB DevicesDesktop RoutersInstrumentationMicroprocessors and DSPsMP3 PlayersPC PeripheralsPDAsPLCsSet-Top Boxes |

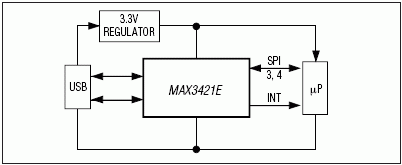

MAX3421USB Peripheral/Host Controller with SPI Interface | Evaluation and Demonstration Boards and Kits | 5 | Active | The MAX3421E USB peripheral/host controller contains the digital logic and analog circuitry necessary to implement a full-speed USB peripheral or a full-/low-speed host compliant to USB specification rev 2.0. A built-in transceiver features ±15kV ESD protection and programmable USB connect and disconnect. An internal serial interface engine (SIE) handles low-level USB protocol details such as error checking and bus retries. The MAX3421E operates using a register set accessed by an SPI interface that operates up to 26MHz. Any SPI master (microprocessor, ASIC, DSP, etc.) can add USB peripheral or host functionality using the simple 3- or 4-wire SPI interface.The MAX3421E makes the vast collection of USB peripherals available to any microprocessor, ASIC, or DSP when it operates as a USB host. For point-to-point solutions, for example, a USB keyboard or mouse interfaced to an embedded system, the firmware that operates the MAX3421E can be simple since only a targeted device is supported.Internal level translators allow the SPI interface to run at a system voltage between 1.4V and 3.6V. USB-timed operations are done inside the MAX3421E with interrupts provided at completion so an SPI master does not need timers to meet USB timing requirements. The MAX3421E includes eight general-purpose inputs and outputs so any microprocessor that uses I/O pins to implement the SPI interface can reclaim the I/O pins and gain additional ones.The MAX3421E operates over the extended -40°C to +85°C temperature range and is available in a 32-pin TQFP package (5mm x 5mm) and a 32-pin TQFN package (5mm x 5mm).FAQs: MAX3421EApplicationsCamerasCustom USB DevicesDesktop RoutersEmbedded SystemsInstrumentationMedical DevicesMicroprocessors and DSPsMP3 PlayersPDAsPLCsSet-Top Boxes |
| Integrated Circuits (ICs) | 7 | Active | |
| Evaluation and Demonstration Boards and Kits | 1 | Obsolete | |
| Interface | 3 | Active | |
| Integrated Circuits (ICs) | 3 | Active | |

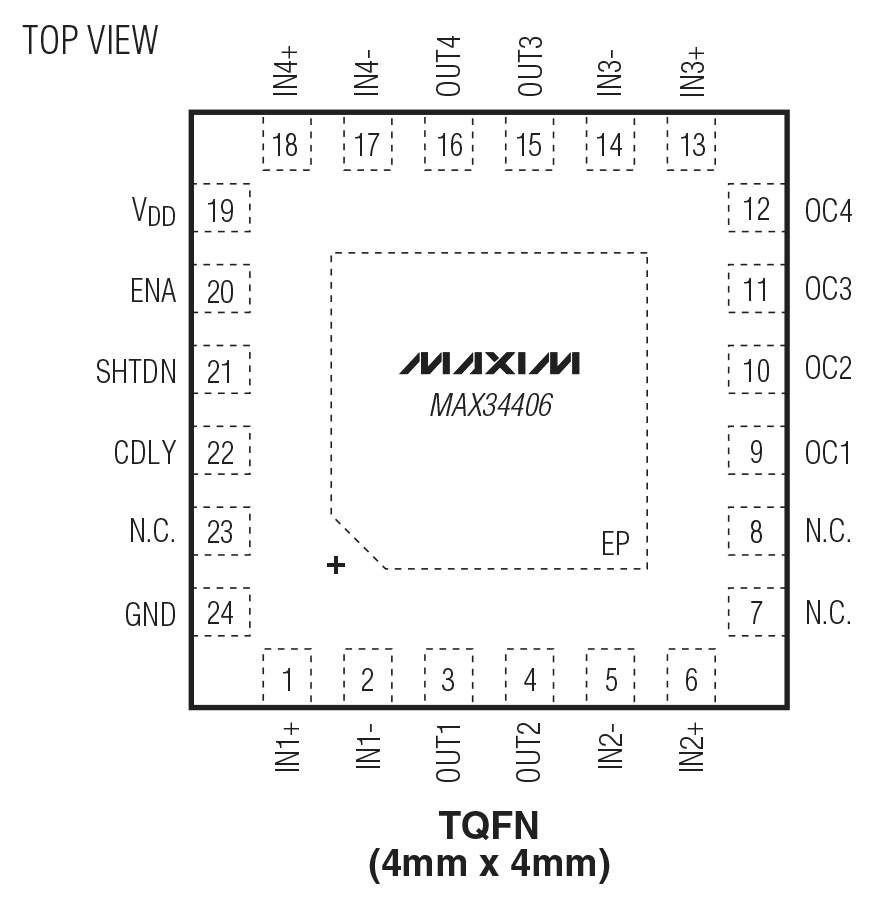

MAX34406Quad Current-Sense Amplifier with Overcurrent Threshold Comparators | Development Boards, Kits, Programmers | 8 | Active | The MAX34406 is a quad, high-side, unidirectional, current-sense amplifier that offers precision accuracy. It provides analog outputs for each of the four amplifiers that can be routed to an external ADC, and contains four overcurrent comparators with a fixed 1.0V threshold. All four comparators are logically ORed, and the result can be delayed/filtered with an external capacitor before it is fed to a latched common shutdown open-drain output pin.ApplicationsBase StationsIndustrial ControlsNetwork Switches/RoutersServersSmart Grid Network Systems |

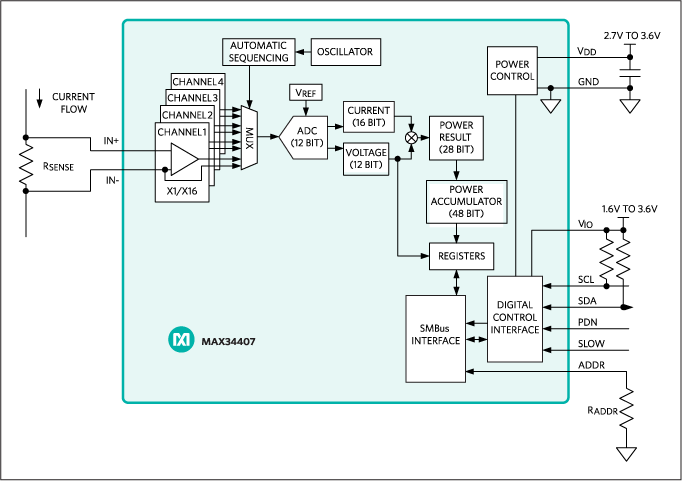

MAX34407SMBus 4-Channel Wide Dynamic Range Power Accumulator | Development Boards, Kits, Programmers | 3 | Active | The MAX34407 is a current and voltage monitor that is specialized for determining power consumption. The device has a wide dynamic range to allow it to accurately measure power in systems that consume small to large amounts of power. The device is configured and monitored with a standard I2C/SMBus serial interface. The unidirectional current sensor offers precision high-side operation with a low full-scale sense voltage. The device automatically collects the current-sense and voltage samples. The samples are then multiplied to obtain a power value and the power values are then accumulated. Upon a command from the host, the device transfers the accumulated power samples as well as the accumulation count to a set of registers that the host can access. This transfer occurs without missing a sample and allows the host to retrieve the data not in real time, but at any time interval.ApplicationsSmartphonesTabletsUltra Notebooks |

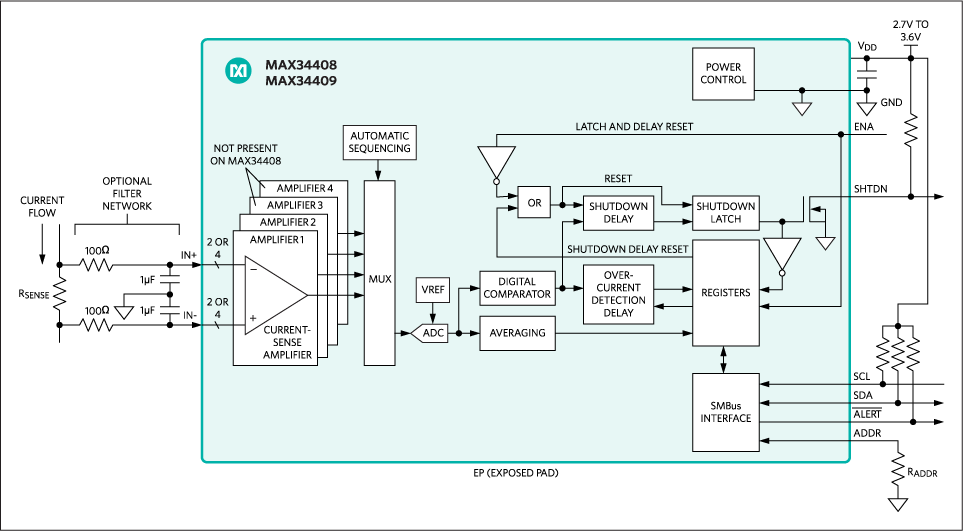

| Current Regulation/Management | 2 | Active | The MAX34408 and MAX34409 are two- and four-channel current monitors that are configured and monitored with a standard I2C/SMBus serial interface. Each unidirectional current sensor offers precision high-side operation with a low full-scale sense voltage. The devices automatically sequence through two or four channels and collect the current-sense samples and average them to reduce the effect of impulse noise. The raw ADC samples are compared to user-programmable digital thresholds to indicate overcurrent conditions. Overcurrent conditions trigger a hardware output to provide an immediate indication to shut down any necessary external circuitry.ApplicationsBase StationsIndustrial ControlsNetwork Switches and RoutersServersSmart Grid Network Systems |
| Integrated Circuits (ICs) | 3 | Active | |
