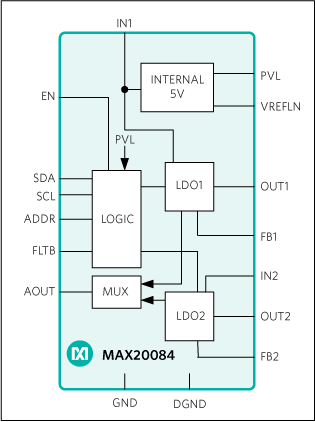

The MAX20084 is a dual-antenna power supply with an I2C interface for diagnostics and control. The dual 270mA antenna supplies are linear regulators whose output voltage is set individually through I2C. Additionally, internal registers are used to set the current limit, open-load threshold, and other parameters.An internal 8-bit ADC allows the channel current to be measured. The AOUT analog output can also be used with an external ADC to measure the output current on either channel.The MAX20084 is available in two variants: the MAX20084ATEA/VY+ with both channels turned off by default after power-up, and the MAX20084ATEB/VY+ with channel 1 turned on by default after power-up.The MAX20084 is available in a 4mm x 4mm, optional side-wettable, TQFN package and operates over the -40°C to +125°C temperature range.ApplicationsAutomotive Camera and Sensor PowerAutomotive Microphone PowerRemote LNA Phantom Power

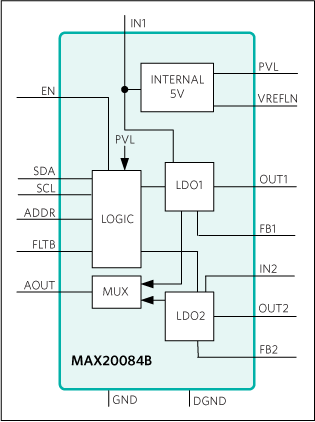

The MAX20084B is a dual-antenna power supply with an I2C interface for diagnostics and control. The dual 270mA antenna supplies are linear regulators whose output voltage is set individually through I2C. Additionally, internal registers are used to set the current limit, open-load threshold, and other parameters.An internal 8-bit ADC allows the channel current to be measured. The AOUT analog output can also be used with an external ADC to measure the output current on either channel.The MAX20084B is available in two variants: the MAX20084BATEA/VY+ with both channels turned off by default after power-up, and the MAX20084BATEB/VY+ with channel 1 turned on by default after power-up.The MAX20084B is available in a 4mm x 4mm, side-wettable TQFN package and operates over the -40°C to +125°C temperature range.ApplicationsAutomotive Camera and Sensor PowerAutomotive Microphone PowerRemote LNA Phantom Power

The MAX20086–MAX20089 dual/quad camera power protector ICs deliver up to 600mA load current to each of their four output channels. Each output is individually protected from short-to-battery, short-to-ground, and overcurrent conditions. The ICs operate from a 3V to 5.5V supply and with a 3V to 15V camera supply. The input-to-output voltage drop is only 110mV (typ) at 300mA.The ICs provide an enable input and I2C interface to read the diagnostic status of the device. An on-board ADC enables reading of the current through each switch. The ASIL B- and ASIL D-compliant versions include support for reading an additional seven diagnostic measurements through the ADC, ensuring high-fault coverage.The MAX20086–MAX20089 include overtemperature shutdown and overcurrent limiting on each output channel separately. All devices are designed to operate from -40°C to +125°C ambient temperature.ApplicationsPower-over-Coax for Radar and Camera ModulesSurround-View Camera ECU

The MAX20086–MAX20089 dual/quad camera power protector ICs deliver up to 600mA load current to each of their four output channels. Each output is individually protected from short-to-battery, short-to-ground, and overcurrent conditions. The ICs operate from a 3V to 5.5V supply and with a 3V to 15V camera supply. The input-to-output voltage drop is only 110mV (typ) at 300mA.The ICs provide an enable input and I2C interface to read the diagnostic status of the device. An on-board ADC enables reading of the current through each switch. The ASIL B- and ASIL D-compliant versions include support for reading an additional seven diagnostic measurements through the ADC, ensuring high-fault coverage.The MAX20086–MAX20089 include overtemperature shutdown and overcurrent limiting on each output channel separately. All devices are designed to operate from -40°C to +125°C ambient temperature.Design Solution: Provide a Safe Power Path from the Car Battery to Remote Cameras ›ApplicationsPower-over-Coax for Radar and Camera ModulesSurround-View Camera ECU

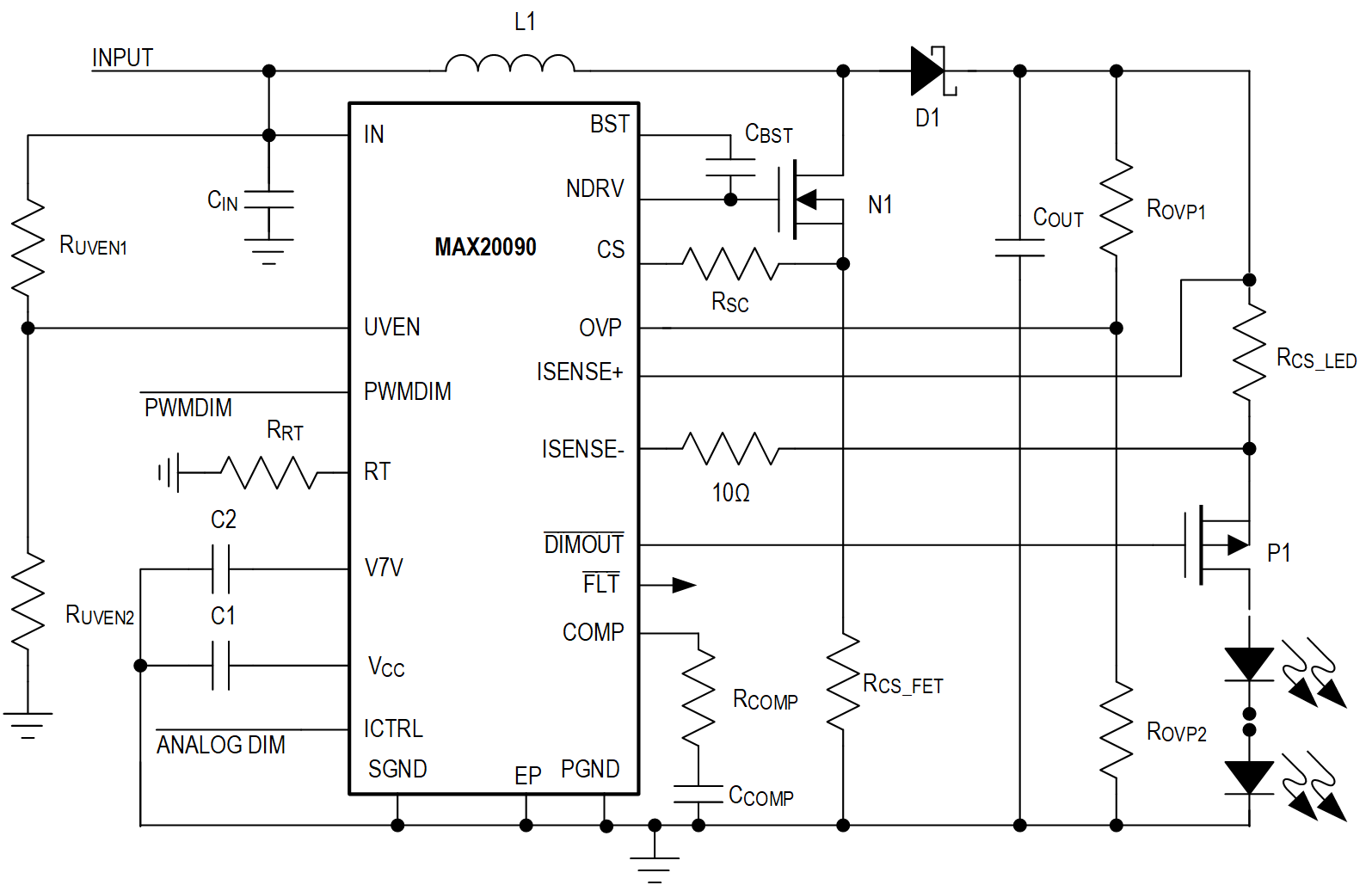

The MAX20090 is a single-channel high-brightness LED (HB LED) driver for automotive front-light applications such as high beam, low beam, daytime running lights (DRLs), turn indicators, fog lights, and other LED lights. It can take an input voltage from 5V to 65V and drive a string of LEDs with a maximum output voltage of 65V.The device senses output current at the high side of the LED string. High-side current sensing is required to protect for shorts from the output to the ground or battery input. It is also the most flexible scheme for driving LEDs, allowing boost, high-side buck, SEPIC mode, or buck-boost-mode configurations. The PWM input provides LED dimming ratios of up to 1000:1, and the ICTRL input provides additional analog dimming capability in the controller. The device also includes a fault flag ( active-low FLT) that indicates open string, shorted string, and thermal shutdown. The device has built-in spread-spectrum modulation for improved electromagnetic-compatibility performance. The device can also be used in zeta and Cuk converter configurations, if necessary in some applications. The MAX20090 is available in a space-saving (4mm × 4mm), 20-pin TQFN, 20-pin side-wettable TQFN, or a 20-pin TSSOP package and is specified to operate over the -40°C to +125°C automotive temperature range.Design Solution: Driver Monitoring Systems Need a New Breed of IR-LED Drivers ›Design Solution: Flexible LED Controller Simplifies Automotive Exterior Lighting Design ›ApplicationsAutomotive Exterior LightingCommercial, Industrial, and Architectural LightingDaytime Running Lights (DRLs)Fog Lights and Adaptive Front-Light AssembliesHead-Up DisplaysHigh-Beam/Low-Beam/Signal/Position Lights
