MAX20090 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

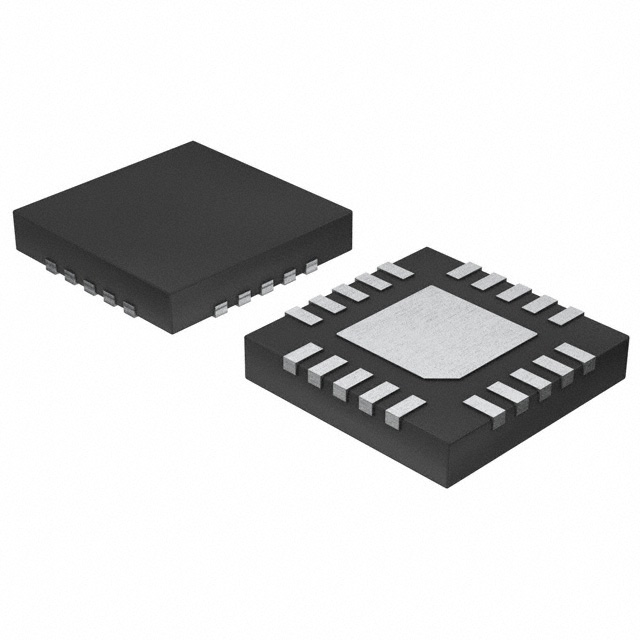

IC LED DRIVER CTRLR PWM 20TQFN

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Supply (Max) [Max]	Grade	Applications	Dimming	Mounting Type	Package / Case	Qualification	Supplier Device Package	Voltage - Supply (Min) [Min]	Voltage - Output	Number of Outputs	Frequency [Min]	Frequency [Max]	Topology	Package / Case [custom]	Package / Case [custom]	Package / Case [custom]	Voltage - Output [Max]	Voltage - Output [Min]	Current - Output / Channel [custom]	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Features	Outputs and Type	Supplied Contents
Analog Devices Inc./Maxim Integrated MAX20090BATP/VY+	-40 °C	125 °C	DC DC Controller	65 V	Automotive	Commercial & Industrial Lighting	Analog PWM	Surface Mount Wettable Flank	20-WFQFN Exposed Pad	AEC-Q100	20-TQFN-EP (4x4)	5 V	65 V	1	200 kHz	2.2 MHz	SEPIC Step-Down (Buck) Step-Up (Boost)
Analog Devices Inc./Maxim Integrated MAX20090BAUP/V+	-40 °C	125 °C	DC DC Controller	65 V	Automotive	Commercial & Industrial Lighting	Analog PWM	Surface Mount		AEC-Q100	20-TSSOP-EP	5 V	65 V	1	200 kHz	2.2 MHz	SEPIC Step-Down (Buck) Step-Up (Boost)	0.173 in 4.4 mm	Exposed Pad	20-TSSOP
Analog Devices Inc./Maxim Integrated MAX20090BATP/VY+T	-40 °C	125 °C	DC DC Controller	65 V	Automotive	Commercial & Industrial Lighting	Analog PWM	Surface Mount Wettable Flank	20-WFQFN Exposed Pad	AEC-Q100	20-TQFN-EP (4x4)	5 V	65 V	1	200 kHz	2.2 MHz	SEPIC Step-Down (Buck) Step-Up (Boost)
Analog Devices Inc./Maxim Integrated MAX20090BATP/V+T	-40 °C	125 °C	DC DC Controller	65 V	Automotive	Commercial & Industrial Lighting	Analog PWM	Surface Mount	20-WFQFN Exposed Pad	AEC-Q100	20-TQFN (4x4)	5 V	65 V	1	200 kHz	2.2 MHz	SEPIC Step-Down (Buck) Step-Up (Boost)
Analog Devices Inc./Maxim Integrated MAX20090ATP/VY+	-40 °C	125 °C	DC DC Controller	65 V	Automotive	Lighting	Analog PWM	Surface Mount Wettable Flank	20-WFQFN Exposed Pad	AEC-Q100	20-TQFN-EP (4x4)	5 V	65 V	1	200 kHz	2 MHz	SEPIC Step-Down (Buck) Step-Up (Boost)
Analog Devices Inc./Maxim Integrated MAX20090AUP/V+W	-40 °C	125 °C	DC DC Controller	65 V	Automotive	Commercial & Industrial Lighting	Analog PWM	Surface Mount		AEC-Q100	20-TSSOP-EP	5 V		1	200 kHz	2.2 MHz	SEPIC Step-Down (Buck) Step-Up (Boost)	0.173 in 4.4 mm	Exposed Pad	20-TSSOP	5.125 V	4.875 V
Analog Devices Inc./Maxim Integrated MAX20090BEVKIT#																					24 V	3 V	1 A	18 V	6 V	MAX20090B	Dimmable	1 Non-Isolated Output	Board(s)
Analog Devices Inc./Maxim Integrated MAX20090BATP/V+	-40 °C	125 °C	DC DC Controller	65 V	Automotive	Commercial & Industrial Lighting	Analog PWM	Surface Mount	20-WFQFN Exposed Pad	AEC-Q100	20-TQFN (4x4)	5 V	65 V	1	200 kHz	2.2 MHz	SEPIC Step-Down (Buck) Step-Up (Boost)
Analog Devices Inc./Maxim Integrated MAX20090AUP/V+TW	-40 °C	125 °C	DC DC Controller	65 V	Automotive	Commercial & Industrial Lighting	Analog PWM	Surface Mount		AEC-Q100	20-TSSOP-EP	5 V		1	200 kHz	2.2 MHz	SEPIC Step-Down (Buck) Step-Up (Boost)	0.173 in 4.4 mm	Exposed Pad	20-TSSOP	5.125 V	4.875 V
Analog Devices Inc./Maxim Integrated MAX20090ATP/V+	-40 °C	125 °C	DC DC Controller	65 V	Automotive	Lighting	Analog PWM	Surface Mount	20-WFQFN Exposed Pad	AEC-Q100	20-TQFN (4x4)	5 V	65 V	1	200 kHz	2 MHz	SEPIC Step-Down (Buck) Step-Up (Boost)
