MAX15106High-Efficiency, 6A, Current-Mode Synchronous Step-Down Switching Regulator | DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards | 7 | Active | TheMAX15106A/MAX15106B/MAX15106C family of high-efficiency, current-mode, synchronous step-down switching regulators with integrated power switches deliver up to 6A of output current. The regulators operate from 2.7V to 5.5V and provide an output voltage from 0.6V up to 95% of the input voltage, making the devices ideal for distributed power systems, portable devices, and pre-regulation applications.The ICs utilize a current-mode control architecture with a high-gain transconductance error amplifier. The current-mode control architecture facilitates easy compensation design and ensures cycle-by-cycle current limit with fast response to line and load transients.The low RDS(ON)integrated switches ensure high efficiency at heavy loads while minimizing critical inductance, making the layout design a much simpler task with respect to discrete solutions. The ICs’ simple layout and footprint assures first-pass success in new designs.The regulator features 0.9MHz (MAX15106A), 1.0MHz (MAX15106B), and 1.1MHz (MAX15106C) factory-trimmed fixed frequency PWM-mode operation. The high-switching frequency, along with the PWM current-mode architecture allows for a compact, all-ceramic capacitor design.The IC features a capacitor-programmable soft-start to reduce input inrush current. Internal control circuitry ensures safe startup into a prebiased output. Power sequencing is controlled with the enable input and power-good output.The IC is available in a 20-bump (4 x 5 array), 2.5mm x 2mm WLP package and is fully specified over the -40°C to +105°C temperature range.APPLICATIONSDistributed Power SystemsDDR MemoryBase StationsPortable DevicesNotebook PowerServer Power |
MAX15106AHigh-Efficiency, 6A, Current-Mode Synchronous Step-Down Switching Regulator | Power Management (PMIC) | 1 | Unknown | The MAX15106A/MAX15106B/MAX15106Cfamily of high-efficiency, current-mode, synchronous step-down switching regulators with integrated power switches deliver up to 6A of output current. The regulators operate from 2.7V to 5.5V and provide an output voltage from 0.6V up to 95% of the input voltage, making the devices ideal for distributed power systems, portable devices, and pre-regulation applications.The ICs utilize a current-mode control architecture with a high-gain transconductance error amplifier. The current-mode control architecture facilitates easy compensation design and ensures cycle-by-cycle current limit with fast response to line and load transients.The low RDS(ON)integrated switches ensure high efficiency at heavy loads while minimizing critical inductance, making the layout design a much simpler task with respect to discrete solutions. The ICs’ simple layout and footprint assures first-pass success in new designs.The regulator features 0.9MHz (MAX15106A), 1.0MHz (MAX15106B), and 1.1MHz (MAX15106C) factory-trimmed fixed frequency PWM-mode operation. The high-switching frequency, along with the PWM current-mode architecture allows for a compact, all-ceramic capacitor design.The IC features a capacitor-programmable soft-start to reduce input inrush current. Internal control circuitry ensures safe startup into a prebiased output. Power sequencing is controlled with the enable input and power-good output.The IC is available in a 20-bump (4 x 5 array), 2.5mm x 2mm WLP package and is fully specified over the -40°C to +105°C temperature range.APPLICATIONSDistributed Power SystemsDDR MemoryBase StationsPortable DevicesNotebook PowerServer Power |

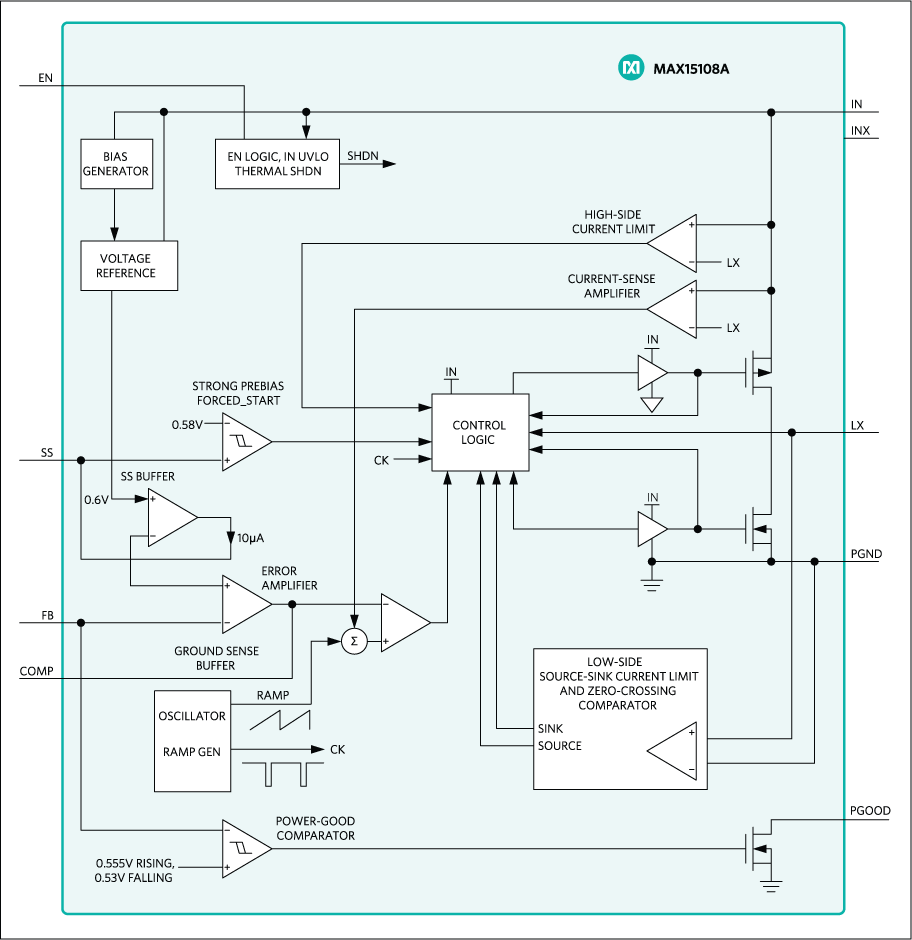

MAX15108High-Efficiency, 8A, Current-Mode Synchronous Step-Down Switching Regulator | Integrated Circuits (ICs) | 2 | Active | The MAX15108A high-efficiency, current-mode, synchronous step-down switching regulator with integrated power switches delivers up to 8A of output current. The regulator operates from 2.7V to 5.5V and provides an output voltage from 0.6V up to 95% of the input voltage, making the device ideal for distributed power systems, portable devices, and preregulation applications.The IC utilizes a current-mode control architecture with a high gain transconductance error amplifier. The current-mode control architecture facilitates easy compensation design and ensures cycle-by-cycle current limit with fast response to line and load transients.The low RDS(ON)integrated switches ensure high efficiency at heavy loads while minimizing critical inductance, making the layout design a much simpler task with respect to discrete solutions. The IC’s simple layout and footprint assures first-pass success in new designs.The regulator features a 1MHz, factory-trimmed fixed-frequency PWM mode operation. The high switching frequency, along with the PWM current-mode architecture allows for a compact, all ceramic capacitor design.The IC features a capacitor-programmable soft-start to reduce input inrush current. Internal control circuitry ensures safe-startup into a prebiased output. Power sequencing is controlled with the enable input and power-good output.The IC is available in a 20-bump (4 x 5 array), 2.5mm × 2mm, WLP package and is fully specified over the -40°C to +105°C temperature range.ApplicationsBase StationsDDR MemoryDistributed Power SystemsNotebook PowerPortable DevicesServer Power |

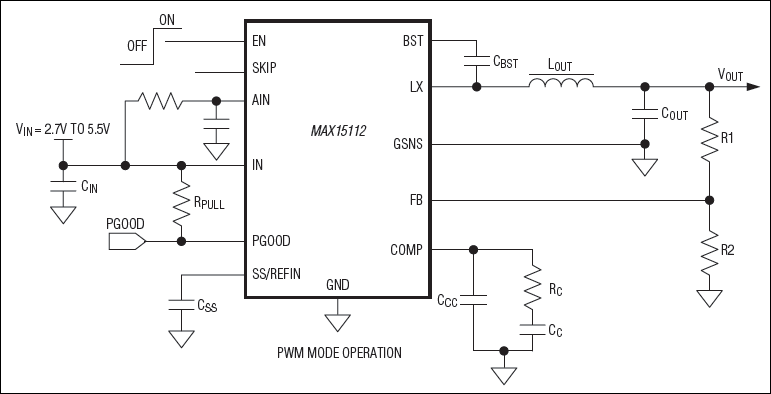

MAX15112High-Efficiency, 12A, Current-Mode Synchronous Step-Down Regulator with Integrated Switches | Evaluation Boards | 2 | Active | The MAX15112 high-efficiency, current-mode step-down regulator with integrated power switches operates from 2.7V to 5.5V and delivers up to 12A of output current in a small 2mm x 3mm package. The MAX15112 offers excellent efficiency with skip mode capability at light-load conditions, yet provides unmatched efficiency under heavy load conditions. The combination of small size and high efficiency makes this device suitable for both portable and nonportable applications.The MAX15112 utilizes a current-mode control architecture with a high-gain transconductance error amplifier, which allows a simple compensation scheme and enables a cycle-by-cycle current limit with fast response to line and load transients. A factory-trimmed switching frequency of 1MHz (PWM operation) allows for a compact, all-ceramic capacitor design.Integrated switches with low on-resistance ensure high efficiency at heavy loads while minimizing critical inductances. The MAX15112’s simple layout and footprint assure first-pass success in new designs.Other features of the MAX15112 include a capacitor-programmable soft-start to reduce inrush current, safe startup into a prebiased output, an enable input, and a power-good output for power sequencing.The regulator is available in a 24-bump (4 x 6), 2.1mm x 3.05mm WLP package, and is fully specified over the -40°C to +85°C extended temperature range.ApplicationsBase StationsDDR MemoryDistributed Power SystemsNotebooksPreregulators for Linear RegulatorsServers |
| Development Boards, Kits, Programmers | 3 | Obsolete | |
| Integrated Circuits (ICs) | 1 | NRND | |
| Integrated Circuits (ICs) | 2 | Obsolete | |
| Integrated Circuits (ICs) | 3 | Obsolete | |
| Special Purpose Regulators | 1 | Active | |
| Integrated Circuits (ICs) | 2 | Active | |
