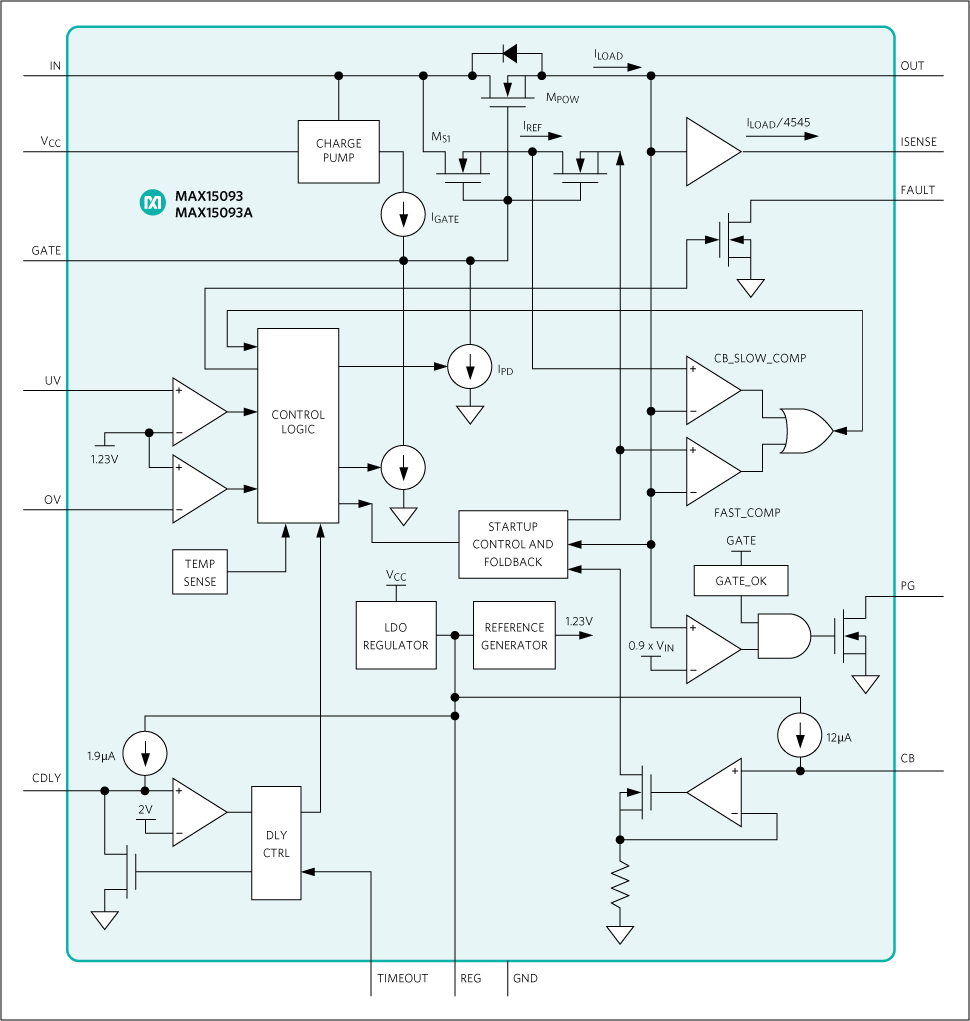

MAX15093A2.7V to 18V, 15A, Hot-Swap Solution with Current Report Output | Power Management (PMIC) | 1 | Unknown | The MAX15093/MAX15093A ICs are integrated solutions for hot-swap applications requiring the safe insertion and removal of circuit-line cards from a live backplane. The devices integrate a hot-swap controller, 3.8mΩ power MOSFET, and an electronic circuit-breaker protection in a single package.The devices integrate an accurate current-sense circuitry and provide 160µA/A of proportional output current. The devices are designed for protection of 2.7V to 18V supply voltages.These devices implement a foldback current limit during startup to control inrush current lowering di/dt and keep the MOSFET operating under safe operating area (SOA) conditions. After the startup cycle is complete, on-chip comparators provide VariableSpeed/BiLevel™ protection against short-circuit and overcurrent faults, and immunity against system noise and load transients. The load is disconnected in the event of a fault condition. The devices are factory calibrated to deliver accurate overcurrent protection with ±10% accuracy. During a fault condition, the MAX15093 latches off, while the MAX15093A enters autoretry mode.The devices feature an IN-to-OUT short-circuit detection before startup. The devices provide a power-MOSFET GATE pin to program the slew rate during startup by adding an external capacitor. The devices have overvoltage/undervoltage input pins that can detect an overvoltage/undervoltage fault and disconnect the IN from the OUT. Additional features include internal overtemperature protection, power-good output, and fault-indicator output.The MAX15093/MAX15093A ICs are available in a 40-bump, 2.57mm x 4.03mm, power wafer-level package (WLP) and are rated over the -40°C to +105°C extended temperature range.ApplicationsDisk Drive PowerIndustrialRAID SystemsServer I/O CardsStorage Bridge Bay |
MAX150952.7V to 18V, 6.6A Integrated Hot-Swap/Electronic Circuit Breaker | Power Management (PMIC) | 5 | Active | The MAX15095 family of devices are integrated solutions for hot-swap applications requiring the safe insertion and removal of circuit line cards from a live backplane. They can also be used as electronics circuit breaker for hard drive and solid-state drive and fans. The devices integrate a hot-swap controller (10.6mΩ typ) power MOSFET, and an electronic circuit-breaker protection in a single package.The devices are designed for protection of 2.7V to 18V supply voltages. These devices implement a foldback current limit during startup to control inrush current, lowering di/dt and keeping the MOSFET operating under safe operating area (SOA) conditions. After the startup cycle is complete, on-chip comparators provide VariableSpeed/BiLevel™ protection against short-circuit and overcurrent faults, and immunity against system noise and load transients. The load is disconnected in the event of a fault condition. The devices are factory calibrated to deliver accurate overcurrent protection with ±10% accuracy. During a fault condition, PG goes low and the devices latch off (MAX15095) or automatic retry (MAX15095A); the output could also be discharged after a fault event (MAX15095D).The devices feature an IN-to-OUT short-circuit detection before startup. The devices provide a power-MOSFET GATE pin to program the slew rate during startup by adding an external capacitor. The devices have an undervoltage/overvoltage input pin (UVOV) that can detect an undervoltage/overvoltage fault and disconnect the IN from the OUT. Additional features include internal overtemperature protection and a power-good output (PG).The devices are available in a 12-pin, 2.5mm x 2.5mm Flip Chip 2 QFN package (FC2QFN) and are rated over the -40°C to +105°C extended temperature range.ApplicationsBlade ServersDisk Drive PowerIndustrial ApplicationsRAID SystemsServer I/O CardsStorage Applications |
MAX15095A2.7V to 18V, 6.6A Integrated Hot-Swap/Electronic Circuit Breaker | Hot Swap Controllers | 2 | Active | The MAX15095 family of devices are integrated solutions for hot-swap applications requiring the safe insertion and removal of circuit line cards from a live backplane. They can also be used as electronics circuit breaker for hard drive and solid-state drive and fans. The devices integrate a hot-swap controller (10.6mΩ typ) power MOSFET, and an electronic circuit-breaker protection in a single package.The devices are designed for protection of 2.7V to 18V supply voltages. These devices implement a foldback current limit during startup to control inrush current, lowering di/dt and keeping the MOSFET operating under safe operating area (SOA) conditions. After the startup cycle is complete, on-chip comparators provide VariableSpeed/BiLevel™ protection against short-circuit and overcurrent faults, and immunity against system noise and load transients. The load is disconnected in the event of a fault condition. The devices are factory calibrated to deliver accurate overcurrent protection with ±10% accuracy. During a fault condition, PG goes low and the devices latch off (MAX15095) or automatic retry (MAX15095A); the output could also be discharged after a fault event (MAX15095D).The devices feature an IN-to-OUT short-circuit detection before startup. The devices provide a power-MOSFET GATE pin to program the slew rate during startup by adding an external capacitor. The devices have an undervoltage/overvoltage input pin (UVOV) that can detect an undervoltage/overvoltage fault and disconnect the IN from the OUT. Additional features include internal overtemperature protection and a power-good output (PG).The devices are available in a 12-pin, 2.5mm x 2.5mm Flip Chip 2 QFN package (FC2QFN) and are rated over the -40°C to +105°C extended temperature range.ApplicationsBlade ServersDisk Drive PowerIndustrial ApplicationsRAID SystemsServer I/O CardsStorage Applications |
| Development Boards, Kits, Programmers | 7 | Active | |
| Linear Voltage Regulator Evaluation Boards | 6 | Obsolete | |
| Development Boards, Kits, Programmers | 8 | Active | |
MAX15101Small 1A, Low-Dropout Linear Regulator in a 2.7mm × 1.6mm Package | Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | 1 | Active | The MAX15101 is a small, low-dropout linear regulator optimized for networking, datacom, and server applications. The regulator delivers up to 1A from a 1.7V to 5.5V input supply with output accuracy of ±1.6%. The output is adjustable down to 0.6V with a guaranteed dropout voltage of less than 100mV at full load. The internal p-channel switch is protected with a foldback current limit and thermal shutdown.The MAX15101 features an external bypass input to reduce noise. This bypass input also serves as a soft-start control. An enable input and power-good output are included for power sequence control.The MAX15101 is available in a 1.6mm x 2.7mm WLP package and is fully specified from the -40°C to +85°C operating temperature range.ApplicationsBase StationsNetworkingPLL PowerServersTelecom/Datacom |
MAX15102Small 2A, Low-Dropout Linear Regulator in a 2.7mm × 1.6mm Package | Linear Voltage Regulator Evaluation Boards | 2 | Active | The MAX15102 is a small, low-dropout linear regulator optimized for networking, datacom, and server applications. The regulator delivers up to 2A from a 1.7V to 5.5V input supply with output accuracy of ±1.6%. The output is adjustable down to 0.6V with a guaranteed dropout voltage of less than 150mV at full load. The internal p-channel switch is protected with a foldback current limit and thermal shutdown.The MAX15102 features an external bypass input to reduce noise. This bypass input also serves as a soft-start control. An enable input and power-good output are included for power sequence control.The MAX15102 is available in a 1.6mm × 2.7mm WLP package and is fully specified from the -40°C to +105°C operating temperature range.ApplicationsBase StationsNetworkingPLL PowerServersTelecom/Datacom |

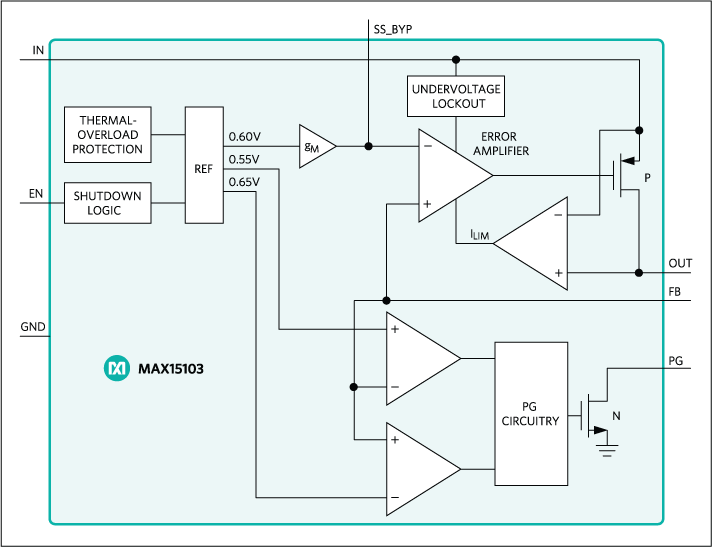

MAX15103Small 3A, Low-Dropout Linear Regulator in a 2.7mm × 1.6mm Package | Linear Voltage Regulator Evaluation Boards | 2 | Active | The MAX15103 is a small, low-dropout linear regulator optimized for networking, datacom, and server applications. The regulator delivers up to 3A from a 1.7V to 5.5V input supply with output accuracy of ±1.6%. The output is adjustable down to 0.6V with a guaranteed dropout voltage of less than 200mV at full load. The internal p-channel switch is protected with a foldback current limit and thermal shutdown.The MAX15103 features an external bypass input to reduce noise. This bypass input also serves as a soft-start control. An enable input and power-good output are included for power sequence control.The MAX15103 is available in a 1.6mm × 2.7mm WLP package and is fully specified from the -40°C to +85°C operating temperature range.ApplicationsBase StationsNetworkingPLL PowerServersTelecom/Datacom |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | 1 | Active | |
