MAX15106 Series

Catalog

IC REG 8A

Part	Supplier Device Package	Voltage - Input (Max) [Max]	Frequency - Switching	Output Type	Output Configuration	Voltage - Output (Max) [Max]	Voltage - Input (Min) [Min]	Function	Voltage - Output (Min/Fixed)	Topology	Package / Case	Number of Outputs	Current - Output	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Board Type	Regulator Topology	Voltage - Output	Outputs and Type	Outputs and Type	Supplied Contents	Utilized IC / Part
Analog Devices Inc./Maxim Integrated MAX15106CGWP+T	20-WLP	5.5 V	1.1 MHz	Adjustable	Positive	5.225 V	2.7 V	Step-Down	0.6 V	Buck	20-WFBGA WLCSP	1	6 A	Surface Mount	-40 °C	105 ░C
Analog Devices Inc./Maxim Integrated MAX15106AGWP+T	20-WLP	5.5 V	900 kHz	Adjustable	Positive	5.225 V	2.7 V	Step-Down	0.6 V	Buck	20-WFBGA WLCSP	1	6 A	Surface Mount	-40 °C	105 ░C
Analog Devices Inc./Maxim Integrated MAX15106BGWP+	20-WLP	5.5 V	1 MHz	Adjustable	Positive	5.225 V	2.7 V	Step-Down	0.6 V	Buck	20-WFBGA WLCSP	1	6 A	Surface Mount	-40 °C	105 °C
Analog Devices Inc./Maxim Integrated MAX15106CEVKIT#			1.1 MHz										6 A				DC/DC Step Down	2.7 V	5.5 V	Fully Populated	Buck	1.5 V	Non-Isolated	1	Board(s)

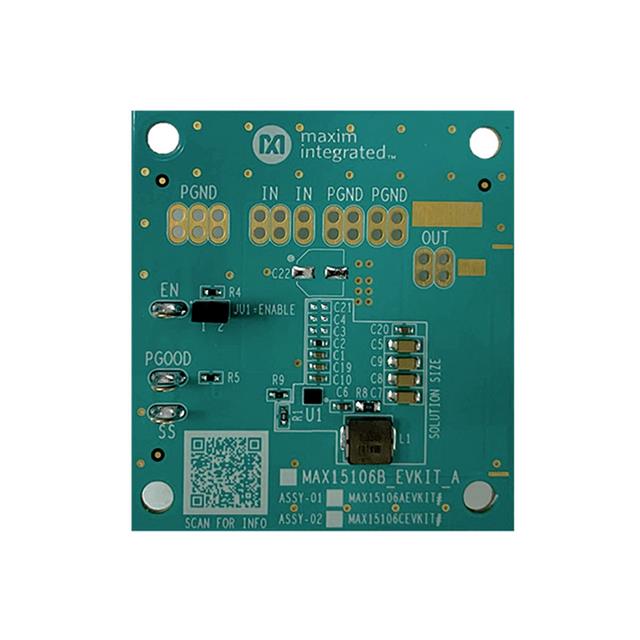

Analog Devices Inc./Maxim Integrated MAX15106BEVKIT#			1 MHz										6 A				DC/DC Step Down	2.7 V	5.5 V	Fully Populated	Buck	1.5 V	Non-Isolated	1	Board(s)	MAX15106B
