The LTM8049 is a Dual SEPIC/Inverting μModule®(power module) DC/DC Converter. Each of the two outputs can be easily configured as a SEPIC or Inverting converter by simply grounding the appropriate output rail. The LTM8049 includes power devices, inductors, control circuitry and passive components. All that is needed to complete the design are input and output caps, and small resistors to set the output voltages and switching frequency. Other components may be used to control the soft-start and undervoltage lockout.The LTM8049 is packaged in a thermally enhanced, compact (15mm × 9mm) over-molded Ball Grid Array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8049 is RoHS compliant.ApplicationsBattery Powered RegulatorLocal Negative Voltage RegulatorLow Noise Amplifier Power

The LTM8051 is quad 40VIN, 1.2A step-down Silent Switcher μModule®regulator. The Silent Switcher architecture minimizes EMI while delivering high efficiency at frequencies up to 3MHz. Included in the package are the controllers, power switches, inductors, and support components. Operating over a wide input voltage range, the LTM8051 supports output voltages from 0.8V to 8V, and a switching frequency range of 300kHz to 3MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design. TheLTM8051 product videois available on website.The LTM8051 is packaged in a compact (6.25mm × 11.25mm × 2.22mm) over-molded Ball Grid Array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8051 is available with SnPb (BGA) or RoHS compliant.ApplicationsAutomated Test EquipmentDistributed Supply RegulationIndustrial SuppliesMedical Equipment

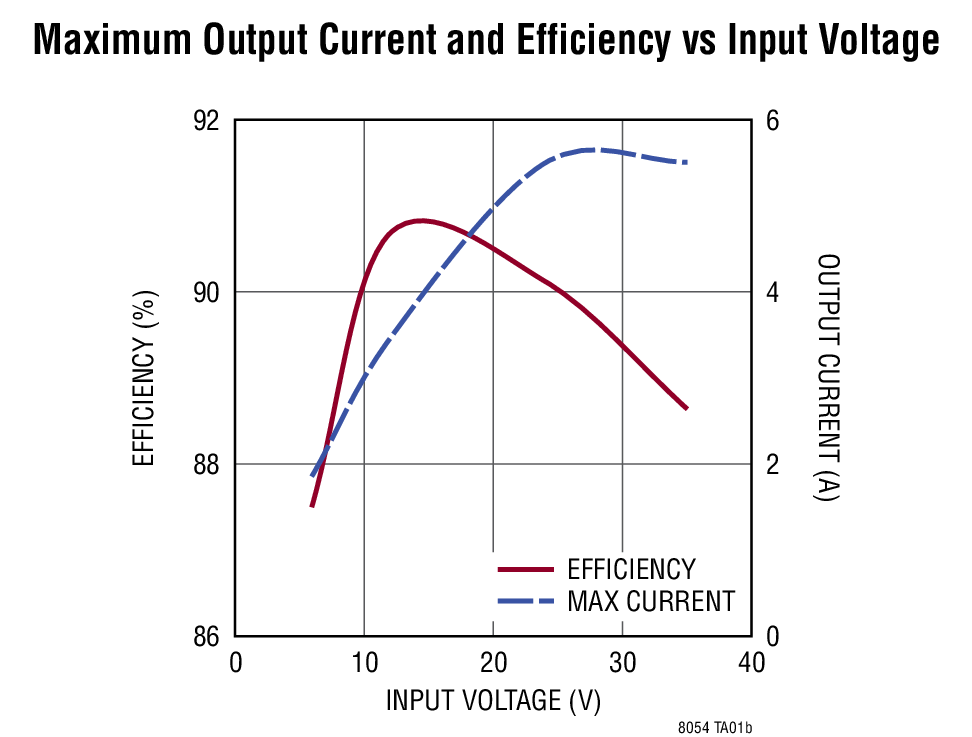

The LTM8055 is a 36VIN, buck-boost µModule®(micromodule) regulator. Included in the package are the switching controller, power switches, inductor and support components. A resistor to set the switching frequency, a resistor divider to set the output voltage, and input and output capacitors are all that are needed to complete the design. Other features such as input and output average current regulation may be implemented with just a few components. The LTM8055 operates over an input voltage range of 5V to 36V, and can regulate output voltages between 1.2V and 36V. The SYNC input and CLKOUT output allow easy synchronization.The LTM8055 is housed in a compact overmolded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8055 is RoHS compliant.LTM8054LTM8055LTM8056VIN(Operation)363658VINAbs Max404060VOUTAbs Max404060IOUT(Peak) 24VIN, 12VOUT5.48.55.5Package15 × 11.25mm × 3.42mm BGA15 × 15mm × 4.92mm BGA Pin and Function CompatibleApplicationsHigh Power Battery-Operated DevicesIndustrial ControlSolar Powered Voltage RegulatorSolar Powered Battery Charging

The LTM8056 is a 58VIN, buck-boost Power Module®(power module) regulator. Included in the package are the switching controller, power switches, inductor and support components. A resistor to set the switching frequency, a resistor divider to set the output voltage, and input and output capacitors are all that are needed to complete the design. Other features such as input and output average current regulation may be implemented with just a few components. The LTM8056 operates over an input voltage range of 5V to 58V, and can regulate output voltages between 1.2V and 48V. The SYNC input and CLKOUT output allow easy synchronization.The LTM8056 is housed in a compact overmolded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8056 is available with SnPB or RoHS compliant terminal finish.Buck-Boost Selection TableLTM8054LTM8055LTM8056VIN(Operation)363658VINAbs Max404060VOUTAbs Max404060IOUT(Peak) 24VIN, 12VOUT5.48.55.5Package15 × 11.25mm × 3.42mm BGA15 × 15mm × 4.92mm BGA Pin and Function CompatibleApplicationsHigh Power Battery-Operated DevicesIndustrial ControlSolar Powered Voltage RegulatorSolar Powered Battery Charging

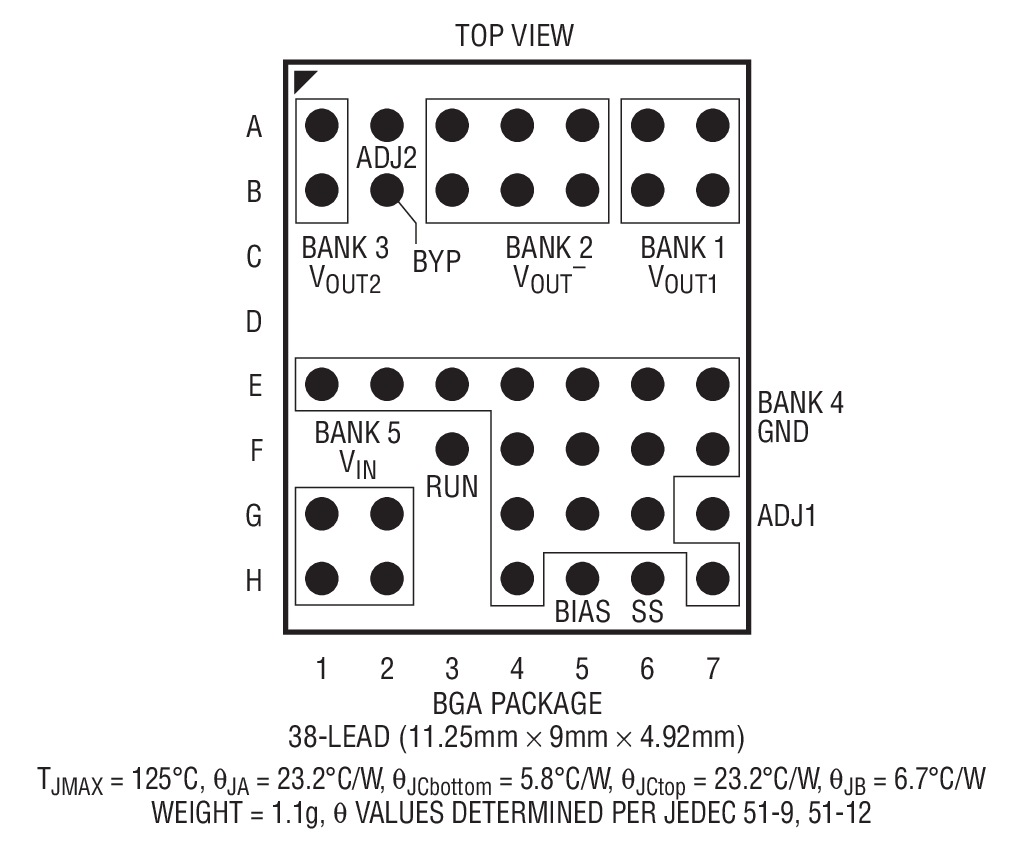

The LTM8058 is a 2kV AC isolated flyback μModule®(power module) DC/DC converter with LDO post regulator. Included in the package are the switching controller, power switches, transformer, LDO, and all support components. Operating over an input voltage range of 3.1V to 31V, the LTM8058 supports an output voltage range of 2.5V to 13V, set by a single resistor. There is also a linear post regulator whose output voltage is adjustable from 1.2V to 12V as set by a single resistor. Only output and input capacitors are needed to finish the design. Other components may be used to control the soft-start control and biasing.The LTM8058 is packaged in a thermally enhanced, compact (9mm × 11.25mm × 4.92mm) overmolded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8058 is available with SnPb or RoHS compliant terminal finish.ApplicationsIndustrial SensorsIndustrial SwitchesGround Loop Mitigation
