LTM8052LTM8052A Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

36VIN, 5A, 2-QUADRANT CVCC STEP-DOWN ΜMODULE REGULATOR

Part	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Features	Current - Output (Max)	Type	Package / Case	Number of Outputs	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Mounting Type	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]

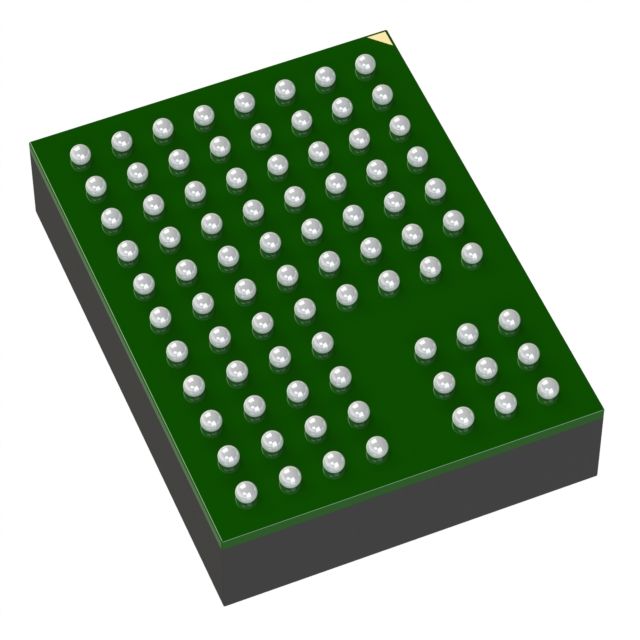

Analog Devices Inc./Maxim Integrated LTM8052MPY	36 V	6 V	OCP OTP OVP	5 A	Non-Isolated PoL Module	81-BBGA Module	1	ITE (Commercial)	-55 C	125 °C	0.59 in	15 mm	11.3 mm	0.44 "	0.11 "	2.8 mm	Surface Mount	1.2 V	24 V	15	81-BGA	11.25
Analog Devices Inc./Maxim Integrated LTM8052IV#PBF	36 V	6 V	UVLO	5 A	Non-Isolated PoL Module	81-BLGA Module	1	ITE (Commercial)	-40 C	125 °C	0.59 in	15 mm	11.3 mm	0.44 "	0.11 "	2.8 mm	Surface Mount	1.2 V	24 V		81-LGA (15x11.25)
Analog Devices Inc./Maxim Integrated LTM8052MPY#PBF	36 V	6 V	OCP OTP OVP	5 A	Non-Isolated PoL Module	81-BBGA Module	1	ITE (Commercial)	-55 C	125 °C	0.59 in	15 mm	11.3 mm	0.44 "	0.11 "	2.8 mm	Surface Mount	1.2 V	24 V	15	81-BGA	11.25
Analog Devices Inc./Maxim Integrated LTM8052EV#PBF	36 V	6 V	UVLO	5 A	Non-Isolated PoL Module	81-BLGA Module	1	ITE (Commercial)	-40 C	125 °C	0.59 in	15 mm	11.3 mm	0.44 "	0.11 "	2.8 mm	Surface Mount	1.2 V	24 V		81-LGA (15x11.25)
Analog Devices Inc./Maxim Integrated LTM8052AIY#PBF	36 V	6 V	OCP OTP OVP	5 A	Non-Isolated PoL Module	81-BBGA Module	1	ITE (Commercial)	-40 C	125 °C	0.59 in	15 mm	11.3 mm	0.44 "	0.11 "	2.8 mm	Surface Mount	1.2 V	24 V	15	81-BGA	11.25
Analog Devices Inc./Maxim Integrated LTM8052IY	36 V	6 V	OCP OTP OVP	5 A	Non-Isolated PoL Module	81-BBGA Module	1	ITE (Commercial)	-40 C	125 °C	0.59 in	15 mm	11.3 mm	0.44 "	0.11 "	2.8 mm	Surface Mount	1.2 V	24 V	15	81-BGA	11.25
Analog Devices Inc./Maxim Integrated LTM8052AMPY#PBF	36 V	6 V	OCP OTP OVP	5 A	Non-Isolated PoL Module	81-BBGA Module	1	ITE (Commercial)	-55 C	125 °C	0.59 in	15 mm	11.3 mm	0.44 "	0.11 "	2.8 mm	Surface Mount	1.2 V	24 V	15	81-BGA	11.25
Analog Devices Inc./Maxim Integrated LTM8052AMPV#PBF	36 V	6 V	OTP OVP UVLO	5 A	Non-Isolated PoL Module	81-BLGA Module	1	ITE (Commercial)	-55 C	125 °C	0.59 in	15 mm	11.3 mm	0.44 "	0.11 "	2.8 mm	Surface Mount	1.2 V	24 V		81-LGA (15x11.25)
Analog Devices Inc./Maxim Integrated LTM8052AEY#PBF	36 V	6 V	OCP OTP OVP	5 A	Non-Isolated PoL Module	81-BBGA Module	1	ITE (Commercial)	-40 C	125 °C	0.59 in	15 mm	11.3 mm	0.44 "	0.11 "	2.8 mm	Surface Mount	1.2 V	24 V	15	81-BGA	11.25
Analog Devices Inc./Maxim Integrated LTM8052AEV#PBF	36 V	6 V	OTP OVP UVLO	5 A	Non-Isolated PoL Module	81-BLGA Module	1	ITE (Commercial)	-40 C	125 °C	0.59 in	15 mm	11.3 mm	0.44 "	0.11 "	2.8 mm	Surface Mount	1.2 V	24 V		81-LGA (15x11.25)
