| Power Supplies - Board Mount | 3 | Active | |
| DC DC Converters | 3 | Active | |
| Development Boards, Kits, Programmers | 4 | Active | |
LTM808040VIN, Dual 500mA or Single 1A Ultralow Noise, Ultrahigh PSRR μModule Regulator | DC DC Converters | 3 | Active | The LTM8080 is a 40VIN, dual 500mA or single 1A ultralow noise, ultrahigh PSRR μModule®regulator. LTM8080 has cascaded architecture which contains a 40VINstep-down Silent Switcher regulator with an integrated EMI noise shield followed by dual high-performance low dropout linear regulators. The dual LDOs feature ADI’s ultralow noise and ultrahigh PSRR architecture for powering noise-sensitive applications. The LTM8080 is an integrated solution comprised of a switcher and LDOs, which offers both advantages while maintaining a small size and significantly reduced PCB layout sensitivity.The package includes the controllers, power switches, inductors, and support components. In addition, the LTM8080 has a built-in voltage tracking function that automatically sets VBUSto either 2.5V nominal or 1V higher than VOUT1, whichever is greater, to achieve superior noise performance and minimize power dissipation.The LTM8080 is packaged in a thermally enhanced, compact (9mm × 6.25mm × 3.32mm) over-molded Ball Grid Array (BGA) package suitable for automated assembly by standard surface mount equipment and is RoHS compliant.APPLICATIONSRF Power Supplies: PLLs, VCOs, Mixers, LNAsVery Low Noise InstrumentationHigh Speed/High Precision Data ConvertersMedical Applications: Imaging, DiagnosticsProtected by U.S. patents, including 11258356B2. |
| DC DC Converters | 2 | Active | |

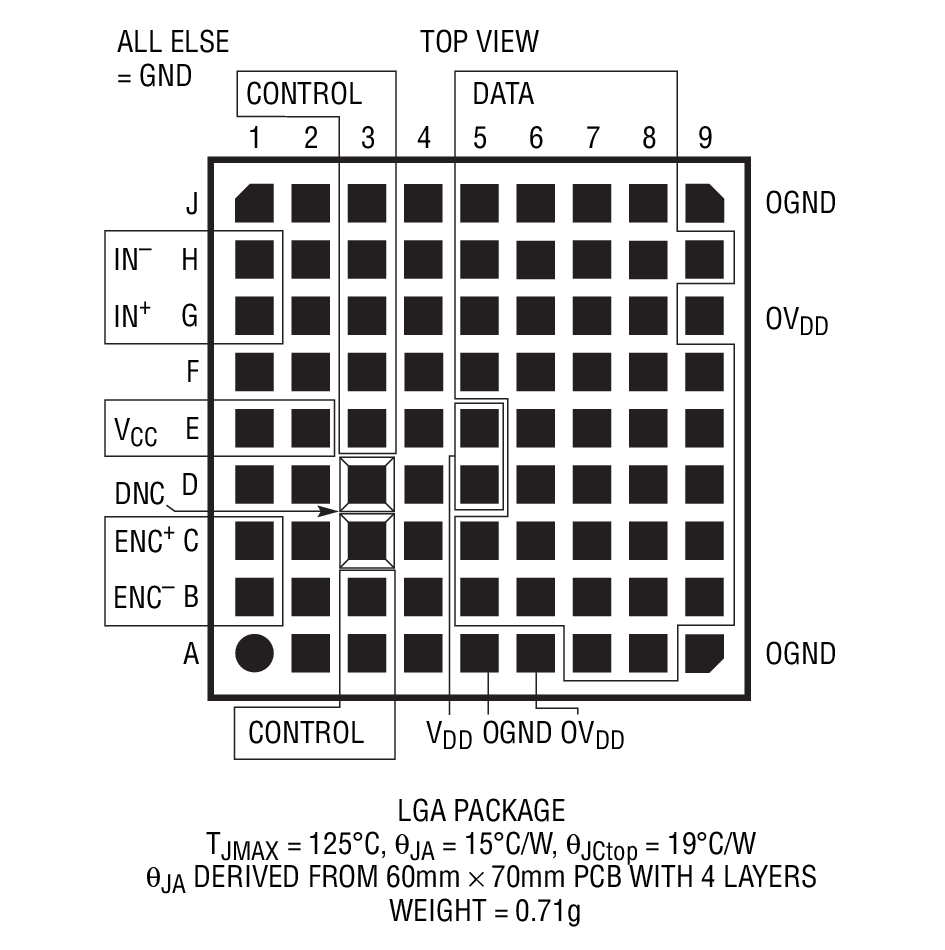

LTM900116-Bit, 25Msps IF/Baseband Receiver Subsystem | RF Misc ICs and Modules | 2 | Active | The LTM9001 is an integrated System in a Package (SiP) that includes a high-speed 16-bit A/D converter, matching network, anti-aliasing filter and a low noise, differential amplifier with fixed gain. It is designed for digitizing wide dynamic range signals with an intermediate frequency (IF) range up to 300MHz. The amplifier allows either AC- or DC-coupled input drive. A lowpass or bandpass filter network can be implemented with various bandwidths. Contact Analog Devices regarding semi-custom configurations.The LTM9001 is perfect for IF receivers in demanding communications applications, with AC performance that includes 78dBFS noise floor and 87dB spurious free dynamic range (SFDR) at 5MHz (LTM9001-GA).The digital outputs are single-ended CMOS. A separate output power supply allows the CMOS output swing to range from 0.5V to 3.3V.An optional clock duty cycle stabilizer allows high performance at full speed with a wide range of clock duty cycles.ApplicationsTelecommunicationsHigh Sensitivity ReceiversImaging SystemsSpectrum AnalyzersATE |
| RF Misc ICs and Modules | 6 | Active | |
| RF Misc ICs and Modules | 1 | Obsolete | |
| RF, RFID, Wireless Evaluation Boards | 8 | Obsolete | |
| Evaluation Boards | 1 | Active | |
