LTM8049 Series

Dual SEPIC or Inverting μModule DC/DC Converter

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Dual SEPIC or Inverting μModule DC/DC Converter

Part	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Features	Supplier Device Package	Mounting Type	Voltage - Output 2 [Min]	Voltage - Output 2 [Max]	Package / Case	Current - Output (Max)	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Type	Current - Output (Max) [Max]
Analog Devices Inc./Maxim Integrated LTM8049IY#PBF	2.6 V	2	2.5 V	24 V	OTP UVLO	77-BGA (15x9)	Surface Mount	-2.5 V	-24 V	77-BBGA	1 A	20 V	125 °C	-40 C	ITE (Commercial)	Non-Isolated PoL Module
Analog Devices Inc./Maxim Integrated LTM8049EY#PBF	2.6 V	2	2.5 V	24 V	OTP UVLO	77-BGA (15x9)	Surface Mount	-2.5 V	-24 V	77-BBGA		20 V	125 °C	-40 C	ITE (Commercial)	Non-Isolated PoL Module	1 A
Analog Devices Inc./Maxim Integrated LTM8049IY	2.6 V	2	2.5 V	24 V	OTP UVLO	77-BGA (15x9)	Surface Mount	-2.5 V	-24 V	77-BBGA	1 A	20 V	125 °C	-40 C	ITE (Commercial)	Non-Isolated PoL Module

Catalog

Dual SEPIC or Inverting μModule DC/DC Converter

Description

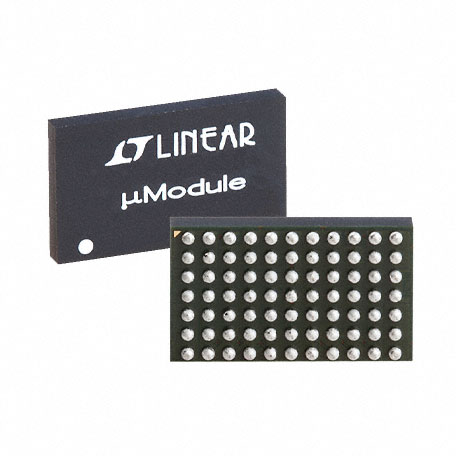

The LTM8049 is a Dual SEPIC/Inverting μModule®(power module) DC/DC Converter. Each of the two outputs can be easily configured as a SEPIC or Inverting converter by simply grounding the appropriate output rail. The LTM8049 includes power devices, inductors, control circuitry and passive components. All that is needed to complete the design are input and output caps, and small resistors to set the output voltages and switching frequency. Other components may be used to control the soft-start and undervoltage lockout.The LTM8049 is packaged in a thermally enhanced, compact (15mm × 9mm) over-molded Ball Grid Array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8049 is RoHS compliant.ApplicationsBattery Powered RegulatorLocal Negative Voltage RegulatorLow Noise Amplifier Power
