The LTM4656 is a complete high efficiency boost μModule®(power module) regulator with the switching controller, power FETs, inductor, and all supporting components. Only a few input and output capacitors are needed. Operating over an input voltage range of 4.5V to 28V, the LTM4656 supports an output voltage range of 6V to 36V, set by a single external resistor. Its high efficiency design delivers up to 5A continuous output current. An in-line protection circuit sets the maximum input current, and will trip off the input power if exceeded and retry (see Typical Applications section on data sheet).The high density boost design can convert up to 180W of output power.Fault protection features include overtemperature protection, and overcurrent protection input referred with auto-retry. The μmodule is offered in a space saving and thermally enhanced 16mm × 16mm × 7.07mm BGA package. The LTM4656 is Pb-free and RoHS compliant.APPLICATIONSTelecom and Networking EquipmentElectronic Test Equipment

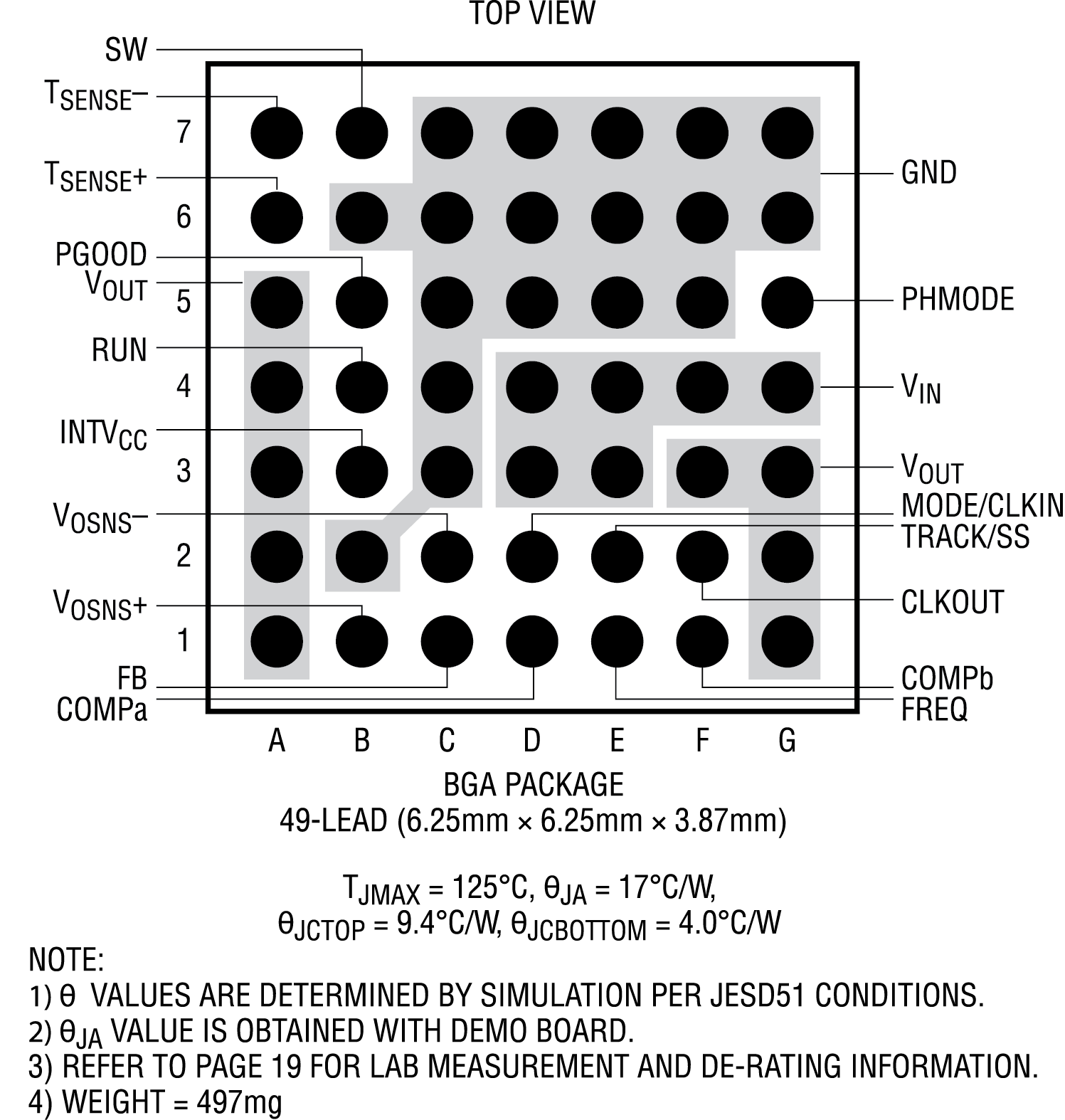

The LTM4657 is a complete 8A step-down switching mode µModule (micromodule) regulator in a tiny 6.25mm × 6.25mm × 3.87mm BGA package. Included in the package are the switching controller, power FETs, inductor and support components. Operating over an input voltage range of 3.1V to 20V, the LTM4657 supports an output voltage range of 0.5V to 5.5V, set by a single external resistor. Its high efficiency design delivers up to 8A continuous output current. Only bulk input and output capacitors are needed.The LTM4657 supports selectable discontinuous mode operation and output voltage tracking for supply rail sequencing. Its high switching frequency and current mode control enable a very fast transient response to line and load changes without sacrificing stability.Fault protection features include overvoltage, overcurrent and overtemperature protection.The LTM4657 is available with SnPb or RoHS compliant terminal finish.ApplicationsTelecom, Datacom, Networking and Industrial EquipmentMedical Diagnostic EquipmentData Storage Rack Units and CardsTest and Debug Systems

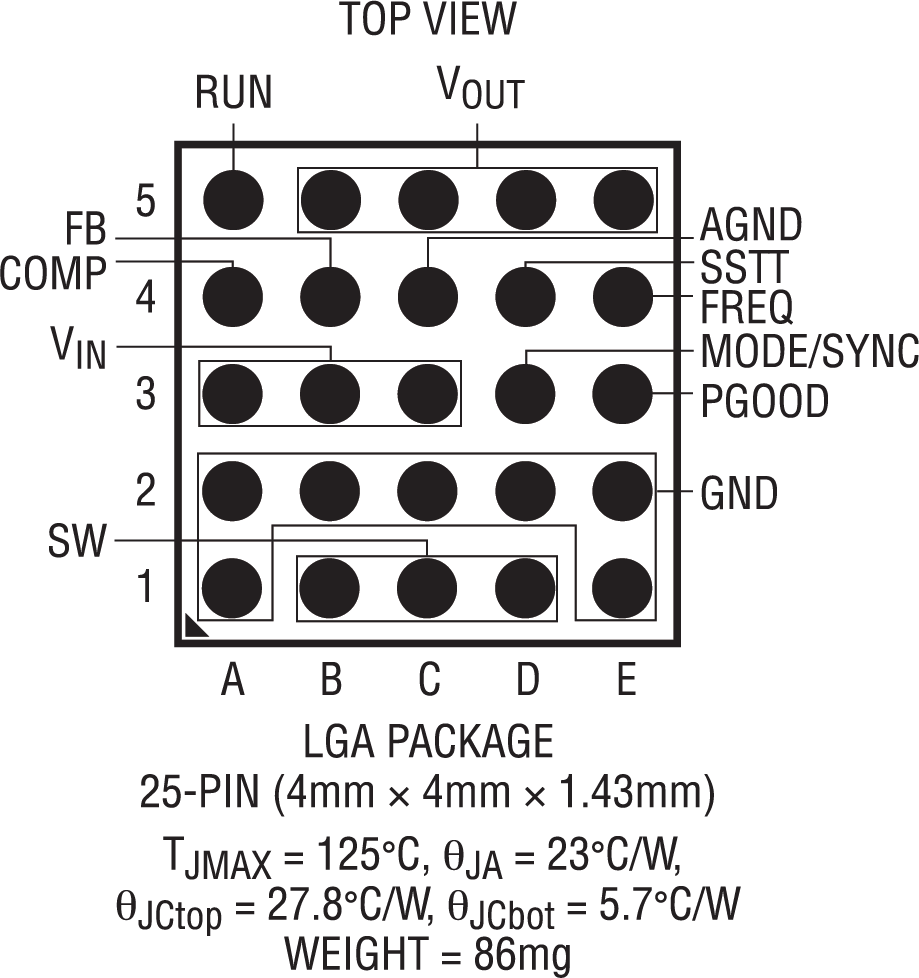

The LTM®4659 is a complete 10A step-down switch-ing mode μModule® regulator in a tiny 4mm × 4mm × 1.43mm LGA package. The package includes the switching controller, power MOSFETs, inductor and all support components. Operating over an input voltage range of 2.25V to 5.5V, the LTM4659 supports an output voltage range of 0.5V to VINset by external resistors. Its high-efficiency design delivers 10A continuous output current. Only ceramic input and output capacitors are needed.The LTM4659 employs aSilent Switcher2 architecture with internal hot loop bypass capacitors to achieve both low EMI and high efficiency at high switching frequencies.The LTM4659 also supports frequency synchronization, multiphase operation, selectable pulse-skipping mode (PSM) operation, and output voltage tracking for supply rail sequencing. Its high switching frequency and a current mode architecture enables a very fast transient response to line and load changes without sacrificing stability.Fault protection features include overvoltage, overcurrent, and overtemperature protection. The LTM4659 is lead(Pb)-Free and RoHS-compliant.

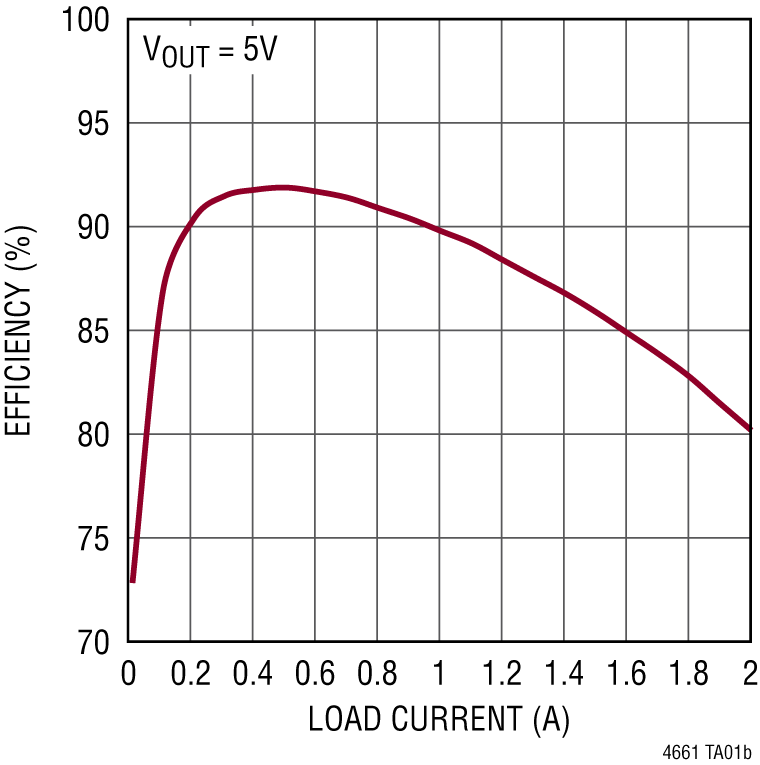

The LTM4661 is a synchronous step-up switching mode μModule®(power module) regulator in a 6.25mm × 6.25mm × 2.42mm BGA package. Included in the package are the switching controller, power FETs, inductor and all support components. Operating over an input voltage of 1.8V to 5.5V, down to 0.7V after start-up, the LTM4661 regulates an output voltage of 2.5V to 15V set by an external resistor. It provides up to 4A switch current. Only bulk input and output capacitors are needed.The LTM4661 1MHz switching frequency and dual phase single output architecture enable fast transient response to line and load changes and a significant reduction of output ripple voltage. It supports frequency synchronization, PolyPhase®operation and selectable Burst Mode operation. The LTM4661 features a true output disconnect during shutdown and inrush current limit at start-up. It also has short-circuit, overvoltage and overtemperature protection.The LTM4661 is Pb-free and RoHS compliant.ApplicationsRF Microwave Power AmplifiersBattery Powered DC Motors3.3V Bus Telecom Transceivers

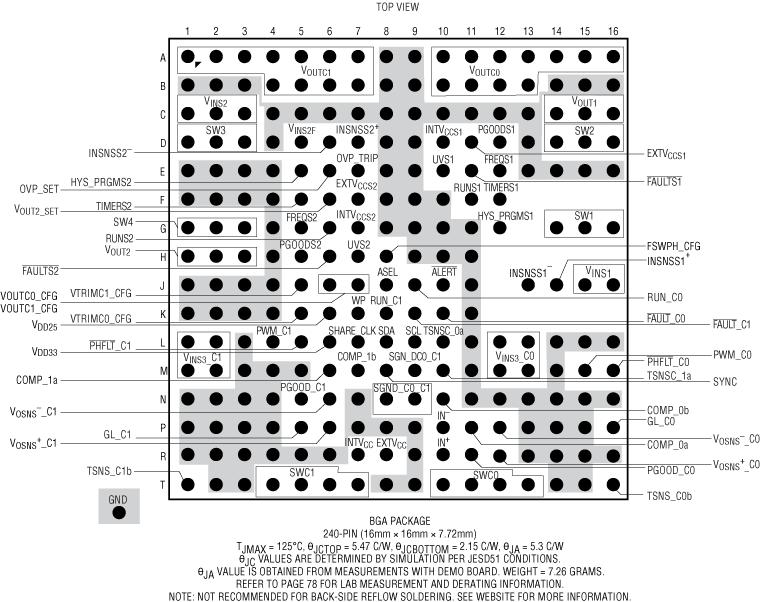

The LTM4664A is a complete nonisolated 48V input high efficiency step-down μModule®regulator with dual 30A outputs. The switching controllers, power MOSFETs, inductors and supporting components are included. Only external capacitors are needed to complete the design. Operating over a 30V to 58V input voltage range, the LTM4664A supports an output voltage of 0.5V to 1.5V at up to 75W. An intermediate output at 25% • VINis also available. The LTM4664A product video is available on the website.The LTM4664A dual 30A regulators utilize digitally programmable analog control loops, precision data acquisition circuitry and EEPROM with ECC. The LTM4664A’s 2-wire serial interface allows the 30A outputs to be margined, tuned and ramped up and down at programmable slew rates and sequencing delay times. True input current sense, output currents and voltages, input and output power, temperatures, uptime and peak values are all readable for Dual 30A Power System Management (PSM) channels.APPLICATIONS48V SystemsComputer and Networking EquipmentElectronic Test EquipmentStorage Systems

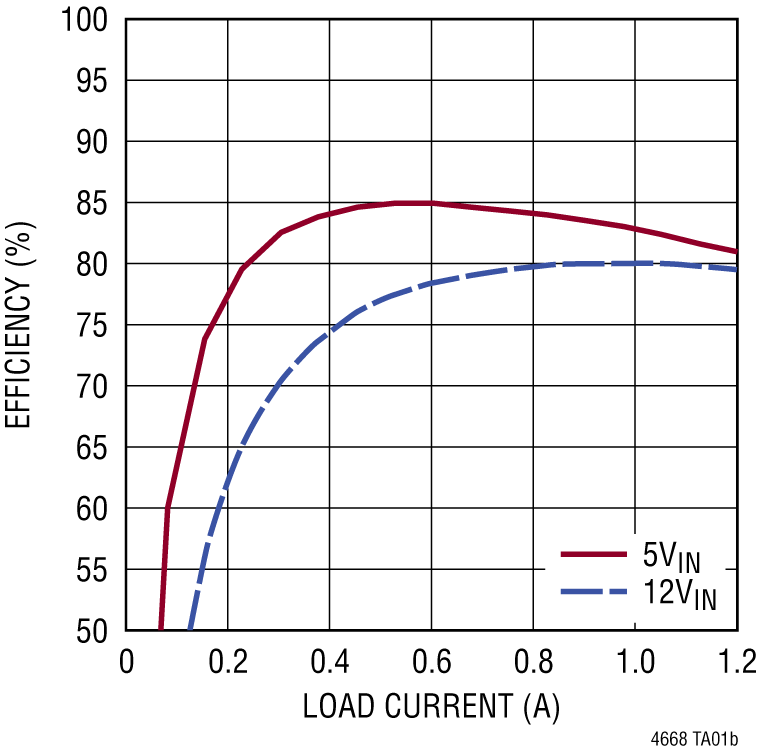

The LTM4668 is a quad DC/DC step-down µModule (micromodule) regulator with 1.2A DC current per output. Outputs can be paralleled in an array for up to 4.8A capability. Included in the package are the switching controllers, power FETs, inductors and support components. Operating over an input voltage range of 2.7V to 17V, the LTM4668 supports an output voltage range of 0.6V to 1.8V. Only bulk input and output capacitors are needed. The device supports frequency synchronization, poly-phase operation, selectable Burst Mode operation, 100% duty cycle and low IQoperation. Its high switching frequency and a current mode architecture enables a very fast transient response to line and load changes without sacrificing stability.Fault protection features include overvoltage, overcurrent and overtemperature protection. The power module is offered in a space saving and thermally enhanced 6.25mm × 6.25mm × 2.1mm BGA package. The LTM4668 is available with RoHS compliant terminal finish.ApplicationsTelecom, Networking and Industrial EquipmentMulti-Rail Point of Load RegulationFPGAs, DSPs and ASICs Application
