The LTM4642 is a complete dual 4A or single 8A step-down DC/DC μModule®(micromodule) regulator. Included in the package are the switching controller, power FETs, inductor, and all support components. Operating over input voltage ranges of 4.5V to 20V, (2.375V min with external CPWR bias), the LTM4642 supports two outputs with voltage ranges of 0.6V to 5.5V, set by a single external resistor. Its high efficiency design delivers 4A continuous current (5A peak) for each output.High switching frequency and a valley current mode architecture enable a very fast transient response to line and load changes without sacrificing stability. The two outputs are interleaved with 180° phase to minimize the ripple noise and reduce the I/O capacitors.The power module is offered in a 9mm × 11.25mm × 4.92mm BGA package. The LTM4642 is RoHS compliant with Pb-free finish.ApplicationsTelecom and Networking EquipmentServersFPGA Power

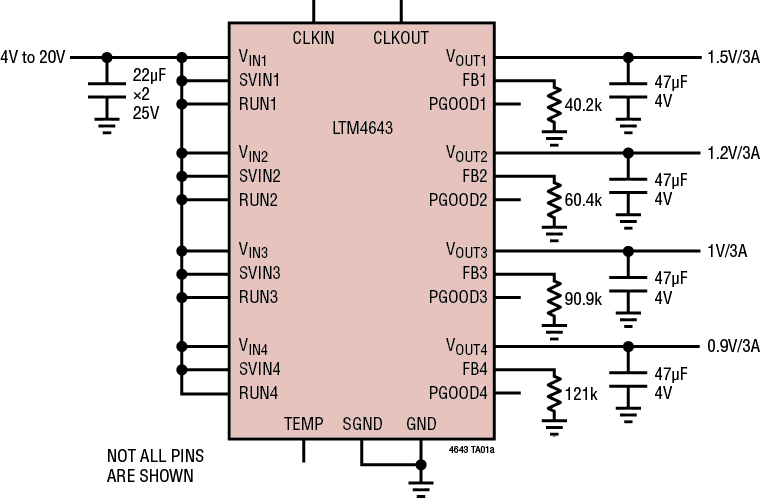

The LTM4643 is a quad DC/DC step-down µModule (power module) regulator with 3A per output. Outputs can be paralleled in an array for up to 12A capability. Included in the package are the switching controllers, power FETs, inductors and support components. Operating over an input voltage range of 4V to 20V or 2.375V to 20V with an external bias supply, the LTM4643 supports an output voltage range of 0.6V to 3.3V each set by a single external resistor. Its high efficiency design delivers 3A continuous output current per channel. Only bulk input and output capacitors are needed.Fault protection features include overvoltage, overcurrent and overtemperature protection. The LTM4643 is offered in a 9mm ×15mm × 1.82mm LGA and 9mm × 15mm × 2.42mm BGA packages with SnPb (BGA) or RoHS compliant terminal finish.ApplicationsFPGAs, GPUs and ASICs ApplicationsPCIe and Backside PCB Mounting

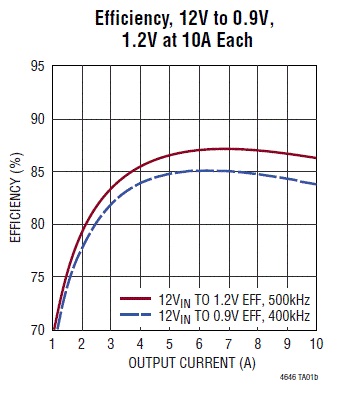

The LTM4646 is a complete dual 10A output switching mode DC/DC power supply. Included in the package are the switching controller, power FETs, inductors, and all supporting components. Operating from an input voltage range of 4.5V to 20V, the LTM4646 supports two outputs each with an output voltage range of 0.6V to 5.5V, set by external resistors. Its high efficiency design delivers up to 10A continuous current for each output. Only a few input and output capacitors are needed.The device supports frequency synchronization, multiphase operation, high efficiency light load operation and output voltage tracking for supply rail sequencing and has an on-board temperature diode per channel for device temperature monitoring. High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability.Fault protection features include overvoltage and overcurrent protection. The power module is offered in a small footprint 11.25mm × 15mm × 5.01mm BGA package. The LTM4646 is available with SnPb or RoHS compliant terminal finish.ApplicationsPoint-of-Load Power SuppliesTelecom and Networking EquipmentIndustrial EquipmentMedical Equipment

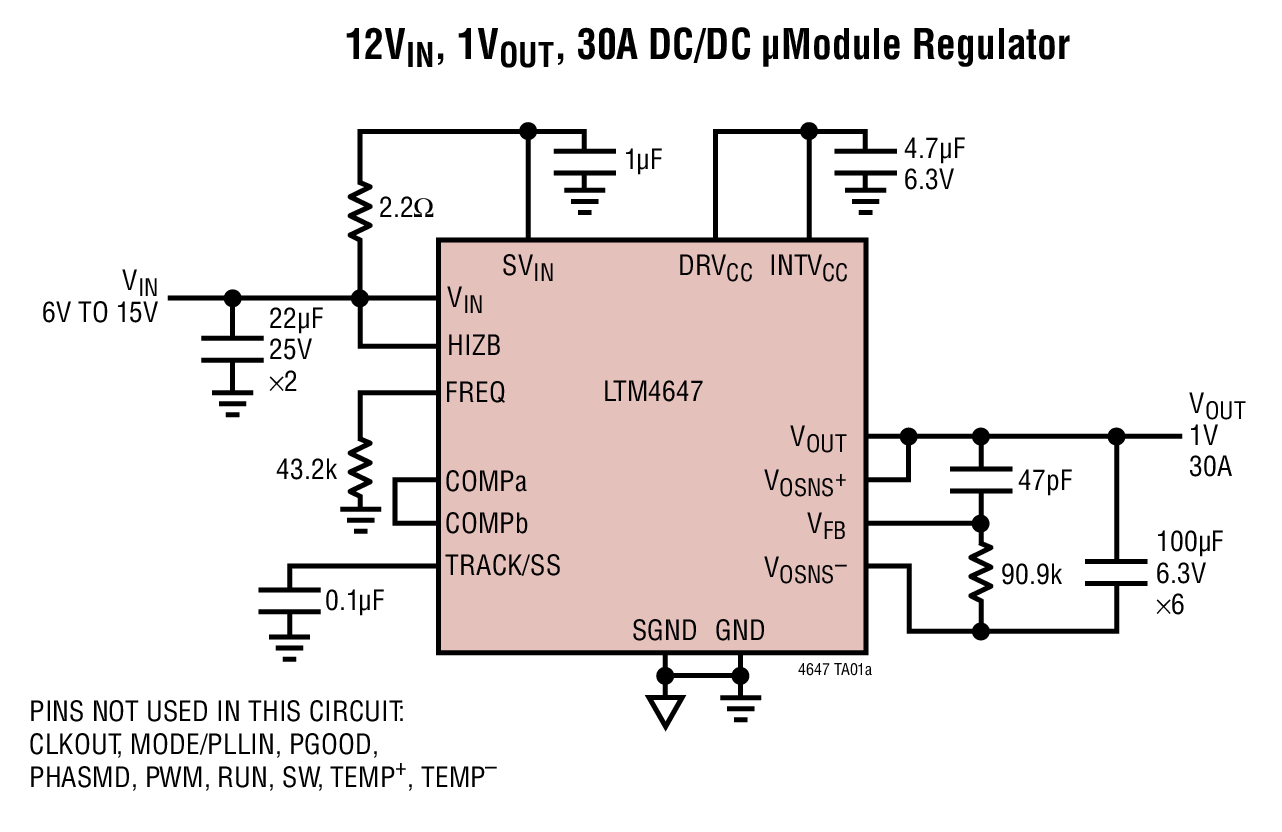

The LTM4647 is a complete 30A output switching mode step-down DC/DC μModule®(power module) regulator. Included in the package are the switching controller, power FETs, inductor and all supporting components. Operating over an input voltage range of 4.7V to 15V, the LTM4647 supports an output voltage range of 0.6V to 1.8V, set by a single external resistor. Only a few input and output capacitors are needed.Its high efficiency design delivers 87% efficiency from 12V input to 1.0V output with 30A continuous load current. High switching frequency and a current-mode architecture enable a very fast transient response to line and load changes without sacrificing stability. The device supports frequency synchronization, programmable multiphase operation, N+1 phase redundancy, and output voltage tracking for supply rail sequencing.Fault protection features include overvoltage and overcurrent protection. The power module is offered in a space saving 9mm × 15mm × 5.01mm BGA package. The LTM4647 is available with SnPb (BGA) or RoHS compliant terminal finish.ApplicationsTelecom, Networking and Industrial EquipmentPoint of Load Regulation

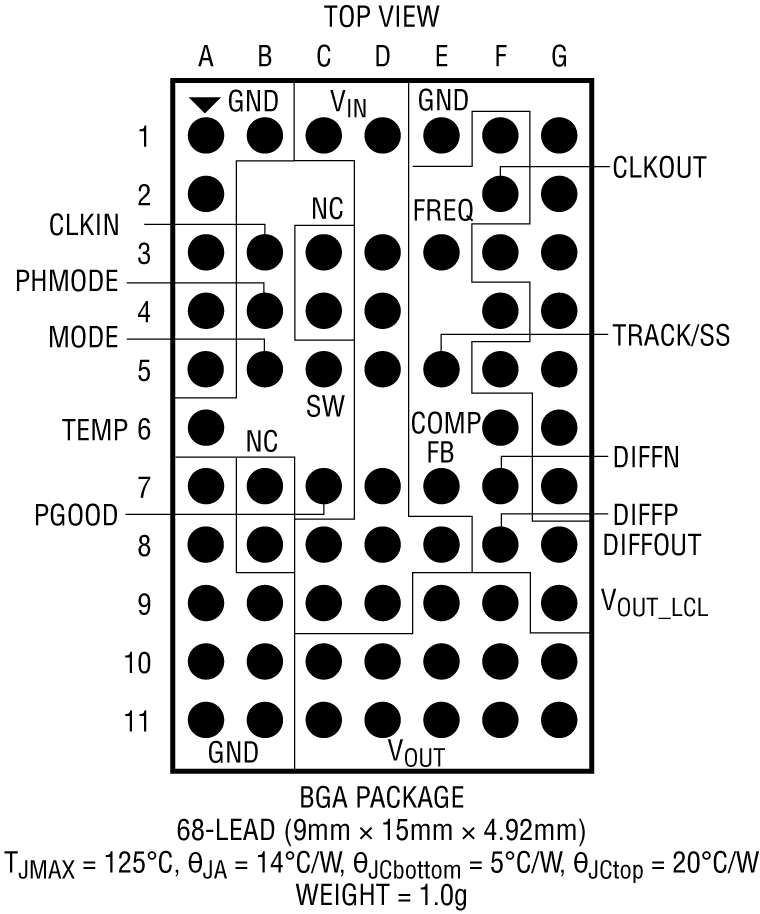

The LTM4648 is a 10A low VINstep-down DC/DC μModule®(micromodule) regulator. Included in the package are the switching controller, power FETs, inductor and all support components. Operating over an input voltage range of 2.375V to 5.5V, the LTM4648 supports an output voltage range of 0.6V to 5V, set by a single external resistor. This high efficiency design delivers up to 10A continuous current. Only bulk input and output capacitors are needed.High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability. The device supports frequency synchronization, programmable multiphase operation and output voltage tracking for supply rail sequencing.Fault protection features include overvoltage protection, overcurrent protection and thermal shutdown. The LTM4648 is offered in a small 9mm × 15mm × 4.92mm BGA package available with SnPb or RoHS compliant terminal finish. For up to 16VINoperation, see theLTM4649.ApplicationsTelecom, Networking and Industrial EquipmentPoint of Load Regulation
