The LTM4668A is a quad DC/DC step-down µModule (micromodule) regulator with 1.2A DC current per output. Outputs can be paralleled in an array for up to 4.8A capability. Included in the package are the switching controllers, power FETs, inductors and support components. Operating over an input voltage range of 2.7V to 17V, the LTM4668A supports an output voltage range of 0.6V to 5.5V. Only bulk input and output capacitors are needed. The device supports frequency synchronization, PolyPhase operation, selectable Burst Mode operation, 100% duty cycle and low IQoperation. Its high switching frequency and a current mode architecture enables a very fast transient response to line and load changes without sacrificing stability.Fault protection features include overvoltage, overcurrent and overtemperature protection. The power module is offered in a space saving and thermally enhanced 6.25mm × 6.25mm × 2.1mm BGA package. The LTM4668A is available with SnPb (BGA) or RoHS compliant terminal finish.ApplicationsTelecom, Networking and Industrial EquipmentMulti-Rail Point of Load RegulationFPGAs, DSPs and ASICs Application

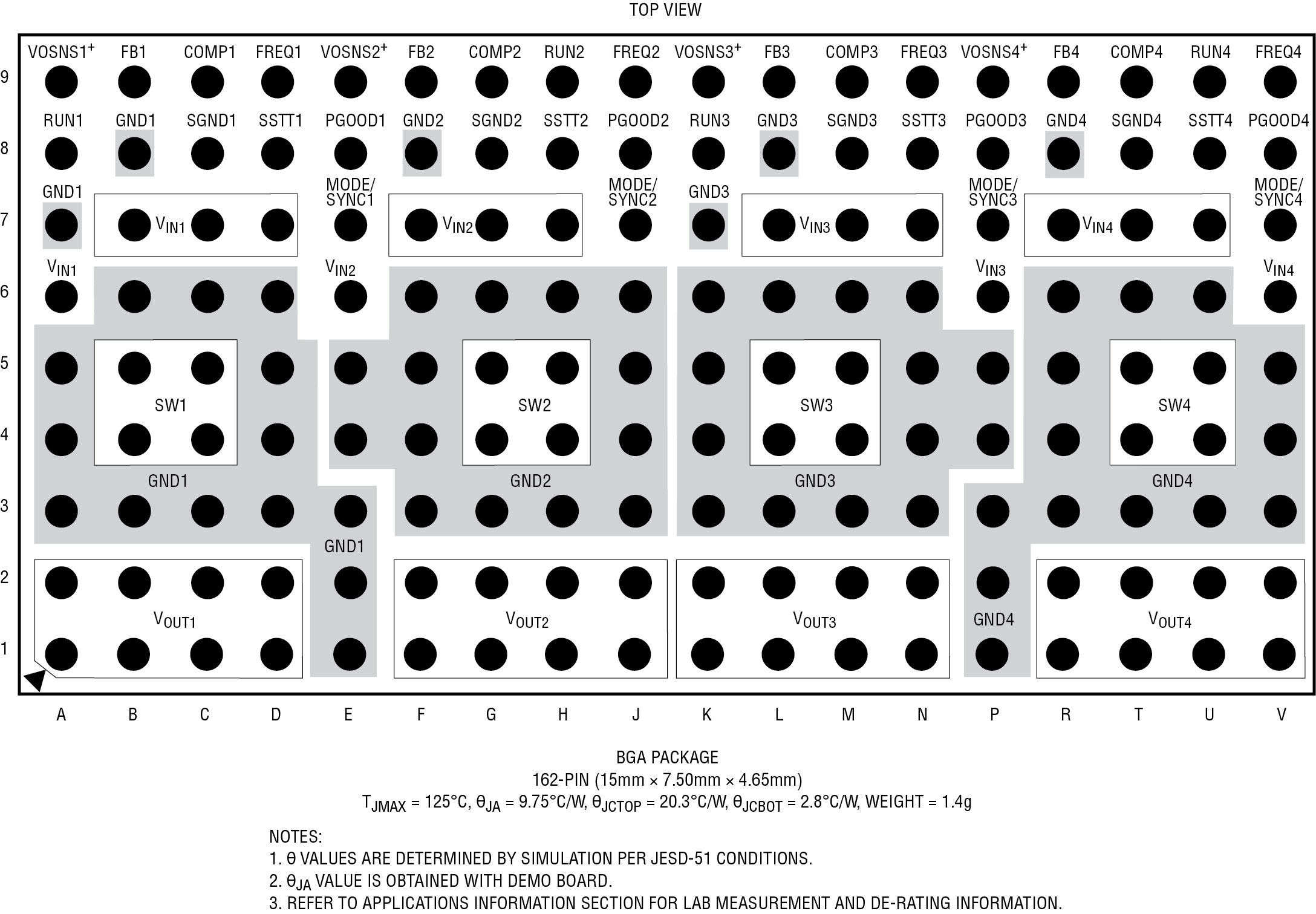

The LTM4670 is a quad DC/DC step-down μModule®(micromodule) regulator with 10A per output. Outputs can be paralleled in an array for up to 40A capability. Included in the package are the switching controller, power MOSFETs, inductor and all support components. Operating over an input voltage range of 2.25V to 5.5V, each output voltage ranges from 0.5V to VINset by only one external resistor. Its high efficiency design delivers 10A continuous output current per channel. Only a few input and output capacitors are needed.The LTM4670 employs a Silent Switcher®2 architecture with internal hot loop bypass capacitors to achieve both low EMI and high efficiency. The default frequency is internally set to 2MHz, it can be externally synchronized to a clock from 1MHz to 2.6MHz.Fault protection features include overvoltage, overcurrent and overtemperature protection. The LTM4670 is Pb-free and RoHS compliant.APPLICATIONSTelecom, Networking and Industrial EquipmentMultirail Point-of-Load RegulationFPGAs, DSPs and ASICs Applications

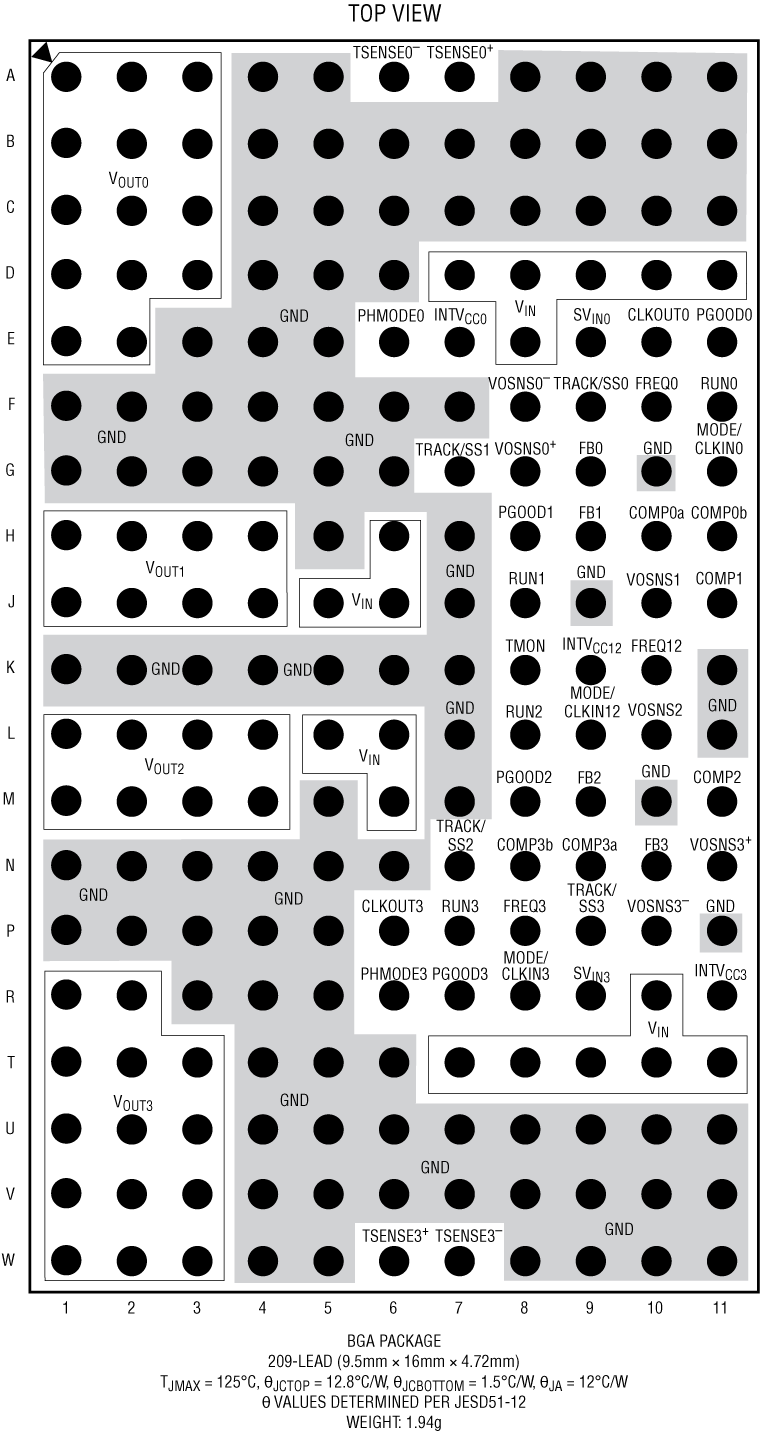

The LTM4671 is a quad DC/DC step-down µModule (micromodule) regulator offering dual 12A and dual 5A output. Included in the package are the switching controllers, power FETs, inductors and support components. Operating over an input voltage range of 3.1V to 20V, the LTM4671 supports an output voltage range of 0.6V to 3.3V for two 12A channels and 0.6V to 5.5V for two 5A channels, each set by a single external resistor. Only bulk input and output capacitors are needed.Fault protection features include overvoltage, overcurrent and overtemperature protection. The LTM4671 is offered in 9.5mm × 16mm × 4.72mm BGA package.ApplicationsMultirail Point-of-Load RegulationFPGAs, DSPs and ASICs Applications

The LTM4675 is a dual 9A or single 18A step-down μModule®(micromodule) DC/DC regulator with 40ms turn-on time. It features remote configurability and telemetry-monitoring of power management parameters over PMBus—an open standard I2C-based digital interface protocol. The LTM4675 is comprised of fast analog control loops, precision mixed-signal circuitry, EEPROM, power MOSFETs, inductors and supporting components.The LTM4675’s 2-wire serial interface allows outputs to be margined, tuned and ramped up and down at programmable slew rates with sequencing delay times. Input and output currents and voltages, output power, temperatures, uptime and peak values are readable. Custom configuration of the EEPROM contents is not required. At start-up, output voltages, switching frequency, and channel phase angle assignments can be set by pin-strapping resistors. The LTpowerPlay®GUI and DC1613 USB-to-PMBus converter and demo kits are available.The LTM4675 is offered in a 16mm × 11.9mm × 3.51mm BGA package available with SnPb or RoHS compliant terminal finish.APPLICATIONSSystem Optimization in Prototype and Production

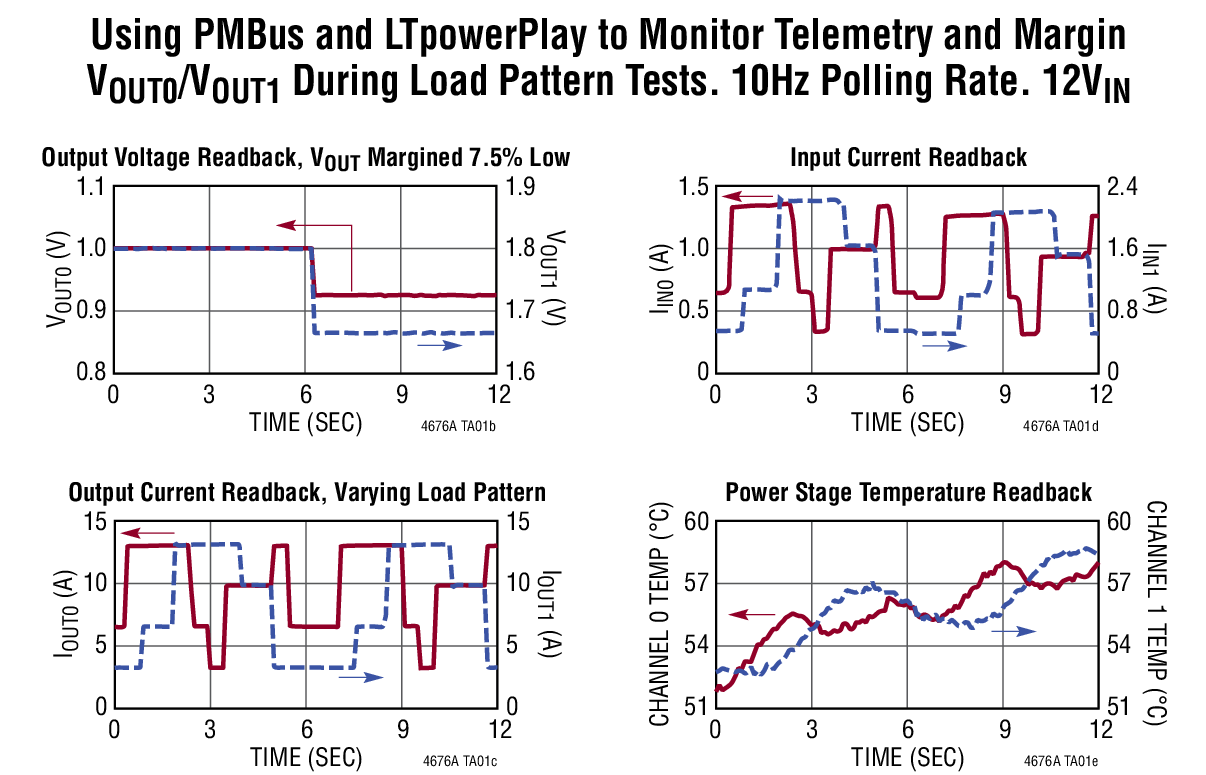

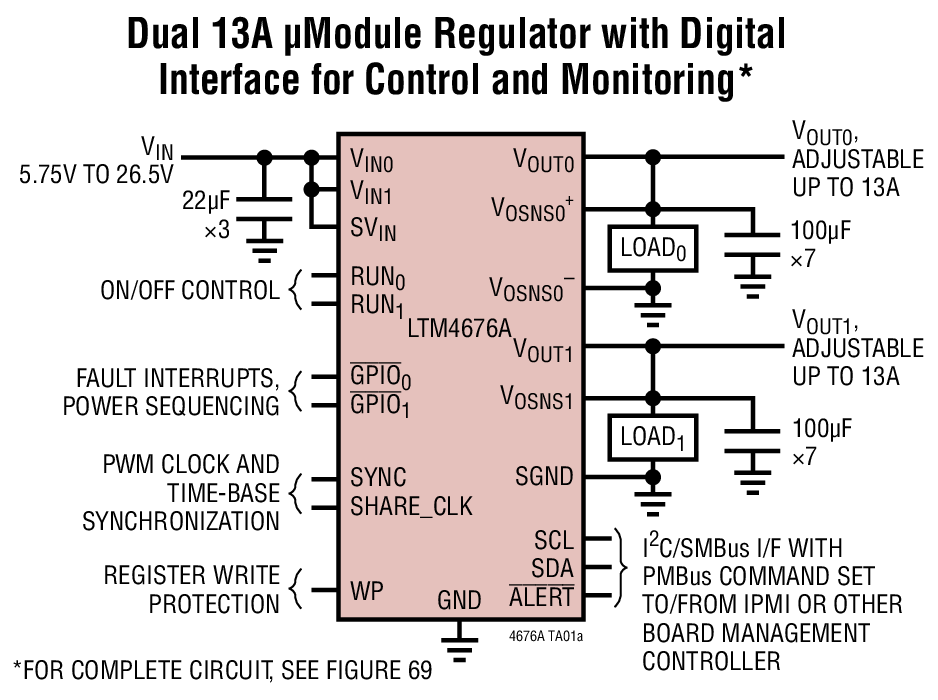

The LTM4676 is a dual 13A or single 26A step-down uModule®(power module) DC/DC regulator featuring remote configurability and telemetry-monitoring of power management parameters over PMBus— an open standard I2C-based digital interface protocol. The LTM4676 is comprised of fast analog control loops, precision mixedsignal circuitry, EEPROM, power MOSFETs, inductors and supporting components.The LTM4676’s 2-wire serial interface allows outputs to be margined, tuned and ramped up and down at programmable slew rates with sequencing delay times. Input and output currents and voltages, output power, temperatures, uptime and peak values are readable. Custom configuration of the EEPROM contents is not required. At start-up, output voltages, switching frequency, and channel phase angle assignments can be set by pin-strapping resistors. The LTpowerPlay™GUI and DC1613 USB-to-PMBus converter and demo kits are available.The LTM4676 is offered in a 16mm × 16mm × 5.01mm BGA package available with SnPb or RoHS compliant terminal finish.Part NumberTurn-on Start-up Time (MAX) (ms)VINRange (V)VOUTRange (V)Pin-compatibleLTM46761704.5 to 26.50.5V to 4 (CH0)0.5 to 5.5 (Both CH)YesLTM4676A704.5 to 170.5 to 5.5 (Both CH)ApplicationsSystem Optimization, Characterization and Data Mining in Prototype, Production and Field EnvironmentsTelecom, Datacom, and Storage Systems

The LTM4676A is a dual 13A or single 26A step-down µModule®(micromodule) DC/DC regulator with 40ms turn-on time. It features remote configurability and telemetry-monitoring of power management parameters over PMBus— an open standard I2C-based digital interface protocol . The LTM4676A is comprised of fast analog control loops, precision mixed-signal circuitry, EEPROM, power MOSFETs, inductors and supporting components.The LTM4676A’s 2-wire serial interface allows outputs to be margined, tuned and ramped up and down at programmable slew rates with sequencing delay times. Input and output currents and voltages, output power, temperatures, uptime and peak values are readable. At start-up, output voltages, switching frequency, and channel phase angle assignments can be set by pin-strapping resistors. The LTpowerPlay™GUI and DC1613 USB-to-PMBus converter and demo kits are available.The LTM4676A is pin-compatible and the improved performance version of the LTM4676.Part NumberTurn-on Start-up Time (MAX) (ms)VINRange (V)VOUTRange (V)Pin-compatibleLTM46761704.5 to 26.50.5V to 4 (CH0)0.5 to 5.5 (Both CH)YesLTM4676A704.5 to 170.5 to 5.5 (Both CH)ApplicationsSystem Optimization, Characterization and Data Mining in Prototype, Production and Field Environments

The LTM4677 is a dual 18A or single 36A step-down μModule®(power module) DC/DC regulator with 40ms turn0on time. It features remote configurability and telemetry-monitoring of power management parameters over PMBus—an open standard I2C-based digital interface protocol. The LTM4677 is comprised of fast analog control loops, precision mixedsignal circuitry, EEPROM, power MOSFETs, inductors and supporting components.The LTM4677’s 2-wire serial interface allows outputs to be margined, tuned and ramped up and down at programmable slew rates with sequencing delay times. Input and output currents and voltages, output power, temperatures, uptime and peak values are readable. Custom configuration of the EEPROM contents is not required. At start-up, output voltages, switching frequency, and channel phase angle assignments can be set by pin-strapping resistors. The LTpowerPlay®GUI and DC1613 USB-to-PMBus converter and demo kits are available.The LTM4677 is pin compatible with theLTM4676A(dual 13A) and is offered in a 16mm × 16mm × 5.01mm BGA package available with SnPb or RoHS compliant terminal finish.APPLICATIONSSystem Optimization, Characterization and Data Mining in Prototype, Production and Field EnvironmentsTelecom, Datacom, and Storage Systems

The LTM4680 is a dual 30A or single 60A step-down µModule®(power module) DC/DC regulator featuring remote configurability and telemetry-monitoring of power management parameters over PMBus—an open standard I2C-based digital interface protocol. The LTM4680 is comprised of digitally programmable analog control loops, precision mixed-signal circuitry, EEPROM, power MOSFETs, inductors and supporting components.The LTM4680’s 2-wire serial interface allows outputs to be margined, tuned and ramped up and down at programmable slew rates with sequencing delay times. True input current sense, output currents and voltages, output power, temperatures, uptime and peak values are readable. Custom configuration of the EEPROM contents is not required. At start-up, output voltages, switching frequency, and channel phase angle assignments can be set by pin-strapping resistors. The LTpowerPlay®GUI and DC1613 USB-to-PMBus converter and demo kits are available.The LTM4680 is offered in a 16mm × 16mm × 7.82mm BGA package available with SnPb or RoHS compliant terminal finish. Pin compatible with LTM4678.APPLICATIONSSystem Optimization, Characterization and Data Mining in Prototype, Production and Field Environments
