LTM4660 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

EVAL BOARD FOR LTM4660

Part	Outputs and Type	Outputs and Type	Board Type	Supplied Contents	Frequency - Switching	Contents	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Regulator Topology	Voltage - Output	Current - Output	Utilized IC / Part	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Type	Efficiency	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Mounting Type	Number of Outputs	Features	Supplier Device Package	Voltage - Output 1	Control Features	Voltage - Input (Max) [Max]

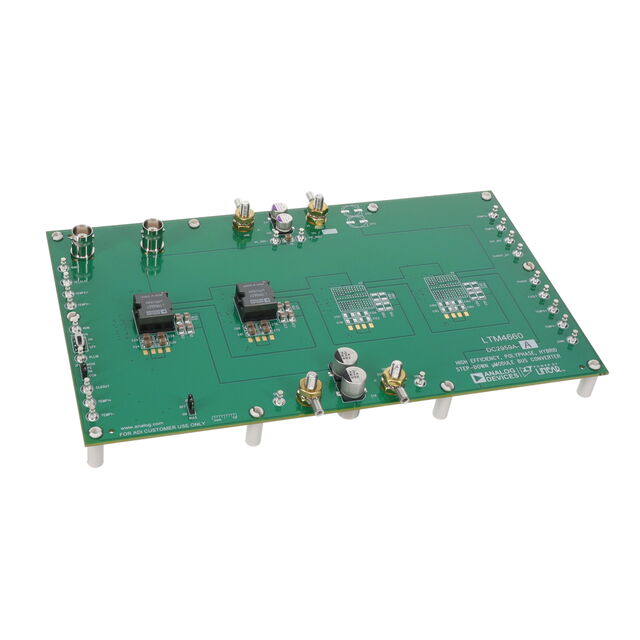

Analog Devices Inc./Maxim Integrated DC2959A-A	1	1 Non-Isolated Output Non-Isolated	Fully Populated	Board(s)	350 kHz	Board(s)	60 V	36 V	DC/DC Step Down	Buck	12 V	50 A	LTM4660
Analog Devices Inc./Maxim Integrated LTM4660EY#PBF														25 A	30 V	120-BBGA Module	16 mm	10.3 mm	0.63 "	16 mm	0.41 in	0.63 in	Non-Isolated PoL Module	97.3 %	ITE (Commercial)	125 °C	-40 C	300 W	Surface Mount	1	Adjustable Output Heat Sink Load Sharing PMBus™ Remote On/Off Remote Sense	120-BGA (16x16)	12 V	Active High Enable	60 V
Analog Devices Inc./Maxim Integrated DC2959A-B	1	1 Non-Isolated Output Non-Isolated	Fully Populated	Board(s)	350 kHz	Board(s)	60 V	36 V	DC/DC Step Down	Buck	12 V	75 A	LTM4660
Analog Devices Inc./Maxim Integrated LTM4660IY#PBF														25 A	30 V	120-BBGA Module	16 mm	10.3 mm	0.63 "	16 mm	0.41 in	0.63 in	Non-Isolated PoL Module	97.3 %	ITE (Commercial)	125 °C	-40 C	300 W	Surface Mount	1	Adjustable Output Heat Sink Load Sharing Remote On/Off Remote Sense	120-BGA (16x16)	12 V	Active High Enable	60 V
