LTM4643 Series

Ultrathin Quad μModule Regulator with Configurable 3A Output Array

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Ultrathin Quad μModule Regulator with Configurable 3A Output Array

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Package / Case	Current - Output (Max)	Voltage - Input (Min) [Min]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 2 [Min]	Voltage - Output 2 [Max]	Voltage - Output 3 [Max]	Voltage - Output 3 [Min]	Number of Outputs	Supplier Device Package	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Input (Max) [Max]	Type	Mounting Type	Features

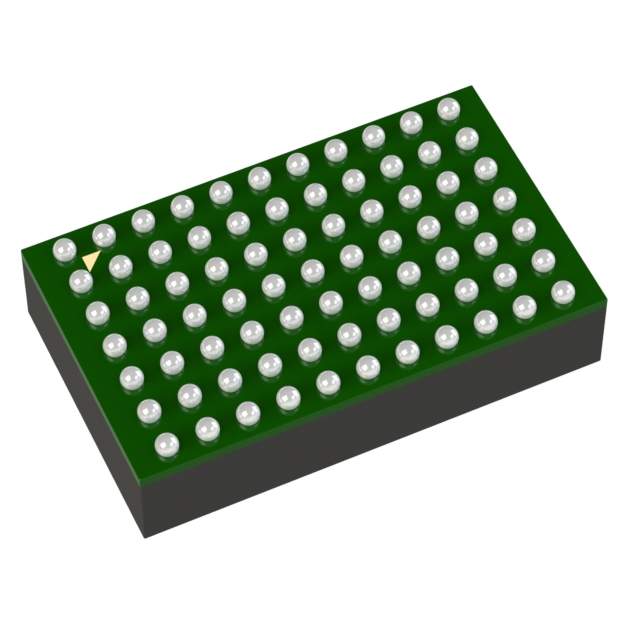

Analog Devices Inc./Maxim Integrated LTM4643IY#PBF	0.59 in	1.8 mm	15 mm	0.35 in	9 mm	0.07 in	77-BBGA Module	3 A	4 V	ITE (Commercial)	125 °C	-40 C	0.6 V	3.3 V	3.3 V	0.6 V	4	77-BGA (15x9)	0.6 V	3.3 V	20 V	Non-Isolated PoL Module	Surface Mount
Analog Devices Inc./Maxim Integrated LTM4643IV#PBF	0.59 in	1.8 mm	15 mm	0.35 in	9 mm	0.07 in	77-LGA Module	3 A	4 V	ITE (Commercial)	125 °C	-40 C	0.6 V	3.3 V	3.3 V	0.6 V	4	77-LGA (15x9)	0.6 V	3.3 V	20 V	Non-Isolated PoL Module	Surface Mount	OCP OTP OVP UVLO
Analog Devices Inc./Maxim Integrated LTM4643MPY							77-BBGA Module	3 A	4 V	ITE (Commercial)	125 °C	-55 C	0.6 V	3.3 V	3.3 V	0.6 V	4	77-BGA (15x9)	0.6 V	3.3 V	20 V	Non-Isolated PoL Module	Surface Mount	OCP OTP OVP
Analog Devices Inc./Maxim Integrated LTM4643EY#PBF	0.59 in	1.8 mm	15 mm	0.35 in	9 mm	0.07 in	77-BBGA Module	3 A	4 V	ITE (Commercial)	125 °C	-40 C	0.6 V	3.3 V	3.3 V	0.6 V	4	77-BGA (15x9)	0.6 V	3.3 V	20 V	Non-Isolated PoL Module	Surface Mount
Analog Devices Inc./Maxim Integrated LTM4643MPV#PBF	0.59 in	1.8 mm	15 mm	0.35 in	9 mm	0.07 in	77-LGA Module	3 A	4 V	ITE (Commercial)	125 °C	-55 C	0.6 V	3.3 V	3.3 V	0.6 V	4	77-LGA (15x9)	0.6 V	3.3 V	20 V	Non-Isolated PoL Module	Surface Mount	OCP OTP OVP UVLO
Analog Devices Inc./Maxim Integrated LTM4643IY							77-BBGA Module	3 A	4 V	ITE (Commercial)	125 °C	-40 C	0.6 V	3.3 V	3.3 V	0.6 V	4	77-BGA (15x9)	0.6 V	3.3 V	20 V	Non-Isolated PoL Module	Surface Mount	OCP OTP OVP
Analog Devices Inc./Maxim Integrated LTM4643MPY#PBF	0.59 in	1.8 mm	15 mm	0.35 in	9 mm	0.07 in	77-BBGA Module	3 A	4 V	ITE (Commercial)	125 °C	-55 C	0.6 V	3.3 V	3.3 V	0.6 V	4	77-BGA (15x9)	0.6 V	3.3 V	20 V	Non-Isolated PoL Module	Surface Mount
Analog Devices Inc./Maxim Integrated LTM4643EV#PBF	0.59 in	1.8 mm	15 mm	0.35 in	9 mm	0.07 in	77-LGA Module	3 A	4 V	ITE (Commercial)	125 °C	-40 C	0.6 V	3.3 V	3.3 V	0.6 V	4	77-LGA (15x9)	0.6 V	3.3 V	20 V	Non-Isolated PoL Module	Surface Mount	OCP OTP OVP UVLO

Catalog

Ultrathin Quad μModule Regulator with Configurable 3A Output Array

Description

The LTM4643 is a quad DC/DC step-down µModule (power module) regulator with 3A per output. Outputs can be paralleled in an array for up to 12A capability. Included in the package are the switching controllers, power FETs, inductors and support components. Operating over an input voltage range of 4V to 20V or 2.375V to 20V with an external bias supply, the LTM4643 supports an output voltage range of 0.6V to 3.3V each set by a single external resistor. Its high efficiency design delivers 3A continuous output current per channel. Only bulk input and output capacitors are needed.Fault protection features include overvoltage, overcurrent and overtemperature protection. The LTM4643 is offered in a 9mm ×15mm × 1.82mm LGA and 9mm × 15mm × 2.42mm BGA packages with SnPb (BGA) or RoHS compliant terminal finish.ApplicationsFPGAs, GPUs and ASICs ApplicationsPCIe and Backside PCB Mounting
