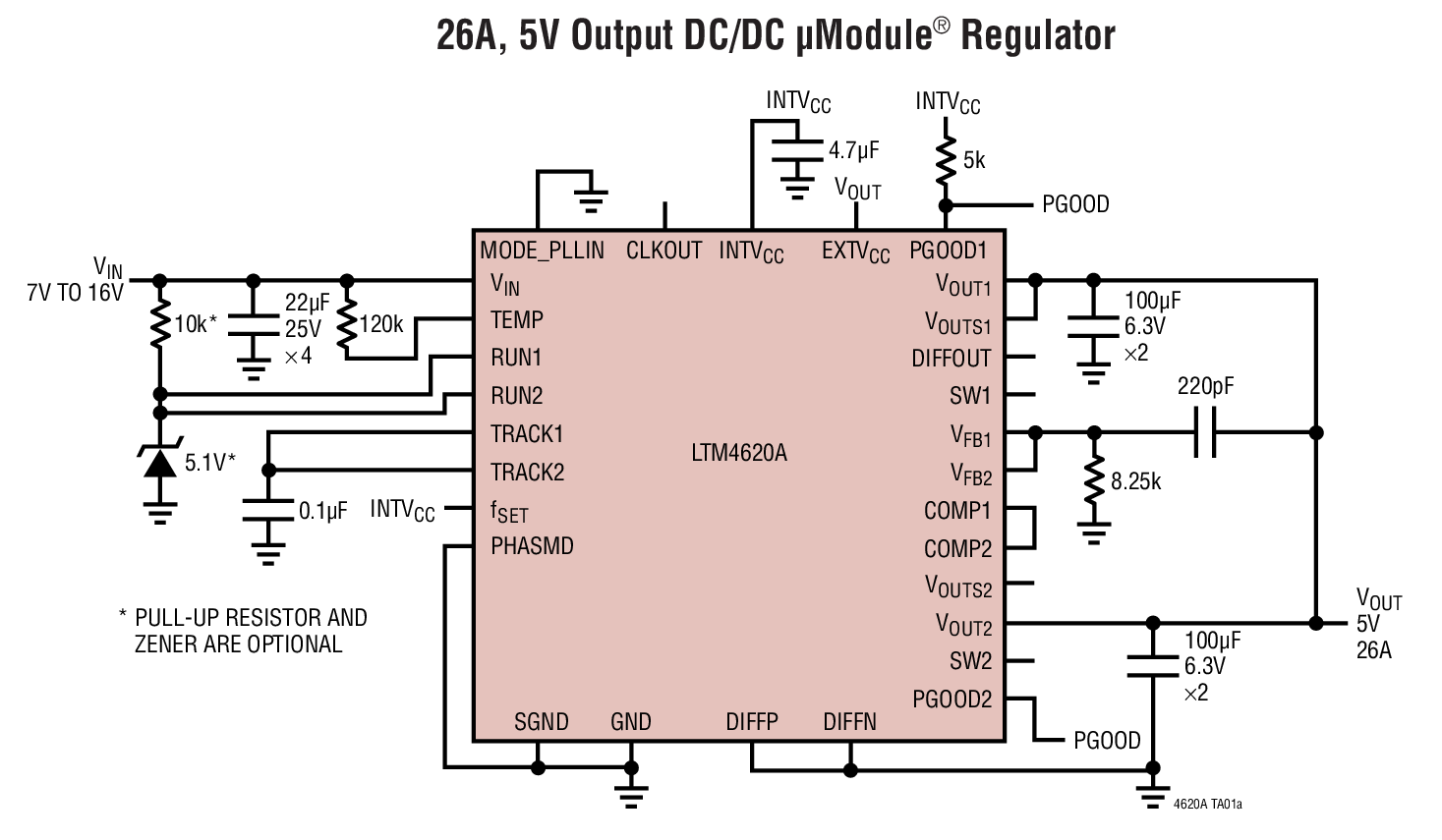

LTM4620ADual 13A or Single 26A DC/DC μModule (Power Module) Regulator | DC DC Converters | 4 | Active | The LTM4620A is a complete dual 13A, or single 26A output switching mode DC/DC power supply with wider VOUTrange and higher efficiency than the LTM4620. Included in the package are the switching controller, power FETs, inductors and all supporting components. Operating from an input voltage range of 4.5V to 16V, the LTM4620A supports two outputs each with an output voltage range of 0.6V to 5.3V, set by a single external resistor. Its high efficiency design delivers up to 13A continuous current for each output. Only a few input and output capacitors are needed.The device supports frequency synchronization, multiphase operation, Burst Mode®operation and output voltage tracking for supply rail sequencing and has an onboard temperature diode for device temperature monitoring. High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability.Fault protection features include overvoltage and overcurrent protection. The power module is offered in a proprietary space saving and thermally enhanced 15mm × 15mm × 4.41mm LGA package and 15mm × 15mm × 5.01mm BGA package. The LTM4620A is available with SnPb (BGA) or RoHS compliant terminal finish.Vout RangeEfficiency 12Vin, 1.2VoutLTM46200.6V-2.5V83%LTM4620A0.6V-5.3V86%ApplicationsTelecom and Networking EquipmentIndustrial Equipment |
| Power Supplies - Board Mount | 5 | Active | |

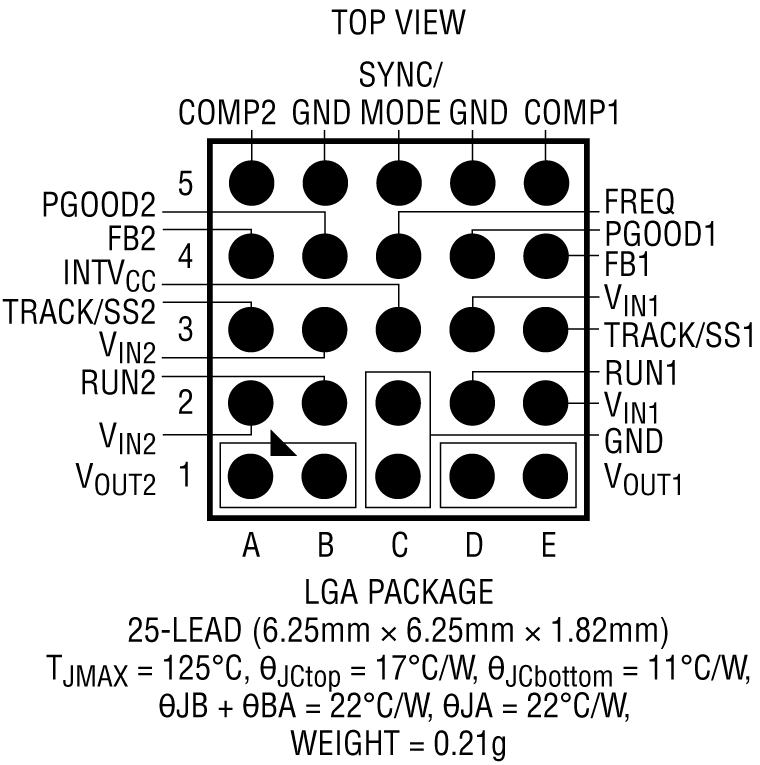

LTM4622ADual Ultrathin 2A or Single 4A Step-Down DC/DC μModule Regulator | Power Supplies - Board Mount | 5 | Active | The LTM4622A is a complete dual 2A step-down switching mode μModule®(micromodule) regulator in a tiny ultrathin 6.25mm × 6.25mm × 1.82mm LGA and 2.42mm BGA packages. Included in the package are the switching controller, power FETs, inductor and support components. Operating over an input voltage range of 3.6V to 20V, the LTM4622A supports an output voltage range of 1.5V to 12V, set by a single external resistor. Its high efficiency design delivers dual 2A continuous, 3A peak, output current. Only a few ceramic input and output capacitors are needed.The LTM4622A supports selectable Burst Mode operation and output voltage tracking for supply rail sequencing. Its high switching frequency and current mode control enable a very fast transient response to line and load changes without sacrificing stability.Fault protection features include input overvoltage, output overcurrent and overtemperature protection.The LTM4622A is available with SnPb (BGA) or RoHS compliant terminal finish.Product Selection GuidePart NumberVINRangeVOUTRangeIOUTLTM46223.6V to 20V0.6V to 5.5VDual 2.5A or Single 5ALTM4622A1.5V to 12VDual 2A or Single 4AApplicationsGeneral Purpose Point-of-Load ConversionTelecom, Networking and Industrial EquipmentMedical Diagnostic EquipmentTest and Debug Systems |

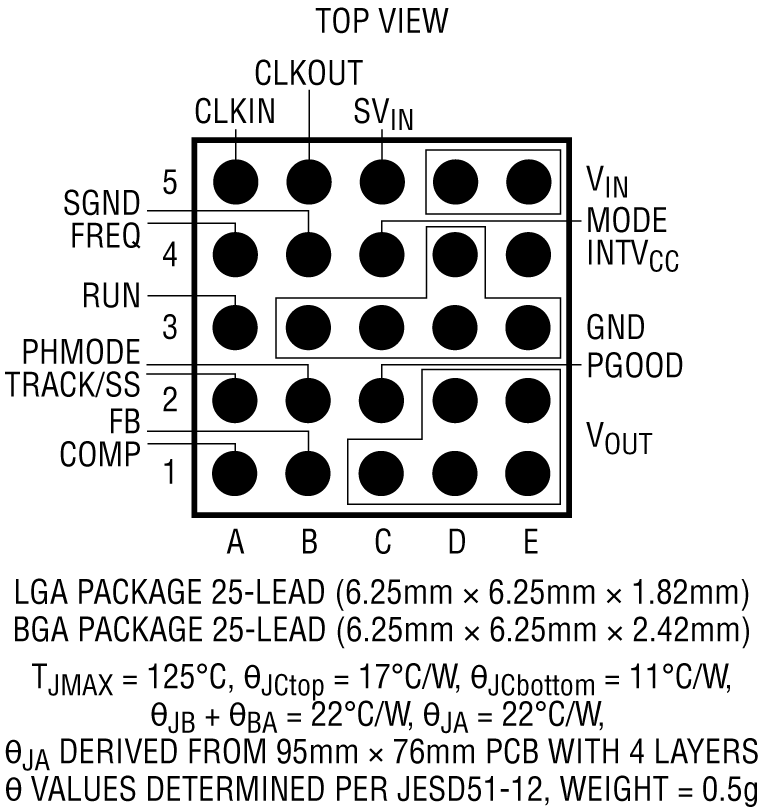

LTM4623Ultrathin 20VIN, 3A Step-Down DC/DC μModule (Power Module) Regulator | DC DC Converters | 5 | Active | The LTM4623 is a complete 3A step-down switching mode μModule (micromodule) regulator in a tiny ultrathin 6.25mm × 6.25mm × 1.82mm LGA and 6.25mm × 6.25mm × 2.42mm BGA packages. Included in the package are the switching controller, power FETs, inductor and support components. Operating over an input voltage range of 4V to 20V or 2.375V to 20V with an external bias supply, the LTM4623 supports an output voltage range of 0.6V to 5.5V, set by a single external resistor. Its high efficiency design delivers 3A continuous output current. Only ceramic input and output capacitors are needed.The LTM4623 supports selectable discontinuous mode operation and output voltage tracking for supply rail sequencing. Its high switching frequency and current mode control enable a very fast transient response to line and load changes without sacrificing stability.Fault protection features include overvoltage, overcurrent and overtemperature protection.The LTM4623 is available with SnPb (BGA) or RoHS compliant terminal finish.APPLICATIONSPCIe and Backside PCB MountingTelecom, Datacom, Networking and Industrial EquipmentData Storage Rack Units and Cards |

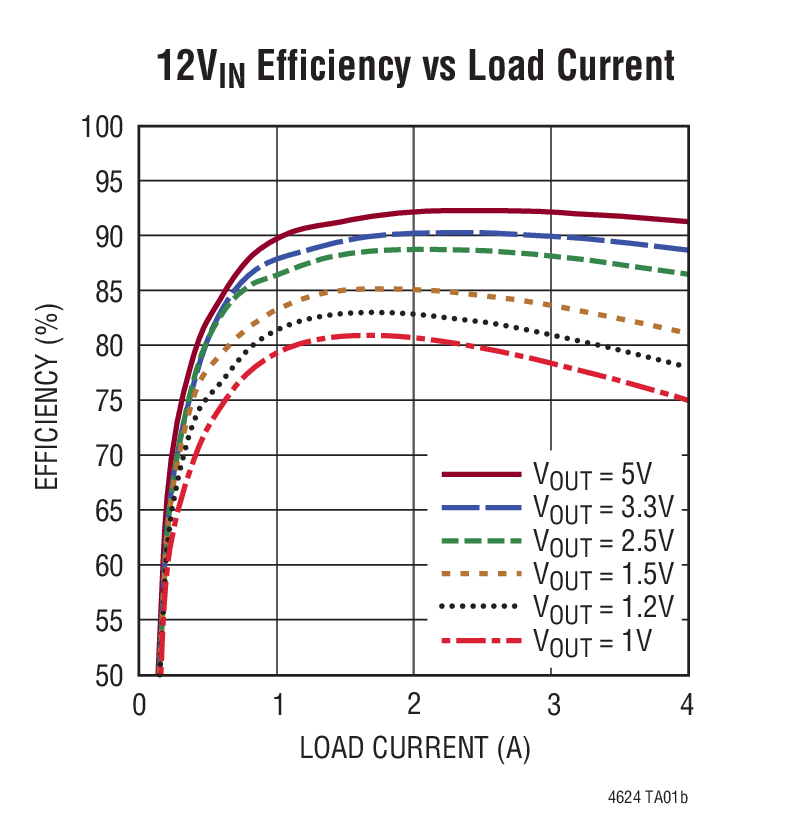

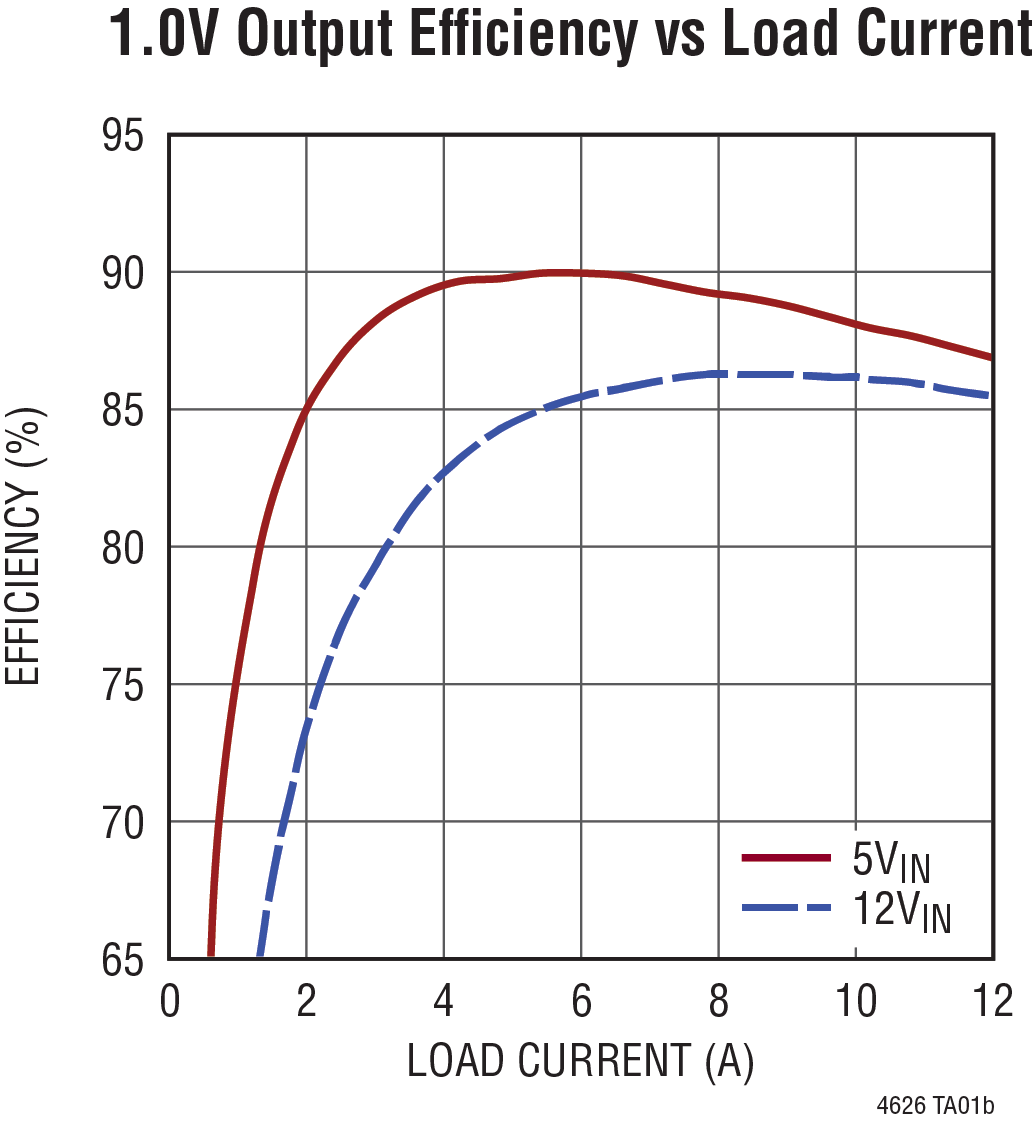

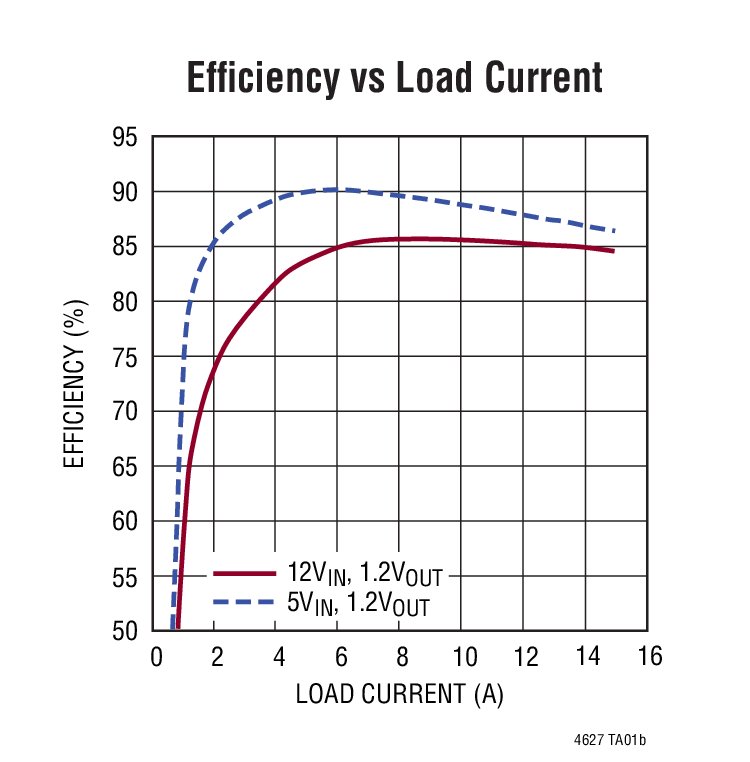

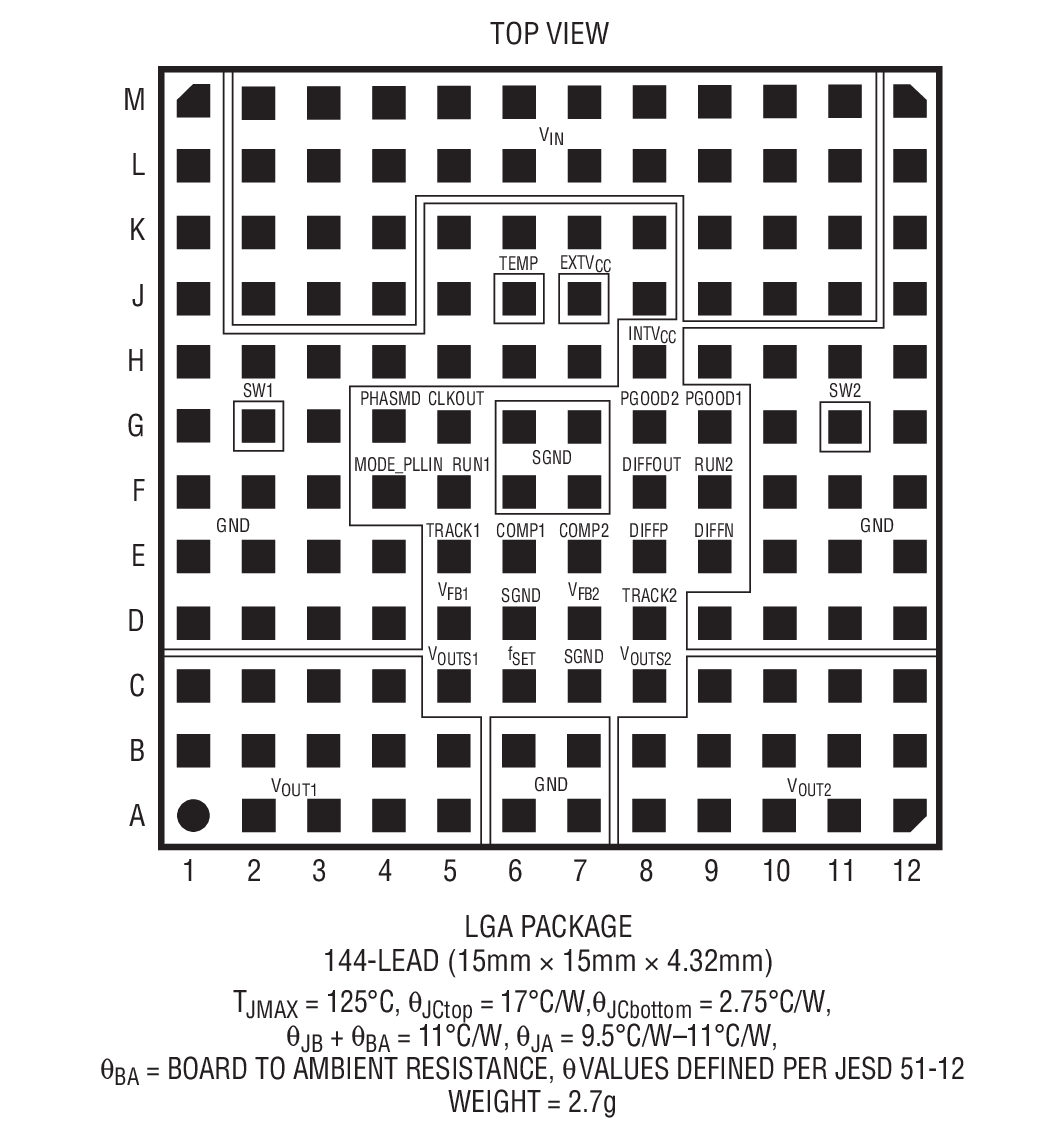

LTM462414VIN, 4A Step-Down DC/DC μModule (Power Module) Regulator | Development Boards, Kits, Programmers | 4 | Active | The LTM4624 is a complete 4A step-down switching mode μModule®(micromodule) regulator in a tiny 6.25mm × 6.25mm × 5.01mm BGA package. Included in the package are the switching controller, power FETs, inductor and support components. Operating over an input voltage range of 4V to 14V or 2.375V to 14V with an external bias supply, the LTM4624 supports an output voltage range of 0.6V to 5.5V, set by a single external resistor. Its high efficiency design delivers 4A continuous, 5A peak, output current. Only bulk input and output capacitors are needed.The LTM4624 supports selectable discontinuous mode operation and output voltage tracking for supply rail sequencing. Its high switching frequency and current mode control enable a very fast transient response to line and load changes without sacrificing stability.Fault protection features include overvoltage, overcurrent and overtemperature protection.The LTM4624 is available with SnPb (BGA) or RoHS compliant terminal finish.APPLICATIONSTelecom, Datacom, Networking and Industrial EquipmentMedical Diagnostic EquipmentData Storage Rack Units and CardsTest and Debug Systems |
| DC DC Converters | 3 | Active | |
| Development Boards, Kits, Programmers | 4 | Active | |
| DC DC Converters | 7 | Active | |
| Power Supplies - Board Mount | 5 | Active | |
LTM4630Dual 18A or Single 36A DC/DC μModule (Power Module) Regulator | DC DC Converters | 9 | Active | The LTM4630 is a dual 18A or single 36A output switching mode step-down DC/DC μModule®(power module) regulator. Included in the package are the switching controllers, power FETs, inductors, and all supporting components. Operating from an input voltage range of 4.5V to 15V, the LTM4630 supports two outputs each with an output voltage range of 0.6V to 1.8V, each set by a single external resistor. Its high efficiency design delivers up to 18A continuous current for each output. Only a few input and output capacitors are needed. The LTM4630 is pin compatible with the LTM4620 and LTM4620A (dual 13A, single 26A) and the LTM4628 (dual 8A, single 16A).The device supports frequency synchronization, multiphase operation, Burst Mode operation and output voltage tracking for supply rail sequencing and has an onboard temperature diode for device temperature monitoring. High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability.Fault protection features include overvoltage and overcurrent protection. The LTM4630 is offered in 16mm × 16mm × 4.41mm LGA and 16mm × 16mm × 5.01mm BGA packages. The LTM4630 is ROHS compliant.FeaturesVoutLTM46300.6V to 1.8VLTM4630-10.8% DC and 3% Transient Accuracy0.6V to 1.8VLTM4630AHigher Light Load Efficiency0.6V to 5.3VApplicationsTelecom and Networking EquipmentStorage and ATCA CardsIndustrial Equipment |
