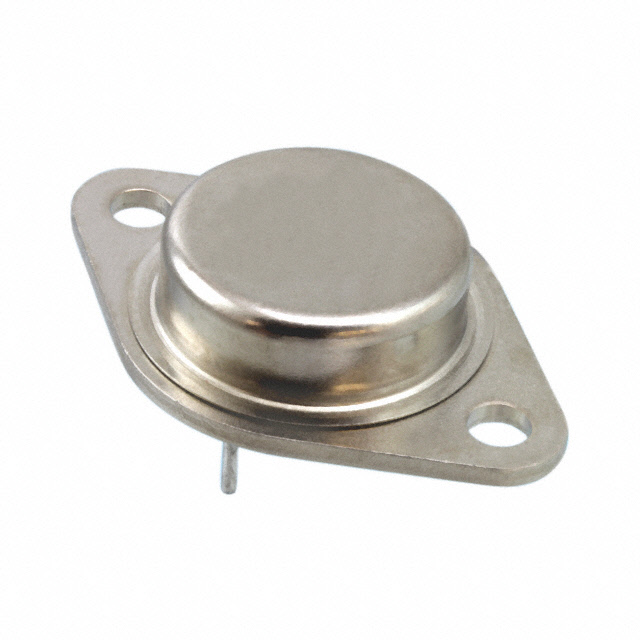

JANTXV2N3442-Transistor Series

NPN Silicon High-Power 140V, 10A

Catalog

NPN Silicon High-Power 140V, 10A

Part	Grade	Operating Temperature [Min]	Operating Temperature [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max)	Mounting Type	Qualification	Vce Saturation (Max) @ Ib, Ic	Transistor Type	Package / Case	Current - Collector Cutoff (Max) [Max]
Microchip Technology JAN2N3442	Military	-55 °C	200 C	20	6 W	140 V	Through Hole	MIL-PRF-19500/370	1 V	NPN	TO-204AA TO-3
Microchip Technology JANTX2N3442	Military	-55 °C	200 C	20	6 W	140 V	Through Hole	MIL-PRF-19500/307	1 V	NPN	TO-204AA TO-3
Microchip Technology JANTXV2N3442	Military	-55 °C	200 C	20	6 W	140 V	Through Hole	MIL-PRF-19500/370	1 V	NPN	TO-204AA TO-3
Microchip Technology 2N3442		-55 °C	200 C	20	6 W	140 V	Through Hole		1 V	NPN	TO-204AA TO-3	1 mA

Catalog

NPN Silicon High-Power 140V, 10A

Key Features

- The device package style is TO-204AA (formerly TO-3).

Description

This specification covers the performance requirements for NPN silicon, high-power 2N3442 transistor. Three levels of product assurance (JAN, JANTX and JANTXV) are provided for each device type as specified in MIL-PRF-19500/370.The device package style is TO-204AA (formerly TO-3).
